COOAU 4G LTE Solar Powered Outdoor Security Camera (Model AR-W607) Instruction Manual

1. 서론

Thank you for choosing the COOAU 4G LTE Solar Powered Outdoor Security Camera, Model AR-W607. This manual provides essential information for the proper installation, operation, and maintenance of your new security camera. Please read it thoroughly before use and keep it for future reference.

This advanced outdoor security camera offers complete wireless freedom, eliminating the need for Wi-Fi or external power sources. It operates on 4G LTE cellular networks and is powered by an integrated solar panel, ensuring continuous surveillance in various outdoor environments.

2. 패키지 내용

아래 나열된 모든 품목이 패키지에 포함되어 있는지 확인해 주세요. 품목이 누락되었거나 손상된 경우 고객 지원팀에 문의해 주세요.

• COOAU 4G LTE Security Camera Body
• 장착 스탠드
• 태양광 패널
• 사용 설명서
• 장착 나사 및 앵커
• 유심 카드 (사전 설치 또는 포함)

3. 주요 특징

• 4G LTE 연결: Operates independently without Wi-Fi, providing surveillance in remote areas. Includes a free 100MB data SIM card for immediate use.
• 태양열 전원: Equipped with a high-efficiency monocrystalline solar panel (up to 19.5% conversion rate) for continuous, eco-friendly power.
• 3MP 고해상도 비디오: Captures clear and detailed images at 1296p resolution, allowing for precise identification even from a distance.
• 360-Degree Pan/Tilt/Zoom (PTZ): 카메라를 원격으로 제어합니다. viewing angle with 350° horizontal pan and 90° vertical tilt for comprehensive coverage. Features 8x digital zoom.
• 24-Hour Full-Color Night Vision: Four LED lights enable vivid color recording at night, enhancing security and identification capabilities.
• PIR 인체 동작 감지: Advanced human and motion detection with customizable detection zones. Receive instant push notifications with photos to your smartphone.
• Built-in 64GB Micro SD Card: Automatically records detected events to the internal 64GB Micro SD card. Supports up to 128GB.
• 양방향 오디오 : Communicate directly through the camera using your smartphone app, allowing for real-time interaction or deterrence.
• 가족 공유: Easily share camera access with family and friends via QR code. Supports simultaneous viewing by up to 4 users.
• IP65 방수: Designed for outdoor use, resistant to dust and water, operating reliably in temperatures from -10°C to 55°C.

4. 설정 가이드

4.1 초기 충전

Before first use, fully charge the camera's internal battery using a standard USB charger. This ensures sufficient power for initial setup and operation.

4.2 SIM 카드 및 마이크로 SD 카드 설치

The camera comes with a pre-installed or included SIM card and a 64GB Micro SD card. Ensure they are properly seated in their respective slots. The SIM card enables 4G LTE connectivity, and the Micro SD card stores recordings.

이미지: 클로즈업 view of the camera's SIM card and Micro SD card slot, indicating where to insert the cards.

4.3 앱 다운로드 및 계정 생성

Download the 'CloudEdge' app from your smartphone's app store (available for iOS and Android). Follow the in-app instructions to create a new account or log in if you already have one.

4.4 카메라 페어링

1. Open the 'CloudEdge' app and tap 'Add Device'.
2. 목록에서 카메라 모델을 선택하세요.
3. Follow the on-screen prompts to scan the QR code on the camera or manually enter its ID.
4. The app will guide you through connecting the camera to the 4G LTE network.

4.5 카메라 장착

수신이 가능한 적절한 실외 위치를 선택하십시오. ample sunlight for the solar panel and provides the desired viewing angle. Use the provided mounting stand, screws, and anchors to securely attach the camera and solar panel. Ensure the solar panel is positioned to maximize sun exposure.

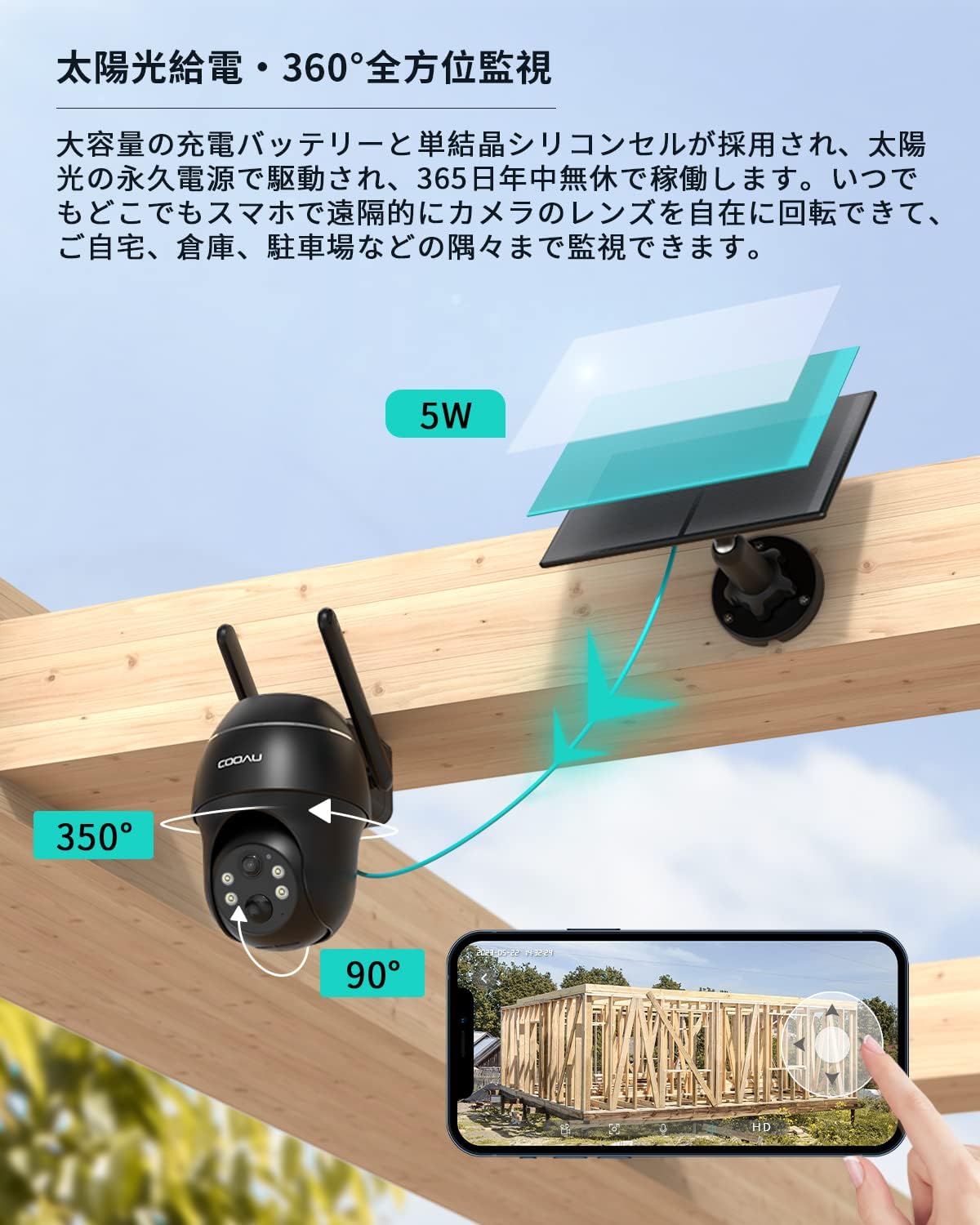

Image: The COOAU camera mounted on a pillar with its solar panel, illustrating its 350-degree pan and 90-degree tilt capabilities.

Image: The camera mounted on a tree, demonstrating its IP65 weather resistance in rainy conditions.

5. 사용 설명서

5.1 라이브 View 및 PTZ 제어

Open the 'CloudEdge' app and select your camera to access the live video feed. Use the on-screen controls to pan (350°), tilt (90°), and digitally zoom (8x) the camera to adjust your view지역입니다.

Image: A smartphone displaying the live feed from the camera, with options for remote control and two-way communication.

5.2 양방향 오디오

라이브 중 view, tap the microphone icon in the app to enable two-way audio. You can speak through your phone, and your voice will be projected through the camera's speaker. This feature is useful for communicating with visitors or deterring intruders.

5.3 동작 감지 및 알림

The camera uses PIR (Passive Infrared) technology for human motion detection. When motion is detected in the configured area, the camera will automatically start recording and send a push notification with a snapshot to your smartphone.

Image: A person walking on a street, highlighted by the camera's motion detection zone, with a push notification indicating an alert.

5.4 야간 투시 모드

The camera supports both infrared (black and white) and full-color night vision. The four built-in LED lights provide illumination for color night vision. You can switch between modes or set it to automatically adjust based on ambient light conditions within the app.

Image: A split image demonstrating the difference between color night vision (left, with LEDs on) and infrared night vision (right, black and white) from the camera.

5.5 녹음 및 재생

All detected events are recorded to the built-in 64GB Micro SD card. You can access recorded footage through the 'CloudEdge' app. The app allows you to view recordings by date and time, making it efficient to review 특정 이벤트.

6. 유지관리

6.1 태양광 패널 청소

Regularly clean the surface of the solar panel to ensure optimal charging efficiency. Dust, dirt, and debris can reduce its performance. Use a soft, damp 패널을 부드럽게 닦을 천.

6.2 펌웨어 업데이트

Periodically check the 'CloudEdge' app for available firmware updates. Keeping your camera's firmware up-to-date ensures optimal performance, security, and access to new features.

6.3 SD 카드 관리

The camera's built-in 64GB Micro SD card will automatically overwrite older footage when full. If you wish to manually manage recordings or replace the card, refer to the app settings for formatting options or physical access to the card slot.

7. 문제 해결

• Camera not connecting to 4G LTE: Ensure the SIM card is correctly inserted and activated. Check for network coverage in the installation area. Restart the camera.
• No recordings or motion alerts: Verify that motion detection is enabled in the app settings. Check the Micro SD card status (ensure it's not full or corrupted). Ensure the camera's battery is charged.
• 이미지 품질이 좋지 않음: 카메라 렌즈를 청소하세요. 카메라 시야에 방해물이 없는지 확인하세요. view. Check network signal strength for live view 품질.
• 태양광 패널이 충전되지 않습니다: 태양광 패널이 깨끗하고 매일 몇 시간씩 직사광선을 받는지 확인하십시오. 태양광 패널과 카메라를 연결하는 케이블을 점검하십시오.
• 양방향 오디오 문제: 스마트폰의 마이크와 스피커 설정을 확인하세요. 카메라의 마이크와 스피커가 가려져 있지 않은지 확인하십시오.

For further assistance, please refer to the FAQ section within the 'CloudEdge' app or contact COOAU customer support.

8. 사양

9. 보증 및 지원

The COOAU 4G LTE Solar Powered Outdoor Security Camera comes with a 24개월 보증 from the date of purchase. This product is TELEC certified, ensuring compliance with technical standards.

If you encounter any issues or have questions regarding your product, please contact COOAU customer support through your Amazon order history. Our support team is dedicated to providing prompt and helpful assistance.
