1. 서론
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your GMKtec M5 Pro Mini PC. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.
The GMKtec M5 Pro is a compact and powerful mini PC designed for various applications, including office work, gaming, and multimedia. It features an AMD Ryzen 7 5700U processor, ample memory, and fast storage, along with comprehensive connectivity options.
이미지 1.1: 앞면 view of the GMKtec M5 Pro Mini PC.
2. 패키지 내용
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact GMKtec support.
- 1 x GMKtec Nucbox M5 Pro AMD Ryzen 7 5700U Mini PC
- 1 x 전원 어댑터
- VESA 마운트 1개 (나사 포함)
- 1 x HDMI 케이블
- 1 x 사용자 매뉴얼(이 문서)
Image 2.1: Retail boxed packaging showing the Mini PC and included accessories.
3. 설정
3.1 초기 배치
Place the GMKtec M5 Pro Mini PC on a stable, flat surface with adequate ventilation. Ensure that the cooling vents are not obstructed. The device can also be mounted to the back of a VESA-compatible monitor using the included VESA mount.
3.2 주변기기 연결하기
Refer to the port diagram below for connecting your peripherals.
Image 3.1: Rich interface diagram showing all available ports.
- 표시하다: Connect your monitor(s) using the HDMI 2.0, DisplayPort 1.4, or USB-C (DP Alt Mode) ports. The Mini PC supports up to three 4K@60Hz displays simultaneously.
- 키보드 및 마우스: Connect your USB keyboard and mouse to the USB 3.2 or USB 2.0 ports. Wireless peripherals can be connected via Bluetooth 5.2.
- 회로망: Connect an Ethernet cable to one of the two 2.5G RJ45 LAN ports for a wired network connection. For wireless connectivity, the device supports WiFi 6E.
- 오디오: 헤드폰이나 스피커를 3.5mm 오디오 잭에 연결합니다.
- 힘: Connect the included power adapter to the DC IN 19V/3.42A port and then to a power outlet.
3.3 전원 켜기
After connecting all necessary peripherals and the power adapter, press the power button located on the front of the Mini PC. The power indicator light will illuminate, and the system will begin to boot.
4. 사용 설명서
4.1 운영 체제
The GMKtec M5 Pro Mini PC comes pre-installed with Windows 11 Pro. Follow the on-screen instructions for initial Windows setup, including language, region, and user account creation.
4.2 디스플레이 구성
The Mini PC supports triple display output at 4K@60Hz. After connecting multiple monitors, you may need to configure display settings within Windows. Right-click on the desktop, select 'Display settings', and arrange your displays as desired (e.g., extend, duplicate).
Image 4.1: Triple Ultra HD Display setup with the Mini PC.
4.3 네트워크 연결
유선 네트워크: Connect an Ethernet cable to either of the 2.5G RJ45 ports. The system will automatically detect the connection.
Image 4.2: Dual LAN High Speed Ethernet ports.
Wireless Network (WiFi 6E): To connect to a wireless network, click the network icon in the Windows taskbar, select your desired WiFi network, and enter the password if prompted. The Mini PC supports WiFi 6E for faster and lower latency connections across 2.4GHz, 5GHz, and 6GHz bands.

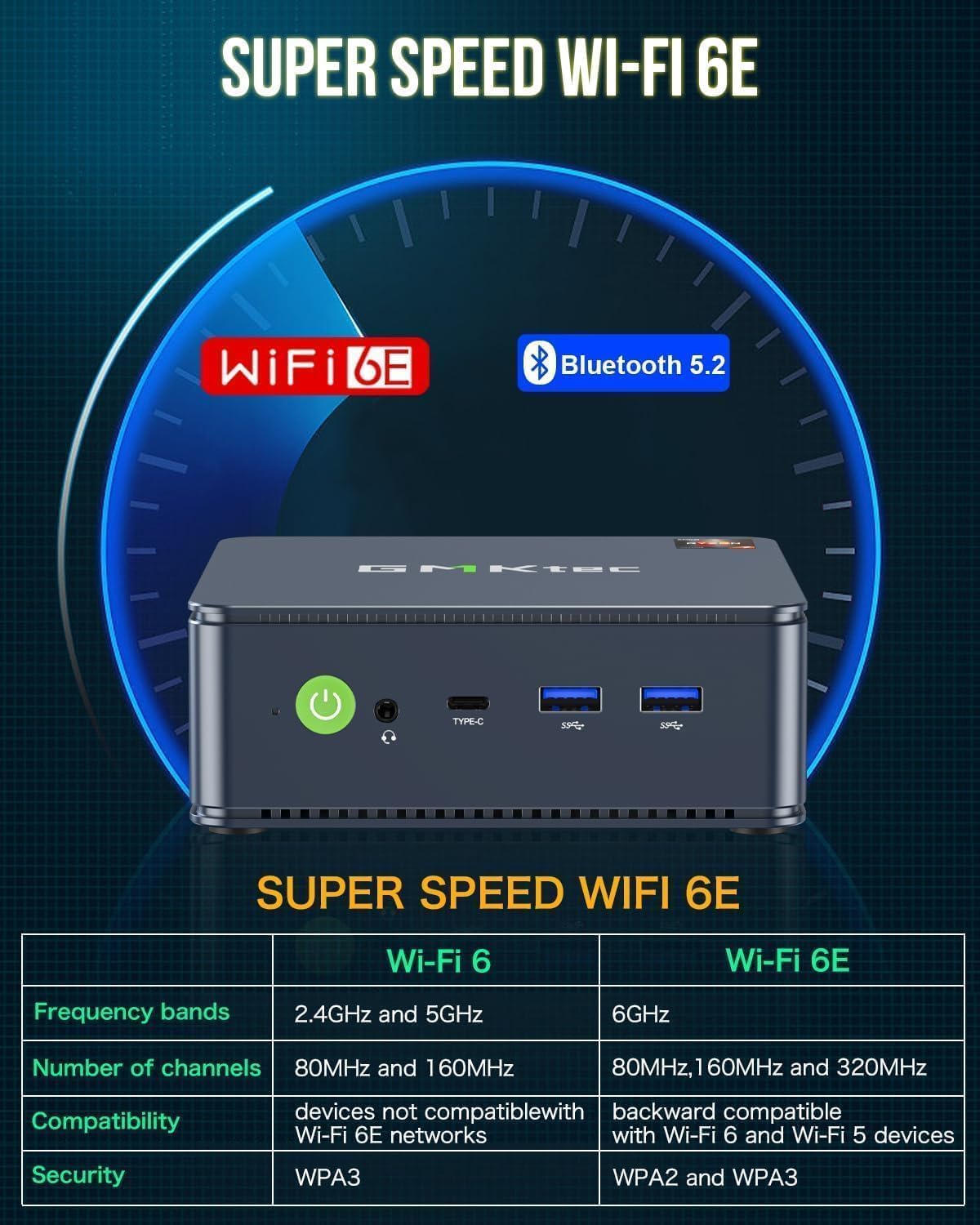

Image 4.3: Super Speed WiFi 6E and Bluetooth 5.2 features.
4.4 저장 장치 및 메모리 확장
The GMKtec M5 Pro comes with 32GB DDR4 RAM and a 1TB PCIe 3.0 SSD. The system supports expansion up to 64GB RAM (via two DDR4 slots) and up to 4TB SSD (via dual M.2 2280 PCIe slots). Refer to the internal component diagram for slot locations. Upgrades are not included and should be performed by a qualified technician if you are unsure.
Image 4.4: Premium parts and design, illustrating internal components and upgrade options.
5. 유지관리
5.1 청소
Regularly clean the exterior of the Mini PC with a soft, dry cloth. Use compressed air to gently clear dust from the cooling vents to ensure optimal airflow and prevent overheating. Do not use liquid cleaners directly on the device.
5.2 소프트웨어 업데이트
Keep your Windows operating system and device drivers updated to ensure system stability, security, and performance. Windows Update can be accessed via 'Settings > Update & Security > Windows Update'.
6. 문제 해결
- 전원 없음: 전원 어댑터가 미니 PC와 작동하는 전원 콘센트에 제대로 연결되어 있는지 확인하십시오. 전원 표시등이 켜져 있는지 확인하십시오.
- 디스플레이 없음: Verify that the HDMI or DisplayPort cable is securely connected to both the Mini PC and the monitor. Ensure the monitor is powered on and set to the correct input source. Try a different cable or monitor if possible.
- 인터넷에 연결되지 않음: For wired connections, check the Ethernet cable and router status. For wireless connections, ensure WiFi is enabled, you are connected to the correct network, and the password is correct. Restarting the router and Mini PC can often resolve connectivity issues.
- 느린 성능: Close unnecessary applications. Check Task Manager for high CPU or RAM usage. Ensure the system has adequate ventilation. Consider performing a disk cleanup or defragmentation.
- 팬 소음: Some fan noise is normal under heavy load. If the fan is excessively loud or constantly running at high speed, ensure cooling vents are clear of obstructions and the device is in a well-ventilated area.
추가적인 도움이 필요하시면 지원 섹션을 참조하시거나 GMKtec 고객 서비스 센터로 문의해 주십시오.
7. 사양
| 특징 | 세부 사항 |
|---|---|
| 프로세서 | AMD 라이젠 7 5700U (8코어/16스레드, 최대 4.50GHz) |
| 제도법 | AMD Radeon Vega Graphics 8core 1900 MHz GPU |
| 숫양 | 32GB DDR4 (듀얼 채널, 최대 64GB까지 확장 가능) |
| 저장 | 1TB M.2 2280 PCIe 3.0 SSD (expandable to 4TB via dual slots) |
| 운영 체제 | 윈도우 11 프로 |
| 무선 연결 | WiFi 6E(2.4G/5G/6G), 블루투스 5.2 |
| 유선 연결 | 2 x 2.5G RJ45 Gigabit Ethernet |
| 비디오 출력 | 1 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x USB-C (DP Alt Mode) |
| USB 포트 | 3 x USB 3.2, 2 x USB 2.0, 1 x USB-C (Data/DP/PD) |
| 오디오 | 1 x 3.5mm 오디오 잭 |
| 치수 | 약 3.94 x 3.94 x 3.94인치 |
| 무게 | 약 9.6온스 |
8. 보증 및 지원
8.1 보증 정보
GMKtec은 모든 미니 PC에 대해 구매일로부터 1년간 제한적 보증을 제공합니다. 이 보증은 설계 및 제조상의 결함에 적용됩니다. 보증 청구를 위해 구매 증빙 자료를 보관해 주십시오.
8.2 고객 지원
For technical support, warranty claims, or any other inquiries, please visit the official GMKtec website or contact their customer service team. Contact information can typically be found on the GMKtec web자세한 내용은 웹사이트 또는 제품 패키지에 포함된 보증 카드를 참조하십시오.
온라인 리소스: GMKtec 아마존 스토어
