1. 제품 오버view
The Xiaomi Dust Mite Vacuum Cleaner 2 Pro is designed for effective removal of dust mites and allergens from various fabric surfaces. It features powerful suction, high-frequency beating, UV-C sterilization, warm-air drying, and smart dust-mite detection to ensure a hygienic environment.

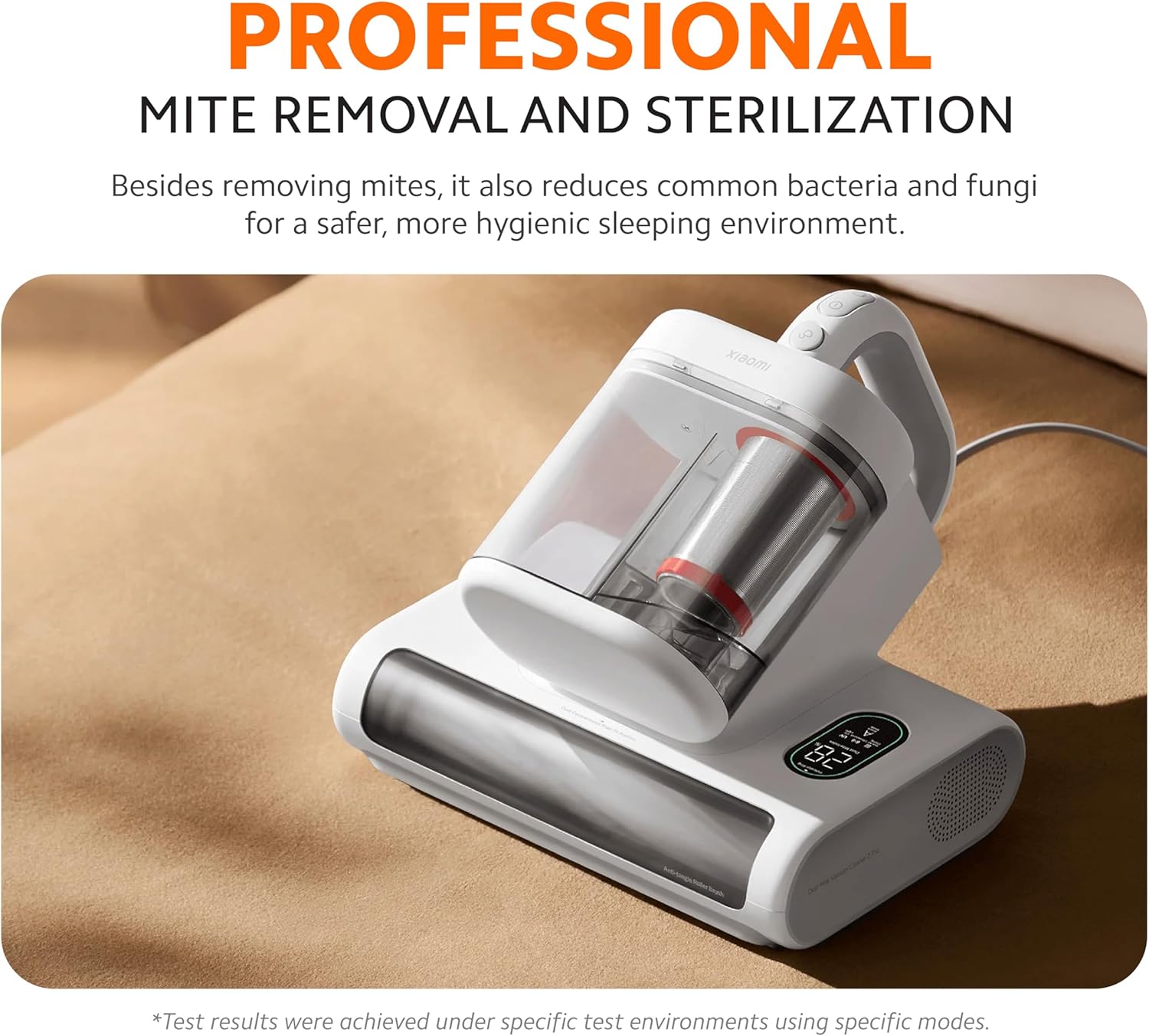

이미지: 이상view of the Xiaomi Dust Mite Vacuum Cleaner 2 Pro, showcasin컴팩트한 디자인과 주요 구성 요소.
Image: Visual summary of the vacuum cleaner's top features, including dual dust compartment, high-frequency tapping, suction power, UV light, smart mite detection, and 6-stag여과.
2. 설정
2.1 풀기
Carefully remove all components from the packaging. Retain the packaging for future storage or transport. Ensure all parts listed in the packing list are present and undamaged.
2.2 구성 요소 식별
- Main Unit (with motor and handle)
- Dust Collection Bin (dual compartment)
- Roller Brush Head
- 전원 코드
- 사용 설명서 (본 문서)
2.3 초기 조립
- Attach the roller brush head to the main unit by aligning the connectors and pushing until it clicks into place.
- Ensure the dust collection bin is securely attached to the main unit.
- Connect the power cord to the vacuum cleaner and then plug it into a suitable power outlet (220V).
3. 사용 설명서
3.1 전원 켜기/끄기
Press the power button located on the handle to turn the vacuum cleaner on. Press it again to turn off the device.
3.2 흡입력
The vacuum cleaner provides 16 kPa of powerful suction to effectively remove dust mites and particles from deep within fabrics.
Image: Illustration of the vacuum cleaner's powerful 16,000Pa suction lifting dust mites and debris from a fabric surface.
3.3 High-Frequency Beating
The roller brush delivers 72,000 taps per minute to dislodge mites and dust embedded in fabrics. This action, combined with the anti-tangle design, ensures thorough cleaning and reduces hair buildup.
Image: Close-up of the vacuum head demonstrating the high-frequency tapping mechanism on a mattress surface.
3.4 UV-C Sterilization and Ultrasonic Mite Disruption
Activate the UV-C sterilization feature to eliminate bacteria. The integrated ultrasonic waves further disrupt dust mite activity. For safety, the UV light automatically turns off when the vacuum is lifted from the surface.
Image: The vacuum cleaner in operation, showing the purple glow of the LED UV light for sterilization and a safety icon indicating automatic shut-off when lifted.
3.5 65°C Warm-Air Drying
The vacuum cleaner can blow 65°C hot air to dry bedding and upholstery, creating an unfavorable environment for dust mites and ensuring constant dryness.
Image: The vacuum cleaner demonstrating its 65°C hot air drying function, with warm air being expelled to dry fabric surfaces.
3.6 Smart Dust-Mite Detection
The integrated mite sensor tracks mite levels in real-time and automatically adjusts suction power. The LED screen displays the mite index, mode, and status. Refer to the indicator lights:
- 녹색등 점등: Light Dust Mite Presence
- 황색등 점등: Moderate Dust Mite Presence
- Steady Orange Light: Heavy Dust Mite Presence
Image: Close-up of the vacuum cleaner's display panel showing the smart dust mite detection system with color-coded indicators for mite presence levels.
4. 유지관리
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner. Always unplug the device before performing any maintenance.
4.1 Cleaning the Dust Collection Bin
진공청소기의 특징은 upgraded dual dust compartment design. This system separates larger debris from fine dust, preventing clogging and maintaining suction efficiency. The 0.8L clear dust bin allows for easy monitoring of fullness.
- Press the release button to detach the dust collection bin from the main unit.
- Open the bin and empty its contents into a waste receptacle.
- Separate the dust compartment from the filter compartment. Clean both compartments thoroughly.
- Rinse the dust bin and filter components with water if necessary. Ensure they are completely dry before reassembling.
- Reattach the dust bin to the main unit until it clicks securely.
4.2 필터 관리
그만큼 6-stag전자 여과 시스템 captures particles as small as 0.3 µm. Regular cleaning of the filters is crucial to prevent secondary air pollution and maintain suction power.
- Remove the filters from the dust collection bin.
- Tap the filters gently to dislodge accumulated dust.
- If washable, rinse the filters under running water. Do not use detergents.
- Allow filters to air dry completely for at least 24 hours before reinserting them. Do not use a dryer or direct heat.
- 필터가 눈에 띄게 손상되었거나 청소 후에도 흡입력이 현저히 감소하는 경우 필터를 교체하십시오.
4.3 롤러 브러시 청소
Periodically check the roller brush for tangled hair or debris. The anti-tangle design minimizes buildup, but occasional cleaning is recommended.
- Detach the roller brush head from the main unit.
- Carefully remove any hair or fibers wrapped around the roller brush using scissors or a cleaning tool.
- 브러시와 브러시 케이스를 마른 천으로 닦으세요.
- Reattach the roller brush head.
5. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 장치의 전원이 켜지지 않습니다. | 전원 코드가 제대로 연결되지 않았습니다. 콘센트에서 전기가 나오지 않습니다. | Ensure power cord is securely plugged into both the device and a working electrical outlet. Test the outlet with another appliance. |
| 흡입력이 낮습니다. | Dust bin full. Filters clogged. Roller brush obstructed. | Empty the dust bin. Clean or replace filters. Remove any obstructions from the roller brush. |
| 자외선 램프가 작동하지 않습니다. | Device lifted from surface. UV lamp 부조. | Ensure the vacuum cleaner is in full contact with the surface. If the issue persists, contact customer support. |
| Smart detection light always orange. | High dust mite presence. Sensor dirty. | Continue cleaning the area thoroughly. Clean the mite sensor window with a soft, dry cloth. |
이러한 해결 방법을 시도한 후에도 문제가 지속되면 고객 지원팀에 문의하세요.
6. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 | 먼지 진드기 진공 청소기 2 프로 |
| 상표 | 샤오미 |
| 흡입력 | 16k파스칼 |
| High-Frequency Beating | 72,000 taps/min |
| 살균 | UV-C Light, Ultrasonic Mite Disruption |
| 건조 기능 | 65°C Warm-Air Drying |
| 여과 시스템 | 6-에스tage Filtration (captures 0.3 µm particles) |
| 먼지통 용량 | 0.8 L (Dual Compartment) |
| 전원 | 코드식 전기 |
| 권tage | 220 볼트 |
| 왓tage | 500 와트 |
| 품목 무게 | 2.4 킬로그램 |
| 폼 팩터 | 핸드헬드 |
| 권장 사용 | Mattress, Upholstery, Carpet |
7. 보증 및 지원
7.1 보증 정보
This product is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details. Keep your proof of purchase for warranty claims.
7.2 고객 지원
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact XIAOMI customer support. Visit the official XIAOMI web자세한 내용은 사이트를 참조하거나 제품 설명서에 제공된 연락처 정보를 참조하세요.
