소개
This manual provides comprehensive instructions for the safe and effective use of your Godox iT32 TTL Camera Flash and X5-F Trigger system. Designed for FUJIFILM cameras, this compact lighting solution offers versatile control and consistent results for various photographic needs. Please read this manual thoroughly before operating the device to ensure proper function and to prevent damage.
안전 정보
- 제품을 분해하거나 개조하지 마십시오. 수리는 반드시 공인 서비스 담당자만 수행해야 합니다.
- 기기를 건조하게 유지하세요. 비나 습기에 노출시키지 마세요.
- 화상을 입을 수 있으므로 발사 후 플래시 튜브를 만지지 마십시오.
- 어린이의 손이 닿지 않는 곳에 보관하세요.
- 지정된 배터리와 충전 액세서리만 사용하십시오.
- 특히 가까운 거리에서 플래시를 사용할 때는 눈에 직접 빛이 닿지 않도록 하십시오. 시력이 손상될 수 있습니다.
패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- 1 x Godox iT32 TTL Mini Flash
- 1 x X5 Flash Trigger
- 1 x USB-C 충전 케이블
- 1 x 보관 가방
- 1 x 디퓨저
- 1 x Magnetic Mini Stand
- 1 x Magnetic Color Filter (1/2 Orange)
- 1 x Magnetic Color Filter (1/1 Orange)
제품 끝view
The Godox iT32 TTL Camera Flash and X5-F Trigger system offers advanced lighting capabilities in a compact form factor. Key features include:
- All-in-one TTL Flash Kit: Supports automatic TTL, manual, and multi-flash modes with integrated Godox 2.4GHz X wireless system.
- Advanced Wireless Trigger System: The detachable X5F trigger allows wireless control of the iT32 and can also act as a transmitter for other Godox X system lights.
- High Speed Sync (HSS) & Intelligent TTL Control: Supports HSS up to 1/8000s, 1st and 2nd curtain sync, and Flash Exposure Compensation (FEC).
- Compact Design with Touch Screen & Built-in Battery: Features an intuitive touchscreen display and a 7.2V 900mAh lithium battery for extended operation.
- Adjustable LED Setting Light: 10 brightness levels for precise lighting assessment.
- 자석 액세서리: Includes a magnetic diffuser and color filters for creative lighting effects.

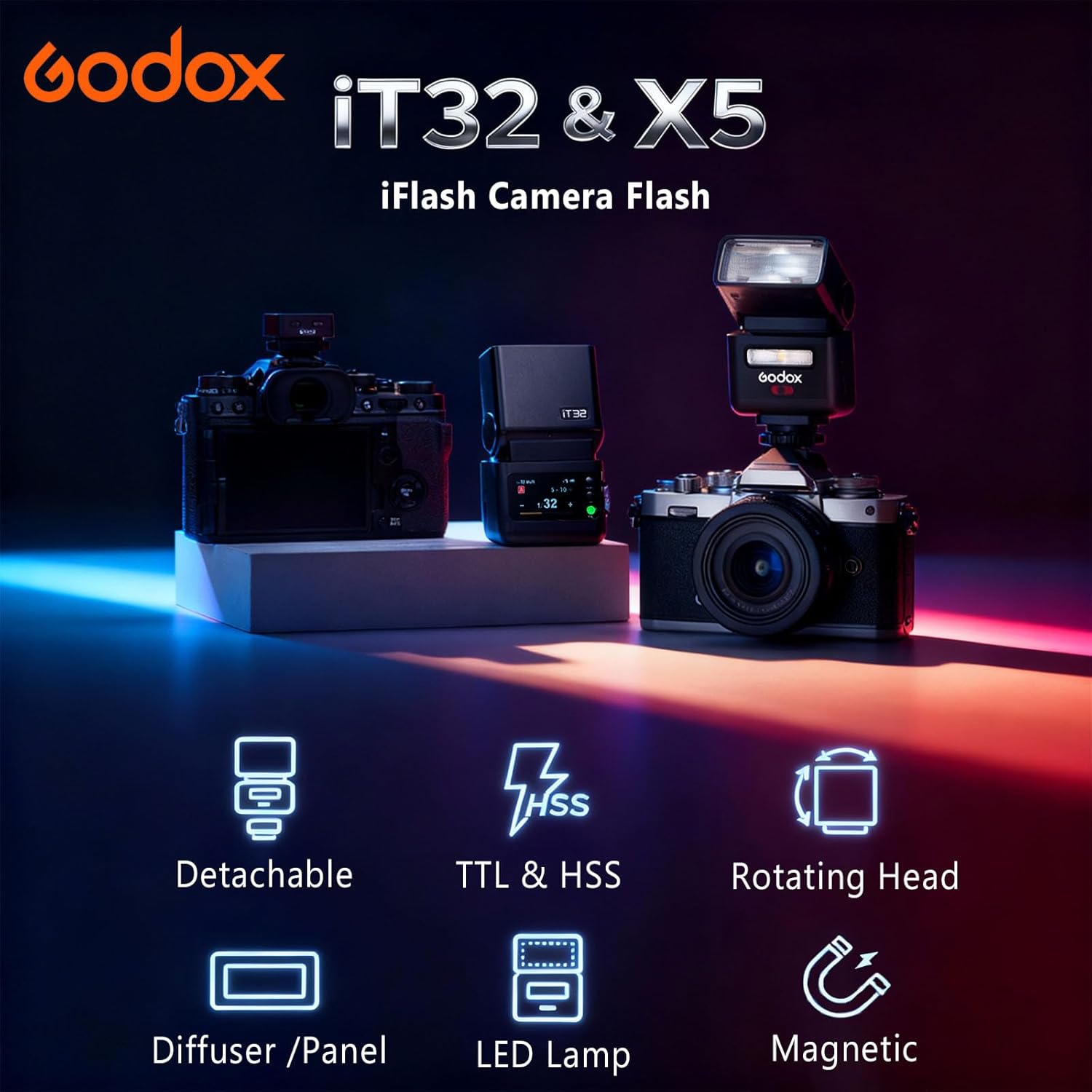

그림 1: 이상view of the Godox iT32 flash and X5 trigger, highlighting detachable design, TTL & HSS, rotating head, diffuser/panel, LED lamp, and magnetic features.
그림 2: 상세 view of the iT32's touchscreen control, flash head rotation (90° and 270°), built-in reflector and diffuser, and USB-C fast charging port.
설정
Attaching the X5F Trigger to the iT32 Flash
The X5F trigger is designed to integrate seamlessly with the iT32 flash. Simply align the X5F at the bottom of the iT32. The magnetic connection will automatically secure the trigger and establish communication.
카메라에 장착하기
Attach the combined iT32 and X5F unit to your FUJIFILM camera's hot shoe. Ensure it is securely fastened to prevent accidental detachment during use.
Figure 3: The iT32 flash with the X5F trigger integrated, shown mounted on a camera hotshoe. This image illustrates the "Hotshoe & Trigger in One" concept, including features like wireless power control, mode switching, S1/S2 mode, AF assist, and magnetic quick-mount.
작동 지침
전원 켜기/끄기 및 충전
The X5F trigger does not have a dedicated on/off switch. It powers on when attached to the iT32 flash or a compatible hot shoe. The iT32 flash is powered by a built-in 7.2V 900mAh lithium battery. Charge the iT32 using the provided USB-C cable. A full charge takes approximately 70 minutes and provides about 70 minutes of continuous operation at full power. The X5F's integrated 3.8V 100mAh battery charges when attached to the iT32 and provides up to 16 hours of standby time after a 3-hour charge.
Basic Flash Modes
The iT32 supports TTL (Through-The-Lens) automatic flash, Manual flash, and Multi-flash (stroboscopic) modes. Use the touchscreen interface to select and adjust these modes.
- TTL 모드: The flash output is automatically adjusted based on the camera's metering system for balanced exposure.
- 수동 모드: 플래시 출력값을 1/1에서 1/256까지 수동으로 설정할 수 있습니다.
- 다중 모드 : 한 번의 노출 동안 여러 번의 빠른 플래시를 터뜨려 피사체의 다양한 움직임을 포착하는 데 유용합니다.
High Speed Sync (HSS) and Sync Modes
The iT32 supports High Speed Sync (HSS) up to 1/8000s, allowing you to use flash at shutter speeds faster than your camera's native sync speed. It also supports 1st curtain sync and 2nd curtain sync for creative effects with moving subjects.
Wireless Control with X5F Trigger
The X5F trigger can be detached from the iT32 flash and mounted on your FUJIFILM camera's hot shoe to wirelessly control the iT32 from up to 20 meters (65 feet) away. When used as a standalone transmitter, the X5F can also trigger other Godox X system flashes within an 80-meter range. Refer to the X5F's specific instructions for pairing with other Godox units.
Figure 4: Illustration of the Godox 2.4G X Wireless System. The iT32 integrates this system to pair with slave flashes. The X5 transmitter can fire these slaved units. Note that the X5 cannot remotely adjust the power output of any non-iT32 Godox slaves.
Interchangeable X5 Hotshoe System
The Godox X5 system features interchangeable magnetic hotshoes (e.g., X5C for Canon, X5S for Sony, X5N for Nikon, X5O for Olympus/Panasonic, X5F for Fujifilm). This allows for instant switching between camera brands while maintaining a consistent setup. Ensure you are using the correct X5F trigger for your FUJIFILM camera.

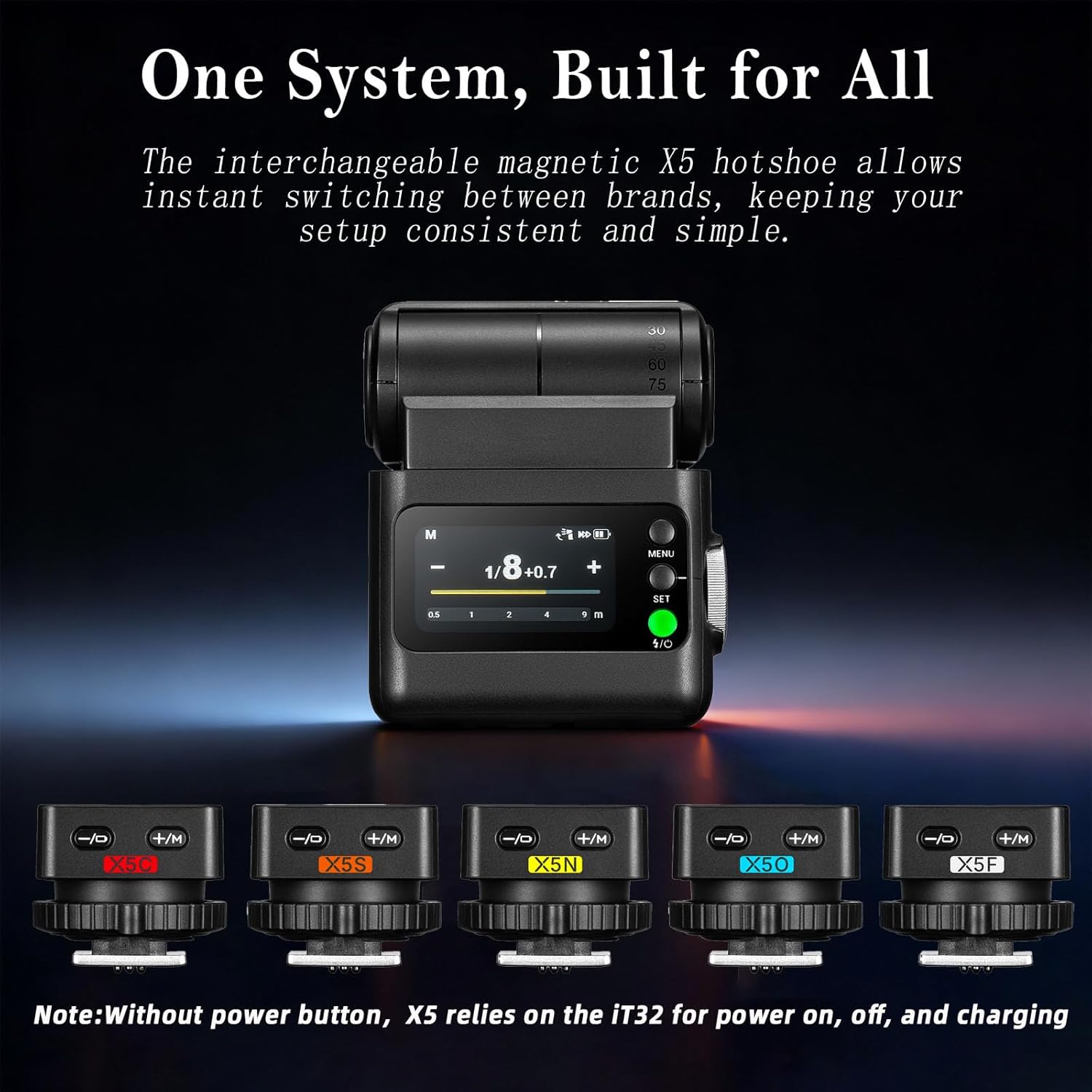

Figure 5: The "One System, Built for All" concept, showcasing various interchangeable magnetic X5 hotshoes (X5C, X5S, X5N, X5O, X5F) for different camera brands. This system allows for flexible use across multiple camera systems.
Using the LED Setting Light
The iT32 features an adjustable LED setting light with 10 brightness levels. This light helps you preview the lighting effect before taking a shot, aiding in precise light placement and adjustment.
자석 액세서리
The included magnetic diffuser and color filters (1/2 orange, 1/1 orange) can be easily attached to the flash head to modify light quality and color temperature. Additional color filters (MA02) can be purchased separately.
Figure 6: The iT32 flash shown with various magnetic accessories, including diffusers and color filters. This image demonstrates the versatility of the magnetic mounting system for light modification.
유지
- Clean the flash unit and trigger with a soft, dry cloth. Do not use solvents or abrasive cleaners.
- 기기를 서늘하고 건조한 곳에 보관하고, 직사광선과 극한의 온도를 피하세요.
- If not used for extended periods, charge the battery periodically to maintain its health.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 플래시가 터지지 않습니다. | Low battery; incorrect settings; trigger not properly connected. | Charge the battery; check flash mode and camera settings; ensure X5F is securely attached or paired. |
| 플래시 출력이 일관되지 않습니다. | Incorrect TTL compensation; ambient light interference; flash head position. | Adjust FEC; check for strong ambient light; reposition flash head. |
| X5F trigger not responding. | Low battery in X5F; out of range; interference. | Ensure X5F is charged (by attaching to iT32); reduce distance to iT32; check for other 2.4GHz devices. |
명세서
| 상표 | 고독스 |
| 모델 번호 | iT32 & X5F |
| 호환 가능한 마운팅 | 후지필름 카메라 |
| 가이드 번호 | 18 |
| 플래시 동기화 속도 | 1/8000초 (HSS) |
| 연결 기술 | 무선(2.4GHz) |
| iT32 Battery Life | Approx. 70 minutes at full power |
| X5F Battery Standby Time | 최대 16시간 |
| 패키지 크기 | 14 x 11 x 7.7cm |
| 무게 | 370g |
보증 및 지원
보증 정보 및 기술 지원에 대해서는 Godox 공식 웹사이트를 참조하십시오. web웹사이트를 방문하거나 공인 대리점에 문의하세요. 보증 청구를 위해 구매 증빙 자료로 구매 영수증을 보관하세요.
