소개
This manual provides essential information for setting up, operating, and maintaining your DOOGEE Fire 7 Pro Rugged Smartphone. Please read it carefully to ensure proper use and to maximize the device's capabilities.
이미지: 오버view of the DOOGEE Fire 7 Pro Rugged Smartphone, highlighting its key features like camping lights, POC intercom, large battery, night vision camera, and storage.
설정
1. 언박싱 및 초기 검사
Upon opening the package, verify that all components are present and undamaged. The package typically includes the DOOGEE Fire 7 Pro smartphone, a charger, a USB cable, and a SIM ejector tool.
Image: Contents of the DOOGEE Fire 7 Pro package, including the phone, charger, cable, and documentation.
2. SIM 카드 및 저장 장치 설치
Locate the SIM card tray on the side of the device. Use the provided SIM ejector tool to open the tray. Insert your Nano-SIM card(s) and/or a TF (microSD) card for expandable storage into the designated slots. Ensure the tray is securely closed to maintain water and dust resistance.
3. 전원 켜기 및 초기 구성
Press and hold the power button until the DOOGEE logo appears. Follow the on-screen prompts to select your language, connect to Wi-Fi, set up your Google account, and configure security features like Face ID or fingerprint unlock.
장치 작동
비디오: 오버view DOOGEE Fire 7 Pro의 특징을 보여줍니다.asing its rugged design, dual camping lights, POC intercom, fast charging, large battery, powerful processor, and camera capabilities including night vision.
POC Intercom Function
The DOOGEE Fire 7 Pro supports Push-to-Talk (PTT) intercom functionality, enabling long-distance communication even without internet access. To use this feature, download the "POCSTAR" intercom app from Google Play. With one-click PTT, you can make nationwide calls quickly, and the system includes automatic reconnection to prevent dropped communications.
Image: Illustration of the POC Intercom feature, showing global coverage and clear voice communication.
듀얼 Camp조명
The device features a powerful 1200-lumen camping light with three modes: Illumination, Bright Light, and SOS. These lights provide enhanced visibility and safety in dark or outdoor environments. Access and control the light modes and brightness through the dedicated app or quick settings panel.

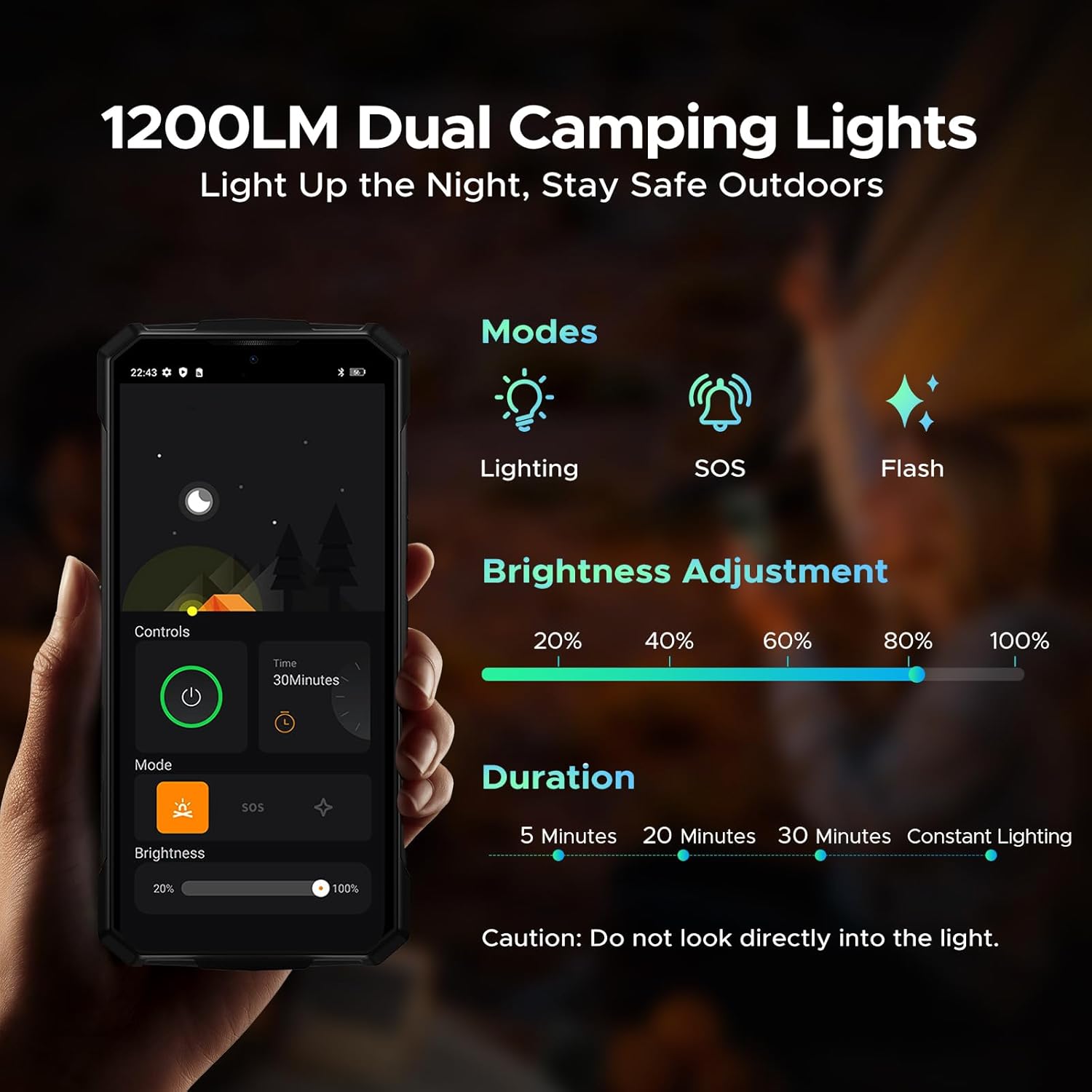

Image: Screenshot of the camping light control interface on the phone, showing modes and brightness adjustment.
배터리 및 충전
The Fire 7 Pro is equipped with a 13000mAh battery, offering extended usage times. It supports 33W fast charging for quick power-ups and OTG (On-The-Go) reverse charging, allowing the phone to act as a power bank for other devices.
Image: Visual representation of the 13000mAh battery and its long-lasting performance metrics.
성능 및 스토리지
Powered by the 6nm MTK Dimensity 6300 processor, the device offers efficient performance. It features 8GB of physical RAM, expandable with 24GB of virtual RAM, for smooth multitasking. Internal storage is 256GB, with support for up to 2TB via a TF card (sold separately). The phone runs on Android 15, providing a secure and fluid user experience.
Image: Diagram illustrating the 5G Dimensity 6300 chipset and its specifications.
카메라 시스템
The Fire 7 Pro features a versatile camera system:
- 64MP AI 메인 카메라: Captures detailed, high-quality photos with AI enhancements.
- 20MP 야간 투시 카메라: Provides clear images in low-light or dark conditions, suitable for outdoor or security use.
- 16MP 전면 카메라: Delivers vivid and clear selfies.

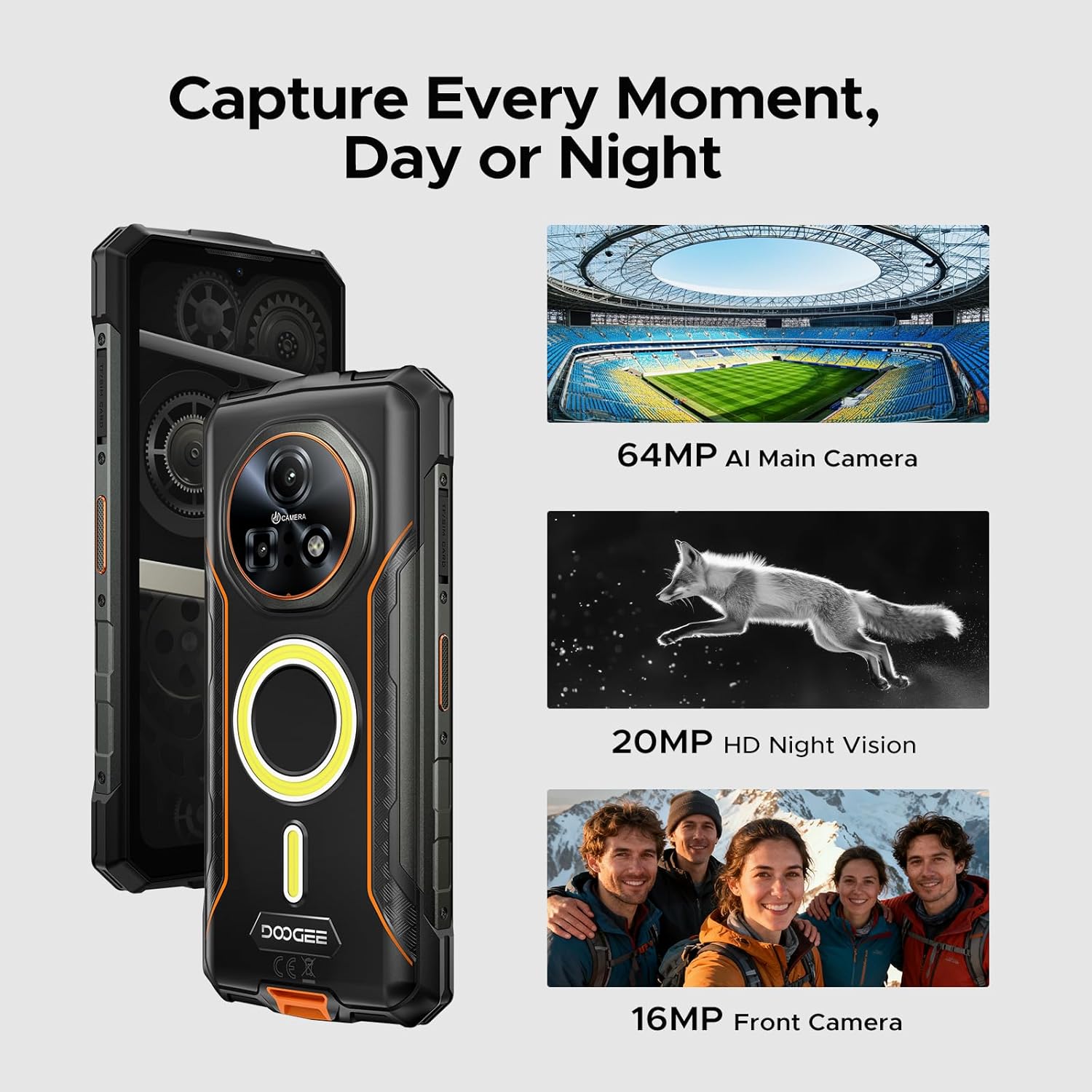

이미지: 이상view of the camera system, showing the 64MP AI main camera, 20MP night vision, and 16MP front camera.
Display and AI Features
The device features a 6.6-inch IPS HD+ waterdrop display with a 90Hz refresh rate for smooth visuals. It also integrates Gemini AI for intelligent assistance, including quick image editing, smart text extraction, and outdoor travel guidance.
Image: Shows the 6.6" Full HD+ display with 90Hz refresh rate and mentions Gemini AI features.
내구성 및 보호
The DOOGEE Fire 7 Pro is built to withstand harsh environments, featuring IP68/IP69K dustproof and waterproof ratings, and MIL-STD-810H military certification. This provides reliable protection against drops, shocks, dust, and extreme temperatures.
Image: The DOOGEE Fire 7 Pro submerged in water, demonstrating its waterproof capabilities.
추가 기능
- 보안: Side fingerprint sensor and Face Unlock for convenient and secure access.
- 연결성: Triple slots for dual SIM and expandable storage.
- 항해: Accurate GPS, Glonass, Galileo, and Beidou support for reliable positioning.
- NFC : Convenient Near Field Communication for contactless payments and data exchange.
유지
- 청소: 부드러운 d를 사용하세요amp 천으로 기기를 닦으세요. 강한 화학 물질이나 연마재는 사용하지 마세요.
- 방수 및 방진 기능: Ensure all port covers are securely closed to maintain IP68/IP69K ratings. Do not intentionally submerge the device in water for extended periods or beyond specified depths.
- 온도: 기기를 극한 온도(매우 덥거나 매우 추운 온도)에 장시간 노출시키지 마십시오.
- 충전 포트: Keep the charging port clean and free of debris. Ensure it is dry before charging.
문제 해결
- 장치 전원이 켜지지 않음: 배터리가 충전되었는지 확인하세요. 충전기를 연결하고 몇 분 정도 기다린 후 다시 전원을 켜보세요.
- 네트워크 연결 문제: Check if your SIM card is correctly inserted. Verify that mobile data is enabled in settings. If using AT&T, you may need to manually configure APN settings; contact your carrier or DOOGEE support for specific instructions.
- 앱 충돌/멈춤: Try restarting the app or clearing its cache and data in the phone's settings. If the issue persists, consider uninstalling and reinstalling the app.
- 느린 성능: Close unnecessary background apps. Clear cache regularly. Consider reducing the number of widgets or live wallpapers.
- 물/먼지 노출: If the device has been exposed to water, ensure all ports are dry before charging. If functionality is affected, contact customer support.
명세서
| 특징 | 세부 사항 |
|---|---|
| 모델명 | FIRE7 PRO |
| 운영 체제 | 안드로이드 15 |
| CPU 모델 | 미디어텍 디멘시티 6300 |
| 설치된 RAM 메모리 크기 | 8GB (24GB 가상 RAM으로 확장 가능) |
| 메모리 저장 용량 | 256GB (TF 카드를 통해 최대 2TB까지 확장 가능) |
| 화면 크기 | 6.6 인치 |
| 해결 | 720 x 1520 |
| 새로 고침 빈도 | 90Hz |
| 배터리 용량 | 13000밀리amp 시간 |
| 배터리 전력 정격 | 13000mAh |
| 빠른 충전 | 33와트 |
| 역방향 충전 | OTG supported |
| 메인 카메라 | 64MP AI |
| 야간 투시 카메라 | 20MP HD |
| 전면 카메라 | 16MP |
| 내구성 등급 | IP68/IP69K, MIL-STD-810H |
| 무선 통신사 | 모든 이동 통신사에 대해 잠금 해제 됨 |
| 품목 무게 | 9.2온스(262그램) |
| 패키지 크기 | 7 x 4 x 2 인치 |
보증 및 지원
Your DOOGEE Fire 7 Pro Rugged Smartphone comes with the following:
- 30일 환불 보장 및 무료 반품: 첫 구매 만족도를 위해서입니다.
- 2년 제한 보증: Covers manufacturing defects for a period of two years from the date of purchase.
- 연중무휴 24시간 일대일 온라인 지원: 기술 지원 및 문의 사항은 다음 연락처로 문의하십시오.
추가적인 도움이 필요하시면 DOOGEE 공식 지원 페이지를 방문해 주세요. web사이트를 방문하거나 고객 서비스에 문의하세요.
