울란지 LM23

ULANZI LM23 Magnetic Selfie Light Instruction Manual

Model: LM23 | Brand: ULANZI

소개

The ULANZI LM23 Magnetic Selfie Light is a versatile 4-in-1 device designed to enhance your mobile photography and video experiences. This compact and portable light features magnetic attachment, a makeup mirror, a phone ring holder, and a screen hook, making it ideal for selfies, video calls, live streams, and vlogging. It offers adjustable brightness, color temperature, and flexible positioning to ensure optimal lighting in any scenario.

상자 안에 무엇이 들어있나요?

설정

자석 부착

The ULANZI LM23 is designed for seamless magnetic attachment. For MagSafe-compatible iPhones, simply align the selfie light with the back of your phone or MagSafe-compatible case until it snaps securely into place.

ULANZI LM23 Magnetic Selfie Light attaching to an iPhone via MagSafe

Image: The ULANZI LM23 Magnetic Selfie Light magnetically attaching to the back of an iPhone, illustrating the ease of connection.

For non-MagSafe devices (including Android phones, tablets, and laptops), use the included magnetic ring sticker. Clean the back surface of your device or case, peel off the adhesive backing from the magnetic ring sticker, and firmly press it onto the desired location. Once the sticker is applied, the selfie light can be magnetically attached to it.

충전 중

Connect the provided USB-A to USB-C charging cable to the USB-C port on the selfie light and to a compatible USB power source. The device features a 400mAh rechargeable battery. A full charge takes approximately 1.5 hours and provides up to 90 minutes of continuous runtime at maximum brightness. The light can be used while charging, making it suitable for extended sessions.

ULANZI LM23 Magnetic Selfie Light being charged via USB-C cable

Image: The ULANZI LM23 Magnetic Selfie Light connected to a USB-C charging cable, highlighting its charging capability and battery life.

작동 지침

Power On/Off and Light Adjustment

To power on the device, long-press the main button. To power off, long-press the button again. The selfie light offers 3 light modes (White, Natural, Warm) and stepless brightness dimming from 10% to 100%. Color temperature can be adjusted from 2500K to 9000K. Use the intuitive controls to fine-tune the brightness and tone for flattering, natural light that enhances your content.

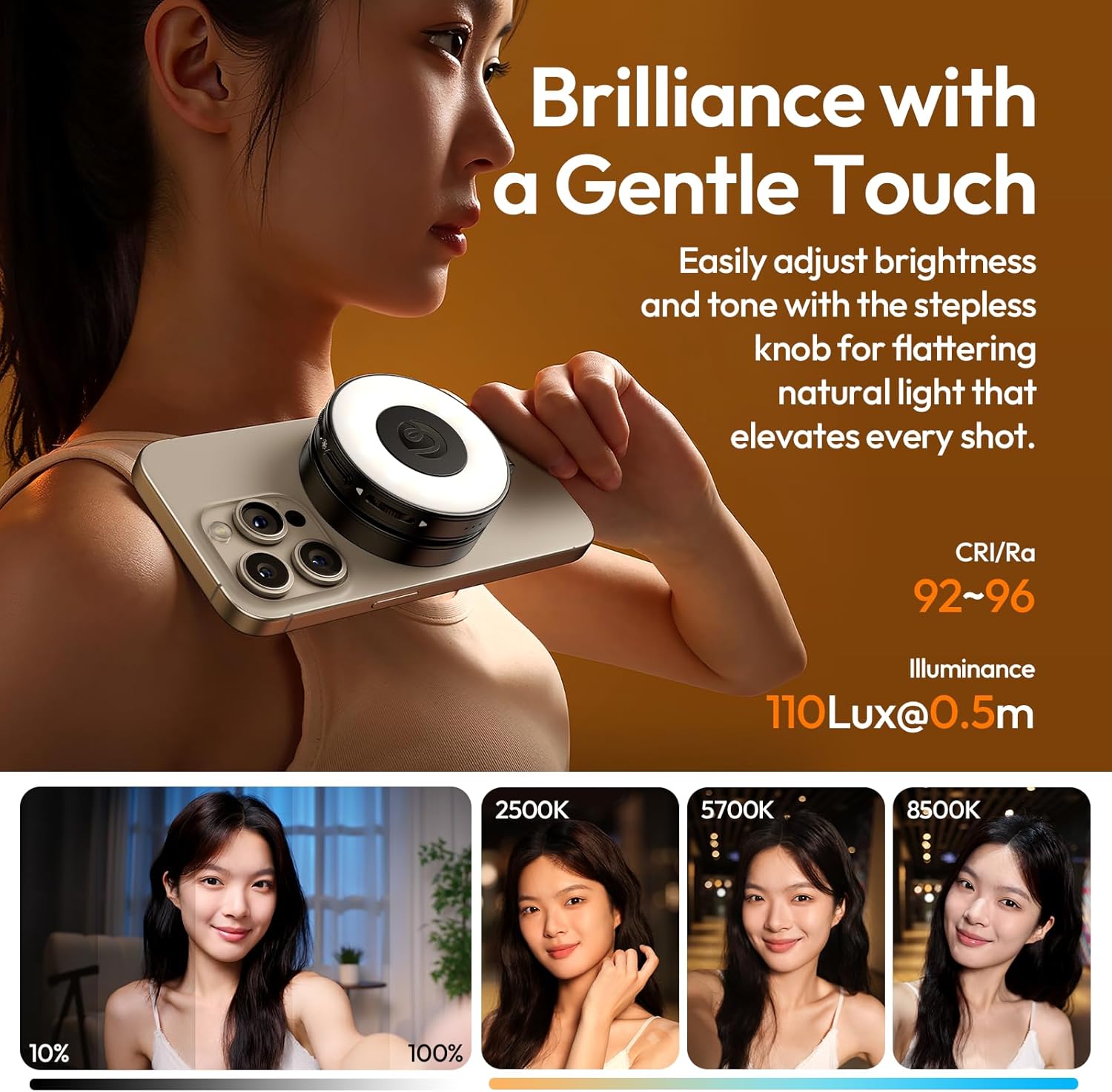

ULANZI LM23 Magnetic Selfie Light displaying various brightness and color temperature settings

Image: The ULANZI LM23 Magnetic Selfie Light showcasing its adjustable brightness and color temperature settings, from warm to cool light.

유연한 위치 지정

The LM23 features a full 360° rotation, a 180° flip, and an adjustable rod, allowing you to effortlessly adjust the lighting angle to achieve perfect, shadow-free illumination from any position. This flexibility supports both selfie mode (front-facing camera) and photo mode (rear-facing camera).

ULANZI LM23 Magnetic Selfie Light demonstrating 360-degree rotation and 180-degree flip functionality

Image: The ULANZI LM23 Magnetic Selfie Light attached to a phone, illustrating its ability to rotate 360 degrees and flip 180 degrees for versatile lighting angles.

다기능 디자인

Beyond lighting, the LM23 integrates several useful features. It includes a built-in makeup mirror for quick touch-ups, a phone ring holder for stable desktop placement or secure grip, and a screen hook for mounting on laptops or monitors for targeted lighting during video calls or web캠.

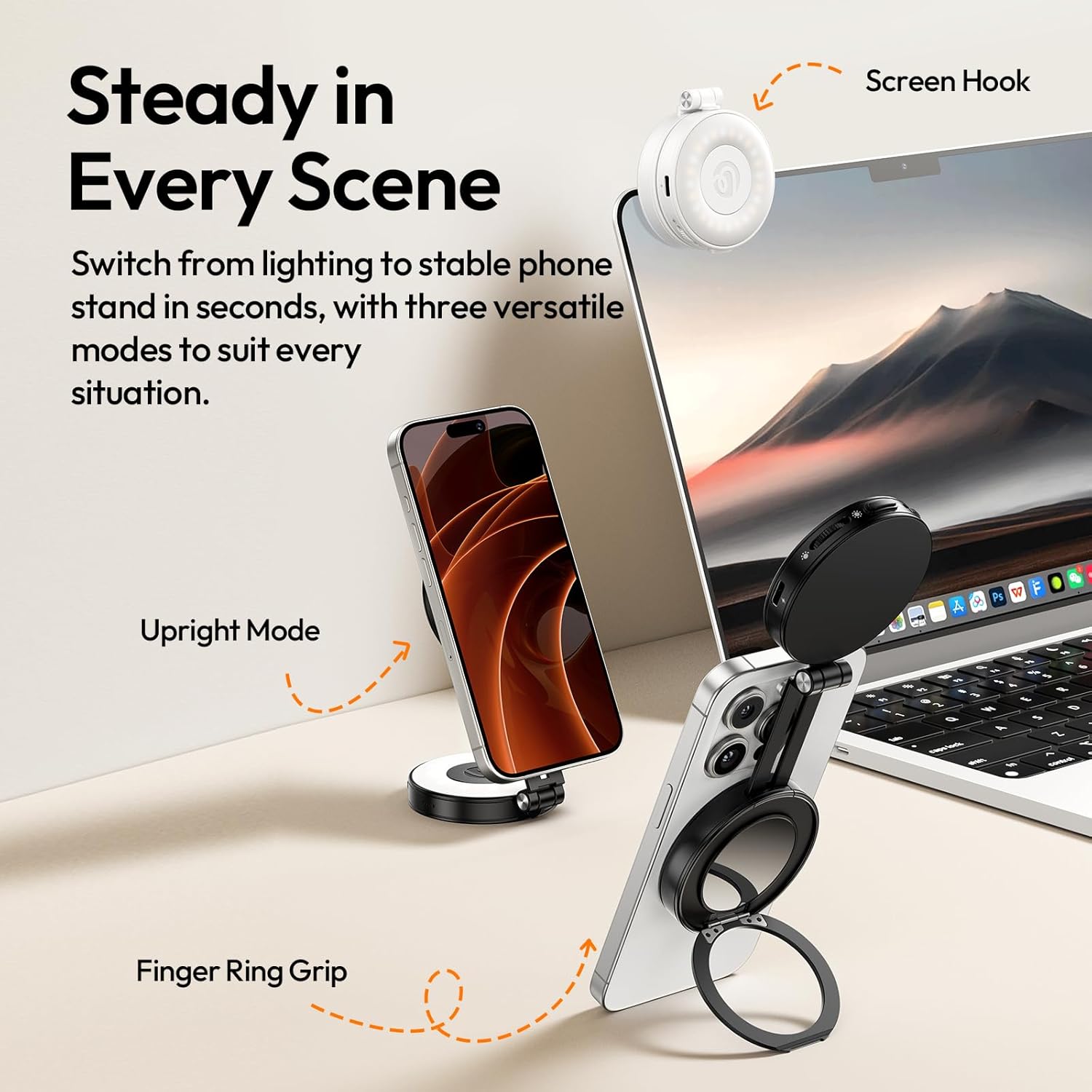

ULANZI LM23 Magnetic Selfie Light used as a phone stand and attached to a laptop screen

Image: The ULANZI LM23 Magnetic Selfie Light demonstrating its use as a phone stand in upright mode and attached to a laptop screen via its screen hook.

ULANZI LM23 Magnetic Selfie Light with its built-in makeup mirror open

Image: A person using the built-in makeup mirror of the ULANZI LM23 Magnetic Selfie Light for quick touch-ups.

사용 시나리오

The LM23 is designed for a wide range of applications, including:

Various usage scenarios for the ULANZI LM23 Magnetic Selfie Light, including still life photography, group selfies, live streaming, and food photography.

Image: A collage showing the ULANZI LM23 Magnetic Selfie Light being used in different settings: for still life photography, group selfies, live streaming, and food photography.

제품 비디오

영상: 공식 제품 출시 완료view of the ULANZI LM23 Magnetic Selfie Ring Light, demonstrating its features and versatility for phone users.

유지

To ensure the longevity and optimal performance of your ULANZI LM23 Magnetic Selfie Light, follow these maintenance guidelines:

문제 해결

문제가능한 해결책
장치가 켜지지 않음Ensure the battery is charged. Long-press the power button firmly.
조명이 충분히 밝지 않음Adjust the brightness dial to increase intensity. Ensure the battery is fully charged.
자석 부착이 약해요For non-MagSafe devices, ensure the magnetic ring sticker is properly applied and aligned. For MagSafe devices, check if your phone case is MagSafe compatible.
기기가 충전되지 않음Check the USB-C cable and power adapter for damage. Ensure the cable is securely connected to both the device and the power source.

명세서

특징세부 사항
모델LM23
제품 치수6.89 x 2.38 x 0.51 인치
품목 무게3.17 온스
배터리400mAh rechargeable (1 AAA batteries required, included)
배터리 수명(최대 밝기)90 분
충전 시간약 1.5시간
연결 기술USB
하드웨어 인터페이스USB 타입 C
색온도2500K-9000K
밝기 조정10%-100% 무단계 조광
크리96

보증 및 지원

ULANZI products are backed by a manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included in your product packaging or visit the official ULANZI website. If you encounter any issues or require technical assistance, please contact ULANZI customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
