CHBMSS FT-0024 Solar Water Tank Level Meter

소개

This manual provides essential information for the proper installation, operation, and maintenance of your CHBMSS FT-0024 Solar Water Tank Level Meter. This device offers non-contact measurement of liquid depth, temperature, and current time, featuring an LCD display with high/low indicator and alarm functions. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

안전 정보

• Ensure the device is installed in a stable location, away from direct impact or excessive vibration.
• 기기를 직접 열거나 수리하지 마십시오. 모든 정비는 자격을 갖춘 기술자에게 맡기십시오.
• Keep the device away from extreme temperatures and corrosive environments.
• This device is designed for non-contact liquid level measurement. Do not immerse the sensor in liquid.

제품 끝view

The CHBMSS FT-0024 Solar Water Tank Level Meter consists of a main display unit and a non-contact ultrasonic sensor. The display unit shows liquid depth, temperature, and current time, along with high/low level indicators and alarm status. The sensor transmits ultrasonic waves to measure the liquid level without direct contact.

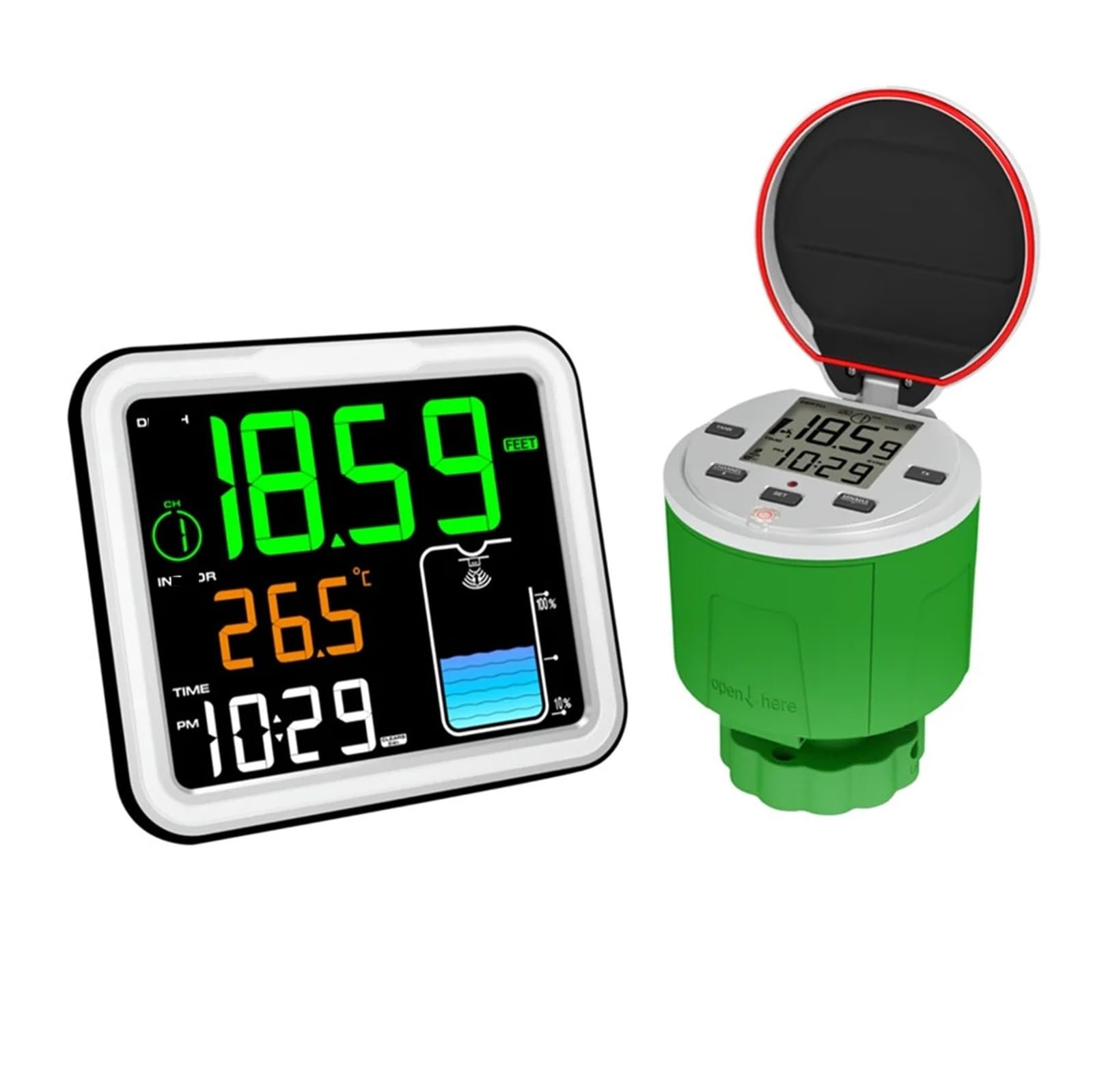

Figure 1: CHBMSS FT-0024 Solar Water Tank Level Meter. This image shows the main display unit with an LCD screen and the separate ultrasonic sensor, highlighting the components for non-contact liquid level measurement.

설정

1. 센서 배치: Install the ultrasonic sensor on the peak of the container or tank where liquid level is to be measured. Ensure there are no obstructions between the sensor and the liquid surface. The non-contact design allows for installation without modifying existing equipment.
2. 디스플레이 유닛 배치: Position the main display unit in a convenient location where the LCD screen is easily visible. Ensure it is protected from direct weather exposure if installed outdoors.
3. 전원 연결: The device is solar-powered. Ensure the solar panel (if integrated or external) receives adequate sunlight for continuous operation. No external batteries are required for the main unit's operation.
4. 초기 교정(해당되는 경우): Refer to specific on-screen prompts or a dedicated calibration section (if available in a more detailed manual) for initial setup of tank dimensions or reference points.

작동 지침

The FT-0024 provides real-time data on its LCD display.

• Liquid Depth Display: The primary reading shows the current liquid level in the tank. Units may be configurable (e.g., cm, inches).
• 온도 표시 : The ambient or liquid temperature (depending on sensor placement) is shown.
• 시간 표시: The current time is displayed. Set the time using the control buttons (refer to specific button functions on the device).
• High/Low Level Indicator: Visual indicators on the display will alert you when the liquid level reaches pre-set high or low thresholds.
• 알람 기능: The device features an audible or visual alarm that activates when liquid levels exceed or fall below user-defined limits.
  • 알람 설정: Use the control buttons (e.g., "SET", "UP", "DOWN") to navigate to the alarm settings menu. Adjust the high and low alarm points as required for your application.
  • 경보 비활성화: Alarms can typically be silenced or disabled through the settings menu.

유지

• 청소: Periodically wipe the display unit and sensor with a soft, damp 천. 연마성 세척제나 용매를 사용하지 마십시오.
• 센서 검사: Ensure the sensor's surface is free from dirt, dust, or debris that could obstruct ultrasonic wave transmission.
• 환경 보호: The device's sturdy housing is designed to withstand dust and humidity. However, avoid exposing it to extreme weather conditions beyond its operational limits.
• 태양광 패널: If applicable, keep the solar panel clean to ensure efficient charging.

문제 해결

명세서

보증 및 지원

Warranty information for the CHBMSS FT-0024 Solar Water Tank Level Meter is typically provided with the product packaging or can be obtained from your point of purchase. For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact the manufacturer or your authorized dealer directly.

Manufacturer: CHBMSS
