VINABTY Replacement Remote Control User Manual

1. 서론

Thank you for choosing the VINABTY Replacement Remote Control. This remote is designed to be a direct replacement for various TV models, offering seamless functionality without the need for complex programming. It features an ergonomic design, durable ABS construction, and responsive buttons for a comfortable user experience. This manual provides essential information on setting up, operating, maintaining, and troubleshooting your new remote control.

Image 1.1: VINABTY Replacement Remote Control. This image shows the remote control in a typical home environment, highlighting its compact and user-friendly design.

2. 설정

2.1 배터리 설치

리모컨 작동에는 AAA 배터리 2개(별도 구매)가 필요합니다. 다음 단계에 따라 배터리를 설치하세요.

1. 리모콘 뒷면에서 배터리함을 찾으세요.
2. 배터리 덮개를 아래로 밀거나 걸쇠를 누르고 들어올려 엽니다.
3. AAA 배터리 2개를 넣고 양극(+)과 음극(-) 단자가 배터리 보관함 내부 표시와 올바르게 맞춰지도록 합니다.
4. 배터리 덮개를 제자리에 밀어 넣어 딸깍 소리가 날 때까지 밀어 넣습니다.

Image 2.1: Battery Compartment. This image displays the rear of the remote control with the battery cover removed, showing the slots for AAA batteries and polarity indicators.

2.2 초기 사용

This VINABTY replacement remote control is designed for immediate use with compatible TV models. No programming or pairing is required. Simply install the batteries, point the remote at your television, and begin using it.

3. 사용 설명서

The remote control features a standard layout for easy navigation and control of your television. Below is a general guide to its functions:

• 전원 버튼(빨간색): TV를 켜거나 끕니다.
• 숫자 버튼(0-9)채널을 직접 선택하세요.
• 소스 버튼: Cycles through input sources (HDMI, AV, etc.).
• 정보 버튼: 프로그램 정보를 표시합니다.
• Directional Pad (Up, Down, Left, Right) & ENTER메뉴를 탐색하고 선택 사항을 확인합니다.
• 메뉴 버튼: TV의 메인 메뉴에 접속합니다.
• 종료 버튼: 현재 메뉴나 기능을 종료합니다.
• VOL +/- 버튼: 볼륨 레벨을 조정합니다.
• CH ^/v Buttons채널을 위아래로 변경합니다.
• LIST Button: Displays a list of channels or recorded programs.
• 색상 버튼(빨강, 초록, 노랑, 파랑): Functionality varies by TV model and context, often used for teletext or smart TV features.
• 재생 컨트롤(재생, 일시 정지, 정지, 되감기, 빨리 감기): 미디어 재생을 제어합니다.
• Subtitle, Audio Buttons: Adjust subtitle and audio track settings.

Ensure a clear line of sight between the remote control's infrared emitter and the TV's IR receiver for optimal performance. The remote operates effectively up to a distance of 10 meters.

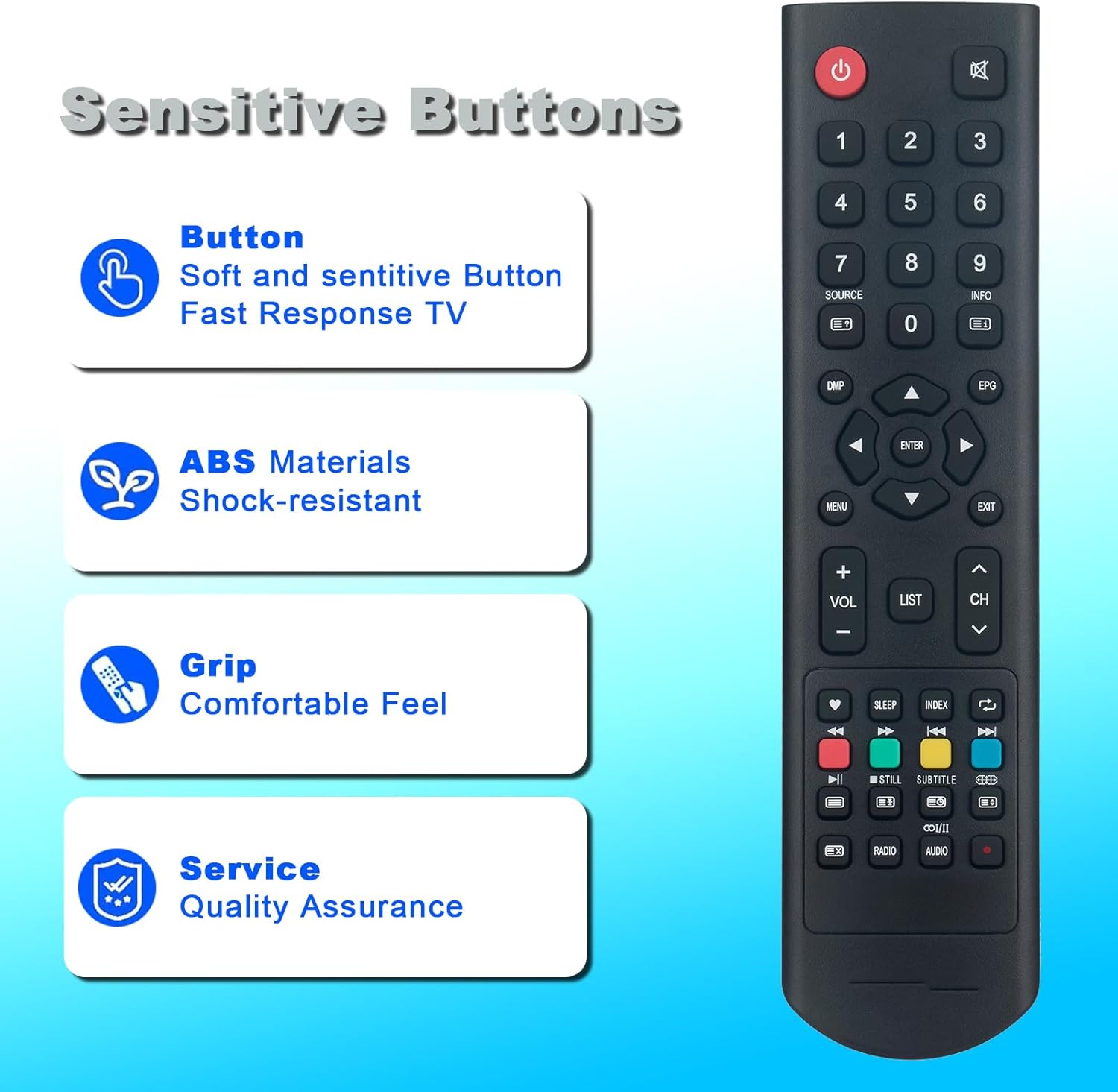

Image 3.1: Remote Control Features. This image illustrates the remote control, emphasizing its responsive buttons and ergonomic grip for comfortable use.

4. 유지관리

To ensure the longevity and optimal performance of your VINABTY remote control, follow these maintenance guidelines:

• 청소: Wipe the remote control regularly with a soft, dry cloth. For stubborn dirt, slightly damp천에 물이나 순하고 연마성이 없는 세제를 묻혀 닦아주세요. 강한 화학 물질이나 연마재는 사용하지 마세요.
• 배터리 교체: Replace batteries when the remote's response becomes sluggish or it stops functioning. Always replace both batteries at the same time with new ones of the same type (AAA). Do not mix old and new batteries or different battery types.
• 저장: Store the remote control in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If the remote will not be used for an extended period, remove the batteries to prevent leakage.
• 낙하 및 충격 방지: While the remote is made from durable ABS material, excessive force or drops can damage internal components. Handle with care.

5. 문제 해결

If you encounter issues with your remote control, refer to the following troubleshooting tips:

• 원격 응답 없음:
  • 배터리가 극성에 맞게 올바르게 설치되었는지 확인하십시오.
  • 배터리를 새 것으로 교체하십시오.
  • 리모컨과 TV의 적외선 수신기 사이에 시야가 확보되도록 하십시오. 장애물을 제거하십시오.
  • 리모컨이 TV를 똑바로 향하고 있는지 확인하십시오.
• 제한된 범위:
  • Ensure batteries are fresh. Low battery power can reduce range.
  • 적외선 신호를 방해할 수 있는 강한 광원(예: 직사광선, 형광등)이 있는지 확인하십시오.
  • 리모컨과 TV 사이의 거리를 줄이세요.
• 특정 버튼이 작동하지 않습니다:
  • Clean the remote control, especially around the problematic buttons, to remove any dirt or debris that might be obstructing them.
  • If only certain buttons fail, it might indicate internal damage. Consider contacting support.
• Remote Does Not Control TV:
  • Verify that your TV model is listed as compatible. This remote is a direct replacement and does not require programming for compatible models.
  • If your TV model is not listed, this remote may not be compatible.

6. 사양

Image 6.1: Remote Control Dimensions. This image provides a visual representation of the remote control's length and width measurements.

7. 보증 및 지원

VINABTY is committed to providing quality products. This remote control is manufactured with durable ABS material for a long service life.

If you encounter any issues with your product or have questions regarding its compatibility, please contact our customer support. We recommend contacting us before purchase if you are unsure about compatibility with your specific device. Our team is available to assist you with any concerns.
