소개
The Silva Seek 420 is a versatile headlamp designed for daily use and outdoor activities. It features a compact design, 420 lumens of light output, and a night vision mode. This manual provides instructions for the proper setup, operation, maintenance, and troubleshooting of your Silva Seek 420 Headlamp.
그림 1: The Silva Seek 420 Headlamp. This image shows the compact design of the headlamp unit and its adjustable headband.
설정
1. 풀기
Carefully remove all components from the packaging. The package should contain the headlamp unit, the headband, and a quick start guide. Batteries are not included and must be purchased separately.
2. 배터리 설치
The Seek 420 headlamp is compatible with either 3x AAA alkaline batteries or a rechargeable Silva Hybrid battery (both sold separately).
- 헤드에서 배터리 칸을 찾으세요amp 단위.
- 배터리 덮개를 엽니다.
- Insert 3x AAA batteries, ensuring correct polarity (+/-) as indicated inside the compartment, or insert the Silva Hybrid battery.
- 방수 기능을 유지하려면 배터리함 덮개를 단단히 닫으십시오.
3. 헤드밴드 조정
머리amp unit can be detached from the headband. The headband features integrated buckles for easy adjustment.
- 헤드를 부착amp unit to the headband if it is detached.
- 머리띠를 머리에 대십시오.
- Adjust the length of the headband using the buckles until it fits comfortably and securely.
작동 지침
1. 전원 켜기/끄기 및 밝기 모드
머리amp features a single button for controlling power and brightness levels.
- 켜려면: 전원 버튼을 한 번 누르세요. 헤드amp will typically turn on in the last used white light mode.
- 밝기 조절하기: 동안 headlamp is on, press the power button repeatedly to cycle through the white light modes: Max (420 lm) → Medium (200 lm) → Min (10 lm).
- 끄기: 전원 버튼을 약 1초 동안 길게 누르세요.
그림 2: Illustration of the three white light brightness levels (Max, Medium, Min) emitted by the Silva Seek 420 Headlamp.
2. 레드 라이트 모드
The red light mode is designed to preserve night vision.
- 빨간불을 활성화하려면: From the OFF state, press and hold the power button for approximately 2 seconds.
- To Switch Back to White Light: 전원 버튼을 한 번 누르세요.
- To Turn Off from Red Light: 전원 버튼을 약 1초 동안 길게 누르세요.

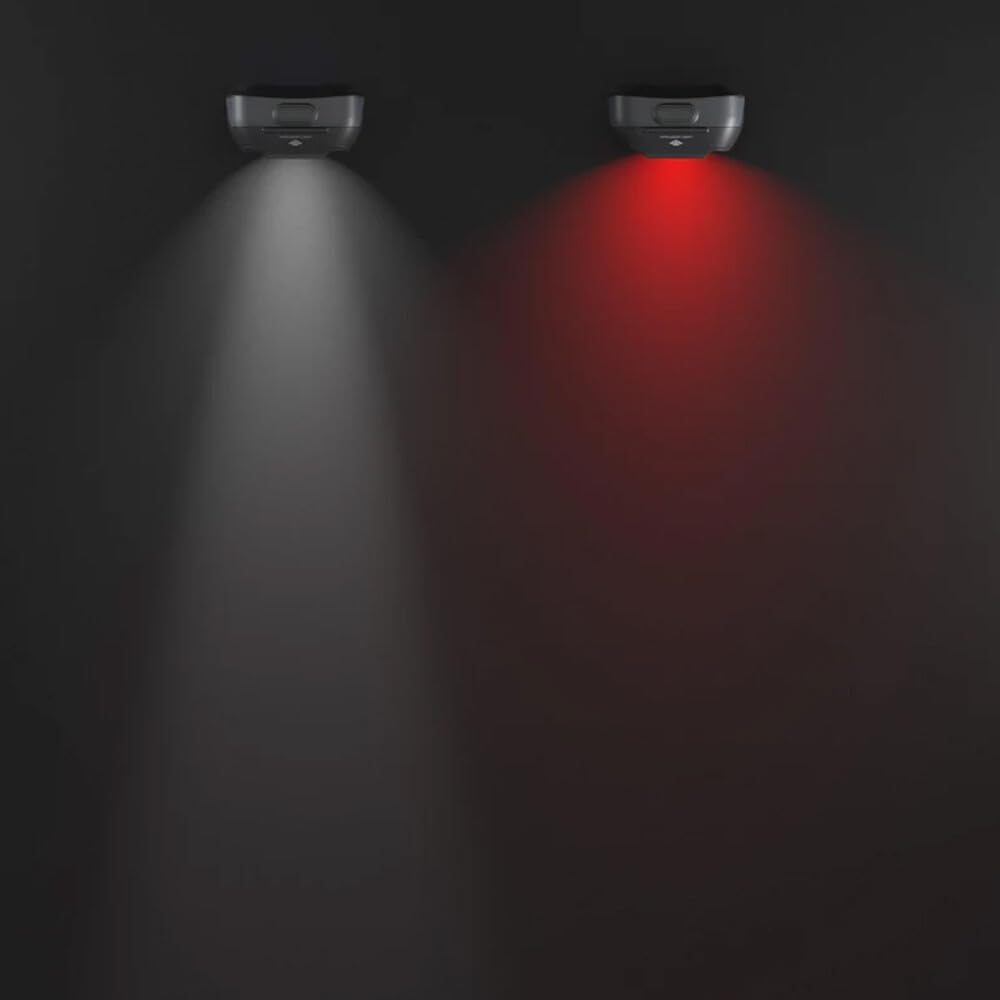

그림 3: The Silva Seek 420 Headlamp demonstrating both its white light and red light modes. The red light is useful for maintaining night vision.
3. 잠금 기능
The integrated locking function prevents accidental activation of the headlamp, especially when stored in a backpack.
- 잠그려면: 동안 headlamp is OFF, press and hold the power button for approximately 5 seconds until the light blinks.
- 잠금 해제하려면: Press and hold the power button for approximately 5 seconds until the light blinks again and turns on.
4. 배터리 표시기
The Seek 420 headlamp includes a battery level indicator. When the headlamp is turned on or off, a small LED will illuminate:
- 녹색불: 배터리 잔량은 양호합니다.
- 빨간불: Battery level is low and requires replacement or recharging.
5. Silva Intelligent Light
The Silva Intelligent Light technology combines a focused long-distance spot beam with a wide floodlight. This design aims to reduce head movements, minimize fatigue, and improve balance during activities by providing clear vision both far ahead and in the immediate surroundings.
유지
- 청소: 헤드를 닦아주세요amp unit and headband with a damp 옷감. 가혹한 화학 물질이나 연마재를 사용하지 마십시오.
- 저장: 헤드를 저장하세요amp in a cool, dry place when not in use. If storing for extended periods, remove alkaline batteries to prevent leakage.
- 방수 기능: The Seek 420 is IPX5 rated, meaning it is resistant to heavy rain and splashing water from all directions. It is not designed for submersion. Ensure the battery compartment is securely closed to maintain water resistance.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 헤드amp 켜지지 않습니다. |
|
|
| 빛이 어둡습니다. | 배터리 잔량이 부족합니다. | Replace batteries or recharge Silva Hybrid battery. |
| Headband detaches from lamp 단위. | Improper attachment or wear over time. | l을 다시 부착하십시오.amp unit securely to the headband. Ensure the attachment mechanism is clean and free of debris. |
명세서
Below are the technical specifications for the Silva Seek 420 Headlamp:
- 모델: 420
- 광 출력: 최대 420 루멘스
- 라이트 모드: Max, Medium, Min (White Light), Red Light
- 빛의 출처: 주도의
- 배터리 호환성: 3x AAA alkaline batteries or Silva Hybrid rechargeable battery (not included)
- 방수 기능: IPX5 (resistant to heavy rain and splashing)
- 무게(리터amp unit + headband): 92그램
- 제품 크기: 약 10×7×9 cm
- 재료: 재활용 재료
- 포함된 구성 요소: 헤드amp unit, headband, quick start guide
Performance Data (ANSI FL1 Standard)
그림 4: Detailed performance data for the Silva Seek 420 Headlamp, including brightness levels, optimal use, beam pattern, burn time, and light distance for Max, Medium, and Min modes. Values are measured according to the ANSI FL1 Standard.
| 밝기 레벨 | True Lumen (ANSI) | Optimal For | Burn Time (Hybrid/AAA) | Light Distance (ANSI) |
|---|---|---|---|---|
| 맥스 | 420 lm | Medium range use | 3시간 / 3시간 | 87m / 285피트 |
| 중간 | 200 lm | Close range use | 5시간 / 6시간 | 67m / 219피트 |
| 최소 | 10 lm | Ambience/reading | 90시간 / 110시간 | 15m / 49피트 |
Note: True lumen output is measured after 30 seconds. Burn time is from power-on until lumen output reaches 10% of initial value.
보증 정보
Silva products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the official Silva web사이트 또는 제품에 포함된 보증서를 확인하세요. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
지원하다
If you encounter any issues not covered in this manual or require further assistance, please contact Silva customer support through their official website. You can typically find contact information, FAQs, and additional resources on their support pages.
Web대지: www.silva.se (이 링크는 임시 링크이며, 실제 링크는 제조업체 웹사이트를 참조하십시오.) web지원 사이트입니다.)
