중요한 안전 정보
Read and understand all safety warnings and instructions before assembling, operating, or servicing this grill. Failure to follow these instructions can result in fire, explosion, or serious injury.
- 야외 사용 전용: Never operate this grill indoors or in an enclosed area.
- 프로판 가스 전용: Use only propane gas. Do not connect to a natural gas supply.
- 누출 테스트: Always perform a leak test on all gas connections before first use and after any tank change or service. Use a soapy water solution; never use an open flame.
- 정리: Maintain a minimum distance of 36 inches (91 cm) from combustible materials to the back and sides of the grill.
- 어린이와 애완동물: 특히 작동 중에는 어린이와 애완동물이 그릴에 접근하지 못하도록 하세요.
- 뜨거운 표면: 사용 중에는 그릴 표면이 매우 뜨거워집니다. 내열 장갑과 적절한 도구를 사용하세요.
- 통풍: Ensure adequate ventilation around the propane tank and grill.
- 저장: Store the propane tank outdoors in a well-ventilated area, away from direct sunlight and heat sources.
For detailed propane safety guidelines, consult your local gas supplier or fire department.
제품 끝view
The SEGMART 5-Burner Propane BBQ Grill (Model PBQ01) is designed for outdoor cooking, featuring five main burners and one side burner, providing a total of 50,000 BTU. It includes porcelain-enameled cast-iron grates, a stainless steel warming rack, and convenient mobility features.
This image shows the SEGMART 5-Burner Propane BBQ Grill in use, highlighting its overall design and functionality in a backyard environment.
주요 특징
- High-Performance Burners: Four 10,000 BTU stainless steel main burners for consistent heat.
- Flexible Side Burner: One 10,000 BTU side burner for sauces and side dishes.
- 넓은 조리 공간: 368 sq. in. porcelain-enameled cast-iron grates and a 108 sq. in. stainless steel warming rack.
- Double-Layer Hood: Stainless steel lid designed to lock in heat and moisture.
- 내구성 있는 구조: SUS430 flame tamers, stainless steel front panel, and powder-coated steel trolley.
- 쉬운 이동성: Four lockable swivel casters for easy movement and secure positioning.
- 편리한 기능: Built-in thermometer, integrated bottle opener, towel hook, and dual storage shelf.

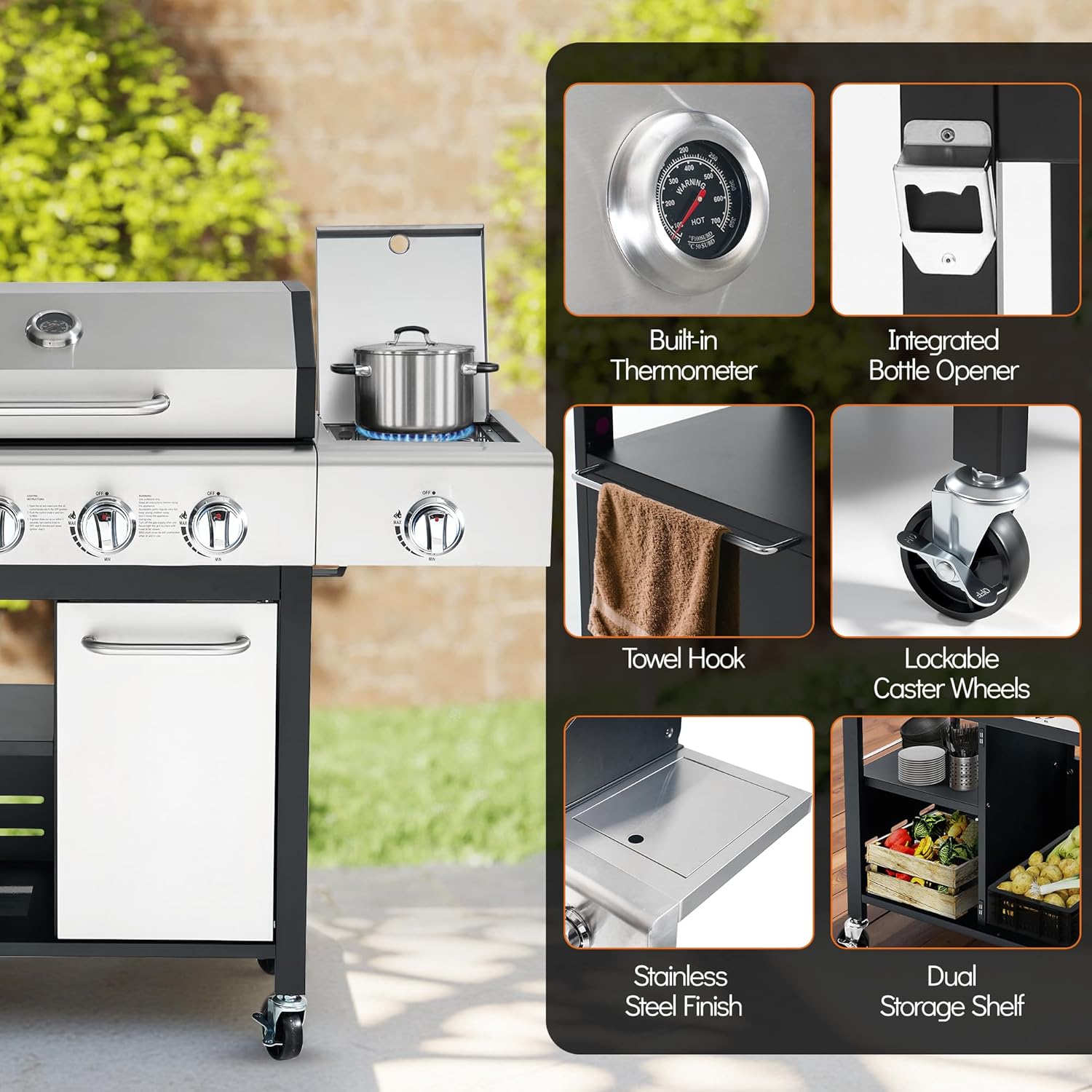

This image highlights several key features of the grill: the lid-mounted thermometer, a convenient bottle opener, a towel hook, lockable wheels for mobility, the stainless steel finish, and the practical dual storage shelf.
설정 및 조립
짐 풀기
Carefully remove all components from the packaging. Check the packing list to ensure all parts are present and undamaged. Keep packaging materials until assembly is complete.
조립 설명서
Assembly is required for this grill. Follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure all fasteners are tightened securely.
This diagram provides the overall dimensions of the grill, including height, width, and depth, along with measurements for the cooking grates and warming rack.
프로판 탱크 연결
- 프로판 탱크 밸브가 닫혀 있는지 확인하세요.
- Connect the regulator hose to the propane tank valve. Hand-tighten firmly. Do not use tools.
- Place the propane tank securely in the designated storage area on the grill trolley.
누출 테스트
Perform a leak test every time the propane tank is connected or replaced.
- 액체 세제와 물을 같은 양으로 섞어 용액을 만듭니다.
- Ensure all grill burner control knobs are in the OFF position.
- 프로판 탱크 밸브를 천천히 켭니다.
- Apply the soapy solution to all gas connections, including the tank connection, regulator, and hose.
- Look for bubbles. If bubbles appear, there is a leak. Immediately turn off the propane tank valve and tighten the connection. Repeat the test. If bubbles persist, do not use the grill and contact customer support.
작동 지침
첫 사용 전
Before cooking food for the first time, operate the grill on high for 15 minutes with the lid closed. This will burn off any manufacturing oils and prepare the cooking surfaces.
메인 버너 조명
- 그릴 뚜껑을 엽니다.
- 모든 버너 조절 손잡이가 OFF 위치에 있는지 확인하세요.
- 프로판 탱크 밸브를 천천히 완전히 엽니다.
- Push in and turn one main burner control knob to HIGH. You should hear a clicking sound from the igniter.
- If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
- Once one burner is lit, you can light adjacent burners by pushing in and turning their respective knobs to HIGH.
- 뚜껑을 닫아 그릴을 원하는 온도로 예열하세요.
사이드 버너 조명
- 옆불 뚜껑을 엽니다.
- Ensure the side burner control knob is in the OFF position.
- Push in and turn the side burner control knob to HIGH. You should hear a clicking sound from the igniter.
- If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
This image displays the spacious cooking surface of the grill, featuring the porcelain-enameled cast-iron grates and a warming rack, with different foods being grilled.
온도 조절
Adjust the burner control knobs between HIGH and LOW settings to achieve the desired cooking temperature. The built-in thermometer on the lid provides an approximate internal temperature reading.
This image details the convenient side table with hooks for tools, the adjustable burner knobs for precise flame control, and the accessible grease tray designed for easy cleaning.
관리 및 유지 보수
정기적인 청소와 유지관리를 통해 그릴의 수명을 늘리고 최적의 성능을 보장할 수 있습니다.
Cleaning the Grill Grates
- 사용 후에는 그릴 석쇠가 아직 따뜻할 때 그릴 브러시를 사용하여 음식 찌꺼기를 제거하십시오.
- For deeper cleaning, allow grates to cool, then wash with warm soapy water. Rinse thoroughly and dry completely to prevent rust.
This image compares the robust cast iron grates of the SEGMART grill with a generic alternative, illustrating the benefits of solid construction for durability, effective heat retention for grill marks, and a pre-seasoned surface for easy food release.
그리스 트레이 청소
- The removable galvanized grease tray should be cleaned regularly to prevent grease fires.
- Allow the grill to cool completely. Remove the tray and scrape out accumulated grease and food particles.
- Wash the tray with warm soapy water, rinse, and dry thoroughly before replacing.
This image details the convenient side table, adjustable burner knobs, and the accessible grease tray designed for easy cleaning and maintenance.
외부 청소
- 부드러운 천과 스테인리스 스틸 전용 세척제를 사용하여 스테인리스 스틸 표면을 닦아주세요.
- Clean powder-coated surfaces with mild soap and water. Avoid abrasive cleaners.
저장
When not in use, store the grill in a dry, protected area. If storing outdoors, use a weather-resistant grill cover to protect it from the elements. Disconnect the propane tank and store it separately in a well-ventilated outdoor location.
문제 해결 가이드
이 가이드를 참조하여 일반적인 문제와 해결 방법을 확인하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Burner does not light with igniter | No gas flow; Igniter electrode dirty or damaged; Low propane tank pressure. | Check propane tank level and connection; Clean igniter electrode; Perform leak test; Replace propane tank if empty. |
| Uneven heat across cooking surface | Burner ports clogged; Flame tamers dirty or corroded. | Clean burner ports with a wire brush; Clean or replace flame tamers. |
| Low flame even on HIGH setting | Propane tank low; Regulator bypass activated. | Replace propane tank; Reset regulator by turning off all burners and tank valve, waiting 30 seconds, then slowly reopening tank valve and lighting burners. |
| 그리스 불 | Excess grease accumulation. | Immediately turn off all burners and propane tank valve. Keep lid open. Do not use water. Allow fire to burn out. Clean grease tray regularly. |
제품 사양
| 사양 | 세부 사항 |
|---|---|
| 상표 | 세그마트 |
| 모델명 | Propane BBQ Grill01 (PBQ01) |
| 제품 치수 | 19.41인치 깊이 x 49.7인치 너비 x 39.9인치 높이 |
| 연료 유형 | 가스(프로판) |
| 메인 버너 수 | 5 |
| 사이드 버너 수 | 1 |
| Heating Power (Each Main Burner) | 10,000비티유 |
| Heating Power (Side Burner) | 10,000비티유 |
| Total Heating Power | 50,000비티유 |
| 요리 표면적 | 368 sq. in. (Grates) + 108 sq. in. (Warming Rack) |
| 재료 | Iron (Frame), Stainless Steel (Burners, Hood, Front Panel), Porcelain Cast Iron (Grates) |
| 품목 무게 | 85파운드 |
| 조립이 필요합니다 | 예 |
| 특징 | 무연 |
보증 및 고객 지원
보증 정보
This SEGMART grill comes with a 3개월 보증 구매일로부터 제조상의 결함에 대한 보증을 제공합니다. 보증 청구를 위해 구매 증빙 서류를 보관해 주세요.
고객 지원
For any questions, assistance with assembly, parts, or troubleshooting not covered in this manual, please contact SEGMART customer support. Refer to the contact information provided with your purchase or visit the official SEGMART web지원 세부 정보 사이트.
