1. 중요한 안전 정보
설치 및 작동 전에 이 설명서를 꼼꼼히 읽어 주십시오. 이 지침을 따르지 않을 경우 재산 피해, 부상 또는 사망에 이를 수 있습니다. 나중에 참조할 수 있도록 이 설명서를 잘 보관하십시오.
- This unit must be installed by a qualified electrician or plumber in accordance with all federal, state, and local electrical and plumbing codes.
- Ensure the water heater is connected to a reliable earth ground connection at all times.
- 설치 및 유지 관리 전에 모든 회로 차단기와 차단 스위치가 꺼져 있는지 확인하십시오.
- DO NOT install this unit in a location where it may be subject to freezing temperatures, as this can cause severe damage not covered under your warranty.
- The wall for installation must be able to support the weight of the water heater.
- Keep the unit away from direct sunlight, moisture, dust, steam, and other liquids.
- The outlet water pipe can get very hot; make sure that the outlet water pipe is out of the reach of children.
2. 설정 및 설치
2.1 전기적 요구 사항
The Ranein RE27K model requires specific electrical infrastructure for safe and efficient operation:
- 힘: 27 kW, 240V/60A
- 차단기: 3 dedicated 40A double-pole circuit breakers
- 케이블 : 3 x 8 AWG cables
- 최고 Amp나이: 113 AMP
Ensure your electrical panel can accommodate these requirements. Professional installation is highly recommended.
Image: Warning sign indicating the electrical requirements for the water heater, specifically 112 Amps 및 3 x 40 AMP 차단기.
Image: Table showing cable gauge and power requirements for different Ranein models, including 27kW requiring 3x8AWG cable and 3x40A breakers.
2.2 Physical Dimensions and Water Connection
- 제품 크기: 폭 13.8인치 x 깊이 3.1인치 x 높이 18.7인치
- 물 연결: 3/4인치 NPT
2.3 장치 장착
Use the provided template to mark drilling locations on the wall. Ensure the wall is sturdy enough to support the unit's weight. Securely fasten the mounting screws.

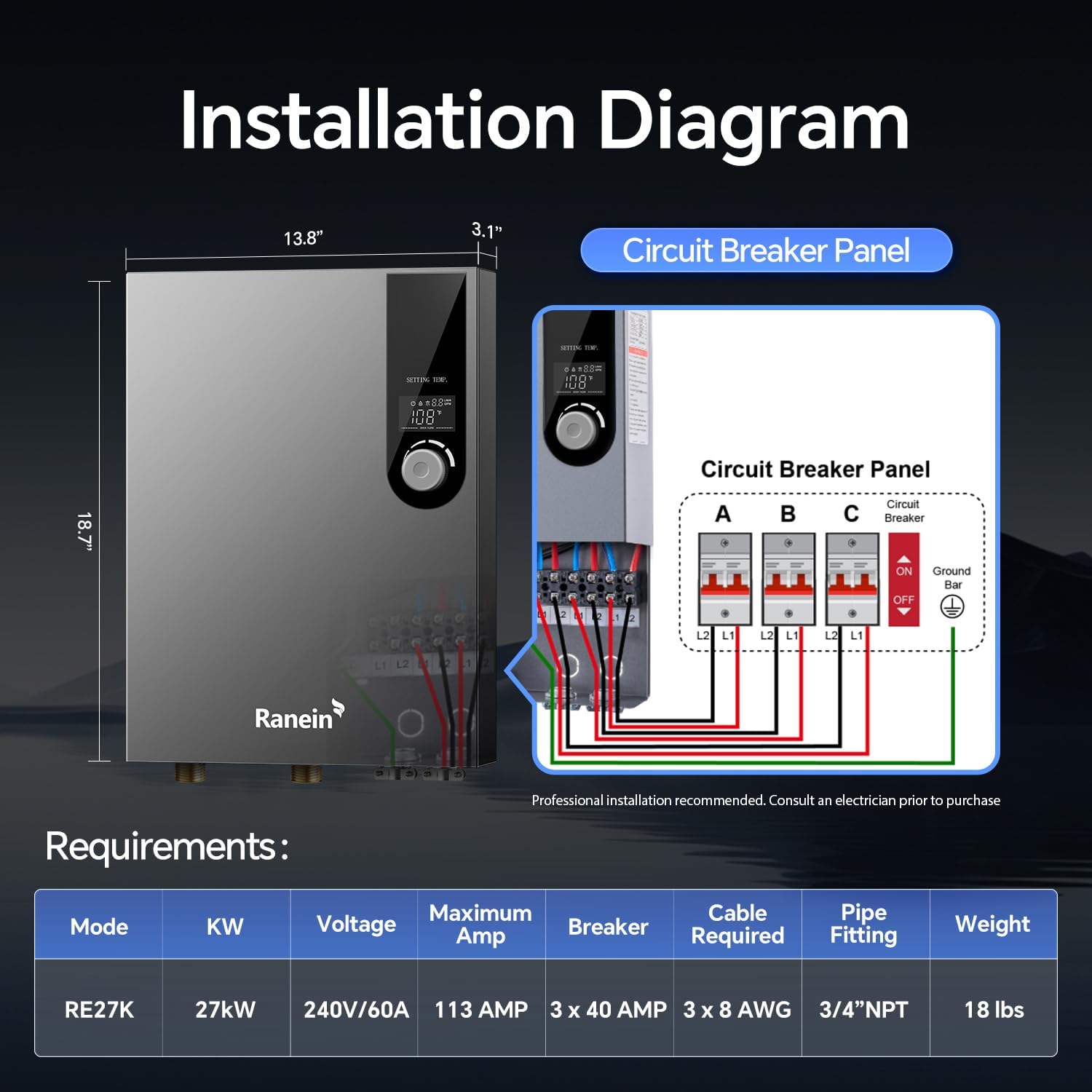

Image: Installation diagram illustrating the unit's dimensions, electrical connections, and a table of requirements.
2.4 배관 연결
Connect the 3/4" NPT water lines to the unit. Ensure all connections are tight and leak-free. The unit is designed for multi-point water supply, capable of serving 2-4 household water points.
Image: Illustration of the Ranein water heater supporting multi-point water supply in a household setting.
2.5 설치 비디오 가이드
Video: This video demonstrates the installation process of the Ranein 18/27 kW Electric Tankless Water Heater, including mounting, plumbing, and initial setup steps.
3. 사용 설명서
3.1 전원 켜기/끄기
Press the power button on the unit's LED display to turn the water heater on or off.
3.2 온도 조절
Adjust the water temperature seamlessly using the tactile control knob and LED display. The temperature can be set from 86°F to 131°F (30°C to 55°C) in 1°F increments. Set your ideal temperature once for consistent, stable output.
Image: Close-up of the unit's display, showing temperature visualization and the control knob for adjustment.
Image: Demonstrates accurate temperature control, showing a stable temperature output during use.
3.3 즉시 온수 공급
Equipped with rapid heating technology, the unit delivers near-instant hot water, minimizing wait time. Enjoy continuous hot water on demand.
Image: Highlights key features including 3-second fast heating and unlimited hot water.
Image: Visual representation of the 3-second fast heating capability.
3.4 작동 비디오 가이드
Video: This video demonstrates the operation of the Ranein 18/27 kW Electric Tankless Water Heater, including temperature adjustment and display functions.
4. 유지관리
The Ranein tankless water heater is designed for minimal maintenance:
- 안티 스케일 디자인: Stainless steel heating elements help prevent scale buildup, reducing the need for frequent descaling.
- 일반 청소: Keep the exterior of the unit clean and dry. Avoid using abrasive cleaners.
- No Special Maintenance: Unlike tank heaters, this unit does not require flushing to remove sediment.
Image: Highlights multiple protection features, including anti-scale design, contributing to low maintenance.
5. 문제 해결
If you encounter issues with your Ranein tankless water heater, consider the following:
- 온수 없음 : Check if the unit is powered on and if the circuit breakers are not tripped. Ensure water flow is sufficient to activate the heater.
- 온도 변화: The thermostatic system is designed to keep water stable. If fluctuations occur, ensure proper water pressure and flow rate.
- 오류 코드: Refer to the specific error codes displayed on the LED screen and consult the full product manual for detailed solutions.
- Installation Concerns: Professional installation is recommended for safety and optimal performance. If issues arise post-installation, contact a qualified professional.
- 안전 기능: The unit includes multiple built-in safety protections (leakage protection, overheat safeguards, damp-proof design). If any safety feature is triggered, the unit may shut down.
Image: Illustrates the comprehensive 8-layer protection system, including leakage and overheat protection, which can aid in troubleshooting.
6. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 라네인 |
| 모델 번호 | RE27K |
| 전원 | 전기 같은 |
| 제품 치수 | 폭 13.8인치 x 깊이 3.1인치 x 높이 18.7인치 |
| 색상 | 회색 |
| 특징 | LED 디스플레이 |
| 최대 온도 | 화씨 131도(섭씨 55도) |
| 능률 | 99% |
| 장착 유형 | 벽 |
| 품목 무게 | 17.41파운드 |
| 포함된 구성 요소 | Water heater x1 |
7. 보증 및 지원
Ranein은 신뢰할 수 있는 제품과 탁월한 고객 서비스를 제공하기 위해 최선을 다하고 있습니다.
- 보증: This product comes with a 2-year warranty against manufacturing defects.
- 지원하다: For comprehensive product problem-solving, installation guidance, or product consultation, please contact our professional after-sales team.
- 이메일: service@ranein.net
- 미국 전화: (424)-452-2630
Image: Ranein Service Support information, including warranty details and contact methods.
