1. 서론
The CamScanner P1 Pro is a portable thermal printer designed for convenient, ink-free printing of documents up to US Letter size (8.5 x 11 inches). It offers versatile connectivity options, including Bluetooth for mobile devices and USB for computers, making it suitable for various environments such as home, office, and travel.
Key features include 300 dpi high-definition output for clear black-and-white prints, a 2600mAh built-in battery for extended use, and support for both roll and folded thermal paper. The printer operates without ink or toner, reducing ongoing costs and maintenance.
2. 상자 안에 무엇이 들어있나요?
다음 항목이 모두 제품 패키지에 포함되어 있는지 확인하세요.
- 1x Portable Printer
- 1 x 플란넬 보관 가방
- 1x US Letter Size Thermal Roll Paper (inside the Printer)
- 1x USB-C 충전 케이블
- 1x 사용자 설명서
Image: The package contents include the CamScanner P1 Pro printer, a flannel storage bag, a roll of thermal paper, a USB-C charging cable, and a user manual.
3. 설정
3.1. 용지 넣기
The CamScanner P1 Pro supports both roll and folded thermal paper. Ensure you use CamScanner-certified thermal paper for optimal results.
Loading Roll Paper:
- Press the two open cover buttons located on the sides of the printer to open the top cover.
- Insert the thermal paper roll into the designated compartment, ensuring the printing side (usually the smoother side) faces upwards.
- Pull a small length of paper out through the output slot.
- 윗 덮개를 딸깍 소리가 나며 제자리에 단단히 고정될 때까지 닫습니다.
Image: The CamScanner P1 Pro printer with its top cover open, illustrating the correct placement of a thermal paper roll inside the compartment.
Loading Folded Paper:
- Ensure the printer's top cover is closed.
- Gently insert the first sheet of folded thermal paper into the paper entry slot at the back of the printer.
- The printer will automatically feed the paper once it detects it.
Image: The CamScanner P1 Pro printer with a stack of folded thermal paper being fed into the rear paper entry slot.
3.2. 전원 켜기 및 충전
To power on the printer, press and hold the power button for approximately 3 seconds until the indicator light illuminates.
To charge the printer, connect the provided USB-C cable to the printer's charging port and the other end to a 5V/2A power adapter (not included). A full charge typically takes about 3 hours and provides power for up to 188 pages (at 12.5% coverage) or 24-hour standby.
Image: Close-up of the CamScanner P1 Pro printer highlighting the USB-C charging port and indicating a 2600mAh battery capacity, 3-hour full recharge time, and ability to print 200 sheets on a full charge.
3.3. 앱 설치 및 연결
The CamScanner P1 Pro printer can be connected via Bluetooth to mobile devices (iOS and Android) or via USB to computers (Windows and macOS).
모바일 기기(블루투스)용:
- Download the CamScanner App from the App Store (iOS) or Google Play Store (Android).
- 모바일 장치에서 Bluetooth가 활성화되어 있는지 확인하십시오.
- Open the CamScanner App, navigate to the printer connection section, and select your P1 Pro printer (CSTPA4300F) from the list of available devices to pair.
Image: The CamScanner P1 Pro printer wirelessly connected via Bluetooth to a smartphone displaying the CamScanner app, ready for printing.
컴퓨터용 (USB):
- Visit the CamScanner website (camscanner.com/download) to download and install the appropriate printer driver for your Windows or macOS operating system.
- 제공된 USB-C 케이블을 사용하여 프린터를 컴퓨터에 연결하세요.
- Once the driver is installed and the printer is connected, it should appear as an available printer in your computer's print dialogue.

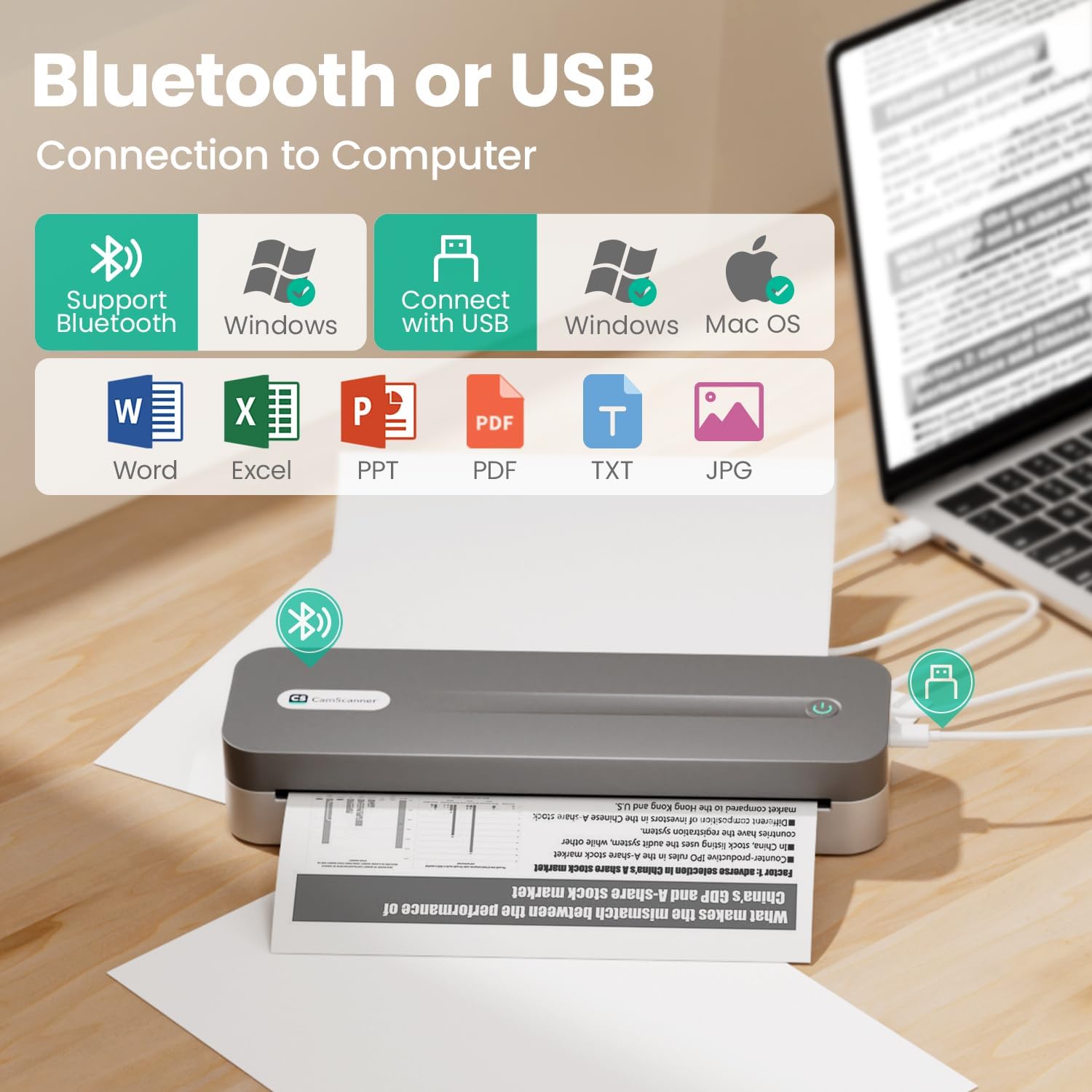

Image: The CamScanner P1 Pro printer connected via USB to a laptop, demonstrating its compatibility with various operating systems and document types.
4. 사용 설명서
4.1. Printing from Mobile Device
After successfully connecting your printer via Bluetooth to the CamScanner App:
- Open the CamScanner App and select the document or image you wish to print.
- Tap the 'Print' option within the app.
- Adjust print settings such as page range, number of copies, and print density (light, medium, heavy) as desired.
- Confirm your settings and tap 'Print' to send the job to the printer.
4.2. Printing from Computer
After successfully installing the driver and connecting your printer via USB to your computer:
- 문서를 열거나 file 컴퓨터로 인쇄하고 싶으신가요?
- '로 이동하세요'File' > 'Print' (or use the keyboard shortcut Ctrl+P/Cmd+P).
- In the print dialogue box, select 'CamScanner P1 Pro' (CSTPA4300F) as your printer.
- Adjust any necessary print preferences (e.g., page orientation, scaling) and click 'Print'.
4.3. Official Product Video: How to Print with CamScanner Printer
Video: This official CamScanner video demonstrates the process of printing using the CamScanner P1 Pro Thermal Printer, covering mobile and computer printing methods.
5. 유지관리
To ensure the longevity and optimal performance of your CamScanner P1 Pro Thermal Printer, follow these maintenance guidelines:
- 청소: 프린터 외부를 부드럽고 마른 천으로 정기적으로 닦아주세요. 강한 화학 약품이나 연마제를 사용하지 마십시오.
- 프린트 헤드 관리: If print quality degrades, gently clean the thermal print head with an alcohol swab. Ensure the printer is off and cooled down before cleaning.
- 서류 보관: 감열지는 직사광선과 열을 피해 서늘하고 건조한 곳에 보관하여 조기 변색이나 손상을 방지하십시오.
- 배터리 관리 : For optimal battery life, avoid fully discharging the printer frequently. Charge the device when the battery level is low.
6. 문제 해결
일반적으로 발생할 수 있는 문제에 대한 해결책은 다음과 같습니다.
| 문제 | 해결책 |
|---|---|
| Poor Print Quality / Faint Prints | Adjust the print density setting in the CamScanner App (Light, Medium, Heavy). Ensure you are using CamScanner-certified thermal paper. Clean the print head if necessary. |
| 프린터가 블루투스로 연결되지 않습니다 | Ensure Bluetooth is enabled on your mobile device and the printer is powered on. Restart both the printer and your mobile device. Try re-pairing the device through the CamScanner App. |
| Printer Not Connecting via USB | Verify the USB cable is securely connected to both the printer and the computer. Ensure the correct printer driver is installed on your computer. Restart both the printer and the computer. |
| 종이 걸림 | Power off the printer. Open the top cover and carefully remove any jammed paper. Ensure paper is loaded correctly and is not wrinkled or torn. |
| 배터리가 충전되지 않음 | Ensure you are using the original USB-C cable and a 5V/2A power adapter. Check if the charging port is clean and free of debris. If the indicator light does not turn on, charge for 1 hour and try again. |
7. 사양
| 특징 | 사양 |
|---|---|
| 모델명 | CSTPA4300F |
| 상표 | 캠스캐너 |
| 인쇄 기술 | 열의 |
| 연결 기술 | 블루투스, USB |
| 최대 미디어 크기 | 편지 크기 (8.5 x 11인치) |
| 최대 흑백 인쇄 해상도 | 300 X 300dpi |
| 최대 입력 시트 용량 | 22 (for roll paper) |
| 품목 무게 | 1.6파운드 |
| 제품 치수 | 10.35 x 1.81 x 3.07 인치 |
| 배터리 | 2600mAh (비표준 배터리 1개 포함) |
| 프린터 출력 | 단색화 |
| 특징 | 가지고 다닐 수 있는 |
8. 보증 및 지원
The CamScanner P1 Pro Thermal Printer comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty information provided with your product or contact CamScanner customer support.
If you require technical assistance, troubleshooting, or have questions regarding your product, please visit the official CamScanner website or contact their customer support team for further assistance.
