1. 서론
Thank you for choosing the NEXPEAK NC315 Smart Car Battery Charger. This intelligent charger is designed to efficiently charge and maintain 12V and 24V lead-acid (AGM, GEL, SLA, Flooded) and LiFePO4 batteries. It features advanced charging technology, multiple safety protections, and an intuitive LED display for ease of use. Please read this manual thoroughly before operation to ensure safe and optimal performance of your device.
Image: The NEXPEAK NC315 smart battery charger, highlighting its compatibility with various battery types and its role as a charger and maintainer.
2. 중요한 안전 정보
Always prioritize safety when working with batteries and electrical equipment. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- 모든 지침 읽기: Before using the charger, read all instructions and cautionary markings on the charger, the battery, and the vehicle or device using the battery.
- 통풍: 충전 장소의 환기가 잘 되는지 확인하십시오. 배터리는 폭발성 가스를 발생시킬 수 있습니다.
- 눈과 피부 보호: Always wear eye protection (safety glasses) and protective clothing when working near batteries. Avoid touching eyes while working near batteries.
- 불꽃과 화염을 피하세요: 배터리나 엔진 근처에서 담배를 피우거나 불꽃 또는 화염을 발생시키지 마십시오.
- 전원 분리: Always disconnect the AC power cord from the outlet before connecting or disconnecting the charging clamp배터리에 연결하세요.
- 극성: 빨간색(+) cl을 연결합니다.amp 배터리의 양극 단자와 검은색 (-) 단자에 연결하십시오.amp to the negative battery terminal. Ensure correct polarity to prevent damage.
- 어린이들: 충전기와 배터리는 어린이의 손이 닿지 않는 곳에 보관하십시오.
- 손상된 장비: 충전기가 날카로운 충격을 받았거나, 떨어졌거나, 그 밖에 손상된 경우 충전기를 작동하지 마십시오.
- 실내 사용: 이 충전기는 실내용으로 설계되었습니다. 비나 과도한 습기에 노출시키지 마십시오.
Image: Visual representation of the NEXPEAK NC315 charger highlighting its multiple safety features including intelligent control, temperature compensation, reverse polarity protection, cooling system, overcurrent, overvoltage, 단락 보호 기능이 있습니다.
3. 제품 오버view
The NEXPEAK NC315 is an advanced smart battery charger featuring a robust design and intelligent functionalities. It is equipped with a large LED display that provides real-time information on charging status, voltage, current, and internal temperature.
주요 특징:
- 다중 배터리 호환성: Charges 12V and 24V LiFePO4, Lead-Acid, AGM, GEL, and SLA batteries.
- 빠른 충전: Delivers 15A for 12V batteries and 8A for 24V batteries.
- 9-에스tag스마트 충전: An optimized charging process that extends battery life and ensures efficient charging.
- 펄스 복구 기능: Automatically detects battery sulfation and acid stratification, using pulse repair technology to restore lost battery performance.
- 온도 보상: 충전 전압을 조절합니다tage and current based on ambient temperature (Summer/Winter modes) for optimal charging in various climates.
- 다중 안전 보호: Includes protection against reverse polarity, overcurrent, overvoltage, short-circuit, and overheating. Features a powerful cooling system and flame-retardant ABS casing.
- 케이블 관리 : Integrated storage for charging cables for convenience.
Image: The NEXPEAK NC315 charger connected to a lead-acid battery, illustrating its fast charging capabilities and compatibility with LiFePO4 and lead-acid types. Insets show quick charging, battery maintenance, and engine starting benefits.
4. 설정 지침
Follow these steps to properly set up your NEXPEAK NC315 battery charger:
- 배터리에 연결: First, connect the red positive (+) charging clamp to the positive terminal of the battery. Then, connect the black negative (-) charging clamp 배터리의 음극 단자에 연결하십시오. 단단히 연결되었는지 확인하십시오.
- 전원 콘센트에 연결: Plug the AC power cord of the charger into a standard 100-240V AC electrical outlet. The charger will power on and display battery information.
- 충전 모드 선택: Press the 'MODE' button on the charger to cycle through the available charging modes (e.g., LiFePO4, Lead-Acid, Motorcycle, Repair, Summer, Winter). Select the mode that corresponds to your battery type and charging needs. The charger will automatically begin the charging process.
Video: A short demonstration showing the steps to connect the NEXPEAK NC315 charger to a battery and select a charging mode. This video illustrates the connection of positive and negative terminals, plugging into an AC outlet, and using the mode button.
5. 사용 설명서
The NEXPEAK NC315 offers various charging modes to suit different battery types and conditions. The large LED display provides clear feedback during operation.
5.1. 디스플레이 이해하기
LED 디스플레이에는 다음이 표시됩니다.
- 권tag전자(V): 현재 배터리 용량tage.
- 전류(A): 충전 전류.
- 온도(°C/°F): Internal temperature of the charger, influencing temperature compensation.
- 충전 퍼센트tage: Visual indicator of battery charge level.
- 모드 표시기: Icons for selected battery type (e.g., AGM, LiFePO4, Motorcycle) and special modes (Repair, Summer, Winter).
Image: The NEXPEAK NC315 charger's LED display showing charging status and mode selection. It highlights the 5 available modes and the easy cable storage feature.
5.2. Selecting Charging Modes
Press the 'MODE' button to switch between the following options:
- Standard (Lead-Acid/AGM/GEL/SLA): For typical 12V or 24V automotive, marine, and deep-cycle batteries.
- LiFePO4: Specifically for 12V or 24V Lithium Iron Phosphate batteries.
- 오토바이 : Optimized for smaller 12V batteries commonly found in motorcycles.
- Repair Mode (PUL): Activates the pulse repair function to desulfate and recondition old or deeply discharged batteries. Note: This mode may not revive completely dead batteries.
- 여름 모드: Automatically engaged when the ambient temperature is above 28°C (82°F), providing a secure charge in hot conditions.
- 겨울 모드: Automatically engaged when the ambient temperature is below 10°C (50°F), providing a powerful charge in cold conditions.

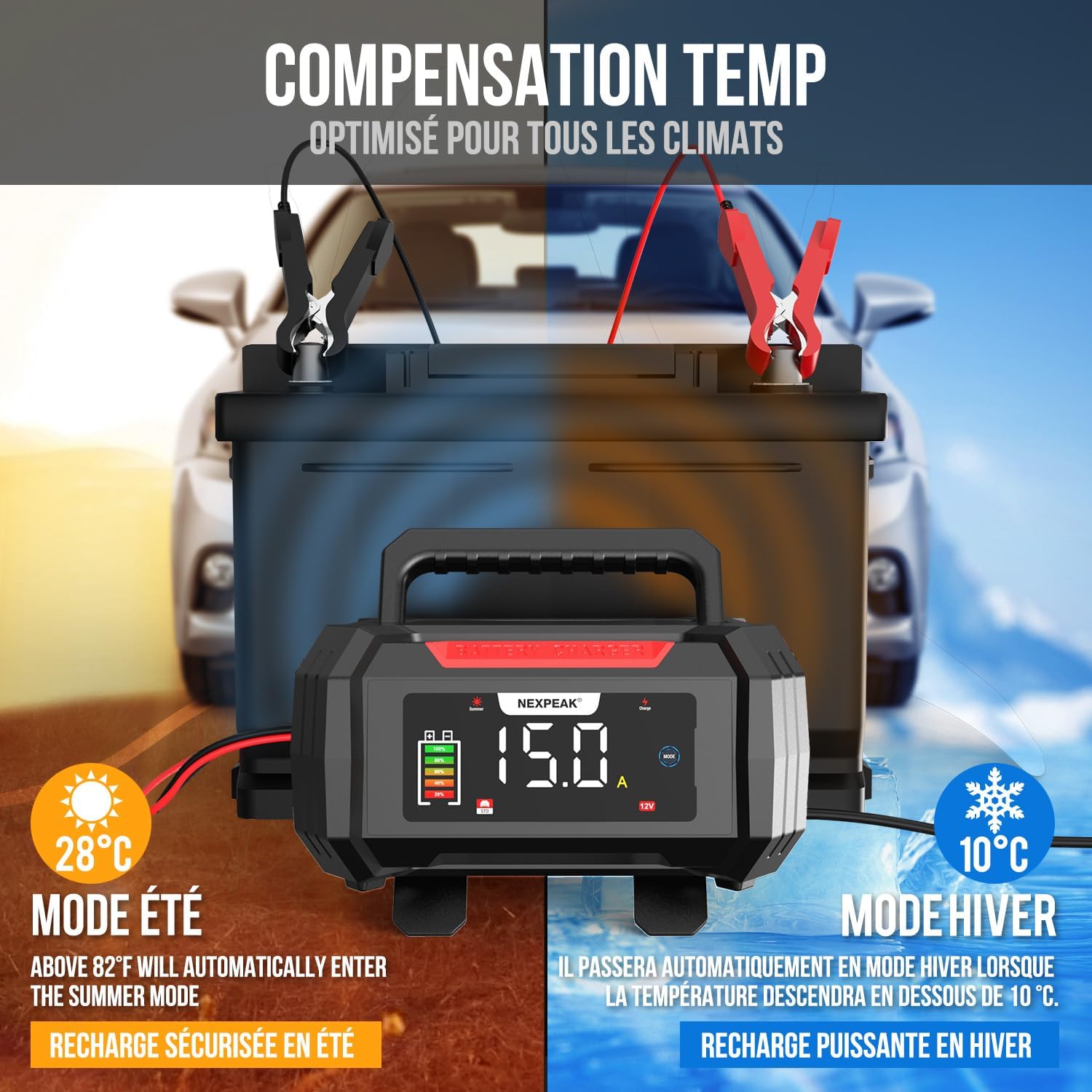

Image: The NEXPEAK NC315 charger demonstrating its temperature compensation feature, showing automatic adjustment for summer (above 28°C) and winter (below 10°C) charging conditions.
5.3. 9-Stag스마트 충전 프로세스
이 충전기는 정교한 9초 방식을 사용합니다.tag최적의 배터리 상태와 수명을 보장하기 위한 충전 알고리즘:
- 배터리 감지: 배터리 상태를 분석합니다.
- 탈황: Breaks down lead sulfate crystals.
- 소프트 스타트 : Gradually introduces current to prevent damage.
- 대량 청구 : 배터리를 약 80% 용량까지 충전합니다.
- 흡수: 배터리를 100%까지 점진적으로 충전합니다.asin전류.
- 배터리 테스트: 배터리 상태를 확인합니다.
- Repair Charge: Reconditions the battery if needed.
- 플로트 충전 : 배터리를 항상 완충 상태로 유지합니다.
- Monitoring Phase: 배터리 상태를 지속적으로 모니터링합니다.
이미지: 9-s를 설명하는 다이어그램tage intelligent charging process of the NEXPEAK NC315, showing how voltage and current are managed through detection, desulfation, soft start, bulk, absorption, test, repair, float, and monitoring stag에스.
6. 유지관리
Proper maintenance ensures the longevity and reliable operation of your NEXPEAK NC315 charger and your batteries.
- 충전기 청소: Disconnect the charger from power and the battery before cleaning. Wipe the exterior with a soft, dry cloth. Do not use harsh chemicals or abrasives.
- 케이블 검사: 충전 케이블과 커넥터를 정기적으로 점검하십시오.amp손상, 마모 또는 부식 흔적이 있는지 확인하십시오. 필요한 경우 교체하십시오.
- 저장: Store the charger in a cool, dry place when not in use. Utilize the integrated cable storage to keep cables tidy and protected.
- 배터리 유지 관리: For vehicles stored for extended periods, use the charger's trickle charge or maintenance mode to keep the battery optimally charged.
Image: The NEXPEAK NC315 charger operating as a slow charger (1.75 Ampere), ideal for maintaining batteries in unused vehicles or those in storage, applicable to cars, boats, and other equipment.
7. 문제 해결
넥스피크 NC315 충전기에 문제가 발생하면 다음의 일반적인 문제 및 해결 방법을 참조하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 충전기가 켜지지 않습니다. | 콘센트에 전원이 안 들어옵니다. 연결이 헐거워졌습니다. | Check AC power cord connection. Test outlet with another device. |
| 충전기가 충전되지 않습니다. | Incorrect mode selected; poor battery connection; battery too deeply discharged. | Ensure correct mode for battery type. Check clamp connections. Try Repair Mode for deeply discharged batteries (if not completely dead). |
| 오류 메시지가 표시됩니다. | Reverse polarity; short circuit; overvoltage/overcurrent. | Disconnect charger. Reconnect clamps ensuring correct polarity (+ to +, - to -). Inspect cables for damage. If error persists, contact support. |
| 충전기가 뜨거워집니다. | 정상 작동 중, 환기가 잘 안 됨. | Some heat is normal during charging. Ensure adequate ventilation around the charger. The built-in cooling system will manage heat. If excessively hot, disconnect and allow to cool. |
If the problem persists after attempting these solutions, please contact NEXPEAK customer support.
8. 사양
| 특징 | 사양 |
|---|---|
| 상표 | 넥스피크 |
| 모델 번호 | 엔씨315 |
| 입력 Voltage | 100-240V AC |
| 출력 볼륨tage | 12V 직류 / 24V 직류 |
| Output Current (12V) | 15A |
| Output Current (24V) | 8A |
| 배터리 유형 | LiFePO4, 납산(AGM, GEL, SLA, 플러드형) |
| 치수(길이 x 너비 x 높이) | 가로 19cm, 세로 8.8cm, 높이 17cm (대략) |
| 품목 무게 | 1.13 킬로그램 |
| 안전 인증 | TÜV, UL Certified (for cables) |
| 보증 | 2년 제조사 보증 |
9. 보증 및 지원
9.1. 제조업체 보증
The NEXPEAK NC315 Smart Car Battery Charger comes with a 2년 제조사 보증 구매일로부터 유효합니다. 본 보증은 정상적인 사용 조건에서 발생하는 재료 및 제조상의 결함에 적용됩니다. 단, 오용, 사고, 무단 개조 또는 부주의로 인한 손상은 보증 대상에서 제외됩니다.
보증 청구를 위해 구매 증명서를 보관하십시오.
9.2. 고객 지원
For technical assistance, warranty claims, or any questions regarding your NEXPEAK NC315 charger, please contact our customer support team. You can typically find contact information on the product packaging or the official NEXPEAK web대지.
When contacting support, please have your product model (NC315) and purchase details ready.
