Nocpix Vista H35R LRF 35-640 Thermal Monocular User Manual

1. 서론

Thank you for choosing the Nocpix Vista H35R LRF 35-640 Thermal Monocular. This device is engineered to provide superior thermal imaging performance for various applications, including observation, hunting, and surveillance. Featuring an advanced thermal sensor, integrated laser rangefinder, and a high-resolution AMOLED display, the Vista H35R delivers exceptional clarity and detail. This manual provides essential information for the proper setup, operation, and maintenance of your device.

2. 제품 오버view

The Nocpix Vista H35R LRF 35-640 is a high-performance handheld thermal monocular designed for detailed observation in challenging conditions. Key features include:

• 고급 광학: Equipped with an f/0.9 germanium objective lens for unmatched clarity.
• 고해상도 센서: Features a 640x512 thermal sensor with 15 mK NETD sensitivity for detailed images.
• 통합 레이저 거리 측정기: Accurately detects distances up to 1,200 yards with 1-yard precision.
• 생생한 디스플레이: 1.03-inch 2560x2560 round AMOLED display for a smooth, sharp picture.
• 전자식 이미지 안정화: Ensures stable viewing even during movement.
• Removable Battery Pack: Utilizes the Nocpix IBP-7 Removable Battery Pack with direct USB-C charging.
• 녹음 기능: Built-in photo, video, and audio recording.

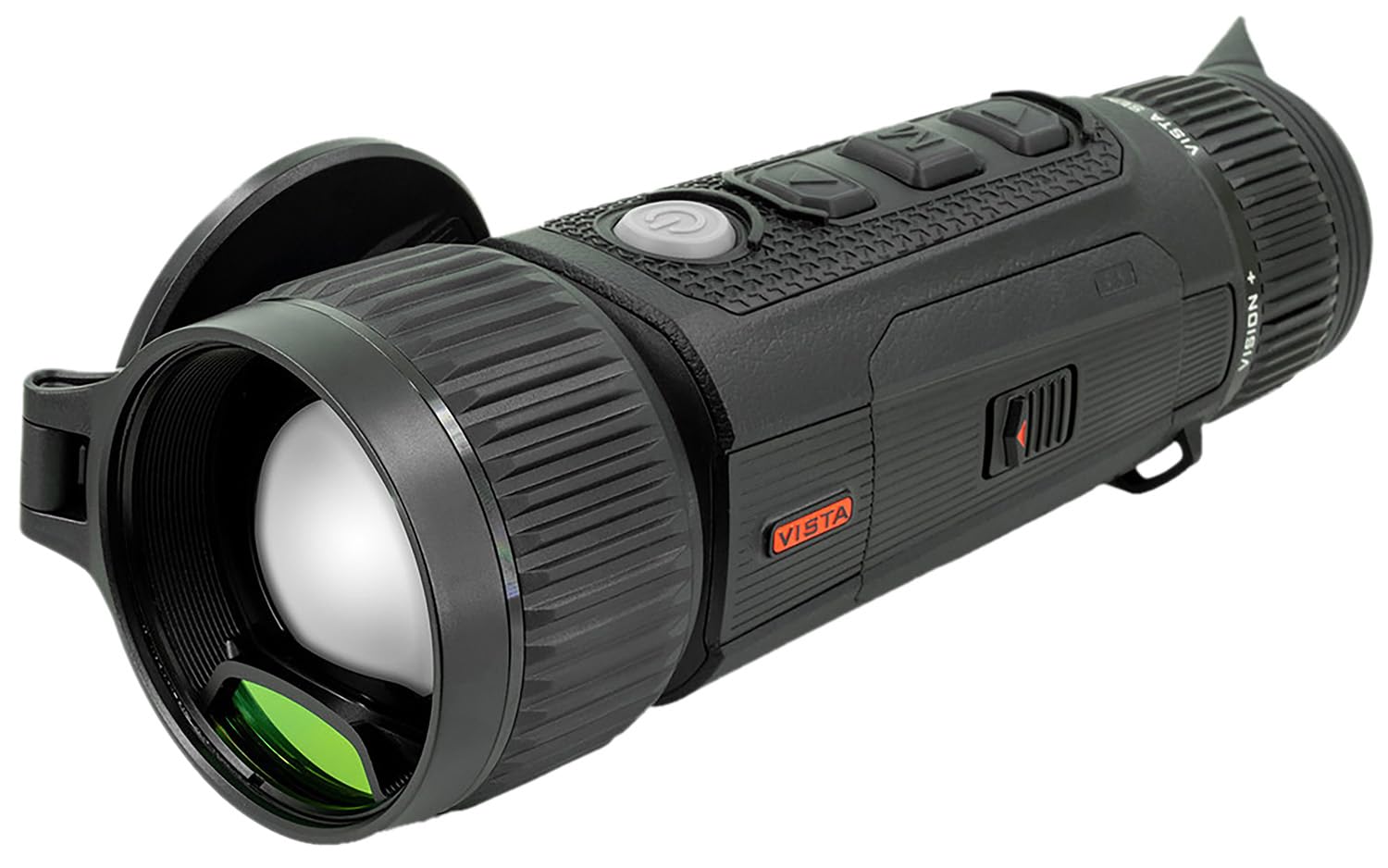

Figure 2.1: The Nocpix Vista H35R LRF 35-640 Thermal Monocular. This image shows the device from a side angle, highlighting its ergonomic design and objective lens.

3. 설정

3.1. 배터리 설치

1. 장치에서 배터리함을 찾으세요.
2. 배터리 덮개를 엽니다.
3. Insert the Nocpix IBP-7 Removable Battery Pack, ensuring correct polarity.
4. 배터리 덮개를 단단히 닫으세요.

3.2. 배터리 충전

The Nocpix IBP-7 battery can be charged directly via the USB-C port on the device.

1. 제공된 USB-C 케이블을 기기의 USB-C 포트에 연결하십시오.
2. USB-C 케이블의 다른 쪽 끝을 호환되는 USB 전원 어댑터(포함되지 않음) 또는 컴퓨터의 USB 포트에 연결합니다.
3. 충전 표시등은 충전 중에는 빨간색으로, 완전히 충전되면 녹색으로 켜집니다.

3.3. 초기 전원 켜기

After installing a charged battery, press and hold the power button (refer to the device diagram for location) for approximately 3 seconds until the display illuminates.

4. 사용 설명서

4.1. 전원 켜기/끄기

• 전원 켜기: 전원 버튼을 3초간 길게 누르세요.
• 전원 끄기 : Press and hold the power button for 3 seconds until the shutdown prompt appears, then confirm.

4.2. 초점 조정

Use the ergonomic objective focus dial located on the device to achieve a clear image. Rotate the dial clockwise or counter-clockwise until the image on the AMOLED display is sharp.

4.3. Using the Laser Rangefinder (LRF)

The integrated laser rangefinder can be activated for single measurements or continuous scanning.

• 단일 측정: Briefly press the LRF button (refer to device diagram) to measure the distance to the target. The distance will be displayed on the screen.
• 연속 스캔: Press and hold the LRF button to activate continuous scanning. The distance will update as you move the device across different targets. Release the button to stop scanning.

4.4. Photo, Video, and Audio Recording

The Vista H35R allows for capturing images, videos, and audio.

• 사진: Press the photo capture button (refer to device diagram) to take a still image.
• 동영상: 비디오 녹화 버튼을 눌러 녹화를 시작하세요. 다시 누르면 녹화가 중지됩니다.
• 오디오: Audio recording is integrated with video recording. Ensure the microphone is not obstructed.

4.5. 메뉴 탐색 및 설정

The device features an intuitive interface for accessing various settings. Use the navigation buttons (up, down, select) to browse through menus and adjust parameters such as color palettes, brightness, contrast, and electronic image stabilization.

5. 유지관리

5.1. 장치 청소

• 렌즈: Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lens surface. Avoid abrasive materials or excessive pressure.
• 몸: 부드러운 천으로 기기 본체를 닦아주세요.amp 옷감. 강한 화학물질이나 용제를 사용하지 마십시오.

5.2. 배터리 관리

• 사용하지 않을 때는 배터리를 서늘하고 건조한 곳에 보관하십시오.
• 장시간 배터리를 완전히 방전시키지 마세요.
• Charge the battery regularly, even if not in frequent use, to maintain its lifespan.

5.3. 보관

When storing the device for extended periods, ensure it is clean, dry, and the battery is partially charged. Store it in its protective case in a stable environment, away from extreme temperatures and humidity.

6. 문제 해결

If you encounter issues with your Nocpix Vista H35R, please refer to the following common solutions:

• 장치 전원이 켜지지 않음: Ensure the battery is correctly installed and fully charged. Try charging the device for at least 30 minutes.
• Image Unclear/Blurred: Adjust the objective focus dial until the image is sharp. Ensure the lens is clean and free from smudges or debris.
• Laser Rangefinder Not Working: Ensure there are no obstructions between the device and the target. Check if the LRF function is enabled in the settings menu.
• 배터리 수명이 짧음: Ensure the battery is fully charged before use. Reduce screen brightness or disable unnecessary features to conserve power.
• 장치가 응답하지 않음: Perform a soft reset by holding the power button for 10-15 seconds until the device restarts. If the issue persists, contact customer support.

7. 사양

8. 보증 및 지원

Nocpix products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Nocpix website. For technical support, service, or inquiries, please contact Nocpix customer service through their official channels. Please have your model number (VISTA-H35R) and purchase information ready when contacting support.
