1. 소개 및 이상view
The ACEBEAM Keylite 500 is an extremely bright, ultra-compact, and rechargeable LED keyring torch designed for everyday carry and emergency situations. Featuring dual high-performance LEDs, it delivers a maximum brightness of 500 lumens with a beam range of up to 70 meters. Its robust construction and intuitive operation make it a reliable lighting tool for various activities, from daily tasks to outdoor adventures.

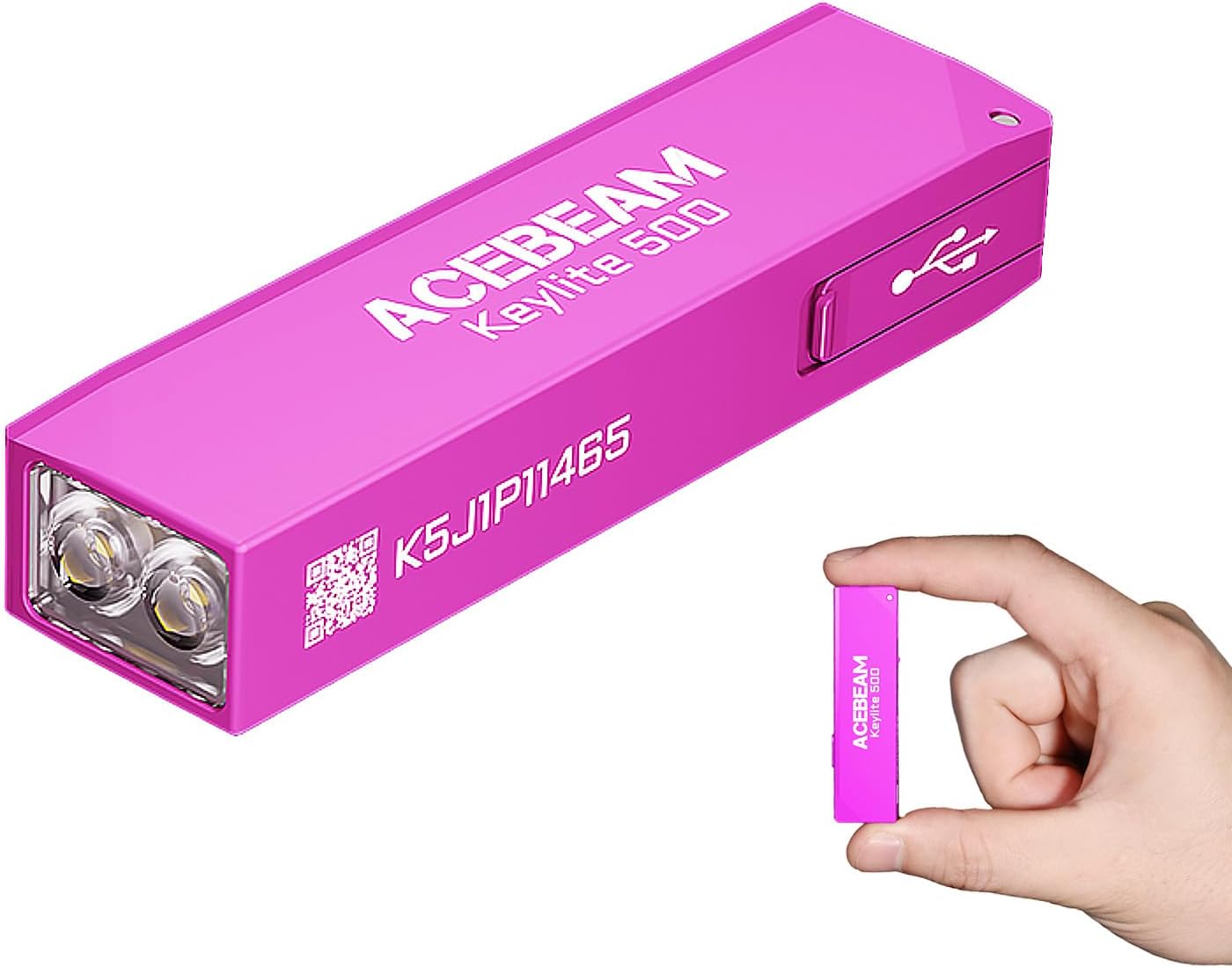

Image: The ACEBEAM Keylite 500 in pink, highlighting its compact size relative to a human hand.
주요 특징은 다음과 같습니다.
- 매우 밝음: Utilizes dual high-performance LEDs for up to 500 lumens output and a 70-meter beam distance.
- 충전식: Equipped with a Type-C charging port, allowing for a full recharge in approximately 40 minutes.
- 초소형 및 초경량: Measuring only 6 cm in length and weighing just 19g (0.67 oz), it is designed for effortless portability.
- 내구성 있는 구조: Crafted from aircraft-grade hard anodized aluminum, offering shock resistance up to 1.5 meters and IP66 waterproof and dustproof certification.
- 다양한 모드: 다양한 요구에 맞춰 6가지 조명 모드를 제공합니다.
2. 패키지 내용
모든 품목이 들어 있는지 확인하기 위해 패키지를 주의 깊게 확인하세요.
- 1 x ACEBEAM Keylite 500 Torch
- 1 x 열쇠 고리
- 1 x USB-C 충전 케이블
- 1 x 사용자 설명서
3. 설정 및 초기 사용
Before first use, it is recommended to fully charge your Keylite 500.
- 충전 중: Locate the USB-C charging port on the side of the torch. Connect the provided USB-C cable to the torch and plug the other end into a compatible USB power source (e.g., computer USB port, wall adapter). The battery indicator light will show charging status (see Section 5 for details).
- Attaching Key Ring: If desired, attach the included key ring to the designated loop on the torch for convenient carrying.
Image: The ACEBEAM Keylite 500 connected to a USB-C charging cable, illustrating the charging process and battery indicator.
4. 사용 설명서
The Keylite 500 features an intuitive side switch for easy control of all functions.
Image: The ACEBEAM Keylite 500 with its side switch highlighted, demonstrating the different lighting modes and their respective lumen outputs.
기본 작업:
- 켜기/끄기: Press and hold the side switch for approximately 0.5 seconds to turn the torch ON or OFF.
- 모드 전환: With the torch ON, single-click the side switch to cycle through the modes in the following order: Moonlight → Low → Med → High.
- 터보 모드: From any state (ON or OFF), double-click the side switch to instantly activate Turbo mode. Double-click again to return to the previously used mode (if ON) or turn OFF (if OFF).
- 스트로브 모드: From any state (ON or OFF), triple-click the side switch to activate Strobe mode. Single-click to turn OFF.
조명 모드:
| 방법 | 루멘 출력 | 설명 |
|---|---|---|
| 월광 | 1루멘 | Ultra-low output for close-up tasks without disturbing others. |
| 낮은 | 10루멘 | Suitable for general indoor use or navigating in dim environments. |
| 의학 | 60-20루멘 | Balanced brightness for various tasks. |
| 높은 | 200-150-20루멘 | Strong illumination for outdoor activities or larger areas. |
| 터보 | 500-260-50루멘 | Maximum brightness for short bursts when intense light is needed. |
| 스트로브 | 500루멘 | Disorienting flashing light for signaling or self-defense. |
5. 충전 및 배터리 표시기
The Keylite 500 is equipped with a built-in rechargeable lithium polymer battery and a convenient USB-C charging port.
충전 프로세스:
To charge the device, simply open the protective cover over the USB-C port and insert the provided USB-C cable. Connect the other end to a standard USB power source. A full charge takes approximately 40 minutes.
배터리 표시기:
The small indicator light next to the charging port provides real-time battery status:
- 녹색 표시등이 계속 켜져 있습니다. 배터리 잔량이 30% 이상입니다.
- 빨간색 표시등이 계속 켜져 있습니다. 배터리 잔량이 30%~10% 사이입니다.
- 빨간불 깜박임: Battery level is below 10%, indicating a need for immediate recharging.
6. 유지관리
To ensure the longevity and optimal performance of your ACEBEAM Keylite 500, follow these maintenance guidelines:
- 청소: 부드러운 천으로 손전등을 닦으세요.amp 천으로 먼지나 이물질을 제거하세요. 강한 화학 물질이나 연마재는 사용하지 마세요.
- 충전 중: Recharge the battery regularly, especially if the torch will not be used for an extended period, to maintain battery health.
- 저장: 손전등은 직사광선과 극한 온도 변화를 피해 서늘하고 건조한 곳에 보관하십시오.
- 방수 기능: While IP66 rated, ensure the USB-C port cover is securely closed to maintain water and dust resistance. Avoid prolonged submersion.
7. 문제 해결
If you encounter issues with your Keylite 500, please refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 손전등이 켜지지 않습니다. | 배터리가 소진되었습니다. | Charge the torch fully using the provided USB-C cable. |
| 손전등은 충전되지 않습니다. | Charging cable or power source is faulty. | Try a different USB-C cable or a different USB power adapter. Ensure the cable is fully inserted. |
| 조명 출력이 어둡거나 깜박입니다. | 배터리 잔량이 부족합니다. | Recharge the torch. |
| 모드를 전환할 수 없습니다. | 잘못된 버튼 누름. | Refer to Section 4 for correct operating instructions (single-click to cycle, double-click for Turbo, triple-click for Strobe). |
If the problem persists after trying these solutions, please contact ACEBEAM customer support.
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 | 키라이트 500 |
| 광원 | Dual LEDs |
| 최대 밝기 | 500루멘 |
| 최대 빔 거리 | 70 미터 |
| 모드 | Moonlight, Low, Med, High, Turbo, Strobe (6 modes) |
| 전원 | 배터리 구동 |
| 배터리 유형 | 충전식 리튬 폴리머 배터리 |
| 충전 포트 | USB 타입-C |
| 재료 | Aircraft-grade Aluminium (Anodized finish) |
| 제품 크기(L x W x H) | 61 x 16 x 11mm(2.4 x 0.63 x 0.43인치) |
| 품목 무게 | 0.05 Kilograms (19g / 0.67 oz) |
| 충격 저항성 | 1.5 미터 |
| 방수/방진 등급 | IP66 |
| 색상 | 분홍색 |
Image: The ACEBEAM Keylite 500 demonstrating its mini and lightweight design by comparing its size and weight to common items like coins and earbuds.
Image: The ACEBEAM Keylite 500 showcasing its rugged durability with illustrations of 1.5m impact resistance and IP66 protection against powerful water jets.
9. 보증 및 지원
ACEBEAM products are manufactured to high-quality standards. For warranty information, product registration, or technical support, please refer to the official ACEBEAM web해당 웹사이트를 방문하시거나 고객 서비스 센터에 직접 문의하십시오. 보증 청구를 위해 구매 증빙 자료를 보관해 주시기 바랍니다.
For further assistance, you may contact the seller or manufacturer through the platform where the product was purchased.
