1. 서론
This manual provides detailed instructions for the safe and efficient operation of your EENOUR 6L Mini Refrigerator/Warmer. Please read this manual thoroughly before use and retain it for future reference.
2. 안전 정보
- This product is a Peltier-type refrigerator/warmer, not a compressor-type. It provides cooling down to -2°C and warming up to 60°C. It does not have a freezing (ice-making) function.
- Cooling performance is influenced by ambient temperature. For optimal cooling, use in a cool, well-ventilated area (maintain at least 10cm clearance between ventilation ports and walls). Avoid direct sunlight.
- Ensure the power supply matches the product's requirements (AC100V or DC12V).
- 통풍구를 막지 마십시오.
- 제품을 열원과 직사광선에서 멀리 두십시오.
- 제품을 물이나 다른 액체에 담그지 마십시오.
- 청소 또는 유지 보수 전에 제품의 플러그를 뽑으십시오.
- 본 기기는 신체적, 감각적 또는 정신적 능력이 저하된 사람(어린이 포함)이나 경험 및 지식이 부족한 사람이 사용하도록 의도된 것이 아니며, 안전을 책임질 사람으로부터 기기 사용에 관한 감독이나 지시를 받은 경우에만 사용할 수 있습니다.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- Refrigerator/Warmer Unit × 1
- AC 전원 코드 × 1
- DC Power Cord (for 12V car use) × 1
- 사용설명서 × 1
4. 제품 특징
- High-Performance Peltier Element: Utilizes a Japanese-made high-performance Peltier element for efficient cooling and heating, offering a longer lifespan compared to conventional models. Operates quietly with noise levels between 25-40dB, suitable for bedrooms or offices.
- 강화된 단열: Features a 2.8cm high-density urethane foam insulation layer, providing 3 times the insulation performance for superior cooling and warming retention.
- Dual Cooling and Warming Functions: Capable of cooling down to -2°C and warming up to 60°C. Easily switch between cooling and warming modes with a single switch, making it suitable for all seasons. Ideal for storing milk, drinks, cosmetics, and other items.
- Compact Design with Amp파일 저장: Internal dimensions: 25 x 13.7 x 14.5 cm. Weighs approximately 2.5 kg for easy portability. Despite its small size, it can store up to four 500ml PET bottles, eight 350ml cans, or eight 330ml cans. Includes a removable partition board for flexible storage arrangements.
- Versatile Power Options (AC/DC): Equipped with both AC and DC power inputs, allowing use with household outlets (AC100V) or car cigarette lighters (DC12V). Features overcurrent protection to prevent short circuits. Suitable for various environments including bedrooms, kitchens, offices, cars, camp운동, 야외 활동 등이 있습니다.
- Refined and Integrated Design: The unit features a consistent color scheme and a matte texture, with a simple shape that blends seamlessly into various interiors. The top surface has a slightly recessed design to prevent items from falling, providing a convenient space for magazines, glasses, or small accessories.
Image: Comparison of EENOUR 6L Refrigerator features against a generic model, showing superior Peltier performance, 2.8cm high-density urethane insulation, magnetic door, sealing, 25-40dB noise level, and AC100V/DC12V power with overcurrent protection.
Image: The EENOUR 6L unit on a kitchen counter, illustrating its dual cooling and warming capabilities for various items such as beverages, cosmetics, snacks, milk, coffee, and towels.

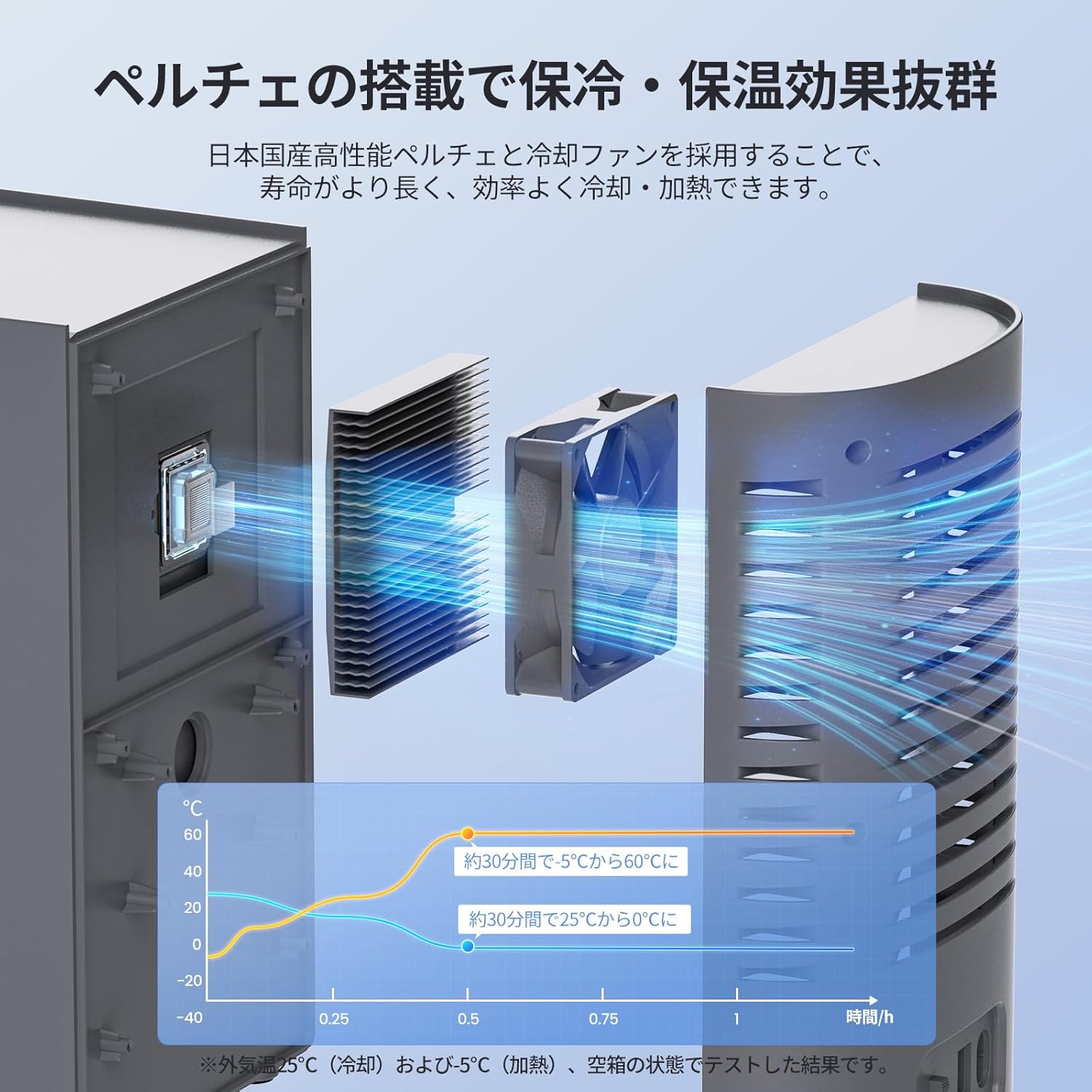

이미지: 내부 view of the Peltier element and fan, with a graph demonstrating the temperature transition from 25°C to 0°C (cooling) and 25°C to 60°C (heating) within approximately 30 minutes.
Image: A visual representation highlighting the 2.8cm high-density urethane foam insulation of the EENOUR product, indicating 3 times higher insulation performance compared to other products with 1.7cm general urethane material.
Image: The interior of the 6L unit demonstrating its storage capacity, capable of holding four 500ml PET bottles, eight 350ml cans, or eight 330ml cans. It also shows the removable partition board for flexible organization.
Image: The EENOUR 6L refrigerator placed on a bedside table, emphasizing its quiet operation (25-40dB) suitable for quiet environments like bedrooms, with a comparative noise level chart.
Image: Demonstrates the versatile 3-way power supply for the mini refrigerator, showing it connected to a portable power station for outdoor use, a standard household AC 100V outlet, and a car's DC 12V cigarette lighter socket.
5. 설정
- 짐 풀기: Carefully remove the refrigerator/warmer from its packaging. Inspect for any damage.
- 놓기: Place the unit on a flat, stable surface. Ensure there is at least 10cm of clear space around all sides, especially the ventilation ports, to allow for proper airflow. Avoid placing it in direct sunlight or near heat sources.
- 전원 연결:
- For household use: Connect the AC power cord to the unit and then to a standard AC100V wall outlet.
- For car use: Connect the DC power cord to the unit and then to a 12V car cigarette lighter socket.
- 초기 사용: Before placing items inside, allow the unit to operate for at least 30 minutes to reach the desired temperature.
6. 사용 설명서
- 전원 켜기/끄기: Locate the power switch on the control panel. Flip it to the "ON" position to power on the unit.
- Select Mode (Cooling/Warming):
- For cooling: Select the "COOL" mode. The internal temperature will decrease to approximately -2°C (depending on ambient temperature).
- For warming: Select the "WARM" mode. The internal temperature will increase to approximately 60°C.
- 항목 로드 중: Place pre-chilled or pre-warmed items into the unit for best results. Close the door firmly to maintain temperature. The magnetic door ensures a secure seal.
- 탈착식 칸막이: Adjust or remove the internal partition board as needed to accommodate items of different sizes.
7. 유지관리
- 청소: Unplug the unit before cleaning. Wipe the interior and exterior surfaces with a soft, damp 천. 연마성 세척제나 용매를 사용하지 마십시오.
- 통풍: 효율적인 작동을 위해 환기구에 먼지와 이물질이 없는지 정기적으로 점검하십시오.
- 저장: 장기간 보관할 경우, 제품이 깨끗하고 건조한 상태인지 확인하십시오. 서늘하고 건조한 곳에 보관하십시오.
8. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 장치의 전원이 켜지지 않습니다. |
|
|
| 냉방/난방이 불충분합니다. |
|
|
| 이상한 소음. |
|
|
If the problem persists after attempting the above solutions, please contact EENOUR customer service.
9. 사양
| 특징 | 세부 사항 |
|---|---|
| 브랜드 이름 | 이누르 |
| 모델 번호 | CER-6L |
| 용량 | 6리터 |
| 냉각 온도 | Down to -2°C (ambient dependent) |
| 예열 온도 | 최대 60°C |
| 연간 에너지 소비량 | 400kWh/년 |
| 색상 | 다크 그레이 |
| 권tage | 교류 100V, 직류 12V |
| 제상 기능 | 적용 불가 |
| 문 열림 방향 | 오른쪽 열림 |
| 선반 | 1 (탈착식) |
| 제품 크기(D x W x H) | 25.7 x 19.5 x 31cm |
| 제품 무게 | 2.5 킬로그램 |
10. 보증 및 지원
This product comes with a 12-month warranty from the date of purchase. If you have any questions about the refrigerator/warmer or encounter any issues during use, please feel free to contact EENOUR customer service. We are committed to providing satisfactory support to our customers.
For customer service inquiries, please refer to the contact information provided on the EENOUR official web사이트 또는 구매 문서.
