AstroAI M12-F 5000A Jump Starter with Air Compressor User Manual

1. 소개 및 마무리view

The AstroAI M12-F is a powerful and versatile tool designed for automotive emergencies and maintenance. It integrates a 5000A peak current jump starter, a 150 PSI smart tire inflator, a portable charger, and a professional illumination system into a single, dependable unit. Equipped with 10 comprehensive safety protections, this device ensures security and peace of mind for outdoor adventures, roadside emergencies, and daily commutes.

2. 제품 특징

2.1. Surging Power for Every Need

The AstroAI M12-F delivers a 5000A peak current, capable of quickly reviving all gas engines and 10L diesel 12V batteries. It can jumpstart a wide range of vehicles, including lawn mowers, motorboats, motorbikes, cars, SUVs, and ATVs. The device performs reliably in extreme temperatures ranging from -4°F (-20°C) to 122°F (50°C).

2.2. Smart Inflation System

Featuring a 19mm cylinder and smart pressure control technology, the inflator can inflate a 195/65R15 tire from 30 PSI to 36 PSI in approximately 70 seconds. The included 60cm extension hose and 4 professional nozzles accommodate various inflation needs for tires, balls, and air cushions. Note: This system is not suitable for high-pressure or large-volume inflatables such as swim rings or air canoes.

2.3. Programmable Inflation

Use the 'M' button to switch between pressure units (PSI, kPa, BAR). Press the '+' and '-' buttons to set a desired pressure between 3 and 150 PSI. The inflator will automatically shut off once the preset pressure is reached, preventing overinflation. Smart temperature control keeps the device within a safe operating range. For optimal performance, allow the device to rest for 10–15 minutes after each 10–15 minutes of continuous use.

2.4. Power Bank for Double Support

The USB-A 18W PD quick charge system provides 5V, 9V, or 12V output, suitable for charging phones, tablets, headphones, watches, and other electronic devices. Its high-capacity battery cells and the Type-C port offer both input and output functionality, allowing the device to serve as a power bank while also being rechargeable.

2.5. All-Round Safety Protection System

A smart chip provides 10 comprehensive safety protections: reverse polarity, overcurrent, overcharge, over-discharge, high/low temperature, reverse connection, overvoltage, overload, short circuit, and spark-proof protection. These features ensure safe operation and protect against common errors or hazards.

2.6. Professional-Quality Accessory Kit & LED Light

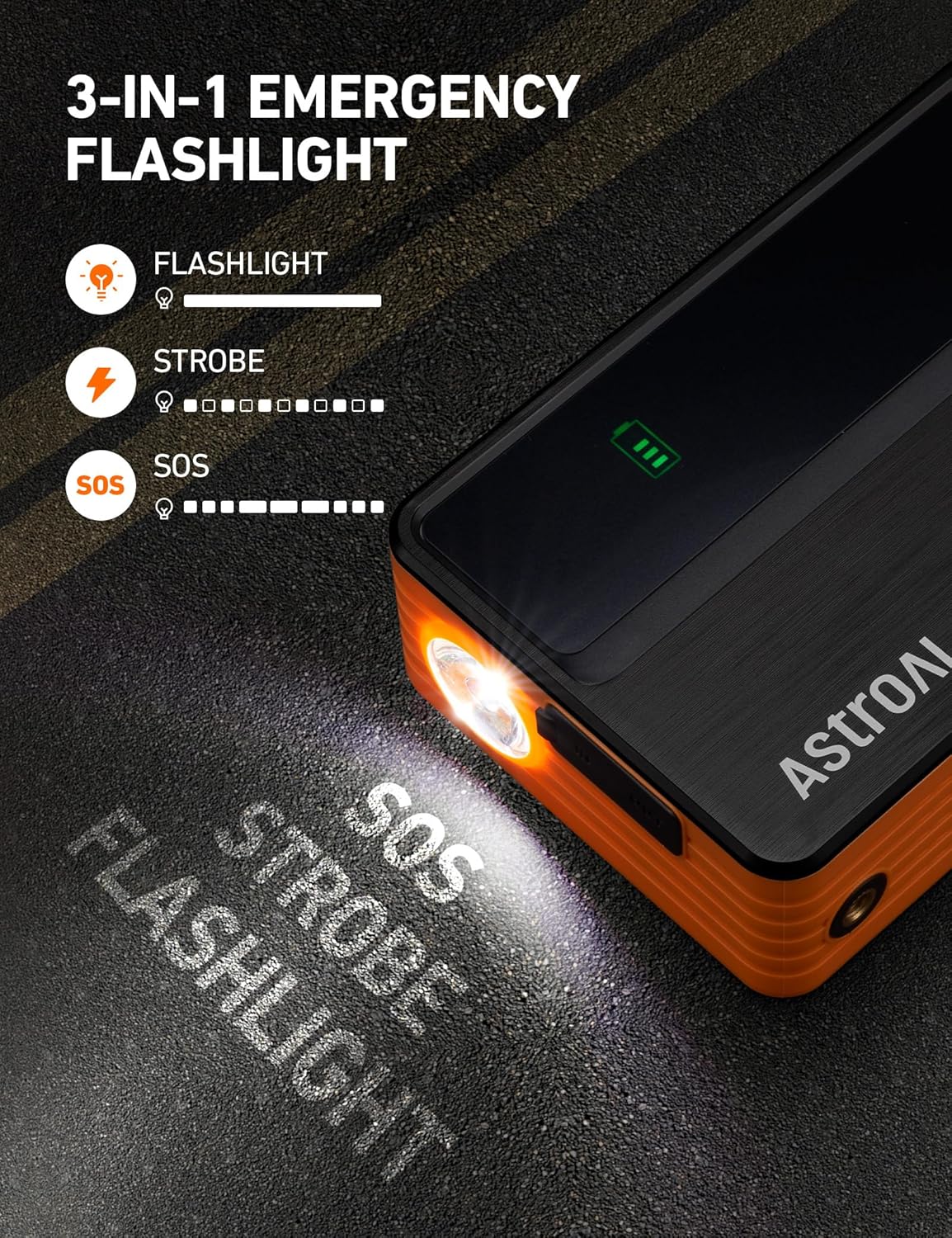

The device includes a pro-level LED light with three modes: illumination (steady light), strobe (flashing light), and SOS (Morse code signal). This provides versatile lighting for various situations. The product comes with a smart battery clamp, one USB cable, and a set of professional inflation accessories (one extension hose and four air nozzles). All accessories can be neatly stored in the included EVA storage box for organization and easy access.

3. Setup & Initial Charging

Before first use, fully charge the AstroAI M12-F using the provided USB-C cable. Connect the USB-C cable to the device's Type-C port and the other end to a suitable USB power adapter (not included). The display will indicate the charging status. Ensure the device is fully charged for optimal performance, especially before storing it or taking it on a trip.

4. 사용 설명서

4.1. 차량 점프 스타트

1. 스마트클린 커넥트amps: Plug the smart battery clamp into the jump starter's port.
2. 배터리에 연결하세요: 빨간색 cl을 연결하세요amp 차량 배터리의 양극(+) 단자와 검은색 clamp 음극(-) 단자에 연결하십시오. 안전한 연결을 확인하십시오.
3. 표시 확인: 스마트클러의 표시등이 켜져 있는지 확인하십시오.amp illuminates green, indicating a correct connection and readiness to jump start. If no light or a red light appears, check connections and polarity.
4. 차량 시작: 차량의 엔진을 시동하십시오.
5. 연결 해제: 엔진 시동이 걸리면 즉시 스마트 클립을 제거하십시오.amps from the vehicle battery, then disconnect them from the jump starter.

4.2. 타이어 공기 주입

1. 에어 노즐을 연결하세요: Screw the extension hose onto the device and attach the appropriate nozzle to the tire valve.
2. Choose Unit & Preset Value: Turn on the device. Use the 'M' button to select the desired pressure unit (PSI, kPa, BAR) and the '+' / '-' buttons to set the target pressure.
3. 시작하려면 누르세요: 전원 버튼을 눌러 공기를 주입하세요.
4. 자동 차단 : 공기 주입기는 설정된 압력에 도달하면 자동으로 멈춥니다.

4.3. 보조배터리로 사용하기

Connect your electronic device to the USB-A or USB-C output port on the AstroAI M12-F using a compatible charging cable. The device will automatically begin charging your connected device.

4.4. LED 손전등 사용하기

Press and hold the flashlight button to turn the LED light on. Briefly press the button again to cycle through the three modes: steady illumination, strobe, and SOS. Press and hold the button to turn the flashlight off.

5. 유지관리

• 일반 충전: To prolong battery life, fully charge the device every 3-6 months, even if not in use.
• 저장: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided EVA storage box to keep all accessories organized and protected.
• 청소: 부드럽고 마른 천으로 기기를 닦으세요. 강한 화학 물질이나 연마성 세제는 사용하지 마세요.
• 온도 조절: Avoid operating the device in temperatures outside its specified range (-4°F to 122°F).

6. 문제 해결

The AstroAI M12-F is designed with multiple safety features to prevent common issues. If you encounter problems, refer to the following:

• 장치가 켜지지 않음: 기기가 충분히 충전되었는지 확인하십시오.
• Jump Start Failure: 스마트클을 확인하세요amps are securely connected to the correct battery terminals (red to positive, black to negative). Ensure the smart clamp indicator light is solid green. If the vehicle battery is completely dead, you may need to wait a few minutes after connecting before attempting to start.
• Inflation Issues: Verify the air hose and nozzle are securely attached to both the device and the tire valve. Check that the desired pressure is set correctly.
• Safety Protections Activated: The device's smart chip will activate protections (e.g., reverse polarity, overcurrent, high/low temperature) if an unsafe condition is detected. Refer to the indicator lights on the smart clamp for specific warnings. Disconnect and re-evaluate the situation before attempting further operation.

7. 사양

8. 보증 및 지원

For warranty information, product support, or any inquiries, please refer to the contact details provided in your product packaging or visit the official AstroAI web대지. 보증 청구를 위해 구매 영수증을 보관하십시오.
