1. 서론
The Machenike G3V2 Bluetooth Controller is a versatile gaming peripheral designed for multi-platform compatibility, including Switch, iOS, Android, and Windows PC. It features Hall Effect joysticks and triggers, customizable buttons, RGB lighting, and a dedicated charging station for an enhanced gaming experience.
Image: The Machenike G3V2 Bluetooth Controller, showcasing its ergonomic design and vibrant RGB lighting around the joysticks.
2. 주요 특징
- Lightning-Fast 1000Hz Responsiveness: Equipped with ultra-high gaming responsiveness for instant command capture and millisecond-level feedback.
- 편리한 충전 도크: Includes a dedicated charging dock for efficient and fast recharging via USB-C, protecting the controller and ensuring optimal performance.
- Dual Hall-Effect Joysticks and Triggers: Features newly upgraded Hall-Effect sensing joysticks and high-precision trigger buttons for superior control and durability, eliminating drift.
- Customizable Force Adjustable Stick Tension: Unique force adjustment feature allows customization of joystick feedback from lightweight to precise, adapting to various game needs.
- Fast Charging & Extended Playtime: Built-in 1000mAh high-capacity battery provides extended playtime with fast-charging technology.
- 다중 플랫폼 지원: Compatible with Switch/Switch 2, iOS, Android, and Windows PC.
이미지: 오버view of the Machenike G3V2 controller's key features, including its Hall Effect joysticks, customizable back buttons, and connectivity options.
3. 설정 및 연결
3.1 Connecting to Nintendo Switch (Bluetooth Mode)
- Ensure your controller is charged.
- 컨트롤러에서 버튼을 길게 누르세요. Y + 홈 표시등이 느리게 깜빡이다가 빠르게 깜빡이는 것으로 바뀔 때까지 버튼을 동시에 누르십시오. 그러면 컨트롤러가 Switch 페어링 모드로 전환됩니다.
- Nintendo Switch에서 홈 메뉴로 이동합니다.
- Select the 'Controllers' icon, then choose 'Change Grip/Order'.
- 컨트롤러가 자동으로 연결될 때까지 기다리세요. 연결되면 컨트롤러가 진동하고 닌텐도 스위치 화면에 컨트롤러 아이콘이 나타납니다.
- 를 누르세요 A 확인하려면 컨트롤러의 버튼을 누르세요.
- To toggle between Switch and Xbox button layouts (A/B, X/Y swap), press 에프엔 + 에이.
Video: A tutorial demonstrating how to connect the Machenike G3V2 controller to a Nintendo Switch console via Bluetooth mode, including button presses and on-screen confirmation.
3.2 Connecting to PC/iOS/Android (Bluetooth/Wired/2.4G)
The Machenike G3V2 controller supports multiple connection modes for various platforms:
- 블루투스: For iOS, Android, and some PC setups. Activate Bluetooth on your device and search for 'Machenike G3V2' to pair.
- 2.4G 무선: Use the included USB dongle for PC and other compatible devices. Plug the dongle into your device, then power on the controller.
- 열광한: Connect the controller directly to your PC or compatible device using a USB-C cable.
Image: The Machenike G3V2 controller highlighting its ergonomic design, anti-slip grip, and responsive triggers for comfortable and precise control.
4. 운영 및 맞춤 설정
4.1 프로그래밍 가능한 뒤로 가기 버튼(M1/M2)
The controller features two customizable back buttons (M1 and M2) that can be assigned to single keys or complex macros. This is particularly useful for games requiring quick actions or combos.
- To Assign a Single Key:
NS. 길게 눌러 FN + M1 (or M2) simultaneously until the joystick light ring glows with a soft blue breathing effect, indicating recording mode.
b. Press the desired button you wish to assign (e.g., 'A' button).
씨. 프레스 M1 (or M2) once to save the assignment. The light ring will flash three times, confirming successful saving. - To Clear an Assignment:
NS. 길게 눌러 FN + M1 (or M2) simultaneously to enter recording mode.
b. Without pressing any other button, press M1 (or M2) again to save a blank input. The light ring will flash three times, clearing the previous assignment. - To Record a Macro (Multiple Keys):
NS. 길게 눌러 FN + M1 (or M2) simultaneously to enter recording mode.
b. Press the sequence of keys you want to record (e.g., A, B, X, Y, RB, LB). The timing between key presses will be recorded.
씨. 프레스 M1 (or M2) once to save the macro. The light ring will flash three times.
Video: A detailed guide on how to set up and record keystroke macros using the programmable back buttons (M1/M2) on the Machenike G3V2 controller.
4.2 조이스틱 및 트리거 보정
Calibration helps maintain accuracy and prevent drift in joysticks and triggers. This can be done whether the controller is off or connected.
- 조이스틱 보정:
NS. 길게 누르기 B + 뒤로 + 홈 buttons simultaneously until the blue LED starts flashing.
b. Move both joysticks in full circles (about three rotations) slowly and steadily.
c. 누르세요 시작 저장 버튼을 누르십시오. 컨트롤러의 전원이 꺼지면 보정이 완료된 것입니다. - 트리거 교정:
NS. 길게 누르기 Y + 뒤로 + 홈 buttons simultaneously until the red LED starts flashing.
b. Press both triggers normally all the way down three times. Ensure gentle but full pressure.
c. 누르세요 시작 저장 버튼을 누르십시오. 컨트롤러의 전원이 꺼지면 보정이 완료된 것입니다.
After calibration, reconnect the controller to your device to test the new settings. Always use normal, gentle pressure during calibration for accurate results.
Video: A guide on how to calibrate the joysticks and triggers of the Machenike G3V2 controller to ensure optimal performance and accuracy.
4.3 RGB 조명
The controller features dynamic RGB lighting around the joysticks. Specific controls for changing lighting modes or colors can often be found in the Keylinker 2.0 mobile application or through dedicated button combinations (refer to the app for advanced customization).
Image: The Machenike G3V2 controller illustrating its 4-level native vibration feedback, providing immersive experiences for various game genres.
5. 충전
The Machenike G3V2 controller comes with a 1000mAh high-capacity battery and a dedicated charging dock.
- 충전 도크 사용: Simply place the controller onto the dedicated charging dock. The built-in USB-C port on the dock facilitates quick recharging.
- USB-C 직접 충전: You can also charge the controller directly using a USB-C cable connected to a power source.

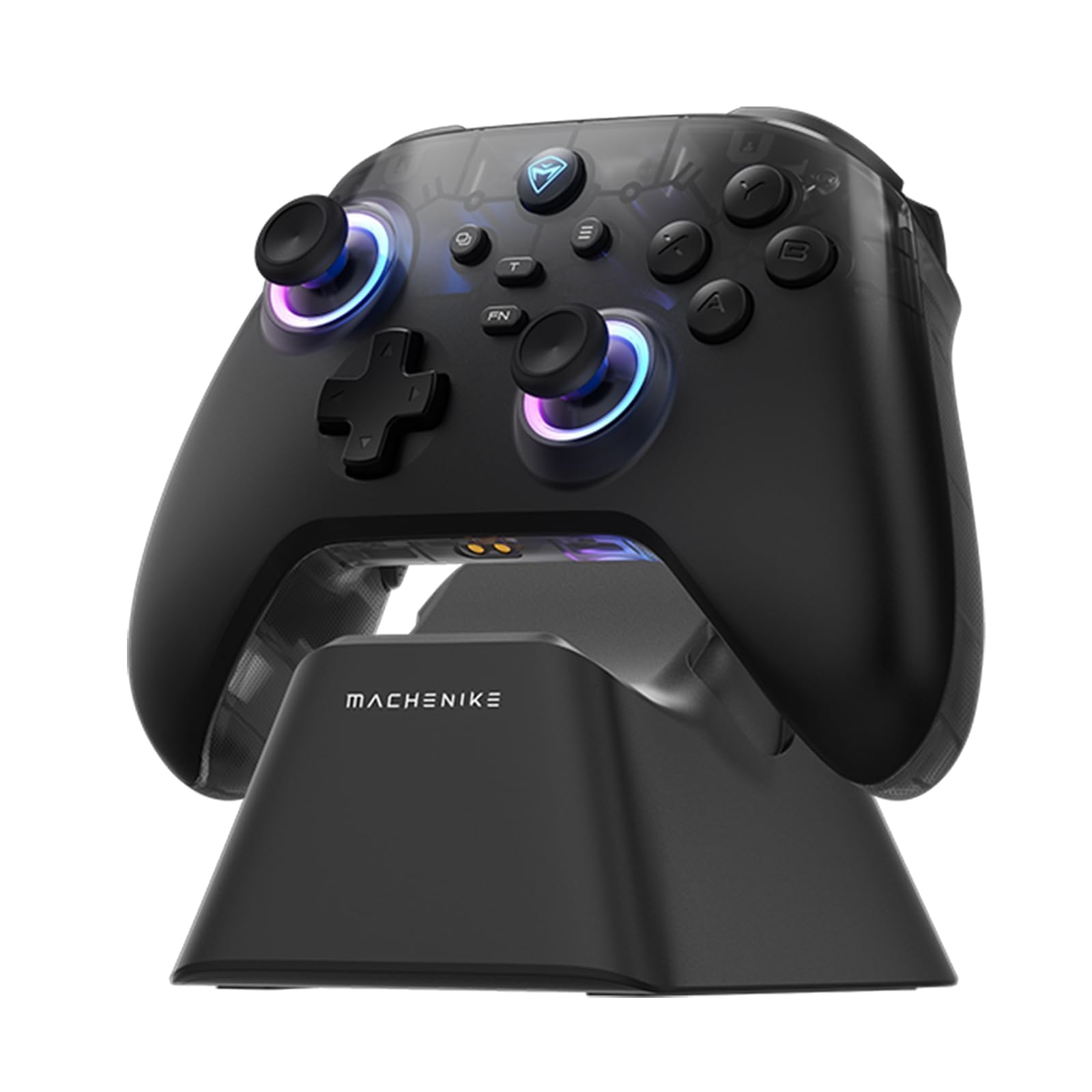

Image: The Machenike G3V2 controller resting on its dedicated charging dock, ready for an instant power boost.
6. 호환성
- 지원 플랫폼: Nintendo Switch, Switch 2, iOS, Android, Windows PC.
- 호환되지 않음: Xbox, PlayStation, or GeForce Now.
- For other game platforms not explicitly mentioned, please consult customer service before purchase.
7. 유지관리
- 청소: 부드럽고 마른 천을 사용하여 컨트롤러를 청소하세요. 강한 화학 물질이나 연마재는 사용하지 마세요.
- 저장: 컨트롤러는 직사광선과 극한의 온도를 피해 서늘하고 건조한 곳에 보관하세요.
- 배터리 관리 : 배터리 수명을 연장하려면 컨트롤러를 자주 완전히 방전시키지 마세요. 장시간 사용하지 않더라도 정기적으로 충전하세요.
8. 문제 해결
- 컨트롤러가 연결되지 않음:
- 컨트롤러가 완전히 충전되었는지 확인하십시오.
- Verify the correct pairing mode is activated for your device (e.g., Y+Home for Switch).
- On your device, try forgetting the controller from Bluetooth settings and re-pairing.
- For PC, try connecting via the 2.4G dongle or wired connection. - 조이스틱 드리프트 또는 부정확성:
- Perform joystick calibration as described in Section 4.2. - Trigger Issues:
- Perform trigger calibration as described in Section 4.2. - 버튼이 응답하지 않음:
- Ensure the controller is properly connected.
- Check if any programmable back buttons (M1/M2) have unintended assignments (clear them if necessary).
- Reconnect the controller. - 충전 문제:
- Ensure the charging dock or USB-C cable is properly connected.
- 다른 USB-C 케이블이나 전원 어댑터를 사용해 보세요.
9. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | PE 업그레이드 |
| ASIN | B0F93RPT5H |
| 제조업체 | 마체니케 |
| 품목 무게 | 0.529 온스 |
| 패키지 크기 | 6.93 x 6.46 x 3.23 인치 |
| 배터리 | 1개의 리튬 폴리머 배터리(포함) |
| 연결성 | 블루투스, 2.4G 무선, 유선(USB-C) |
| 폴링 속도 | 1000Hz |
| 조이스틱 | Hall Effect, Adjustable Tension (40-80gf) |
| 트리거 | Hall Effect, 255 Levels, Millimeter Precision |
| 프로그래밍 가능한 버튼 | 2 Back Buttons (M1, M2) |
| 진동 | 4단계 네이티브 진동 피드백 |
10. 보증 및 지원
Machenike products are designed for durability and performance. For warranty information, technical support, or service inquiries, please refer to the official Machenike web사이트를 방문하거나 고객 서비스에 직접 문의하세요. 보증 청구를 위해 구매 영수증을 보관하세요.
온라인 리소스 및 FAQ도 다음에서 사용할 수 있습니다. 아마존의 마체니케 스토어.
