1. 중요한 안전 정보
Read and understand all instructions before use. Failure to follow safety instructions may result in serious injury or death.
- 성인 조립 필요: 이 장난감은 어른이 조립해야 합니다.
- 성인 감독: Never leave children unattended while operating the vehicle.
- 적절한 연령: 3세에서 8세 사이의 어린이에게 적합합니다.
- 중량 제한: Maximum load capacity is 66 lbs (30 kg).
- 안전한 환경: Use only on flat, dry surfaces. Avoid roads, steep inclines, swimming pools, or other bodies of water. Always wear shoes.
- 보호 장비: Always ensure the child wears a helmet and other protective gear.
- 안전벨트: Always use the provided 3-point seat belt to secure the child.
- 배터리 안전: The rechargeable battery is not replaceable by the user. Only use the provided charger.
2. 설치 및 조립
Follow these steps to assemble your SEGMART 12V Ford F-150 Raptor ride-on car. Ensure all parts are present before beginning.
2.1 언박싱 및 초기 검사
Carefully remove all components from the packaging. Verify that all parts listed in the manual are included and undamaged.
2.2 배터리 연결
Locate the battery compartment, typically under the seat. Connect the battery terminals as instructed in the manual. Ensure a secure connection.
Figure 2.1: The SEGMART 12V Ford F-150 Raptor Kids Electric Ride-On Car.
2.3 휠 설치
Attach the wheels to the axles, ensuring they are securely fastened with the provided washers and nuts. The rear wheels connect to the drive motors.
2.4 Steering Wheel and Seat Installation
Install the steering wheel onto the steering column. Secure the seat and backrest into their designated positions using the provided screws. Ensure the 3-point safety harness is correctly attached.
Figure 2.2: Safety features including the door lock, soft-start acceleration, and 3-point safety belt.
2.5 Attaching Doors and Mirrors
Carefully attach the side doors and rearview mirrors. Ensure they click into place or are screwed in as per the manual.
2.6 조립 비디오 가이드
For a visual guide on assembly, please refer to the official setup video:
Video 2.1: Quick Setup for Ford F-150 Kids Electric Truck. This video demonstrates the step-by-step assembly process for the ride-on vehicle.
3. 사용 설명서
The SEGMART Ford F-150 Raptor offers two driving modes: manual operation by the child or parental remote control.
3.1 전원 켜기/끄기
Locate the power button on the dashboard. Press to turn the vehicle on or off.
3.2 Manual Driving Mode
For children aged 4-8 years, they can operate the vehicle using the steering wheel and foot pedal. The vehicle features three speed settings (low, medium, high) and forward/reverse gears.

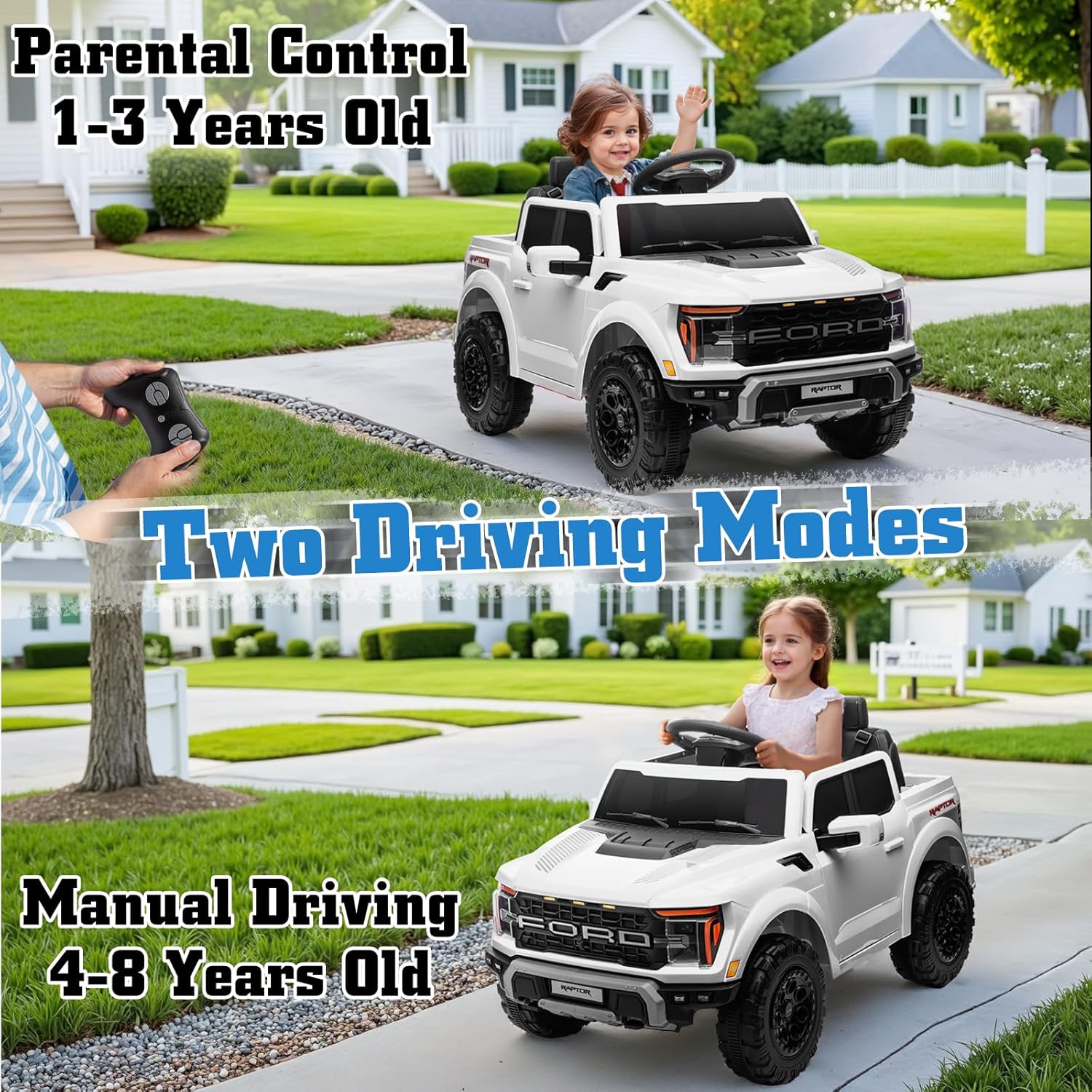

Figure 3.1: Illustration of the two driving modes: parental remote control for younger children and manual driving for older children.
3.3 Parental Remote Control Mode
For younger children (1-3 years old) or when supervision is needed, parents can control the vehicle using the remote control. The remote allows steering, speed adjustment, and emergency stop functions. Refer to the remote control's specific instructions for pairing and operation.
3.4 멀티미디어 기능
- Music/MP3: The vehicle is equipped with a music player. Connect your device via Bluetooth or USB to play music.
- LED 조명: Turn on the LED headlights for enhanced visibility and realism.
- 뿔: Use the horn button on the steering wheel.
그림 3.2: 이상view of the control panel, durable tires, steering wheel, and convenient reserve box.
3.5 Driving Experience Video
Observe the vehicle in action and its features:
Video 3.1: 12V Ford F-150 Raptor by SEGMART. This video showcases the ride-on car's features and driving capabilities.
4. 유지관리
Proper maintenance ensures the longevity and safe operation of your ride-on car.
4.1 배터리 충전
Charge the 12V battery for 8-12 hours before first use and after each play session. Do not overcharge. A full charge provides approximately 30-40 minutes of rideable time. Always use the original charger provided.
4.2 청소
부드러운 d로 차량을 닦으십시오.amp cloth. Avoid using abrasive cleaners or solvents that could damage the plastic or electronic components.
4.3 보관
Store the vehicle in a dry, cool place away from direct sunlight and moisture. If storing for extended periods, ensure the battery is fully charged and disconnect it if recommended by the manufacturer.
5. 문제 해결
If you encounter any issues with your ride-on car, refer to the following common problems and solutions:
- 차량 시동 불가:
- 배터리가 완전히 충전되었는지 확인하십시오.
- 배터리 연결부가 모두 단단히 고정되었는지 확인하십시오.
- 전원 스위치가 'ON' 위치에 있는지 확인하세요.
- 원격 제어가 작동하지 않음:
- Replace the batteries in the remote control (requires AAA batteries).
- Re-pair the remote control with the vehicle according to the pairing instructions in the full manual.
- 출력/속도 감소:
- 배터리 잔량이 부족할 수 있습니다. 완전히 충전하십시오.
- Ensure the vehicle is not overloaded (check weight limit).
- Operating on rough terrain can reduce speed and battery life.
- 특이한 소음:
- 바퀴와 차축에 장애물이나 헐거운 부품이 있는지 점검하십시오.
- 소음이 계속될 경우 사용을 중단하고 고객 지원 센터에 문의하십시오.
6. 사양
| 특징 | 사양 |
|---|---|
| 제품 치수 | 26.6 x 24.2 x 40.5 인치 |
| 품목 무게 | 55파운드 |
| 추천연령 | 3 - 8년 |
| 배터리 | 12V |
| 모터 | 듀얼 35W 모터 |
| Rideable Time | 30 ~ 40 분 (약) |
| 충전 시간 | 8-12시간 |
| 최대 부하 | 66파운드 |
7. 보증 및 지원
For warranty information, product support, or to purchase replacement parts, please contact SEGMART customer service. Details can typically be found on the product packaging or the official SEGMART web대지.
고객 지원: For assistance, please refer to the contact information provided with your purchase or visit the official SEGMART store online.
보고: This product is returnable until January 31, 2026, as per Amazon's return policy.
