Zebra DS3608-ER Ultra-Rugged Handheld Corded Barcode Scanner User Manual

1. 서론

This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Zebra DS3608-ER Ultra-Rugged Handheld Corded Barcode Scanner. Designed for demanding industrial environments, this scanner offers reliable 1D and 2D barcode scanning capabilities over an extended range.

안전하고 효율적인 작동을 위해 기기를 사용하기 전에 이 설명서를 꼼꼼히 읽어 주십시오.

2. 제품 오버view

The Zebra DS3608-ER is an ultra-rugged corded barcode scanner built for extreme conditions. It is capable of scanning both 1D and 2D barcodes from near contact to distances up to 70 ft (21.4 m). Its design ensures durability and performance in challenging environments, including freezing temperatures.

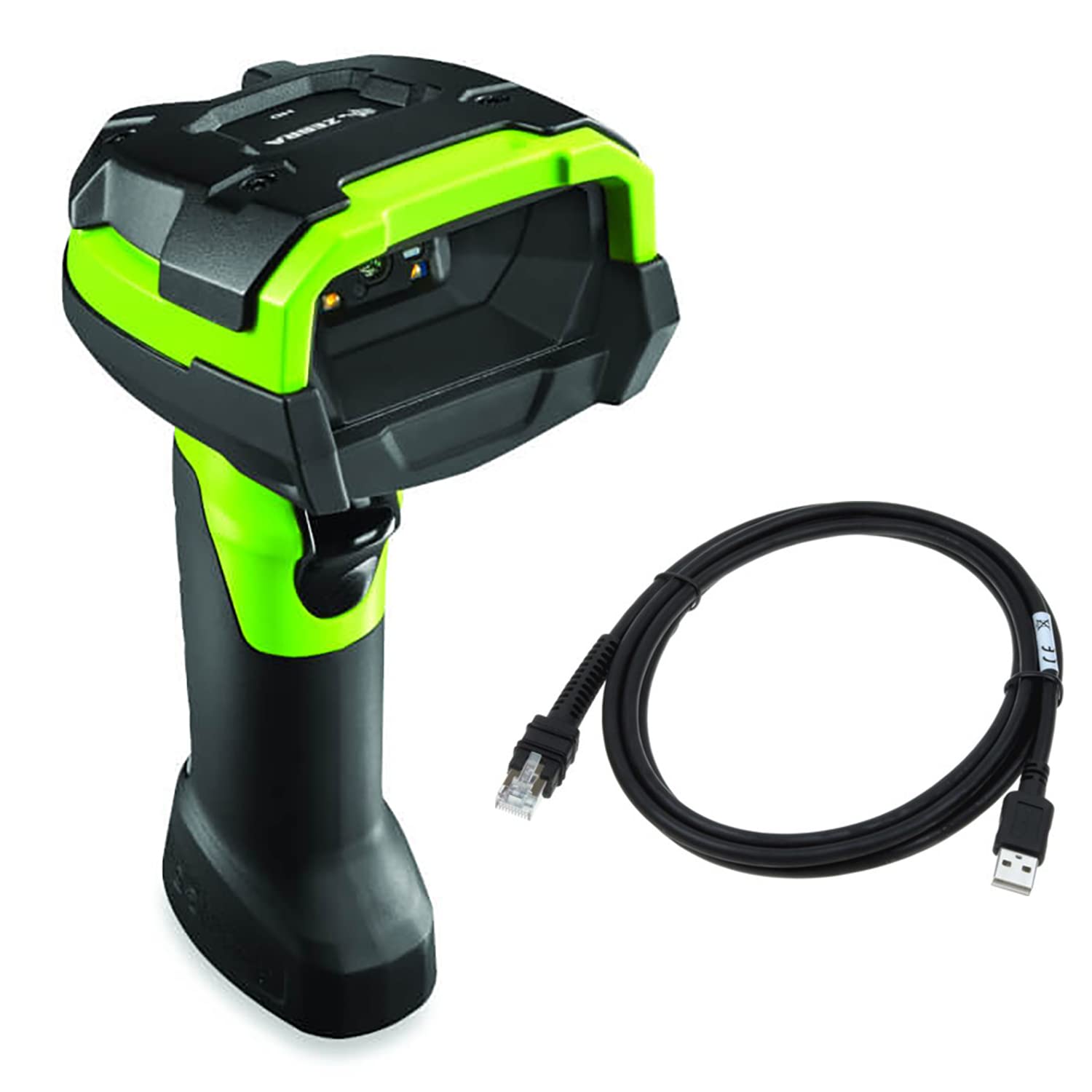

그림 2.1: 전면 view of the Zebra DS3608-ER Ultra-Rugged Handheld Corded Barcode Scanner, showcasing its industrial green and black design.

주요 특징:

• 초강력 내구성 설계: Built to withstand harsh industrial environments, including extreme cold.
• 확장된 범위 스캐닝: Captures 1D and 2D barcodes from near contact up to 70 ft (21.4 m).
• 다양한 연결성: Supports Serial and USB-A connections.
• 고성능: Ensures reliable and fast barcode capture for improved throughput and accuracy.

3. 설정

3.1 상자 내용물

패키지에 다음 품목이 포함되어 있는지 확인하세요.

• Zebra DS3608-ER Barcode Scanner
• USB Cable (7-foot)

3.2 스캐너 연결

The DS3608-ER scanner supports USB and Serial connectivity. The included USB cable facilitates a straightforward connection to your host system.

1. Locate the connectivity port at the base of the scanner handle.
2. Connect the smaller end of the provided USB cable to the scanner's port. Ensure a secure fit.
3. Connect the larger USB-A end of the cable to an available USB port on your computer or host system.
4. The scanner will typically power on and perform a self-test. Your operating system may automatically install necessary drivers.

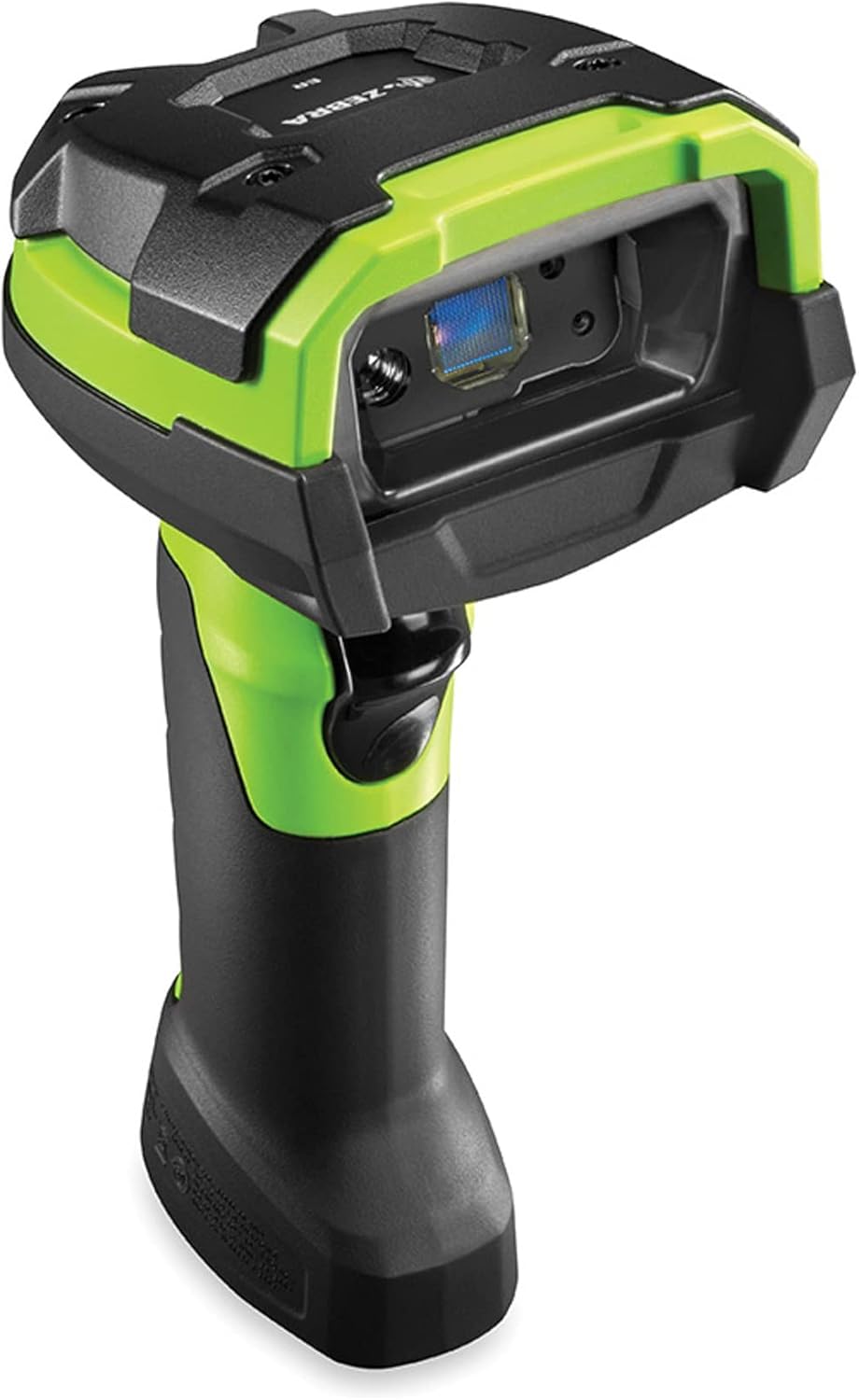

그림 3.1: 측면 view of the Zebra DS3608-ER scanner, highlighting the cable connection point at the base of the handle.

For serial connections, a compatible serial cable (sold separately) and appropriate driver installation may be required. Refer to your system's documentation for serial port configuration.

4. 사용 설명서

4.1 기본 스캐닝 작업

바코드를 스캔하려면:

1. Ensure the scanner is properly connected to your host system and powered on.
2. 스캔하려는 바코드에 스캐너 창을 대세요.
3. Press and hold the trigger button located on the handle. An aiming pattern will project from the scanner.
4. Center the aiming pattern over the barcode. The scanner will emit a successful scan beep and/or flash an indicator light upon successful capture.
5. 방아쇠 버튼을 놓으세요.

그림 4.1: 상향식 view of the Zebra DS3608-ER scanner, showing the scanning window and trigger button.

4.2 Extended Range Scanning

The DS3608-ER is designed to capture barcodes across a wide range of distances. For barcodes at a distance, ensure the aiming pattern fully encompasses the barcode. For very small or very close barcodes, adjust the distance slightly to allow the scanner's imager to focus properly.

5. 유지관리

5.1 스캐너 청소

정기적으로 청소하면 최적의 스캐닝 성능을 유지하는 데 도움이 됩니다.

• 스캐닝 창: 부드럽고 깨끗하며 보풀이 없는 천을 사용하세요.ampened with a mild cleaning solution (e.g., isopropyl alcohol or a non-abrasive glass cleaner) to gently wipe the scanning window. Avoid harsh chemicals or abrasive materials that could scratch the surface.
• 주택: 외부 하우징을 부드러운 천으로 닦으세요.amp cloth. Do not immerse the scanner in any liquid.

5.2 내구성 및 환경적 고려사항

The DS3608-ER is built with unique plastics, cables, and components to withstand extreme conditions, including freezing temperatures. While designed for rugged use, avoid unnecessary drops or impacts. Ensure the cable connection is secure to prevent damage to the port.

그림 5.1: 각도 view of the Zebra DS3608-ER scanner, illustrating its robust construction.

6. 문제 해결

If you encounter issues with your DS3608-ER scanner, refer to the following common troubleshooting steps:

• 스캐너 전원이 켜지지 않음: Ensure the USB cable is securely connected to both the scanner and the host system. Try a different USB port or cable if available.
• 스캐너가 스캔하지 않습니다:
  • Verify the scanner is powered on and emitting an aiming pattern when the trigger is pressed.
  • 바코드가 깨끗하고 손상되지 않았으며 스캐너의 판독 범위 내에 있는지 확인하십시오.
  • Check if the barcode type is enabled in the scanner's configuration (if applicable, refer to Zebra's programming guides for advanced settings).
  • Confirm that the host application is ready to receive input from the scanner.
• 잘못된 데이터 출력: Ensure the correct keyboard layout or serial communication settings are configured on your host system.
• 간헐적인 연결: Check the USB cable for damage and ensure it is not loose. Avoid routing the cable near sources of strong electromagnetic interference.

For persistent issues, consult the official Zebra support resources or contact your vendor.

7. 사양

8. 보증 및 지원

8.1 보증 정보

For specific warranty details regarding your Zebra DS3608-ER scanner, please refer to the warranty documentation provided by Zebra or the retailer at the time of purchase. As this product may be an Amazon Renewed item, warranty terms may differ from new products. Please consult your purchase documentation for applicable warranty coverage.

8.2 기술 지원

For technical assistance, driver downloads, or advanced configuration guides, please visit the official Zebra Technologies support website. You may also contact your product reseller for support.

• 제브라 테크놀로지 공식 Web대지: www.zebra.com
• 지원 섹션: Look for a 'Support' or 'Downloads' section on the Zebra website for product-specific resources.
