1. 서론
This manual provides detailed instructions for the assembly, installation, and operation of your Perlegear 10U Open Frame Network Rack (Model PGSER02B). Please read this manual thoroughly before installation to ensure proper setup and safe use. Keep this manual for future reference.
Figure 1: Perlegear 10U Open Frame Network Rack with shelves.
2. 안전 정보
조립 및 사용 시 다음 안전 수칙을 준수하십시오.
- 조립하기 전에 모든 구성 요소가 있고 손상되지 않았는지 확인하세요.
- Do not exceed the maximum load capacity of 200 lbs for the rack and 22 lbs for the top panel.
- When wall-mounting, ensure the mounting surface (e.g., wood studs, concrete wall) can safely support the rack's weight and its contents. Do not mount on drywall alone.
- 적절한 도구를 사용하고 모든 설치 단계를 주의 깊게 따르십시오.
- 어린이와 애완동물을 집회 장소에 가까이 두지 마십시오.
3. 패키지 내용
패키지에 모든 부품이 포함되어 있는지 확인하세요.
그림 2: 전체 패키지 구성품.
- Rack Frame (x2)
- 선반(x2)
- Back Brace (x2)
- Front Brace (x2)
- M6 Bolt (x40)
- Cage Nut (x8)
- M6 너트 (x12)
- 벽 앵커(x6)
- Lag Screw (x6)
- Wall Plate Template (x1)
4. 사양
| 특징 | 사양 |
|---|---|
| 모델 번호 | PGSER02B |
| 랙 유닛(U) | 10유 |
| 제품 크기(D x W x H) | 20.12" x 20.5" x 19.39"(51.1cm x 52.1cm x 49.2cm) |
| 품목 무게 | 30.5파운드(13.8kg) |
| 재료 | 냉간압연강 |
| 색상 | 검은색 |
| Max Load Capacity (Rack) | 200파운드(90.7kg) |
| Max Load Capacity (Top Panel) | 22파운드(10kg) |
| 호환성 | 19-inch networking, AV, and IT equipment |
Figure 3: Product Dimensions and Hardware Kit Overview.
5. 설정 및 설치
The Perlegear 10U Open Frame Network Rack offers flexible installation options: wall-mounted or floor-standing. Follow these steps for assembly and installation.
5.1. 조립 끝view
Figure 4: Simple Setup Overview.
5.2. Detailed Assembly Steps
설치 과정을 시각적으로 확인하려면 아래 공식 설치 영상을 참조하십시오.
Video 1: Perlegear 10U Network Rack Installation Tutorial. This video demonstrates the step-by-step assembly and installation process for the rack.
- 프레임 조립:
- Identify the Left and Right Frames, Back Braces, and Front Braces.
- Attach the Back Braces to the bottom of the Left and Right Frames using M6 Bolts and M6 Nuts. Ensure the side with three holes on the frame faces the front.
- Attach the Front Braces to the top of the Left and Right Frames, again ensuring the side with three holes faces the front. The 'PERLEGEAR' logo on the front brace should be visible.
- Tighten all M6 Nuts using a PH2 or PZ2 screwdriver and a 10mm wrench for secure assembly.
- 선반 설치:
- Insert the two 1U vented shelves into the desired rack unit positions.
- Utilize the provided shelf reinforcement brackets to support the shelves and prevent sagging, especially for heavier equipment. These brackets can be installed on one shelf or across two different shelves for added stability.
Figure 5: Shelf Reinforcement Options.
- 장착 옵션:
- 바닥에 세워 놓는 형태: Place the assembled rack on a stable, level surface. The rack includes caster holes at the bottom for optional mobility (casters not included).
- 벽걸이: Use the provided drilling template to mark pilot holes. Mount the rack to 16-inch wood studs (without anchors) or concrete walls (with anchors) using the lag screws. Ensure the rack is securely fastened before loading equipment.
Figure 6: Flexible Setup - Wall-mounted and Floor-standing configurations.
6. 사용 설명서
Once assembled and installed, the Perlegear 10U Open Frame Network Rack is ready for use.
6.1. 장비 설치
- Install your 19-inch rack-mounted networking, AV, and IT equipment into the rack units.
- Utilize the two 1U vented shelves for non-rack-mountable devices such as smaller switches, storage devices, or UPS units.
- Ensure proper cable management to maintain airflow and prevent obstruction.
Figure 7: Rack with 10U Space and Equipment.
6.2. 공기 흐름 및 냉각
The open frame design and vented shelves promote optimal airflow, which is crucial for keeping your networking, audio, and video equipment cool and preventing overheating.
Figure 8: Enhanced Airflow for Equipment Cooling.
6.3. 확장성
This server rack features an expandable design. You can stack two 10U racks to create a 20U rack, doubling your storage capacity for growing equipment needs. Ensure to remove the top panel of the bottom rack when stacking.
Figure 9: Stackable Design for Increased Capacity.

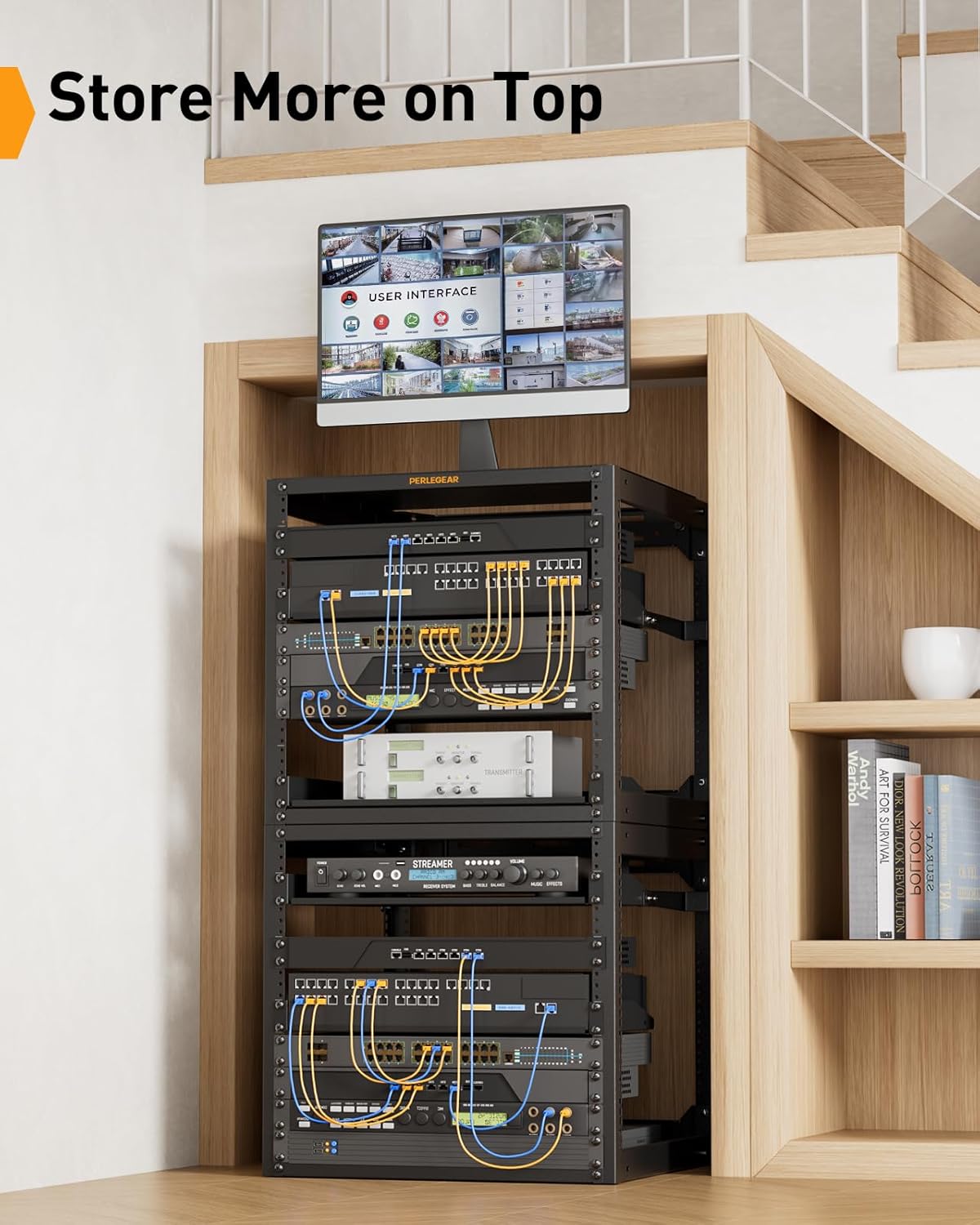

Figure 10: Utilizing the Top Surface for Additional Storage.
7. 유지관리
Regular maintenance ensures the longevity and optimal performance of your network rack:
- 청소: Wipe the rack surfaces with a soft, dry cloth to remove dust. For stubborn marks, use a mild, non-abrasive cleaner.
- 점검: Periodically check all bolts and nuts to ensure they remain tight. Re-tighten if necessary.
- 부하 확인: Verify that the total weight of equipment does not exceed the maximum load capacity.
8. 문제 해결
문제가 발생하면 다음 사항을 고려하세요.
- 랙 불안정성: Ensure all bolts and nuts are securely tightened. If wall-mounted, confirm the mounting hardware is correctly installed into appropriate structural supports.
- 장비 과열: Check for proper cable management that might obstruct airflow. Ensure the rack is not placed in an enclosed space without adequate ventilation.
- Difficulty Installing Equipment: Verify that your equipment is 19-inch rack-mountable. Ensure cage nuts are correctly inserted into the square holes before attaching equipment with M6 bolts.
9. 보증 및 지원
Perlegear products are designed for durability and performance. For warranty information, technical support, or to purchase replacement parts, please visit the official Perlegear web사이트를 방문하거나 소매업체를 통해 고객 서비스에 문의하세요.
