1. 서론
This manual provides essential information for the proper installation, operation, and maintenance of your CHBMSS H2U-1616MT-XP Programmable Logic Controller (PLC). Please read this manual thoroughly before using the product to ensure safe and efficient operation. This PLC is designed for industrial automation applications, featuring robust industrial processors and an anti-reverse, anti-surge power circuit.
2. 안전 정보
부상이나 장치 손상을 방지하려면 항상 다음 안전 지침을 준수하세요.
- 설치 또는 유지 관리 전에 전원 공급 장치가 분리되어 있는지 확인하십시오.
- 자격을 갖춘 인력만이 설치 및 배선 작업을 수행해야 합니다.
- 기기를 습기, 극한 온도 또는 부식성 환경에 노출시키지 마세요.
- 전원을 공급하기 전에 모든 배선 연결이 안전하고 올바른지 확인하세요.
- 감전을 방지하기 위해 장치를 올바르게 접지하십시오.
3. 제품 오버view
The CHBMSS H2U-1616MT-XP is a compact and powerful PLC designed for various industrial control tasks. It features an independent programming port for convenient configuration and monitoring.
주요 특징:
- Industrial-grade processor for reliable performance.
- Compatible with independent programming port for flexible connectivity.
- Robust power circuit with anti-reverse and anti-surge protection.
- Suitable for signal acquisition and control in industrial field equipment.
제품 식별 :
The product packaging includes a label with essential identification details such as the Serial Number (SN) and model number. This label is crucial for product verification and support.

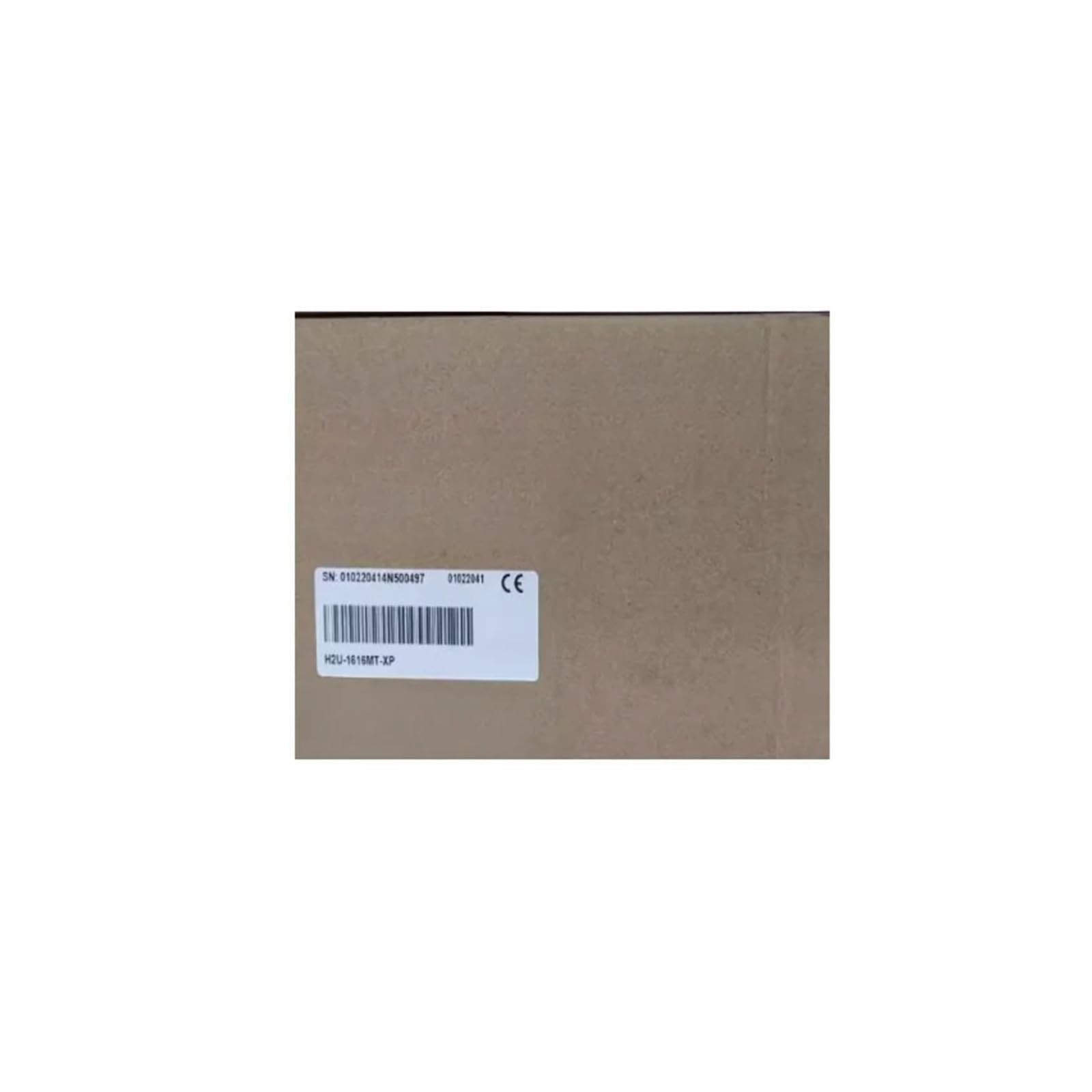

Image 3.1: The product box displaying the model number H2U-1616MT-XP and serial number information.
4. 설정
Follow these steps for proper installation and initial setup of your PLC:
- 설치: Securely mount the PLC in a suitable industrial enclosure, ensuring adequate ventilation and protection from environmental factors.
- 전원 연결: Connect the appropriate DC power supply to the PLC's power input terminals. Observe polarity. The power circuit includes anti-reverse and anti-surge protection.
- 입력/출력 배선: Connect your industrial sensors, actuators, and other field devices to the PLC's input and output terminals according to your application's wiring diagram.
- Programming Port Connection: Connect your programming device (e.g., computer) to the PLC's independent programming port using the appropriate cable.
- 소프트웨어 설치: Install the necessary programming software on your computer. Refer to the software documentation for installation instructions.
- 초기 전원 켜기: After verifying all connections, apply power to the PLC. Observe the status indicators for proper operation.
5. 운영
Once the PLC is set up and programmed, it will execute the loaded control logic. Monitor the status indicators on the PLC to confirm its operational state.
- 프로그램 다운로드: Use the programming software to download your control program to the PLC via the independent programming port.
- 실행 모드: After downloading, switch the PLC to run mode to begin executing the program.
- 모니터링: The programming software allows real-time monitoring of input/output status and internal registers.
- 작업 중지: To halt the PLC's operation, switch it to stop mode via the programming software or physical switch if available.
6. 유지관리
Regular maintenance ensures the longevity and reliable operation of your CHBMSS H2U-1616MT-XP PLC.
- 청소: Periodically clean the PLC and its enclosure to prevent dust accumulation, which can lead to overheating or component failure. Use a soft, dry cloth.
- 연결 확인: Routinely inspect all wiring connections for tightness and signs of corrosion or damage.
- 환경 모니터링: 작동 환경이 지정된 온도 및 습도 범위 내에 유지되도록 하세요.
- 펌웨어 업데이트: 제조사 확인해보세요 web성능 향상이나 문제 해결에 도움이 될 수 있는 펌웨어 업데이트가 있는지 해당 사이트를 확인하십시오.
7. 문제 해결
This section addresses common issues you might encounter with the PLC.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| PLC 전원이 켜지지 않습니다. | 전원 공급 없음; 배선 오류; 전원 공급 장치 불량. | Check power connections; verify power supply output; ensure correct polarity. |
| Cannot connect to PLC via programming port. | Incorrect cable; driver issues; wrong port settings; PLC not powered. | Use correct programming cable; install/update drivers; verify communication settings in software; ensure PLC is powered. |
| Inputs/Outputs not responding. | Incorrect wiring; faulty sensor/actuator; program error; PLC in stop mode. | Check I/O wiring; test external devices; review PLC program logic; ensure PLC is in run mode. |
| PLC status indicator shows error. | Internal fault; program error. | Refer to the programming software for error codes; contact technical support if persistent. |
8. 사양
The following table details the technical specifications of the CHBMSS H2U-1616MT-XP PLC:
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | H2U-1616MT-XP |
| 제조업체 | CHBMSS |
| 품목 무게 | 2.2파운드(약 1kg) |
| 패키지 크기 | 1.18 x 0.79 x 0.39인치(약 3 x 2 x 1cm) |
| 조립이 필요합니다 | 아니요 |
| 조각 수 | 1 |
| ASIN | B0DZ2HQ3C |
9. 보증 정보
CHBMSS products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact CHBMSS customer support. Keep your proof of purchase for warranty claims.
10. 고객 지원
If you require further assistance, technical support, or have questions regarding your CHBMSS H2U-1616MT-XP PLC, please contact your vendor or refer to the official CHBMSS support channels. Ensure you have your product model and serial number ready when contacting support.
