소개
Thank you for choosing the Mesqool 10.1" Digital Calendar Clock. This device is designed to provide clear, easy-to-read time, date, and environmental information, along with advanced reminder and customization features. Its user-friendly interface and versatile display options make it an ideal addition to any home, especially for individuals who benefit from clear visual cues and scheduled reminders.
The Mesqool 10.1" Digital Calendar Clock, showcasing its main display with time, date, day, temperature, and humidity.
주요 특징
- 10.1" High-Definition IPS Display: Features ultra-sharp, large fonts for easy readability from any angle, with vibrant, true-to-life colors.
- Six Time Periods Display: Clearly shows pre-dawn, morning, afternoon, evening, night, and midnight to prevent AM/PM confusion.
- Indoor Temperature & Humidity Sensor: Provides real-time environmental readings for optimal comfort monitoring.
- Flexible Alarm & Schedule Settings: Offers fully customizable alarms and reminders, including specific days (weekdays, weekends, or any combination) and one-time reminders for special dates.
- 23 Pre-set & Customizable Schedules: Includes reminders for medication, activities, visits, and allows personalized messages via keyboard input.
- Auto-Dimming & Timed Brightness: Intelligent light sensor automatically adjusts screen brightness based on ambient light. Manual adjustment and different day/night brightness levels are also available.
- 12 Personalized Themes & 9 Font Colors: Choose from various display styles, including text time, analog clock, classic, and minimalist, with multiple color options.
- 메모리 기능: An internal backup battery automatically resets the time and date after a power failure and retains all settings.
- 18 Alarm Sounds & 9-Level Volume: Select from a variety of gentle and effective alarm tones with adjustable volume levels.
- Built-in Digital Picture Frame: Display personal photos by inserting a USB flash drive or SD card (up to 64GB, not included).
설치 가이드
1. 언박싱 및 초기 검사
모든 구성품을 포장에서 조심스럽게 꺼내세요. 모든 구성품이 있는지 확인하세요.
- Mesqool 10.1" Digital Calendar Clock
- 전원 어댑터
- USB 케이블
- Wall Mounting Kit (screws, anchors, wall bracket)
- 사용자 설명서
- 청소용 천
Contents of the Mesqool Digital Clock package.
2. 전원 연결
- Connect the USB cable to the clock's power input port.
- Plug the power adapter into a standard electrical outlet. The clock will power on automatically.
메모: The clock must be connected to an outlet for continuous operation. The internal backup battery is for retaining settings during power interruptions, not for powering the display.
Ensure the clock is properly connected to a power source.
3. Initial Settings (Time, Date, Language)
Upon first power-on or after a prolonged power outage, you may need to set the time, date, and language. Use the navigation buttons on the side of the clock to access the menu and adjust settings.
- 탐색 버튼: The side-mounted buttons (Up, Down, Left, Right, Select, Back) allow intuitive navigation through the menu.
- 언어: Select your preferred language (English, German, French, Italian, Spanish, Japanese).
- 시간 형식: Choose between 12-hour or 24-hour display.
- 날짜 형식: Select MM/DD/YYYY or DD/MM/YYYY.
- 자동 DST: Enable or disable Automatic Daylight Saving Time adjustment.
The side buttons provide easy access to menu navigation and settings.
4. 장착 옵션
The clock can be placed on a tabletop using its integrated stand or mounted on a wall.
- 탁상 배치: Extend the built-in stand on the back of the clock to position it upright on any flat surface.
- 벽면 장착: Use the provided wall mounting kit. Secure the wall bracket to your desired location using the screws and anchors. Then, carefully slide the clock onto the bracket until it locks into place.
The back of the clock features a foldable stand for tabletop use and mounting points for wall installation.
작동 지침
1. 표시 모드 및 사용자 지정
The clock offers various display options to suit your preferences:
- Time Periods: The display automatically adjusts to show one of six time periods (pre-dawn, morning, afternoon, evening, night, midnight) to help differentiate between AM and PM.
- Themes & Colors: Navigate to the 'Themes' setting in the menu to choose from 12 unique display themes and 9 font colors. Options include text time, analog clock, classic, and minimalist styles.
Explore 12 themes and 9 colors to personalize your clock's display.
2. 밝기 조정
The clock features intelligent brightness control:
- 자동 밝기 조절: A built-in light sensor automatically adjusts the screen brightness based on ambient room lighting, ensuring optimal visibility day and night.
- Timed Brightness: You can set different brightness levels for daytime and nighttime.
- 수동 조정: Adjust brightness manually through the settings menu if desired.

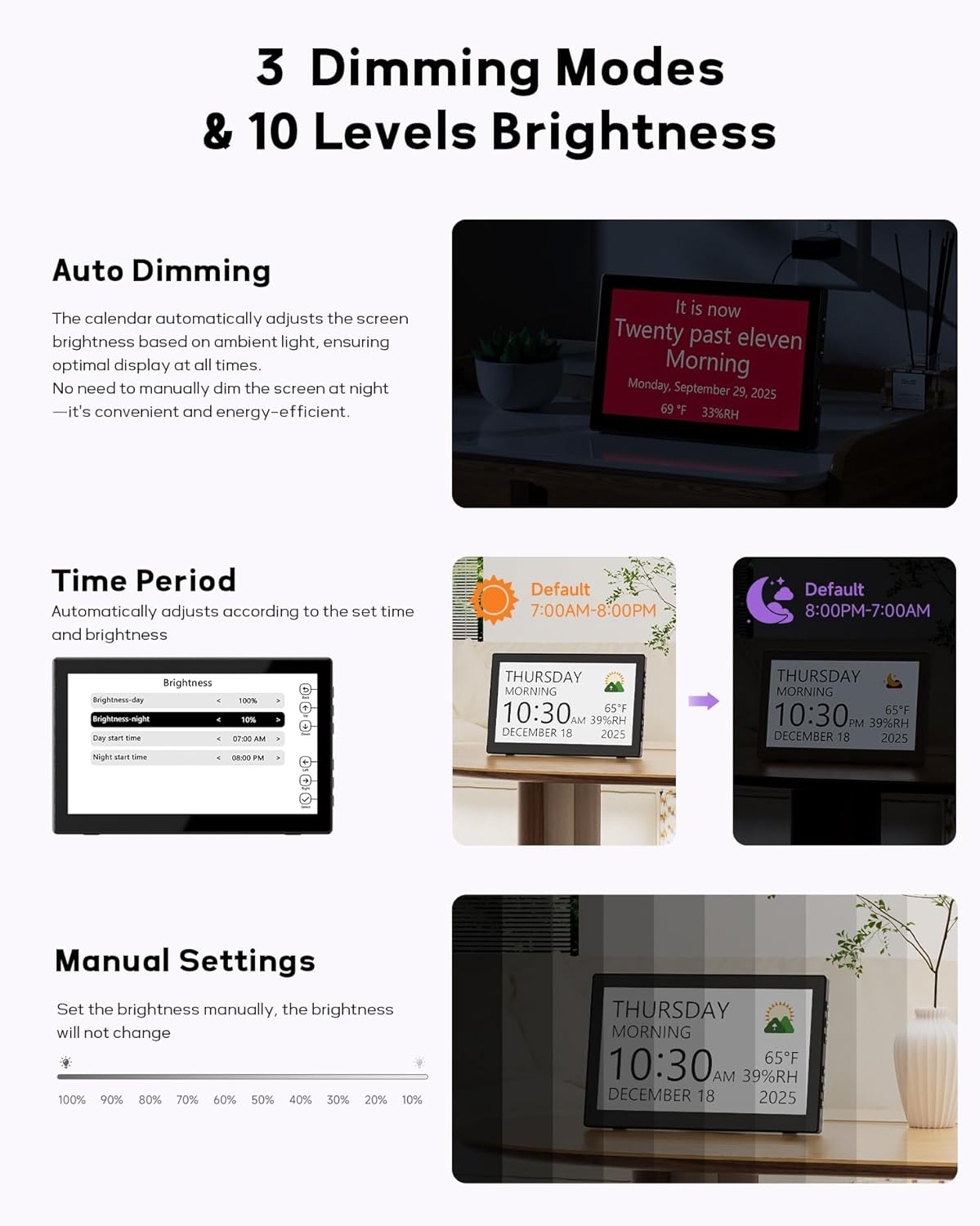

The clock offers automatic, timed, and manual brightness control for optimal view주고받음.
3. Alarm and Schedule Settings
The clock provides extensive alarm and reminder capabilities:
- 맞춤형 알람: Set multiple alarms for specific days (weekdays only, weekends, or any combination).
- Pre-set Reminders: Utilize 23 pre-set reminders for common daily routines such as medication, activities, and visits.
- Personalized Messages: Create custom reminders using keyboard input for unique events like birthdays or personal notes.
- 알람 소리: Choose from 18 unique alarm sounds (e.g., guitar, dance music, birds, waves) and adjust the volume across 9 levels.
Set up to 23 pre-set or custom reminders for daily routines and important events.

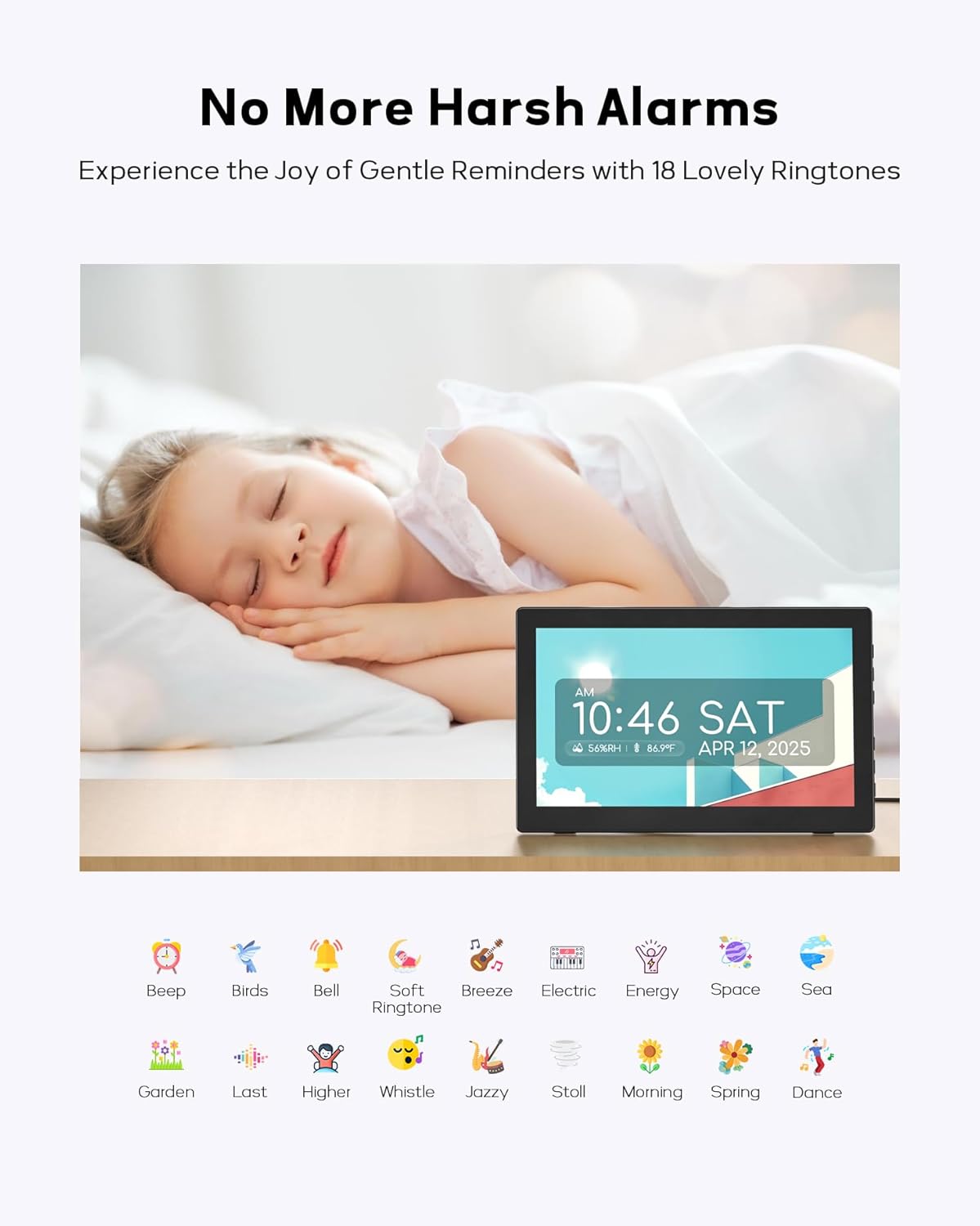

Choose from 18 gentle ringtones and adjust volume for personalized alarms.
4. Digital Picture Frame Function
Transform your clock into a digital picture frame:
- Insert a USB flash drive or SD card (up to 64GB, not included) into the designated slot on the side of the clock.
- Access the 'Album' setting in the menu to display your favorite photos.

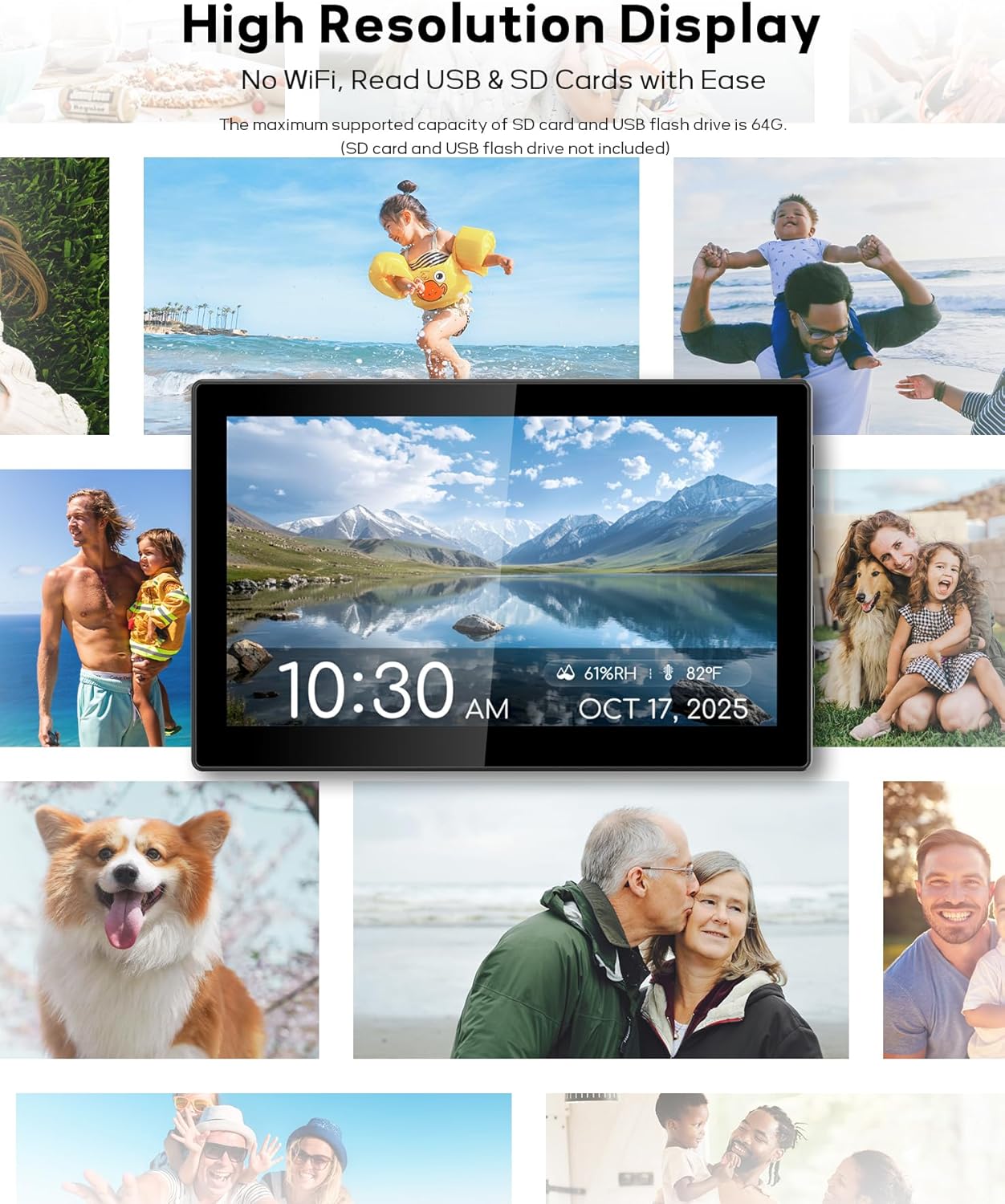

Display cherished memories using the built-in digital picture frame function.
5. Indoor Temperature & Humidity Display
The clock continuously monitors indoor temperature and humidity:
- Real-time temperature (in °F) and humidity (%RH) readings are displayed directly on the screen.
- This feature helps you monitor your indoor environment for comfort and well-being.
유지
- 청소: Use the provided cleaning cloth or a soft, dry cloth to gently wipe the screen and body of the clock. Avoid using abrasive cleaners or sprays.
- 놓기: Place the clock on a stable surface or mount it securely on a wall. Avoid direct sunlight or extreme temperatures, which can affect display performance and sensor accuracy.
- 힘: Ensure the clock remains plugged into a power outlet for continuous operation.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 시계 전원이 켜지지 않습니다. | 전원 어댑터가 연결되지 않았거나 콘센트에 결함이 있습니다. | Ensure power adapter is securely plugged into the clock and a working electrical outlet. Try a different outlet. |
| 전원이 꺼지면 설정이 사라집니다.tage. | Backup battery is low or depleted. | The clock includes 2 CR2032 batteries for backup. If settings are not retained, these batteries may need replacement. Refer to the manual for battery compartment access. |
| 디스플레이가 너무 밝거나 어둡습니다. | 밝기 설정을 조정해야 합니다. | Adjust brightness manually via the settings menu or ensure auto-dimming is enabled and functioning correctly. |
| 경보음이 울리지 않고 있습니다. | 알람이 올바르게 설정되지 않았거나 볼륨이 너무 낮습니다. | Verify alarm times and days in the settings. Increase alarm volume. |
| Photos not displaying from USB/SD card. | 잘못된 file format, unsupported card type, or card capacity too large. | Ensure photos are in a compatible format (e.g., JPEG). Use SD, SDHC, SDXC, or USB2.0 devices up to 64GB. Reformat the card if necessary (backing up data first). |
명세서
- 상표: 메스쿨
- 모델: CR1026
- 디스플레이 유형: IPS
- 화면 크기: 10.1인치
- 제품 크기: 폭 14인치 x 높이 4인치
- 품목 무게: 1.52파운드
- 전원: 코드식 전기
- 특별 기능: Battery Backup, Adjustable Brightness, Indoor Temperature & Humidity Sensor, Digital Picture Frame, Multiple Themes, Customizable Alarms
- 배터리: 2 CR2032 batteries required (included for memory backup)
- 장착 유형: 테이블탑, 벽면 장착
- 지원되는 저장소: USB Flash Drive, SD Card (SD, SDHC, SDXC, USB2.0, up to 64GB)
보증 및 지원
The Mesqool Digital Calendar Clock comes with a 한정 보증 provided by Mesqool E-commerce Co,ltd. For detailed warranty information, product support, or technical assistance, please refer to the contact information provided in your product packaging or visit the official Mesqool web대지.
제조업체: Mesqool E-commerce Co,ltd
