소개
The JETBeam M37 Pro is a high-performance, rechargeable LED flashlight designed for various applications including outdoor adventure, emergency situations, and daily use. Featuring a powerful Cree XHP50.3 LED, it delivers up to 3700 lumens and has a beam distance of up to 465 meters. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your M37 Pro flashlight.
Image: The JETBeam M37 Pro flashlight in green, showcasin견고한 디자인 덕분입니다.
상자 안에 무엇이 들어있나요?
- JETBeam M37 Pro Flashlight
- 5100mAh battery (1)
- USB-C Charging cable (1)
- 예비 O-링(2)
- 랜야드 (1)
- 클립 (1)
- Tactical Ring (1)
설정
배터리 설치
- 손전등의 꼬리 캡을 시계 반대 방향으로 돌려서 풉니다.
- Insert the included 5100mAh battery with the positive (+) end facing towards the head of the flashlight.
- Screw the tail cap back on clockwise until it is securely tightened. Ensure the O-ring is properly seated to maintain waterproof integrity.
배터리 충전
The M37 Pro features a hidden Type-C charging port for convenient recharging.
- Locate the hidden Type-C charging port on the flashlight body. This port is typically covered by a rotating collar or a rubber flap to ensure waterproof protection.
- Connect the provided USB-C charging cable to the flashlight's Type-C port.
- USB-C 케이블의 다른 쪽 끝을 호환되는 USB 전원(예: 벽면 어댑터, 모바일 배터리, 컴퓨터 USB 포트)에 연결합니다.
- The battery life indicator will show the charging status. Charge until the indicator shows a full charge.
- Once charging is complete, disconnect the cable and ensure the charging port cover is securely closed to maintain water resistance.

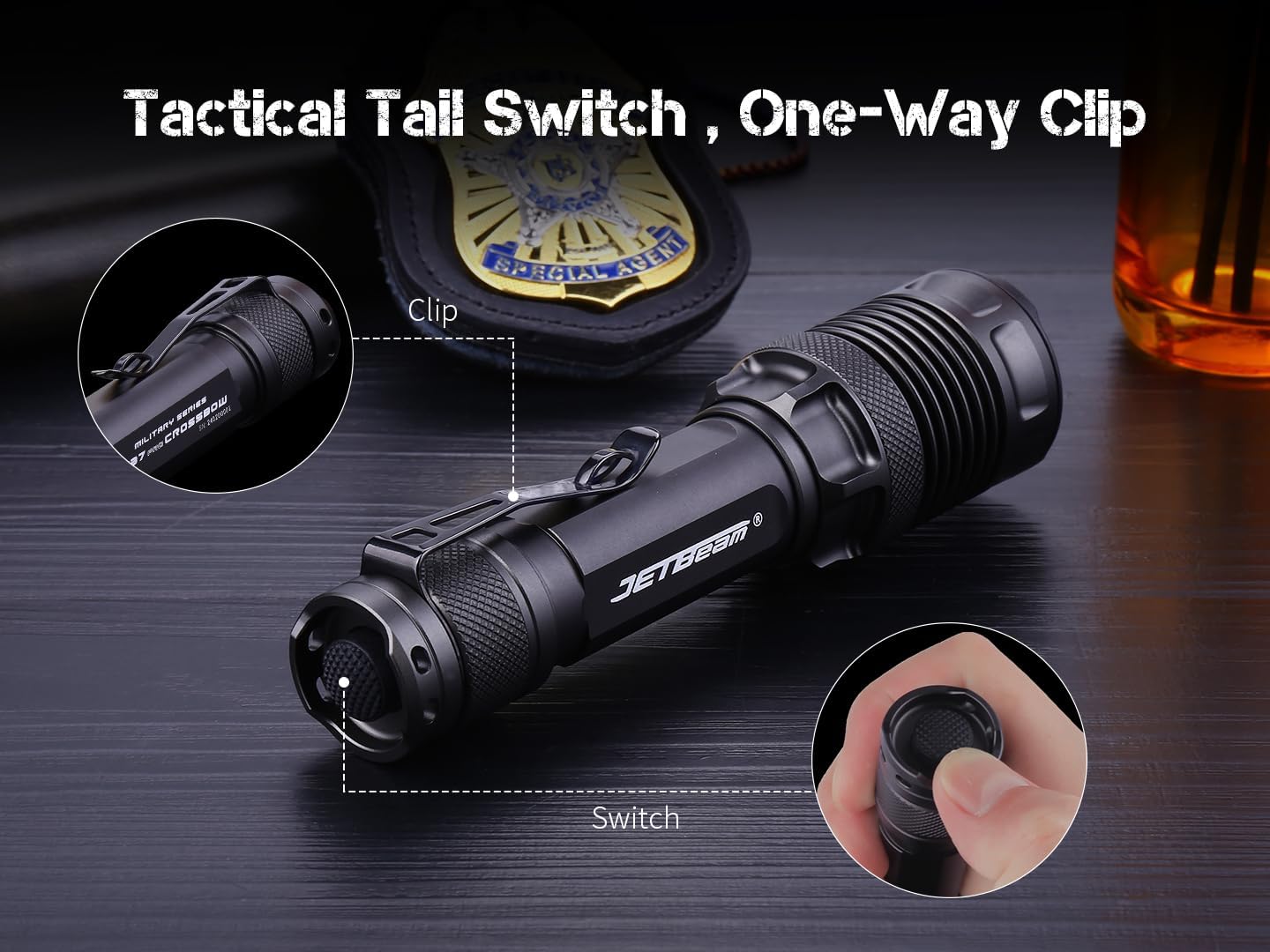

Image: Close-up of the JETBeam M37 Pro showing the tactical tail switch and the one-way clip, which can be used for attachment to gear.
작동 지침
기본 동작
- 전원 켜기/끄기: Press the tactical tail switch fully to turn the flashlight on or off.
- 모드 전환: With the flashlight on, lightly tap the tactical tail switch to cycle through the different brightness modes (e.g., Low, Medium, High, Turbo).
- 스트로브 모드: From any state (on or off), quickly double-tap the tactical tail switch to activate Strobe mode. Tap again to return to the previous mode or turn off.
The M37 Pro is equipped with a Cree XHP50.3 LED, providing powerful and efficient illumination. Its intelligent temperature control system prevents overheating by gradually reducing brightness if the temperature reaches 55°C, ensuring stable performance and longevity.
Image: The JETBeam M37 Pro flashlight illuminating a long distance across a body of water, demonstrating its powerful beam.
Image: Diagram illustrating the intelligent temperature control feature of the JETBeam M37 Pro, showing heat dissipation from the flashlight head.
배터리 수명 표시기
The flashlight includes battery life indicators to help you monitor the remaining power. Refer to the product's specific indicator light patterns for detailed information on battery levels.
방수 기능
The M37 Pro is IPX-8 waterproof, meaning it can be submerged up to 2 meters underwater and function normally in heavy rain. Ensure all caps and covers, especially the charging port, are securely closed before exposing the flashlight to water.

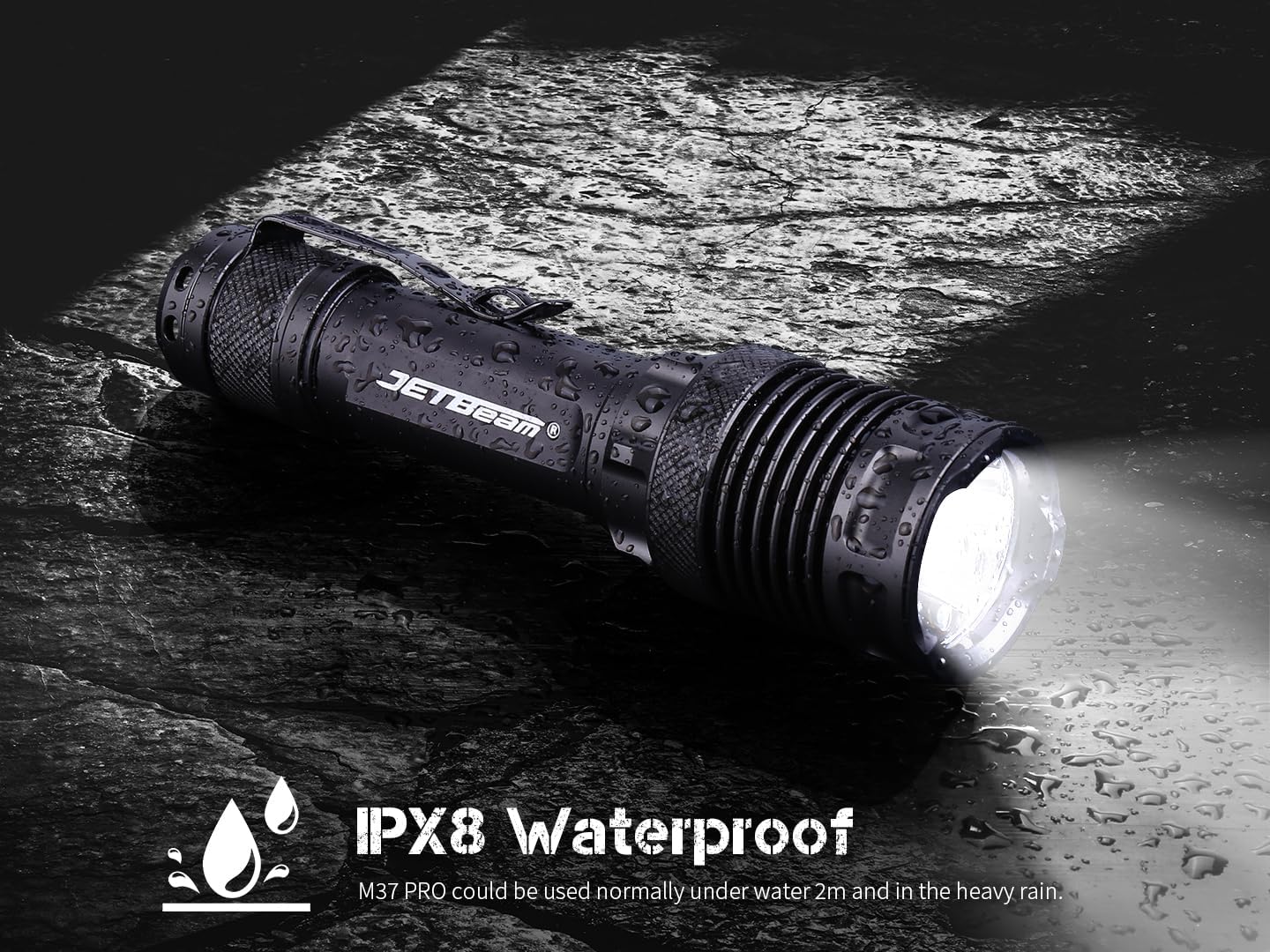

Image: The JETBeam M37 Pro flashlight on a wet, rocky surface, with water droplets, highlighting its IPX8 waterproof rating.
유지
- 청소: 손전등 본체를 부드러운 천으로 닦으세요.amp 천. 연마성 세척제나 용매를 사용하지 마십시오.
- O-링: Periodically inspect the O-rings for wear and tear. Lubricate them with silicone grease to maintain waterproof integrity. Replace worn O-rings with the provided spares.
- 스레드: 테일캡의 나사산을 깨끗하게 유지하고 가볍게 윤활유를 발라 원활한 작동과 양호한 전기 접촉을 보장하십시오.
- 저장: 장기간 손전등을 보관할 경우, 누액 및 손상을 방지하기 위해 배터리를 분리하세요. 서늘하고 건조한 곳에 보관하세요.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 손전등이 켜지지 않습니다. | 배터리가 소진되었거나 잘못 삽입되었습니다. 꼬리 모자가 헐거워요. | Recharge or replace battery; ensure correct polarity. 꼬리뚜껑을 단단히 조이세요. |
| 불빛이 깜빡이거나 어둡습니다. | 배터리가 부족합니다. 더러운 연락처. 머리나 꼬리 덮개가 헐렁합니다. | 배터리를 충전하세요. 배터리와 손전등 접점을 청소하세요. Tighten head and tail cap. |
| 모드를 변경할 수 없습니다. | Tactical switch malfunction. | Ensure the switch is clean and free of debris. If problem persists, contact customer support. |
| 충전이 되지 않습니다. | 충전 케이블이나 어댑터에 결함이 있습니다. 충전 포트가 막혔습니다. | 다른 USB-C 케이블과 전원 어댑터를 사용해 보세요. Check charging port for debris and ensure it's fully exposed. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 모델 | M37 맥스 |
| 광원 | Cree XHP50.3 LED |
| 최대 출력 | 3700루멘 |
| 최대 빔 거리 | 465 미터 |
| 피크 빔 강도 | 54200cd |
| 최대 런타임 | 66시간 |
| 전원 | 5100mAh Lithium Ion Battery (Included) |
| 충전 포트 | Hidden Type-C |
| 방수성 | IPX-8(수중 2미터) |
| 재료 | 양극산화 알루미늄 |
| 크기 (길이 x 머리 지름 x 몸통 지름) | 147.8mm x 38.5mm x 27.5mm (Approx. 5.82" x 1.52" x 1.08") |
| 무게(배터리 제외) | 350g (Approx. 12.35 oz) |
| 특별 기능 | Rechargeable, Waterproof, Portable, Dimming, Intelligent Temperature Control, Tactical Tail Switch, One-Way Clip, Emergency Self-Defense (3 high hardness silicon nitride balls on strike bezel) |
Image: A table detailing the technical parameters of the JETBeam M37 Pro, including lumen output, runtime, beam intensity, and distance for various modes.
공식 제품 영상
비디오: 공식 제품 소개 영상asing the features and capabilities of the JETBeam M37 Pro flashlight, including its durability, waterproofness, and various lighting modes.
보증 및 지원
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official JETBeam web사이트. 보증 청구를 위해 구매 증빙 자료로 구매 영수증을 보관하세요.
제조업체: 제트빔
