소개
Thank you for choosing the MAHANCRIS Queen Size Metal Headboard. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new headboard. Please read this manual thoroughly before beginning assembly and retain it for future reference.
중요한 안전 정보
경고: 이러한 안전 지침을 따르지 않을 경우 부상이나 제품 손상이 발생할 수 있습니다.
- Always follow the assembly instructions strictly.
- The headboard includes an anti-tip kit and two types of expansion screws for different wall types. Install the anti-tip kit before use to prevent tipping.
- Children should not play or climb on or around the headboard to avoid potential injuries from tipping over.
- Ensure all connections for the power strips are secure and correctly plugged into a suitable power outlet. Do not overload the power strips.
- Keep liquids away from the power strips to prevent electrical shock.
- 모든 볼트와 나사가 단단히 조여져 있는지 정기적으로 점검하세요. 필요에 따라 다시 조이세요.
패키지 내용
조립하기 전에 아래 나열된 모든 구성품이 있는지, 손상되지 않았는지 확인하십시오. 누락되거나 손상된 부품이 있는 경우 고객 지원 센터로 문의하십시오.
이 이미지는 분해된 모습을 보여줍니다. view of the headboard components, illustrating each part with a number for easy identification during assembly.
- 1 x Headboard Frame
- 1 x Accessory Kit (includes screws, bolts, and tools)
- 1 x 넘어짐 방지 키트
- 1 x Bed Frame Adapter Set
- 2 x Charging Stations (integrated power strips)
- 1 x 사용 설명서(이 문서)
조립 설명서
Follow these steps carefully to assemble your MAHANCRIS headboard. It is recommended to have two people for assembly.
- 부품 풀기 및 식별: Carefully remove all components from the packaging. Lay them out on a clean, soft surface to prevent scratches. Refer to the "Package Contents" section and the provided parts diagram to identify each piece.
- Assemble the Main Headboard Frame: Connect the horizontal and vertical metal bars according to the diagram. Ensure all bolts are finger-tightened initially.
- Install Power Strips: Attach the two charging stations (power strips) to the designated locations on the headboard frame using the provided screws. Ensure they are securely fastened.
- 침대 프레임 어댑터를 부착하세요: Secure the bed frame adapters to the lower vertical supports of the headboard. These adapters allow for height and width adjustments to fit various bed frames. Do not fully tighten yet.
This image illustrates the adjustable bed frame adapter, showing how it can be moved up or down to align with your bed frame.
- 침대 프레임에 연결하세요: Position the assembled headboard against your bed frame. Align the bed frame adapters with the mounting points on your bed frame. Adjust the height and width of the adapters as needed. Secure the headboard to your bed frame using the appropriate bolts and nuts.
- 최종 조임: Once the headboard is properly aligned and connected to the bed frame, fully tighten all bolts and screws using the provided tools. Do not overtighten.
- 넘어짐 방지 키트 설치: For added safety, install the anti-tip kit to secure the headboard to the wall. Follow the specific instructions provided with the anti-tip kit, selecting the correct expansion screws for your wall type.
For a visual guide on assembly and features, please refer to the official product videos below.
설정 및 연결
전원 연결
The MAHANCRIS headboard features two integrated power strips, one on each side, for convenient charging.

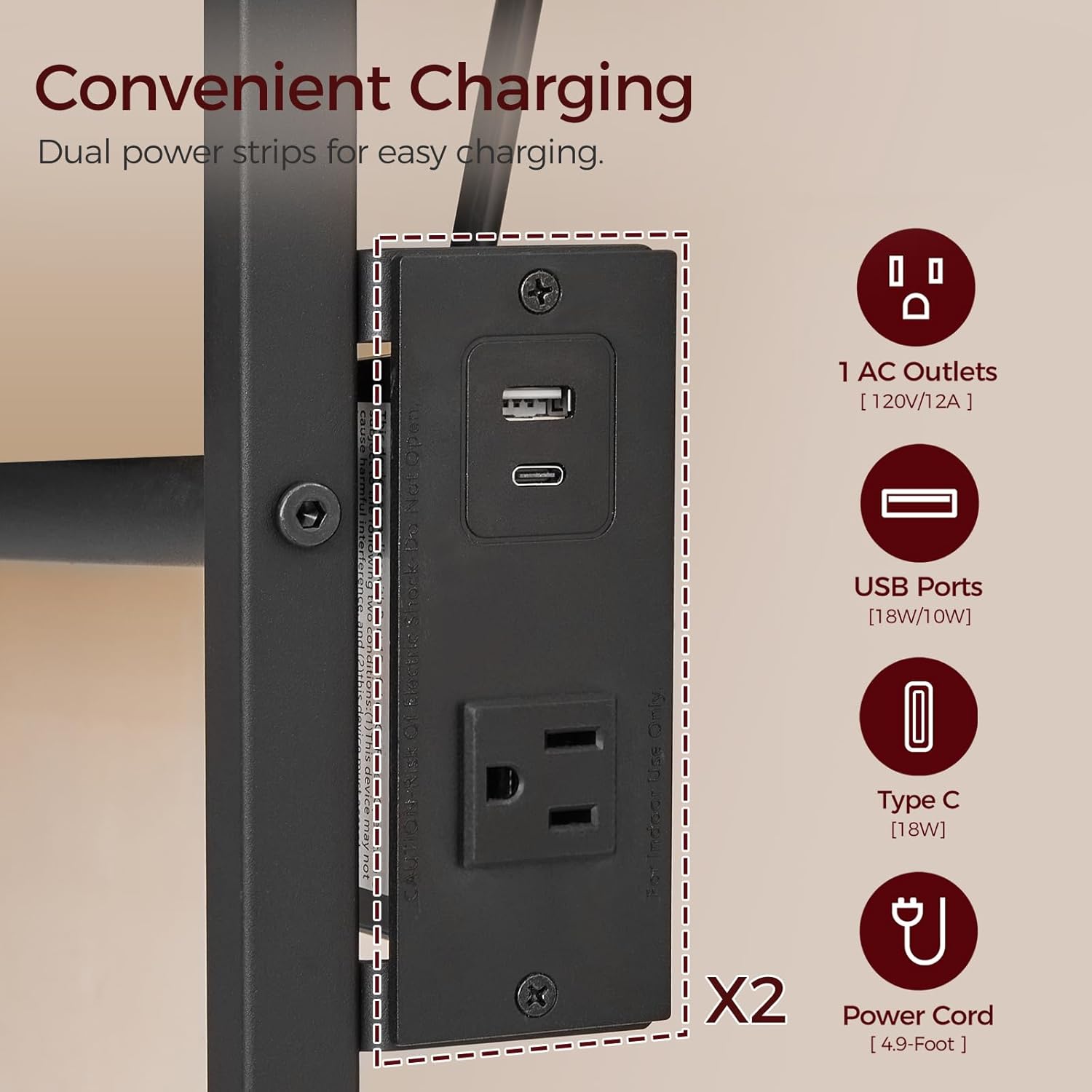

이 이미지는 자세한 내용을 표시합니다. view of one of the integrated power strips, highlighting the AC outlet, USB-A port, and USB-C port.
- Locate the power cords extending from the bottom of each power strip.
- Plug each power cord into a standard 120V AC wall outlet.
- Ensure the cables are routed safely to avoid tripping hazards or damage.
Adjusting Feet for Stability
The headboard includes adjustable feet to enhance stability and protect your floor.
- Turn the adjustable feet at the bottom of the headboard legs clockwise or counter-clockwise to raise or lower the headboard slightly.
- Adjust until the headboard is stable and does not wobble.
작동 지침
Using the Power Strips
Each power strip provides 1 AC outlet, 1 USB-A port, and 1 Type-C port, allowing you to charge up to 6 devices simultaneously (3 per side).
- Plug your devices directly into the available AC outlets, USB-A ports, or Type-C ports.
- Ensure devices are compatible with the power output (AC: 120V/12A; USB-A: 18W/10W; Type-C: 18W).
- Avoid plugging in high-power appliances that exceed the strip's maximum load.
Utilizing the Reclining Backrest
The headboard features an ergonomically designed 95-degree reclining backrest for enhanced comfort.
This image highlights the 95-degree reclining angle of the headboard, designed to provide ergonomic support for sitting up in bed.
- The backrest is fixed at a 95-degree angle, providing optimal support for reading, watching TV, or relaxing in bed.
- Lean back gently to experience the contoured comfort.
유지 보수 및 관리
- 청소: 금속 표면을 부드러운 천으로 닦으십시오.amp 천으로 닦으세요. 강한 화학 물질이나 연마성 세제는 마감재를 손상시킬 수 있으므로 사용하지 마세요.
- 점검: Periodically inspect all connections, bolts, and screws to ensure they are tight. Retighten any loose fasteners to maintain stability and safety.
- Power Strips: Keep the power strips clean and dry. Do not attempt to disassemble or repair the power strips yourself. If they malfunction, contact customer support.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 침대 헤드보드가 흔들리거나 불안정합니다. | 느슨한 볼트나 고르지 않은 바닥. | Ensure all assembly bolts are securely tightened. Adjust the leveling feet at the bottom of the headboard legs to stabilize. |
| Power strips are not working. | Not plugged in, wall outlet issue, or overloaded circuit. | Check if the power cords are securely plugged into a working wall outlet. Test the wall outlet with another device. Ensure the power strip is not overloaded with too many high-power devices. |
| Headboard does not align with bed frame. | Bed frame adapters not adjusted correctly. | Loosen the bed frame adapter bolts, adjust the adapters to match your bed frame's height and width, then re-tighten. |
명세서

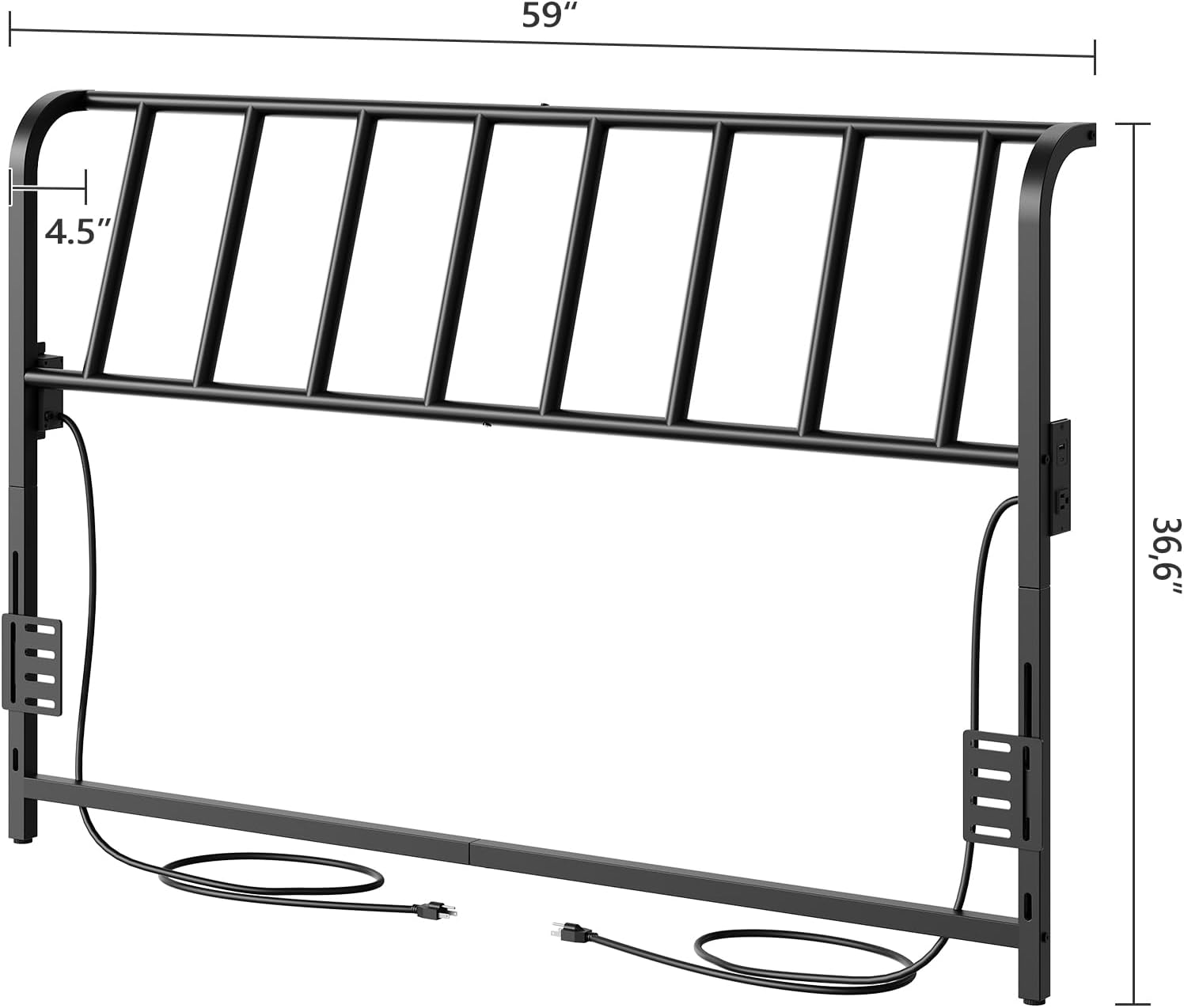

This image provides a detailed diagram of the headboard's dimensions, including width and height measurements.
- 상표: 마한크리스
- 모델: B0DP4KXD98
- 재료: 금속
- 크기: 여왕
- 색상: 검은색
- 항목 치수(L x W x H): 59인치 길이 x 4.5인치 너비 x 36.6인치 높이
- 품목 무게: 9.9 파운드
- 특별 기능: 95-degree Reclining Backrest, USB Charging Station (2 AC outlets, 2 USB-A ports, 2 Type-C ports total), Adjustable Bed Frame Adapters, Anti-Tip Kit
- 장착 유형: 수동 설치
- 필요한 조립: 예
제품 비디오
MAHANCRIS 95 Degrees Reclining Backrest Headboard
이 비디오는 이상을 제공합니다view of the MAHANCRIS headboard, focusing on its 95-degree reclining backrest feature and overall design. It showcases the headboard installed in a bedroom setting.
MAHANCRIS Metal Headboard, 95 Degrees Reclining Backrest
This video offers another perspective on the MAHANCRIS metal headboard, emphasizing its construction and the comfort provided by the reclining backrest. It includes close-ups of the headboard's features.
MAHANCRIS Queen Size Headboard Only
This video focuses on the MAHANCRIS Queen Size Headboard, showcasing its design and how it integrates with a bed frame. It provides a general view of the product's aesthetic and functionality.
보증 및 지원
보증 정보
이 제품에는 다음이 포함되어 있습니다. 보증 없음 as per manufacturer specifications. However, Amazon's return policy allows for returns or replacements within 90 days of purchase.
고객 지원
For any questions, missing parts, or assistance with assembly, please contact MAHANCRIS customer support through the retailer's platform or visit the official MAHANCRIS store page on Amazon for contact options.
You can visit the MAHANCRIS store at: MAHANCRIS Amazon Store
