1. 서론
Thank you for choosing the PRORECK FREEDOM 10 Portable PA Speaker. This active loudspeaker is designed for versatility and powerful sound, making it ideal for events, karaoke, DJ performances, and outdoor gatherings. It features an 800W peak power output, a 10-inch subwoofer, a 1-inch titanium treble speaker, and includes two wireless microphones and a remote control. Its portable design with a handle and wheels ensures easy transport.
Image: The PRORECK FREEDOM 10 Portable PA Speaker, showcasin본체, 무선 마이크 2개, 리모컨으로 구성되어 있습니다.
2. 패키지 내용
다음 항목에 대한 상자를 체크해 주세요.
- 1 x Active Speaker (PRORECK FREEDOM 10)
- 2 x 무선 마이크
- 1 x 원격 제어
- 1 x 전원 케이블
- 1 x 사용자 매뉴얼(이 문서)

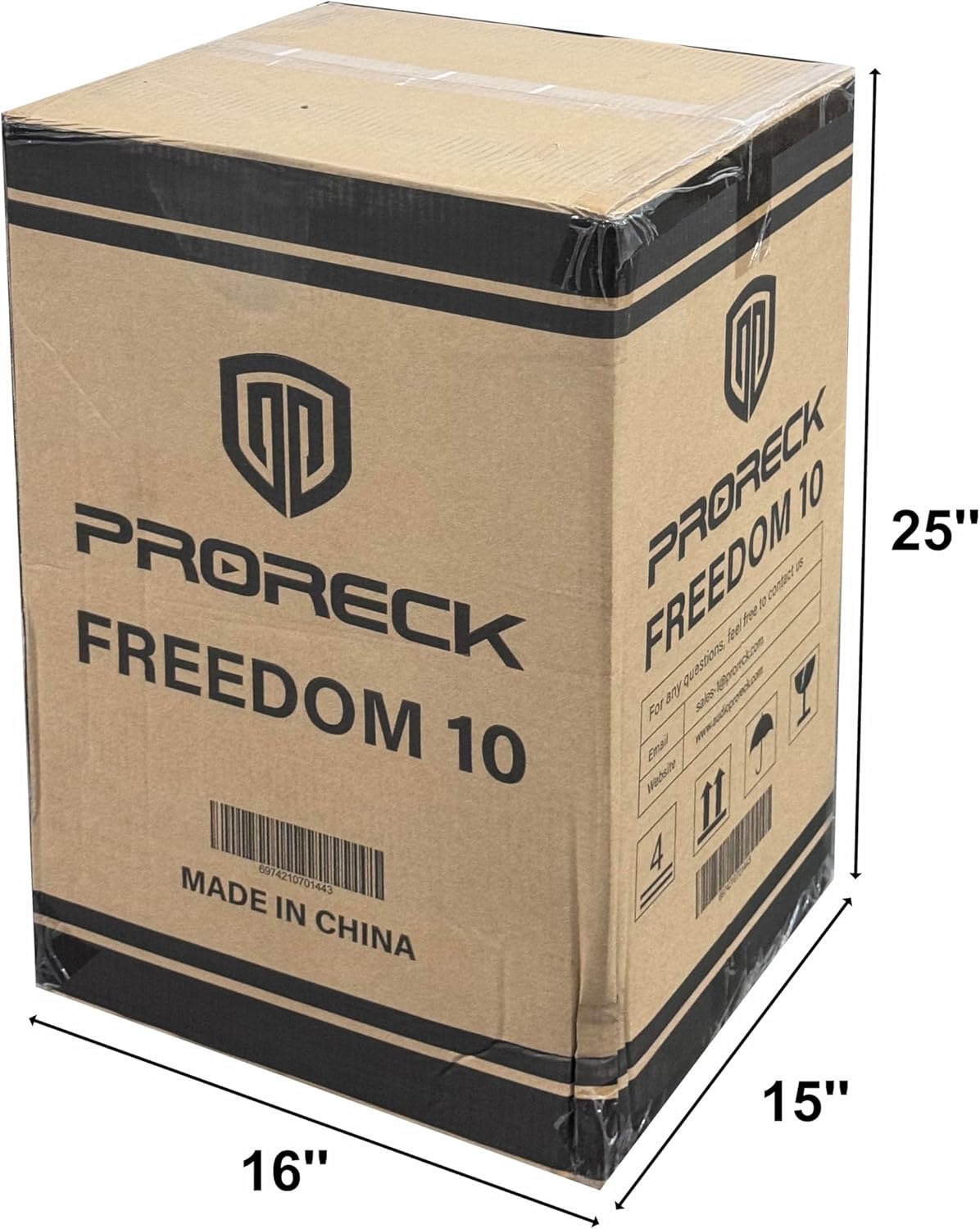

Image: The PRORECK FREEDOM 10 product packaging box, indicating dimensions and branding.
3. 제품 특징
- 강력한 사운드: Equipped with a 10'' subwoofer and a 1'' titanium treble speaker, delivering 800W peak power.
- 노래방 준비: Includes 2 wireless microphones with 5 sound controls (volume, treble, bass, reverb, echo) for a customizable karaoke experience.
- 긴 배터리 수명: High-performance batteries provide up to 6 hours of continuous playback at 75% volume on a single charge.
- 다중 입력 : Features USB, SD, Bluetooth, RCA AUX IN, 2 MIC IN, and Guitar IN for wide applicability.
- 휴대성 있는 디자인: Integrated pull rod and bottom rollers for easy transportation.
- 마이크 저장: Hidden compartment for convenient storage of microphones when not in use.
이미지: 상세 view of the PRORECK FREEDOM 10 speaker, highlighting the 2-inch speaker mount hole and the integrated microphone storage case.
4. 제어 및 연결
스피커 뒷면에 있는 제어판을 숙지하십시오.
Image: Diagram of the PRORECK FREEDOM 10 control panel, with numbered labels indicating various inputs and controls.
- Selector Signal Input: For MP3/Bluetooth/FM modes.
- Antenna Receiver: For wireless microphone and FM radio reception.
- MUSIC Volume Settings: Adjusts the overall music playback volume.
- MUSIC TREBLE Volume Settings: Adjusts the high frequencies of the music.
- MUSIC BASS Volume Settings: Adjusts the low frequencies of the music.
- Mic Treble Settings: 마이크 입력의 고주파수를 조정합니다.
- Mic Bass Settings: 마이크 입력의 저주파수를 조정합니다.
- Mic Reverb Settings: 마이크의 잔향 효과를 조절합니다.
- Mic Echo Settings: 마이크의 에코 효과를 조절합니다.
- Mic Volume Settings: Adjusts the volume of the microphone inputs.
- Guitar Volume Settings: Adjusts the volume of the guitar input.
- 1/4" MIC Input: Input jack for wired microphones.
- 1/4" GUITAR Input: Input jack for a guitar.
- RCA AUX 입력: Stereo RCA input for external audio devices.
- RCA AUDIO Output: Stereo RCA output for connecting to another speaker or audio system.
- 전원 스위치: 스피커를 켜거나 끕니다.
- DC Resources: 12V DC input for external power source (e.g., car battery).
- AC 전원: Standard AC power input (110V AC).
5. 설정
5.1 포장 풀기 및 배치
- 포장에서 모든 구성 요소를 조심스럽게 제거합니다.
- 스피커를 안정적이고 평평한 표면에 놓으십시오. 기기 주변에 충분한 통풍이 이루어지도록 하십시오.
- For optimal sound, position the speaker at ear level or slightly above. The speaker can be mounted on a standard 2-inch speaker pole (pole not included).
5.2 스피커 충전
- 처음 사용하기 전에 스피커를 약 6~8시간 동안 완전히 충전하십시오.
- Connect the supplied AC power cable to the AC Power Source (18) input on the rear panel and plug it into a standard wall outlet.
- The charging indicator light will show RED during charging and turn GREEN when fully charged.
5.3 무선 마이크
- The included wireless microphones are pre-paired with the speaker.
- Insert 2x AA batteries (not included) into each microphone.
- 각각의 전원 스위치를 사용하여 마이크를 켭니다.
6. 사용 설명서
6.1 전원 켜기/끄기
- To power on the speaker, flip the Power Switch (16) to the "ON" position.
- To power off, flip the Power Switch (16) to the "OFF" position.
6.2 블루투스 연결
- 스피커를 켜세요.
- Press the Mode button on the Selector Signal Input (1) or the remote control until "Bluetooth" mode is selected.
- On your Bluetooth-enabled device (smartphone, tablet, etc.), search for "PRORECK FREEDOM 10" in the Bluetooth settings.
- Select the speaker to pair. A confirmation tone will sound when successfully connected.
- Adjust the MUSIC Volume Settings (3) on the speaker and your device.
6.3 USB/SD 카드 재생
- MP3 오디오가 미리 저장된 USB 플래시 드라이브 또는 SD 카드를 삽입하세요. files) into the respective slot on the Selector Signal Input (1).
- The speaker will automatically switch to USB/SD mode and begin playback.
- Use the controls on the Selector Signal Input (1) or the remote control to play, pause, skip tracks, and adjust volume.
6.4 마이크 사용
- 무선 마이크를 켜세요.
- Adjust the Mic Volume Settings (10) to your desired level.
- Experiment with Mic Treble (6), Mic Bass (7), Mic Reverb (8), and Mic Echo (9) settings to customize your sound.
- For wired microphones, connect them to the 1/4" MIC Input (12).
6.5 기타 입력
- Connect your guitar to the 1/4" GUITAR Input (13).
- Adjust the Guitar Volume Settings (11) to balance with other audio sources.
6.6 RCA AUX IN/OUT
- AUX 입력 : Connect external audio devices (e.g., CD player, mixer) to the RCA AUX Input (14) using an RCA cable.
- 오디오 출력 : Connect the RCA AUDIO Output (15) to another powered speaker or recording device to expand your sound system or record your performance.
Image: A person actively using the PRORECK FREEDOM 10 speaker with a wireless microphone, demonstrating its use for vocal performances.
7. 유지관리
- 청소: Wipe the speaker's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- 배터리 관리 : For optimal battery life, avoid fully discharging the battery regularly. Recharge the speaker after each use, especially if it will be stored for an extended period.
- 저장: 스피커는 직사광선과 극한의 온도를 피해 시원하고 건조한 곳에 보관하세요.
- 운송: Utilize the pull rod and wheels for easy movement. Ensure the handle is fully extended and locked when pulling.
Image: The PRORECK FREEDOM 10 speaker shown with its dimensions, demonstrating the extendable handle and wheels for portability.
8. 문제 해결
- 전원 없음:
- 전원 케이블이 스피커와 작동하는 전원 콘센트에 제대로 연결되어 있는지 확인하십시오.
- Check if the Power Switch (16) is in the "ON" position.
- 배터리로 작동하는 경우 배터리가 충전되어 있는지 확인하십시오.
- 소리 없음:
- Verify that the MUSIC Volume Settings (3) and source device volume are turned up.
- Check if the correct input mode (Bluetooth, USB, SD, AUX) is selected via the Selector Signal Input (1).
- Ensure all cables (RCA, 1/4" jack) are properly connected.
- 마이크가 작동하지 않음:
- Ensure the wireless microphones are turned on and have fresh batteries.
- Adjust the Mic Volume Settings (10) on the speaker.
- Confirm the microphones are within range of the speaker's antenna.
- 블루투스 연결 문제:
- 스피커가 Bluetooth 모드인지 확인하세요.
- Delete "PRORECK FREEDOM 10" from your device's Bluetooth list and try pairing again.
- Move your device closer to the speaker to ensure a strong signal.
- 왜곡된 소리:
- Reduce the volume of the speaker or the input source to prevent clipping.
- 느슨한 케이블 연결을 확인하십시오.
- Adjust the MUSIC TREBLE (4) and MUSIC BASS (5) settings.
9. 사양
| 특징 | 사양 |
|---|---|
| 모델 번호 | FREEDOM 10 |
| 출력 와트tage | 800와트(최대) |
| 스피커 크기 | 10'' Subwoofer, 1'' Titanium Treble Speaker |
| 전원 | Battery Powered / AC Powered |
| 배터리 수명 | 최대 6시간(75% 볼륨) |
| 연결 기술 | 블루투스 |
| 오디오 입력 | USB, SD, Bluetooth, RCA AUX IN, 2 MIC IN (1/4"), Guitar IN (1/4") |
| 오디오 출력 | RCA AUDIO Output |
| 색상 | 검은색 |
| 장착 유형 | 플로어 스탠딩 |
10. 보증 및 지원
PRORECK products are designed for reliability and performance. For specific warranty information and customer support, please refer to the warranty card included with your purchase or visit the official PRORECK web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
For technical assistance or inquiries, please contact PRORECK customer service.
