1. 제품 오버view
The Polibi Queen Size Daybed with Two Drawers is an upholstered sofa bed designed for comfort and functionality. It features a stylish vertical stripe pattern on the backrests and integrated storage drawers, making it suitable for various living spaces such as family rooms, bedrooms, offices, and cafes.
Image 1.1: The Polibi Queen Size Daybed in Linen Beige, showcasing its design and two pull-out storage drawers.
주요 특징:
- 스타일리시한 디자인: Features a vertical stripe pattern on the backrests for a modern aesthetic.
- 스마트 스토리지: Includes two integrated drawers for organizing belongings and reducing clutter.
- Comfortable Construction: Foam-padded sides and back provide ergonomic support and comfort.
- 내구성 있는 소재: Constructed with linen fabric, plywood, MDF, and foam for longevity.
- 다양한 용도: Functions as both a comfortable sofa and a queen-size bed, ideal for various room types.
2. 안전 정보
조립 및 사용 전에 모든 지침을 읽고 이해하십시오. 지침을 따르지 않을 경우 부상이나 제품 손상이 발생할 수 있습니다.
- 모든 작은 부품과 포장재는 어린이의 손이 닿지 않는 곳에 보관하세요.
- 긁힘을 방지하려면 부드럽고 깨끗한 표면에 데이베드를 조립하세요.
- 사용 전에 모든 볼트와 나사가 단단히 조여졌는지 확인하십시오. 정기적으로 점검하고 필요하면 다시 조이십시오.
- 데이베드 위에서 서거나 뛰지 마세요.
- Do not exceed the recommended weight capacity (refer to specifications).
- Use only the mattress size specified for this daybed (Queen size).
- Avoid placing the daybed near heat sources or open flames.
3. 패키지 내용
조립을 시작하기 전에 모든 구성품이 있는지 확인하세요. 부품이 누락되었거나 손상된 경우 고객 지원 센터에 문의하세요.
포함된 구성 요소:
- Daybed Frame (Upholstered sides and backrests)
- 침대 칸막이
- 지지 다리
- Two Storage Drawers with Rollers
- 조립용 하드웨어(나사, 볼트, 육각 렌치)
- 사용 설명서
Image 3.1: Visual representation of key components including vertical stripe pattern, plastic legs, drawers with rollers, and backrests.
4. 설치 및 조립
조립에는 일반적으로 성인 두 명이 필요합니다. 다음 단계를 주의 깊게 따라주세요.
필요한 도구:
- 앨런 렌치 포함
- Phillips Head Screwdriver (not included, for some screws if applicable)
조립 단계:
- 구성 요소 풀기: 포장에서 모든 부품을 조심스럽게 꺼내십시오. 손상을 방지하기 위해 깨끗하고 부드러운 표면에 부품들을 펼쳐 놓으십시오.
- Assemble Daybed Frame:
- Attach the side panels to the backrest panel using the provided bolts and nuts. Ensure all connections are secure but do not fully tighten until the frame is complete.
- Insert the central support beam into the designated slots on the frame.
- 침대 프레임 설치:
- Place the bed slats across the frame, ensuring they are evenly spaced and secured to the side rails. Some slats may require screwing into place.
- 지지 다리 부착:
- Screw the support legs into the pre-drilled holes on the underside of the daybed frame.
- 서랍 조립:
- Assemble the drawer boxes according to the instructions, attaching the bottom panel and front/back/side panels.
- Attach the rollers to the bottom of each drawer.
- 최종 조임: Once the entire frame and drawers are assembled, go back and fully tighten all bolts and screws. Do not overtighten.
- 서랍 위치 조정: Slide the assembled drawers into the designated space under the daybed.
Image 4.1: Detailed diagram showing the overall dimensions of the daybed and the internal structure, including slat placement and drawer dimensions.
이미지 4.2: 후면 view of the daybed frame, illustrating the slat support system and the attachment points for the backrest.
5. 사용 설명서
데이베드 사용법:
- Place a standard Queen size mattress (not included) onto the bed slats.
- The daybed is designed for seating and sleeping. Ensure the mattress is properly aligned.
수납 서랍 사용법:
- The two drawers are located beneath the daybed frame.
- To open, gently pull the drawer front outwards. The rollers will allow for smooth movement.
- To close, push the drawer inwards until it is fully recessed under the daybed.
- Do not overload the drawers. Distribute weight evenly to prevent damage to the rollers or drawer structure.
Image 5.1: The Polibi daybed with both storage drawers fully extended, demonstrating their accessibility and capacity.

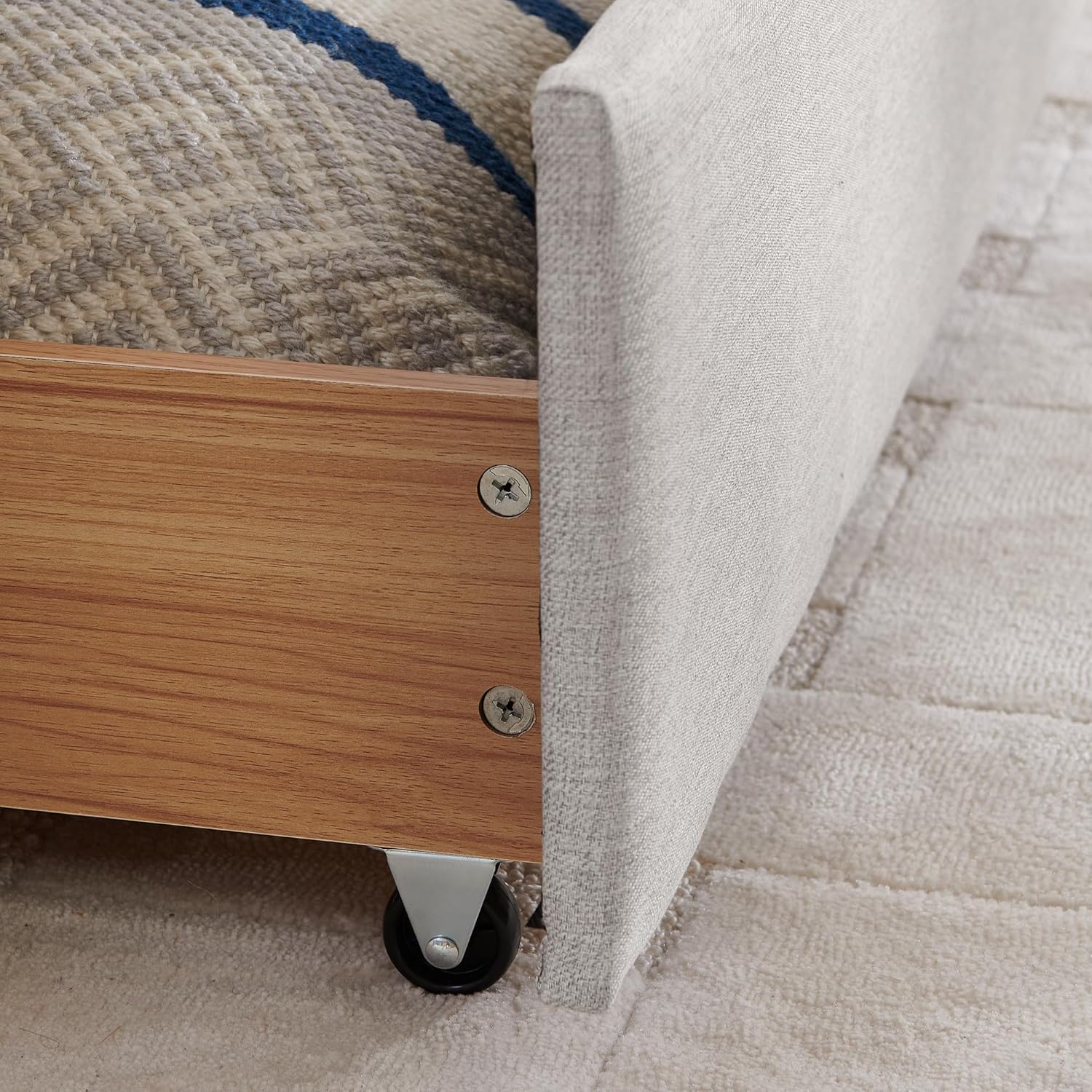

이미지 5.2: 클로즈업 view of the drawer's roller mechanism, highlighting its design for smooth operation.
6. 유지관리
Proper care will extend the life and appearance of your daybed.
- 직물 세척: For general cleaning, use a soft, dry cloth to dust the upholstered surfaces. For spills, blot immediately with a clean, damp 천으로 닦으세요. 강한 화학 물질이나 연마성 세제는 피하세요.
- 프레임 관리: Wipe the frame components with a damp 필요에 따라 천을 사용하세요.
- 하드웨어 검사: 모든 볼트와 나사가 단단히 조여져 있는지 정기적으로 점검하세요. 안정성을 유지하기 위해 필요하면 다시 조이세요.
- Drawer Rollers: 서랍 롤러에 먼지와 이물질이 끼지 않도록 하여 원활한 작동을 보장하십시오.
- 직사광선을 피하세요: 직사광선에 장시간 노출되면 원단의 색이 바랠 수 있습니다.
7. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 데이베드가 흔들리거나 불안정하게 느껴집니다. | 볼트나 나사가 헐거워졌거나, 바닥이 고르지 않은 경우. | Check and tighten all assembly hardware. Ensure the daybed is on a level surface; use shims if necessary. |
| 서랍이 매끄럽게 미끄러지지 않습니다. | Debris in rollers. Overloaded drawer. Misaligned drawer. | Clean rollers and tracks. Reduce weight in the drawer. Re-check drawer assembly and alignment. |
| 삐걱거리는 소리. | 연결 부위가 헐거워졌습니다. 부품 간 마찰이 발생했습니다. | Tighten all bolts and screws. Apply a small amount of silicone lubricant to contact points if necessary (avoiding fabric). |
| Fabric appears stained or discolored. | Spills not cleaned promptly. Exposure to direct sunlight. | Refer to cleaning instructions in the Maintenance section. Reposition the daybed to avoid direct sunlight. |
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 | Queen w/2 drawers |
| 색상 | 리넨 베이지 |
| 제품 치수(전체) | 86.5인치 길이 x 65인치 너비 x 30인치 높이 |
| Drawer Outer Size | 길이 39.5인치 x 높이 9.5인치 |
| 서랍 내부 크기 | 길이 33.5인치 x 높이 4.5인치 |
| 프레임 소재 | Linen + Plywood + MDF + Foam |
| 특징 | Vertical Stripes Design, Two Storage Drawers |
| 매트리스 호환성 | Queen Size (Mattress not included) |
| 제조업체 | 폴리비 |
| ASIN | B0DJSTLXYC |
Image 8.1: Technical drawing with detailed measurements for the Polibi Queen Size Daybed and its integrated drawers.
9. 보증 및 지원
보증 정보:
Polibi products are manufactured with quality and care. For specific warranty details regarding your Queen Size Daybed, please refer to the warranty card included with your purchase or visit the official Polibi website. Generally, warranties cover manufacturing defects under normal use.
고객 지원:
If you encounter any problems with the quality or assembly of your Polibi Queen Size Daybed, or if you have questions not covered in this manual, please contact Polibi customer support:
- 온라인: 방문하세요 Polibi Store on Amazon for contact options.
- 이메일: 이메일 지원을 받으시려면 구매 문서를 참조하십시오.
- 핸드폰: Refer to your purchase documentation for direct phone support.
Please have your model number (Queen w/2 drawers) and ASIN (B0DJSTLXYC) ready when contacting support.
