INTEX Big Catch Pro Inflatable Fishing Float Tube User Manual

1. 서론

This manual provides essential instructions for the safe and effective use, setup, operation, and maintenance of your INTEX Big Catch Pro Inflatable Fishing Float Tube. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

Image 1: The INTEX Big Catch Pro Inflatable Fishing Float Tube, fully assembled with oars, rod holders, and storage bags.

2. 안전 정보

여러분의 안전이 최우선입니다. 사고와 부상을 예방하기 위해 모든 안전 지침을 준수하십시오.

• 미국 해안경비대 승인 구명조끼(PFD)를 항상 착용하십시오. when using the float tube.
• 최대 중량 용량을 초과하지 마십시오. 308파운드(140kg). This float tube is designed for one person.
• Do not use in rough waters, strong currents, or during adverse weather conditions.
• Ensure the float tube is fully inflated to the recommended pressure of 0.08바(1.16PSI) before use. Under-inflation can compromise stability.
• Inspect the float tube for any damage or leaks before each use.
• Be aware of your surroundings and local regulations for watercraft.
• Never leave children unattended near the water or on the float tube.

3. 패키지 내용

아래 나열된 모든 품목이 패키지에 들어 있는지 확인하세요.

• 1 x Inflatable Fishing Float Tube
• 2 x 54-inch Boat Oars
• 1 x High-Output Hand Pump
• 2 x Detachable Fishing Rod Holders
• 1 x Mesh Fish Ruler (integrated into stripping apron)
• 1 x Heavy-Duty Backpack with Hip Belt
• 2 x Insulated Storage Bags
• 1 x Removable Skeg
• 1 x 수리 패치 키트

Image 2: Visual representation of the included accessories: oars, pump, repair patch, heavy-duty backpack, detachable fishing rod holders, and two storage bags.

4. 설정 지침

Follow these steps to prepare your float tube for use:

1. Unfold the Float Tube: Lay the float tube on a clean, flat surface, free from sharp objects.
2. Inflate the Main Chambers: Locate the high-pressure spring-loaded valves. Use the included high-output hand pump to inflate the main air chambers until the tube is firm to the touch, reaching approximately 0.08 bar (1.16 PSI). Do not overinflate.
3. Inflate the Floor: Inflate the Fiber-Tech interior floor chamber until it is firm, providing exceptional support.
4. Attach the Skeg: Slide the removable skeg into its designated slot on the underside of the float tube. Ensure it is securely locked in place for improved directional stability.
5. Install Oars: Insert the 54-inch boat oars into the dual pin-type oar locks located on each side of the float tube. Secure them with the clips.
6. Attach Rod Holders: Secure the two detachable fishing rod holders into their mounts on both sides of the float tube.
7. Position Storage Bags: Attach the insulated storage bags to the side D-rings. These bags can slide back and forth to adjust their position.
8. 누출 확인: After inflation, spray soapy water on all seams and valves. If bubbles appear, there is a leak. Refer to the Troubleshooting section for repair.

이미지 3: 클로즈업 view highlighting key features such as the removable skeg, dual removable rod holders, inflatable seat with backrest, insulated storage bags, durable rub strake, and safety grab line.

5. 사용 설명서

Once assembled, follow these guidelines for operating your float tube:

1. 진수: Carefully enter the float tube in shallow water. Ensure your weight is evenly distributed.
2. 패들링: Use the provided oars for propulsion and steering. The skeg will assist in maintaining a straight course.
3. 어업: Utilize the detachable rod holders to secure your fishing rods while you are actively fishing or moving. The mesh stripping apron provides a convenient surface for handling fish and includes a ruler for measurement.
4. 저장: The insulated storage bags are ideal for keeping bait, drinks, or other small items cool and accessible.
5. 안전선: The all-around safety grab line can be used for re-entry or for securing the float tube.

Image 4: A person comfortably fishing from the INTEX Big Catch Pro float tube on a calm body of water, demonstrating typical use.

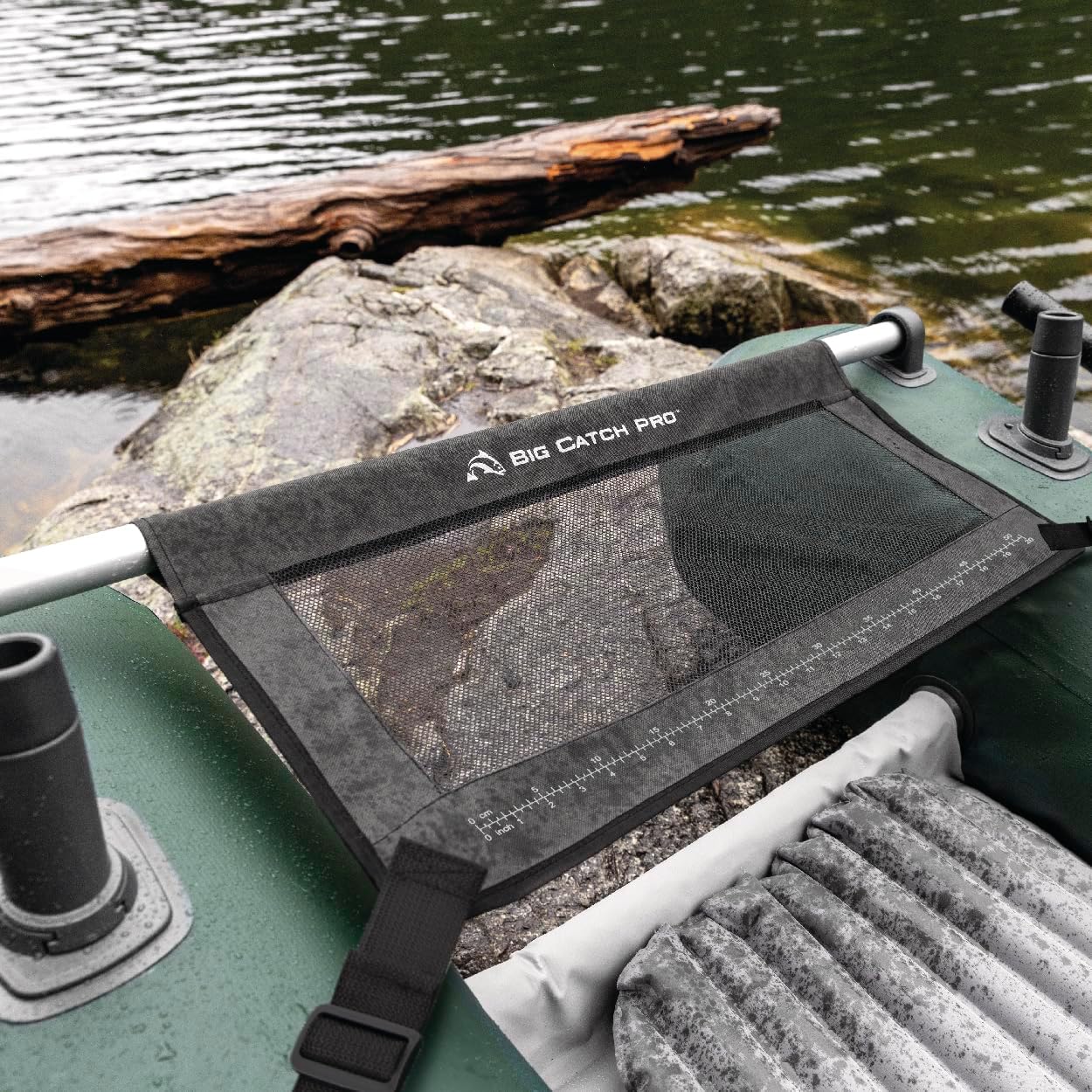

Image 5: A close-up of the mesh stripping apron, which includes an integrated fish ruler for convenient measurement of catches.

6. 유지관리

Proper maintenance extends the life of your float tube:

• 청소: After each use, rinse the float tube with fresh water and mild soap. Avoid harsh chemicals. Allow it to air dry completely before deflating and storing.
• 누수 수리: If a small puncture occurs, use the included repair patch kit. Clean the area around the puncture, apply the patch according to the kit instructions, and allow sufficient drying time before re-inflating.
• 밸브 관리: Keep valves clean and free of debris to ensure a tight seal.

7. 보관

적절한 보관을 위해 다음 단계를 따르세요.

1. 수축: Open all spring-loaded valves to fully deflate the float tube.
2. 건조: Ensure the float tube is completely dry to prevent mold and mildew.
3. 접는: Fold the float tube neatly to fit into the heavy-duty backpack.
4. 수송: Use the rugged backpack with its hip belt for comfortable and safe transport to and from your fishing location.
5. 저장 위치: Store the float tube in a cool, dry place, away from direct sunlight and extreme temperatures.

Image 6: A person demonstrating the portability of the float tube by carrying it with the detachable padded backpack straps, suitable for transport to water access points.

8. 문제 해결

Address common issues with your float tube:

• 느린 디플레이션: Check all valves for proper closure and ensure no debris is preventing a seal. Inspect the entire surface for small punctures using soapy water. Use the repair patch kit for any identified leaks.
• 불안정: Ensure the float tube is fully inflated to the recommended pressure. Verify that the skeg is correctly installed and locked. Uneven weight distribution can also cause instability.
• Oar or Rod Holder Issues: Ensure all components are securely fastened according to the setup instructions. Periodically check connections for wear.

9. 사양

Image 7: An infographic summarizing key specifications including dimensions (5'5" x 3'11" x 1'3"), capacity (1 person, 308 lbs), and material (Puncture-resistant PVC).

10. 보증 및 지원

The INTEX Big Catch Pro Inflatable Fishing Float Tube comes with a 1년 제한 보증. This warranty covers manufacturing defects under normal use. For warranty claims, technical support, or replacement parts, please contact Intex customer service directly. Refer to the product packaging or the official Intex web최신 연락처 정보는 사이트에서 확인하세요.
