DAIKIN Wireless Remote Controller BRC082A42W User Manual

1. 서론

This manual provides detailed instructions for the proper installation, operation, and maintenance of your DAIKIN Wireless Remote Controller, model BRC082A42W. This device is designed to offer convenient wireless control over your Daikin ceiling cassette air handler, enhancing your comfort and energy management.

2. 제품 오버view

2.1 주요 특징

• Convenient Wireless Control: Manage your ceiling cassette air handler from anywhere in the room.
• Wall-Mounted Holder: Includes a holder for secure and accessible storage.
• 다양한 기능: ON/OFF, mode selection, temperature setting, fan speed control, timer, and more.
• 호환성: Designed for Daikin ceiling cassette units.
• 에너지 관리: Includes scheduling options like auto on/off timer for better energy control.

2.2개의 구성요소

The DAIKIN Wireless Remote Controller BRC082A42W package includes:

• Wireless Remote Controller Unit
• Wall-Mounted Holder
• Signal Receiver (integrates with the decorative grille)
• Batteries (may be included or sold separately)

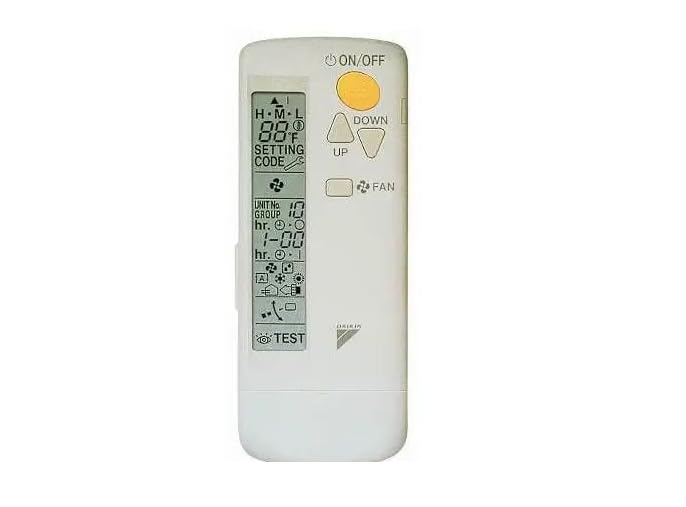

Figure 1: DAIKIN Wireless Remote Controller BRC082A42W. This image shows the compact, white remote control unit.

3. 설정 및 설치

3.1 배터리 설치

1. 리모컨 뒷면의 배터리 덮개를 엽니다.
2. 지정된 배터리를 삽입할 때 극성(+/-)을 정확히 확인하십시오.
3. 배터리 덮개를 단단히 닫으세요.

3.2 Wall-Mounted Holder Installation

1. Choose a convenient location for the holder, ensuring the remote signal can reach the air handler's receiver.
2. Use the provided screws to securely attach the holder to the wall.
3. Place the remote controller into the holder.

3.3 Signal Receiver Integration

The signal receiver for the wireless remote controller integrates seamlessly with the decorative grille of your Daikin ceiling cassette air handler. Refer to your air handler's installation manual for specific instructions on how to install or confirm the presence and connection of the signal receiver.

3.4 Compatibility with Wired Controllers

If a wired controller is also in use with the same Daikin ceiling cassette unit, the wireless remote controller BRC082A42W must be configured as a 서브 컨트롤러. Consult your Daikin air handler's technical documentation or a qualified technician for proper configuration to avoid operational conflicts.

4. 사용 설명서

The remote controller provides various functions to manage your Daikin air handler. Point the remote towards the air handler's signal receiver when operating.

4.1 기본 작업

• 켜기/끄기 버튼: Press to turn the air handler ON or OFF.
• 모드 선택: Use the 'MODE' button to cycle through operating modes (e.g., Cool, Heat, Fan, Dry, Auto).
• 온도 설정: Use the 'TEMP UP' and 'TEMP DOWN' buttons to adjust the desired room temperature.
• 팬 속도 제어: Press the 'FAN' button to select desired fan speed (e.g., Low, Medium, High, Auto).

4.2 타이머 기능

The timer function allows you to program the air handler to turn ON or OFF automatically at specified times, contributing to energy efficiency.

1. Setting ON Timer: Press the 'TIMER ON' button, then use temperature/time adjustment buttons to set the desired ON time. Confirm with 'SET'.
2. Setting OFF Timer: Press the 'TIMER OFF' button, then use temperature/time adjustment buttons to set the desired OFF time. Confirm with 'SET'.
3. 타이머 취소: Press the 'CANCEL' button or the 'TIMER' button again to cancel an active timer.

4.3 고급 기능

Refer to the display on your remote controller for additional functions such as swing control, powerful mode, or economy mode, if available. Specific button labels and functions may vary slightly.

5. 유지관리

5.1 리모컨 청소

To clean the remote controller, gently wipe its surface with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or chemical sprays, as these can damage the unit.

5.2 배터리 교체

When the display dims or the remote controller becomes unresponsive, it is time to replace the batteries. Always replace all batteries at the same time with new ones of the same type. Dispose of used batteries according to local regulations.

6. 문제 해결

If you encounter issues with your DAIKIN Wireless Remote Controller, refer to the following common problems and solutions:

• 리모컨이 응답하지 않음:
  • Check if batteries are correctly inserted and have sufficient charge. Replace if necessary.
  • Ensure there are no obstructions between the remote and the air handler's signal receiver.
  • Confirm the remote is pointed directly at the receiver.
• Incorrect temperature display:
  • Verify the temperature unit setting (Celsius/Fahrenheit) if applicable.
• Air handler not responding to commands:
  • Ensure the air handler itself is powered on.
  • If a wired controller is also present, confirm the wireless remote is set as a Sub Controller.

For persistent issues, contact Daikin customer support or a qualified service technician.

7. 사양

8. 보증 및 지원

This DAIKIN Wireless Remote Controller BRC082A42W is manufactured by Daikin. For specific warranty information, please refer to the warranty card included with your product or visit the official Daikin web사이트. 보증 조건은 일반적으로 구매일로부터 특정 기간 동안 제조상의 결함에 대한 보증을 제공합니다.

For technical support, service, or to inquire about replacement parts, please contact Daikin customer service directly. Contact information can usually be found on the manufacturer's web사이트 또는 제품 포장.
