1. 서론
The JETBeam E26 is a versatile 3-in-1 flat flashlight designed for everyday carry (EDC), emergency situations, work, and outdoor activities. It integrates a powerful 2000-lumen white LED, a 365nm UV light, and a green laser beam into a compact, durable, and rechargeable unit. This manual provides essential information for the safe and effective use of your E26 flashlight.

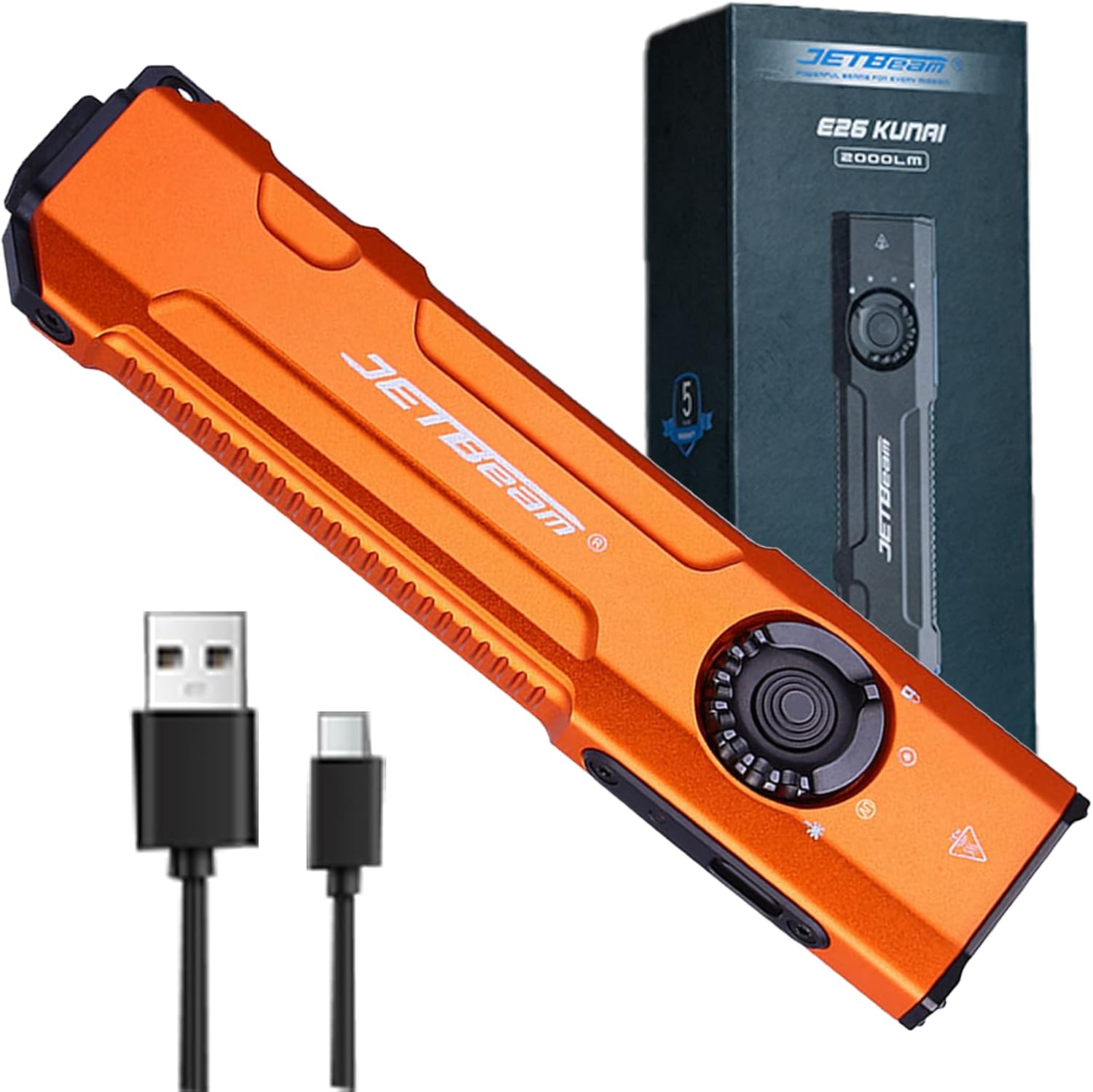

Image 1.1: The JETBeam E26 3-in-1 Flat Flashlight, showcasin컴팩트한 디자인과 포함된 액세서리가 장점입니다.
2. 안전 정보
본 제품을 사용하기 전에 모든 안전 경고를 읽고 이해하십시오. 이 지침을 따르지 않을 경우 부상이나 제품 손상이 발생할 수 있습니다.
2.1 일반 안전
- 고출력 경고: The E26 flashlight can produce up to 2000 lumens of white light. Avoid directing the beam directly into eyes, as this can cause temporary vision impairment or permanent eye damage.
- 열 생성: The flashlight may become hot during prolonged use at high brightness levels. Exercise caution to prevent burns.
- Accidental Activation: Always engage the lockout function when carrying the flashlight in a pocket or bag to prevent accidental activation and potential hazards, such as overheating or damage to clothing.
2.2 UV Light Safety
- 눈 보호: Do not look directly into the UV light. Prolonged exposure to UV light can be harmful to eyes.
- 피부 노출: Avoid prolonged direct exposure of skin to UV light.
- 용도: The UV light is intended for detection purposes (e.g., pet stains, fluorescent agents) and not for general illumination.
2.3 Green Beam Safety
- 레이저 방사선: This product emits a Class 3R laser. Avoid direct eye exposure.
- 어린이들: Keep out of reach of children. Supervise children if they are using the laser for pet play.
- Aircraft/Vehicles: Never point the laser at aircraft, vehicles, or reflective surfaces.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- JETBeam E26 Flashlight (Battery Included) x 1
- 사용 설명서 x 1
- USB 충전 케이블 x 1
- 끈 x 1
4. 제품 오버view
Familiarize yourself with the components and controls of your JETBeam E26 flashlight.
Image 4.1: Labeled diagram of the JETBeam E26 flashlight's key features.
- 백색광: Primary illumination source.
- 자외선: Ultraviolet light for detection.
- Green Beam: Laser pointer.
- 잠그다: Position on the revolving switch to prevent accidental activation.
- 회전 스위치: Selects between White Light, UV Light, Green Beam, and Lock modes.
- 사이드 스위치: Controls brightness levels and activates selected light source.
- C 형 포트 : 내부 배터리를 충전합니다.
- 지시자: 충전 상태와 배터리 수준을 표시합니다.
- 전술 스위치: Rear button for momentary turbo output and strobe function.
5. 설정
5.1 배터리 충전
- 손전등 측면에서 USB-C 충전 포트를 찾으세요.
- Connect the provided USB-C charging cable to the port and a compatible USB power source.
- 전원 표시등은 충전 상태를 보여줍니다.
- Green: 35%-100% battery
- 주황색: 배터리 잔량 15~35%
- Red: Less than 15% battery (charge immediately)
- Charging is complete when the indicator light remains green.
Image 5.1: USB-C charging port and battery indicator on the JETBeam E26.
5.2 초기 사용
Before first use, ensure the revolving switch is moved from the 'Lock' position to the desired light source (White Light, UV, or Green Beam).
6. 사용 설명서
6.1 Mode Selection (Revolving Switch)
The revolving switch on the side of the flashlight allows you to select the desired light source:
- 스위치를 로 돌립니다. 잠그다 symbol to prevent accidental activation.
- Rotate to the 백색광 symbol for standard illumination.
- Rotate to the 자외선 symbol for ultraviolet light.
- Rotate to the 그린빔 symbol for the laser pointer.

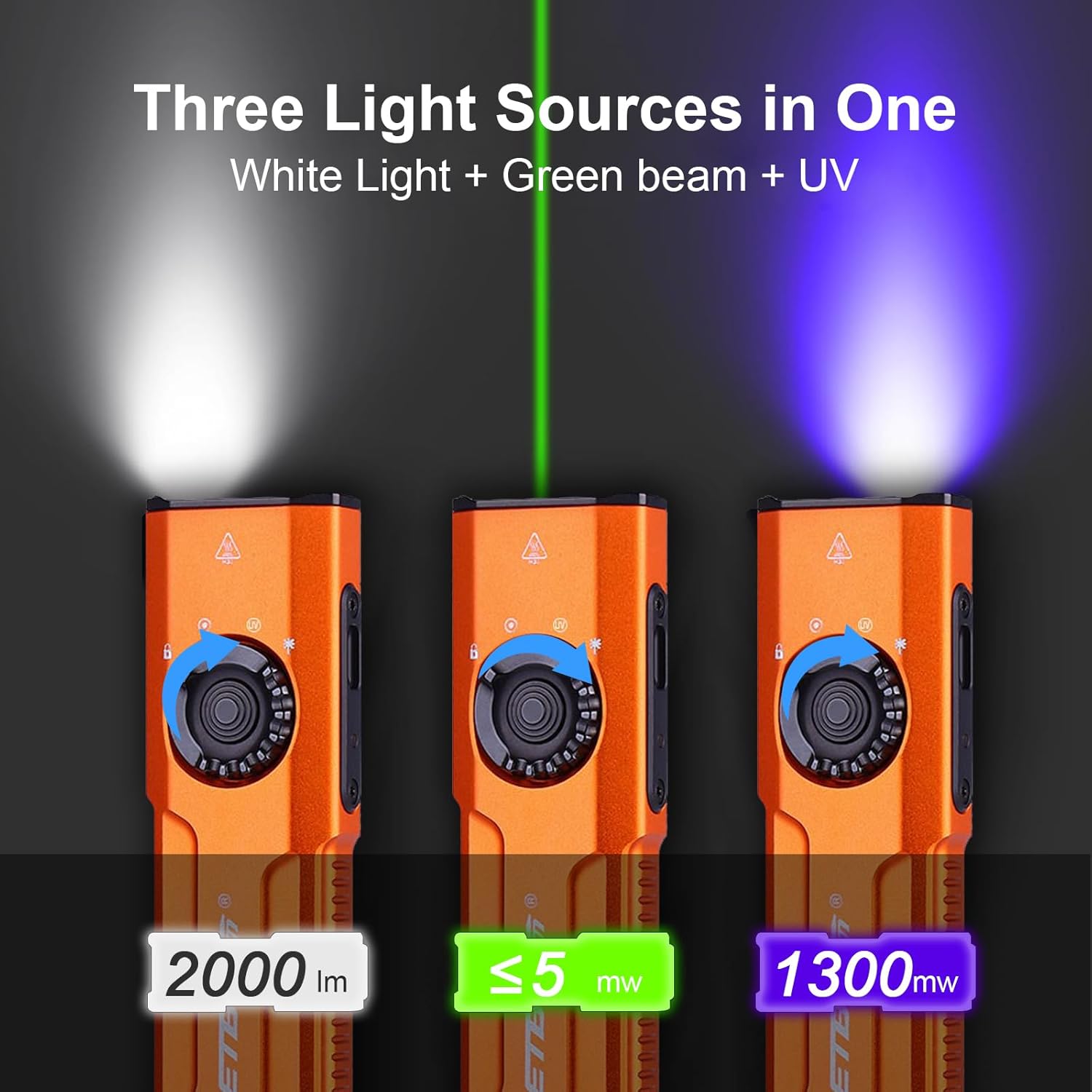

Image 6.1: The three distinct light sources of the E26 flashlight.
6.2 White Light Operation (Side Switch)
Once the revolving switch is set to White Light:
- 켜기/끄기: Single press the side switch to turn the white light on or off.
- 밝기 조정: When the white light is on, press and hold the side switch to cycle through the four brightness levels: Low (15 lm), Medium (300 lm), High (700 lm), and Turbo (2000 lm). Release the switch at the desired brightness. The flashlight has a memory function and will recall the last used brightness level.

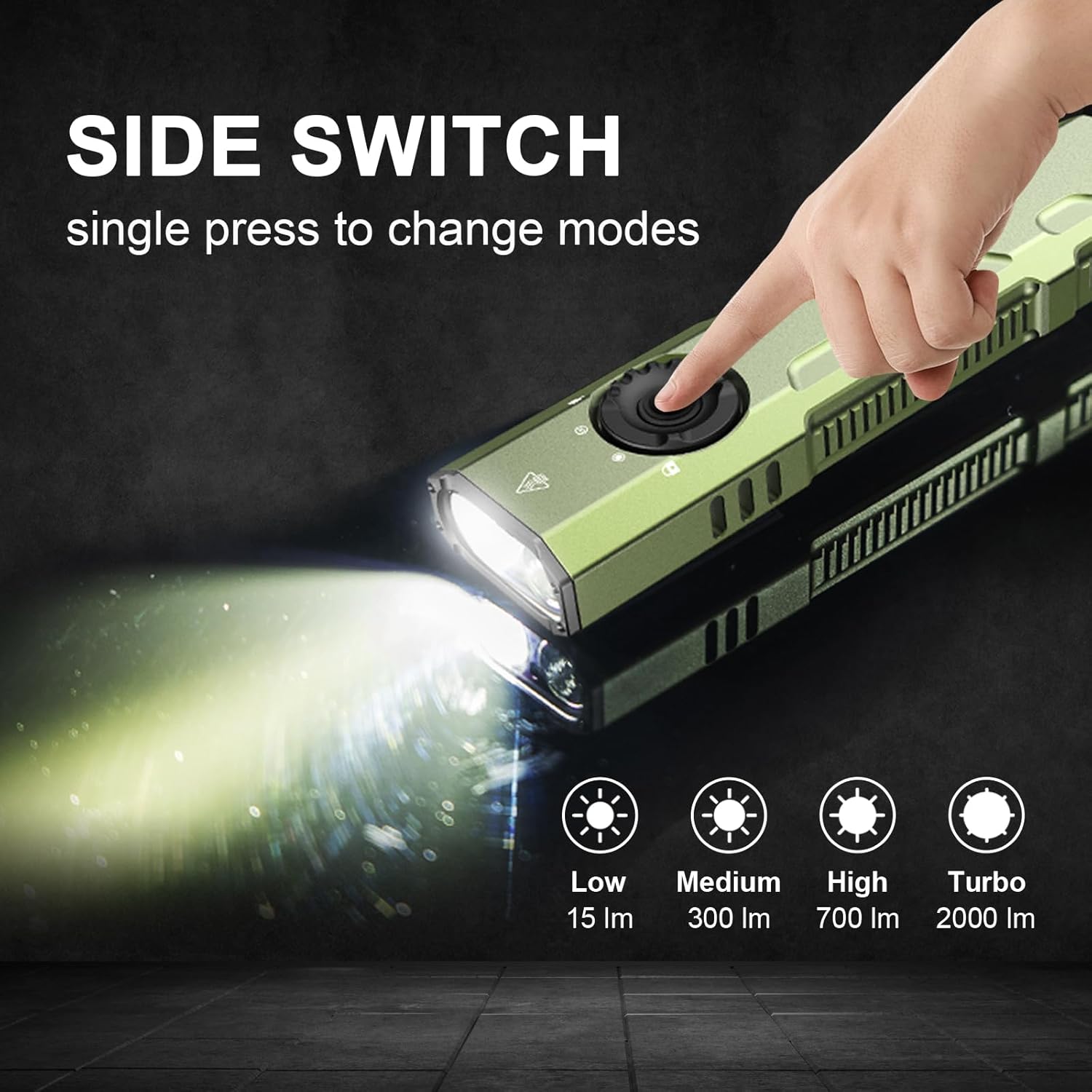

Image 6.2: Using the side switch to adjust white light brightness.
6.3 UV Light & Green Beam Operation (Side Switch)
Once the revolving switch is set to UV Light or Green Beam:
- 켜기/끄기: Single press the side switch to activate or deactivate the selected UV light or Green Beam.
6.4 Tactical Tail Switch
The tactical tail switch provides quick access to high output and strobe functions, regardless of the revolving switch position:
- 순간 터보: A heavy press and hold of the tactical tail switch will activate the white light at its maximum (Turbo) output. Release to turn off.
- 스트로브 : A slight press followed by a double press of the tactical tail switch will activate the strobe function. Press again to turn off.
Image 6.3: The tactical tail switch for instant high output and strobe.
6.5 Clip Usage
The E26 features a sturdy two-way clip for versatile carrying options. It can be attached to a pocket, hat brim, backpack strap, or other gear, allowing for hands-free operation.

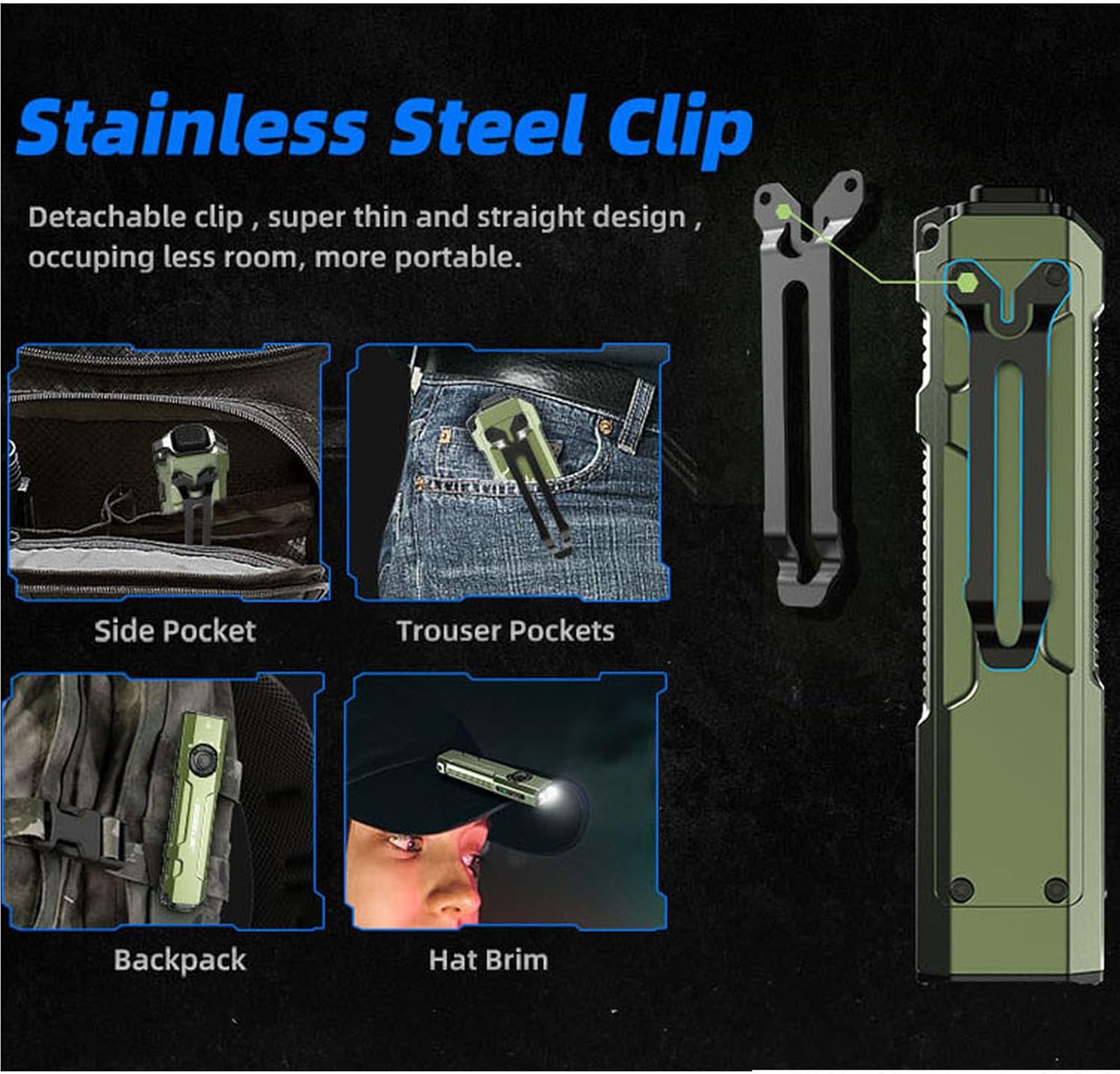

Image 6.4: Versatile carrying options using the stainless steel clip.
7. 유지관리
- 청소: 손전등 본체를 부드러운 천으로 닦으세요.amp 천. 연마성 세척제나 용매를 사용하지 마십시오.
- 충전 포트: USB-C 충전 포트에 먼지와 이물질이 들어가지 않도록 하십시오.
- 저장: Store the flashlight in a cool, dry place away from direct sunlight. For long-term storage, ensure the battery is partially charged (around 50%) and engage the lockout function.
8. 문제 해결
8.1 손전등이 켜지지 않음
- Check if the revolving switch is in the 'Lock' position. Rotate it to the desired light source.
- 배터리가 충전되어 있는지 확인하십시오. USB-C 케이블을 사용하여 손전등을 전원에 연결하십시오.
8.2 Light Output is Low or Flickering
- Charge the battery fully. Low battery can affect performance.
- 렌즈가 깨끗하고 방해물이 없는지 확인하세요.
8.3 Accidental Activation in Pocket
- Always engage the 'Lock' position on the revolving switch when carrying the flashlight to prevent unintended operation.
9. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 | E26 |
| 흰색 밝기 | 2000 루멘(최대) |
| UV Light Wavelength/Power | 365nm / 1300mW |
| 그린빔 | 포함됨 |
| 전원 | Built-in Rechargeable Lithium Ion Battery |
| 충전 포트 | USB-C |
| 재료 | 양극산화 알루미늄 |
| 방수 레벨 | IP68 (방수) |
| 낙하 저항 | 1.5 미터 |
| 제품 치수 | 0.6인치 깊이 x 1.25인치 너비 x 5인치 높이 |
| 품목 무게 | 4 온스(0.25 파운드) |
| 특별 기능 | Portable, Adjustable Light Modes, Rechargeable, Memory Function, Ceramic Glass Breaker |
Image 9.1: The E26 is designed to be waterproof and drop-resistant.
10. 공식 제품 영상
비디오 10.1: 오버view of the Jetbeam E26 UV Kunai 3-in-1 Flat EDC Flashlight, demonstrating its features and compact design.
11. 보증 정보
The JETBeam E26 flashlight comes with a Lifetime Warranty. For specific terms and conditions, please refer to the warranty documentation included with your product or contact JETBeam customer support.
12. 지원
For further assistance, technical support, or inquiries regarding your JETBeam E26 flashlight, please refer to the contact information provided in your product packaging or visit the official JETBeam web대지.
