1. 제품 오버view
The Gisam BS-2 Cordless Impact Wrench is a powerful and versatile tool designed for various fastening and loosening tasks, including tire changes, construction projects, and equipment repairs. It features a brushless motor, variable speed control, and a high torque output for efficient operation.
그림 1: Gisam Cordless Impact Wrench with key components labeled. This image shows the impact socket, square chuck, brushless motor, forward & reverse switch, LED light, smart control panel, battery release button, and soft rubberized handle.
2. 설정
2.1. 배터리 설치 및 충전
The impact wrench operates on 21V Lithium-ion batteries. Ensure batteries are fully charged before first use.
- 충전 중: Connect the charger to a power outlet and insert the battery. The indicator light on the charger will show the charging status. A full charge typically takes several hours.
- 설치: Align the battery with the base of the impact wrench and slide it in until it clicks securely into place.
- 제거: Press the battery release button (see Figure 1) and slide the battery out.
그림 2: Illustration of the 21V Lithium-ion battery and charger, highlighting overcurrent, overpressure, and overheating protection, along with fast charging capability.
2.2. 소켓 부착
The impact wrench uses a 1/2-inch square chuck. To attach a socket:
- Select the appropriate impact socket for your task (e.g., 17mm, 19mm, 21mm, 22mm, 24mm).
- Push the socket firmly onto the square chuck until it locks into place.
- To remove, pull the socket off the chuck.
3. 운영
3.1. 정방향 및 역방향 스위치
The forward/reverse switch controls the direction of rotation and also acts as a lock when centered.
- Forward (Tighten): Push the switch to the right for clockwise rotation.
- Reverse (Loosen): Push the switch to the left for counter-clockwise rotation.
- 잠그다: Center the switch to prevent accidental activation. The tool will not operate when the switch is in the center position.

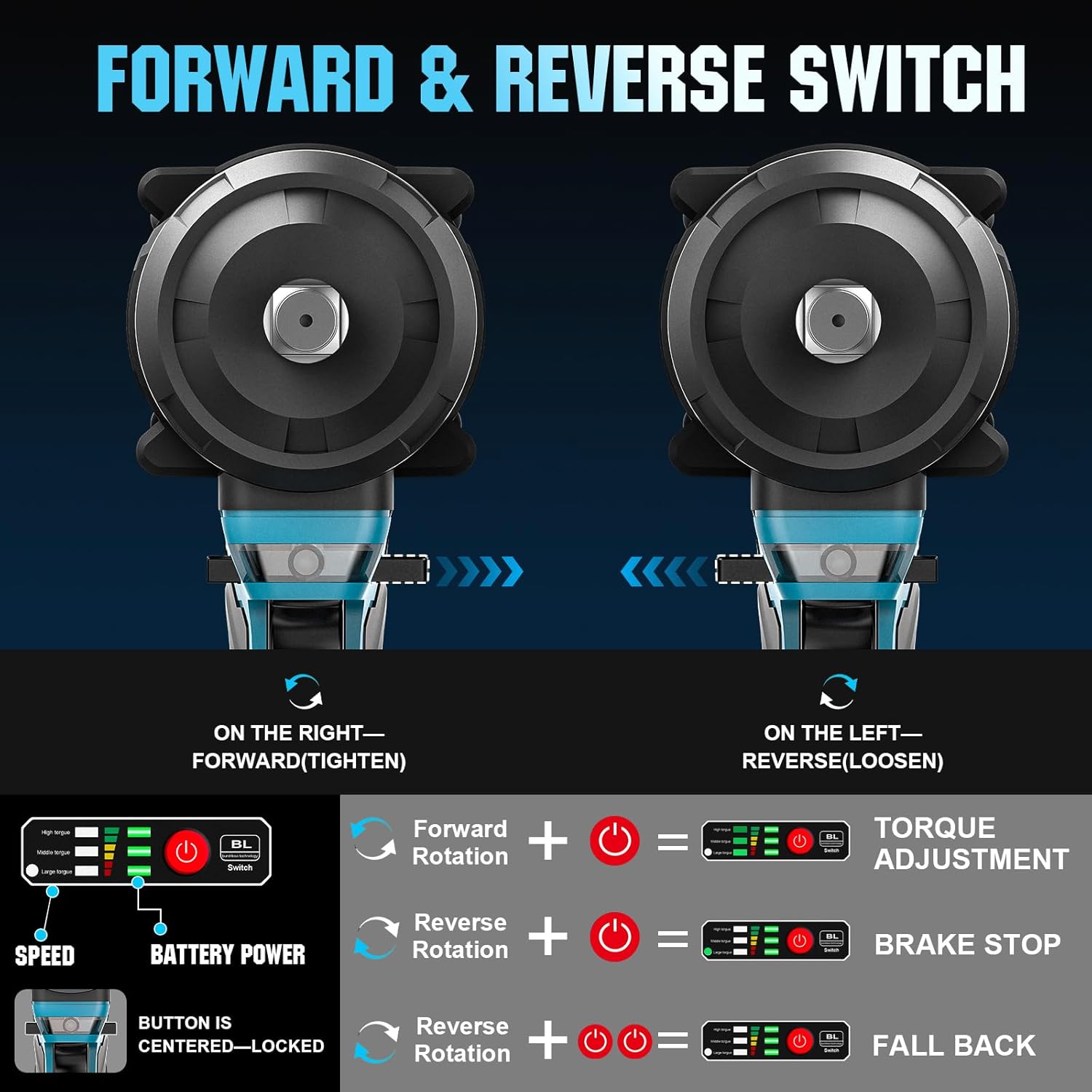

그림 3: 상세한 view of the forward and reverse switch mechanism. Pushing right engages forward rotation (tighten), pushing left engages reverse rotation (loosen), and centering the button locks the tool.
3.2. Variable Speed Control and Torque Adjustment
The tool features stepless speed control and three torque settings to match various applications.
- 무단 변속 제어: The speed of the tool is controlled by the pressure applied to the trigger. Pressing the trigger harder increases the RPM.
- 토크 설정: Three torque options are available: 700 Nm, 950 Nm, and 1200 Nm. These settings can be selected via a control at the bottom of the wrench (refer to Figure 3 for visual indication of torque adjustment on the smart control panel).
- 낮음(L): 0-1520 RPM, suitable for home improvement tasks.
- 중간(M): 0-1990 RPM, ideal for tire disassembly.
- 높음(H): 0-2370 RPM, for engineering industrial use requiring maximum power.
그림 4: Demonstrates the stepless speed control and the three operational modes (L, M, H) with their respective RPM ranges and suggested applications.
3.3. LED 라이트
트리거를 누르면 통합 LED 조명이 자동으로 켜지므로 어두운 작업 공간에서도 가시성을 확보할 수 있습니다.
그림 5: The bright LED light automatically activates when the tool is in use, enhancing safety and visibility in dark environments.
4. 유지관리
4.1. 일반 청소
정기적인 청소는 도구의 성능을 유지하고 수명을 연장하는 데 도움이 됩니다.
- 사용 후에는 깨끗한 천으로 도구를 닦아주세요.amp 옷감. 강한 화학 물질이나 연마성 세제를 사용하지 마십시오.
- 과열을 방지하기 위해 환기구에 먼지와 이물질이 쌓이지 않도록 하십시오.
- Inspect the square chuck for wear and tear.
4.2. 배터리 관리 및 보관
배터리를 올바르게 관리하면 최적의 성능과 수명을 보장할 수 있습니다.
- 직사광선이나 극한의 온도를 피하고 서늘하고 건조한 곳에 배터리를 보관하십시오.
- 완전히 방전된 배터리를 장기간 보관하지 마십시오. 사용하지 않을 때는 주기적으로 충전하십시오.
- Avoid exposing batteries to moisture or impact.
5. 문제 해결
This section addresses common issues you might encounter with your Gisam Cordless Impact Wrench.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 도구가 시작되지 않음 | 배터리가 올바르게 설치되지 않았거나 방전되었습니다. Forward/reverse switch is in the locked (center) position. | 배터리가 완전히 충전되었고 제대로 고정되었는지 확인하세요. Move the forward/reverse switch to the left or right operating position. |
| 출력 또는 토크 감소 | 배터리 충전량이 부족합니다. Incorrect torque setting selected. | 배터리를 충전하세요. Select a higher torque setting appropriate for the task. |
| 도구 과열 | 장시간의 과다 사용. 차단된 환기구. | 도구를 식히십시오. Clear any debris from the ventilation slots. |
6. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 기삼 |
| 모델 번호 | BS-2 (BS001269) |
| 모터 유형 | 무브러시 |
| 최대 토크 | 1200 뉴턴미터(Nm) |
| 무부하 속도 | 최대 2370RPM |
| 배터리 유형 | 21V Lithium-ion (2 included, 4000mAh each) |
| 호환 배터리 | Makita BL1850B, BL1840B, BL1830B, BL1430B, BL1820B, BL1850, BL1840, BL1440, BL1415, BL1815N |
| 척 사이즈 | 1/2인치 정사각형 |
| 재료 | 크롬 바나듐 스틸 |
| 무게 | 2 킬로그램 |
| 포함된 구성 요소 | 1 Impact Wrench, 2 Batteries, 1 Charger, 5 Sockets (17/19/21/22/24 mm), 1 Extension Rod, 1 Case |
| 치수(패키지) | 42.4 x 30.5 x 12.5cm |
그림 6: 내부 view illustrating the powerful brushless motor, which offers 50% less noise, 100% fewer sparks, 60% longer life, 70% more power, and 200% higher efficiency compared to brushed motors.
7. 보증 및 지원
7.1. 보증 정보
Gisam provides a two-year after-sales warranty for this product. This warranty covers manufacturing defects and ensures that you receive appropriate solutions in case of product issues.
7.2. 고객 지원
For any questions or support needs, please contact Gisam customer service. You can typically reach support through the "Contact Seller" option on your order page. Gisam aims to respond to inquiries within 12 hours on business days.
