중요한 안전 정보
Please read all instructions carefully before using this treadmill. Retain this manual for future reference.
- 중량 용량: Do not exceed the maximum user weight of 300 lbs (approximately 136 kg).
- 놓기: Place the treadmill on a flat, stable surface. Ensure adequate clear space around the treadmill for safe operation.
- 전원: Use only with a grounded electrical outlet. Do not use extension cords.
- 어린이와 애완동물: 작동 중에는 어린이와 애완동물을 런닝머신에 가까이 두지 마십시오.
- 비상 정지 : 비상 정지 기능과 안전 키의 사용법을 숙지하십시오. 사용 중에는 항상 안전 키 클립을 옷에 고정하십시오.
- App Activation: This treadmill requires activation via the PitPat app before first use. Refer to the 'Setup' section for details.
- 유지: 안전하고 최적의 성능을 보장하기 위해 본 설명서에 설명된 대로 정기적인 유지 보수를 수행하십시오.
패키지 내용
패키지에 모든 구성 요소가 들어 있는지 확인하세요.
- DeerRun 3-in-1 Under Desk Treadmill
- 원격 제어
- 전원 코드
- 도구 키트
- 안전 키
- 사용 설명서 (본 문서)
제품 끝view
The DeerRun 3-in-1 Under Desk Treadmill is designed for versatile fitness routines, offering walking, running, and under-desk working modes. Its compact, foldable design makes it suitable for home and office environments with limited space.
주요 특징:

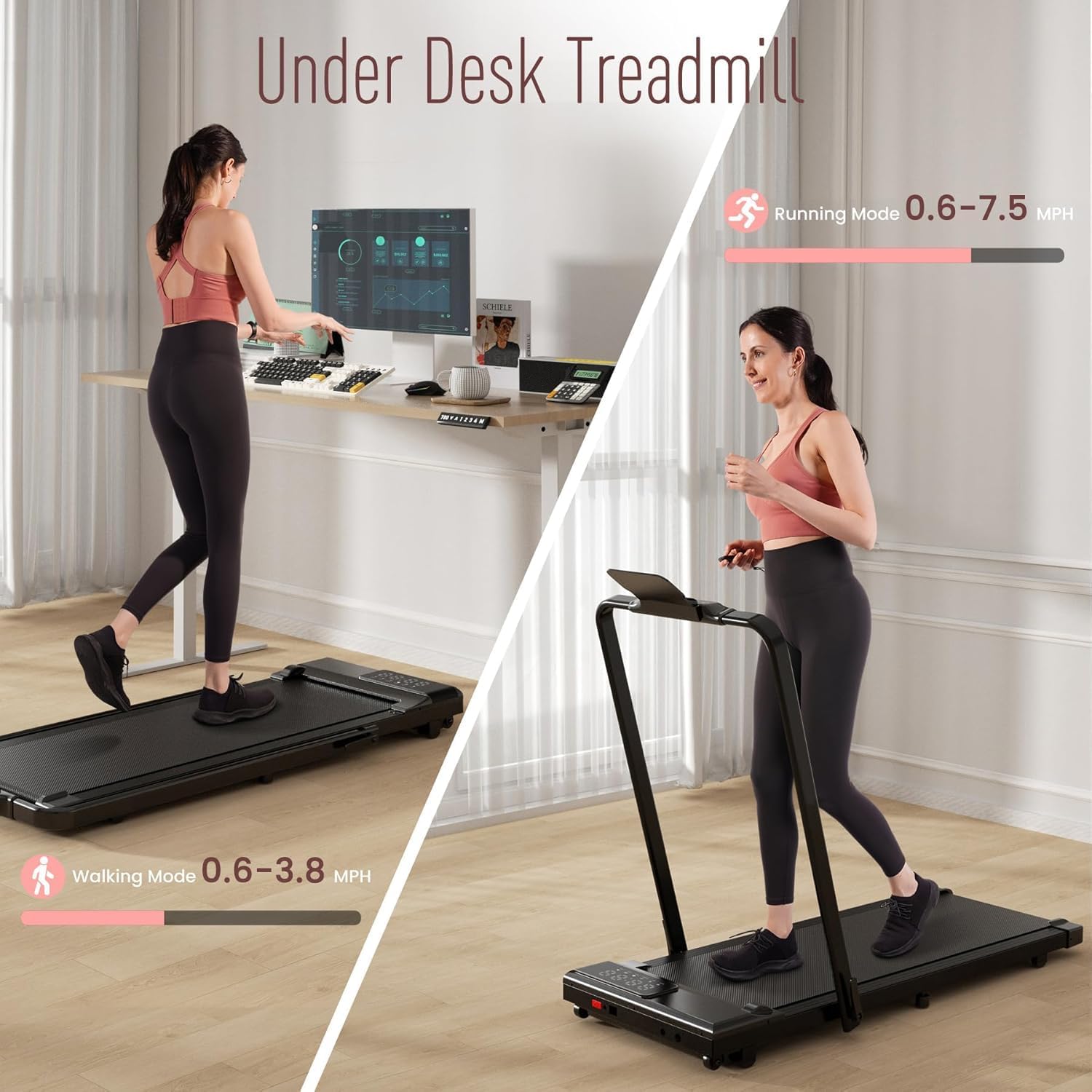

- 3-in-1 기능: Easily switch between under-desk walking (0.6-3.8 mph) and running (0.6-7.5 mph) by adjusting the handrail.
- 강력하고 조용한 모터: Equipped with a 3.0 HP motor, operating at less than 60 dB, suitable for quiet environments.
- 스마트 연결성: Features an LED display and smart app integration (PitPat app) for real-time tracking, training, and social interaction.

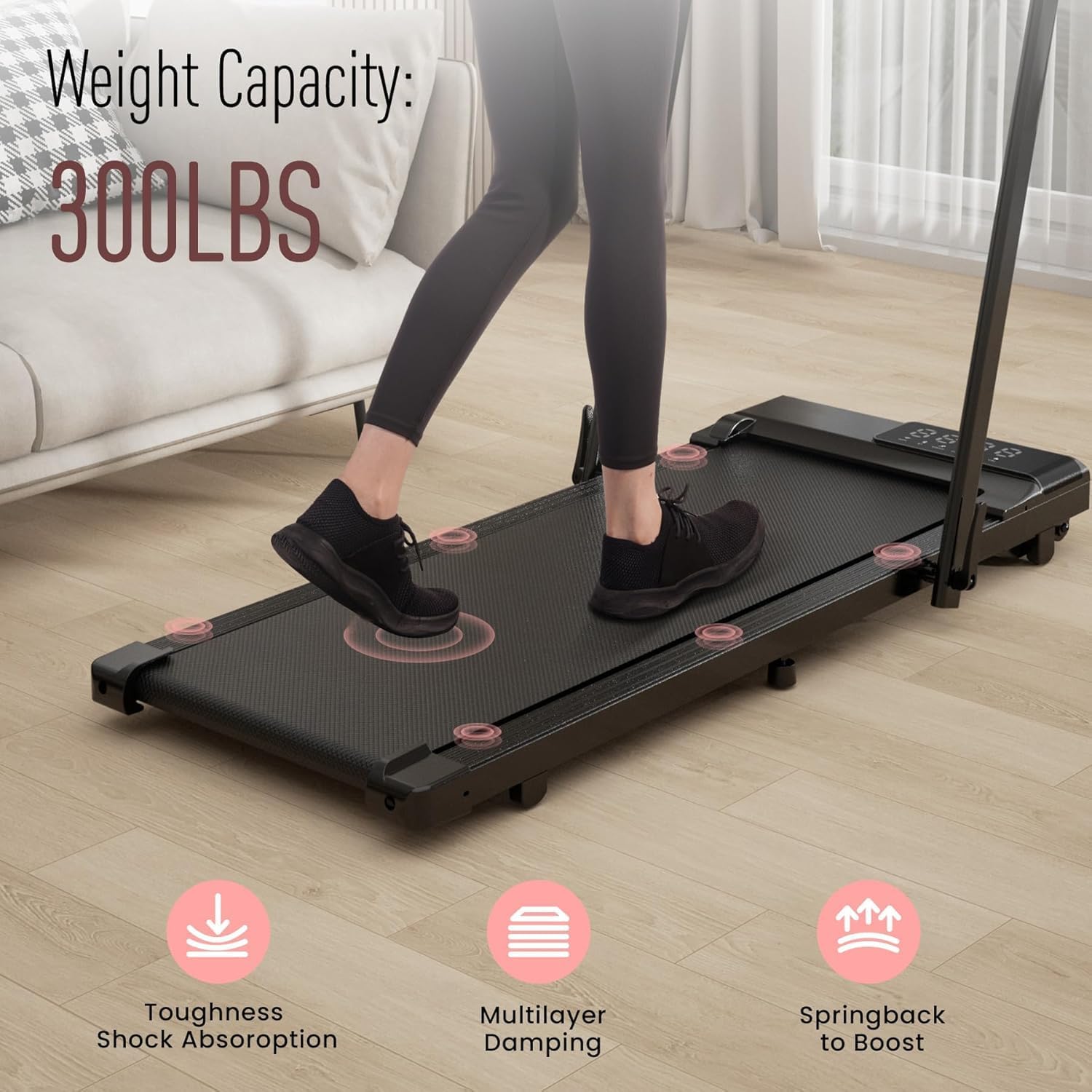

- Comfortable Running Surface: A 43-inch x 16-inch widened belt with 5 layers of anti-slip shock absorption protects joints and muscles.
- 공간 절약형 디자인: Foldable design with transport wheels for easy movement and storage under furniture.
- 높은 중량 용량: 최대 300파운드(약 147kg)의 사용자를 지원합니다.
설정
The DeerRun 3-in-1 Under Desk Treadmill requires no assembly and can be used directly out of the box after initial setup.
- 언박싱: Carefully remove the treadmill from its packaging. Inspect for any damage during transit.
- 놓기: Place the treadmill on a firm, level surface. Ensure there is at least 2 feet of clear space behind the treadmill and 1 foot on each side.
- 전원 연결: 전원 코드를 접지된 콘센트에 꽂으세요.
- Handrail Adjustment (Optional): If you intend to use the running mode, raise the handrail to its upright position until it locks securely. For under-desk walking, the handrail can remain folded down.
- App Download and Activation:
- 다운로드 피트팻 app from your device's app store (available on App Store and Google Play).
- Follow the in-app instructions to connect your treadmill via Bluetooth and complete the activation process. The treadmill will not function without app activation.
- If you encounter issues with app activation, refer to the 'Troubleshooting' section or contact customer support.
작동 지침
1. 전원 켜기/끄기
- 전원을 켜려면: Ensure the treadmill is plugged in. Press the power button on the treadmill or the remote control. The LED display will light up.
- 전원을 끄려면: Press and hold the stop button on the remote control or the treadmill's console until the display turns off.
2. 안전 키
Always attach the safety key clip to your clothing before starting a workout. If the safety key is detached, the treadmill will stop immediately for safety.
3. Selecting Modes and Speed
The treadmill automatically adjusts its maximum speed based on the handrail position:
- Under-Desk Walking Mode (Handrail Folded): Speed range 0.6 - 3.8 mph. Ideal for walking while working or light exercise.
- Running Mode (Handrail Raised): Speed range 0.6 - 7.5 mph. Suitable for brisk walking, jogging, and running.
4. 리모컨 사용
리모컨을 사용하면 런닝머신을 시작, 정지 및 속도 조절할 수 있습니다.
- 시작 / 일시 중지 : '시작/일시 정지' 버튼을 눌러 운동을 시작하거나 일시적으로 멈추세요.
- 속도 조정 : '+' 버튼을 사용하여 속도를 높이고 '-' 버튼을 사용하여 속도를 낮추세요.
- 중지: Press the 'Stop' button to end your workout.
- 빠른 속도 단축 방법: Use the preset speed buttons (e.g., 3 mph, 6 mph) for quick adjustments.
5. Using the PitPat Smart App
The PitPat app enhances your workout experience by providing advanced features:
- 실시간 추적: Monitor your exercise time, speed, distance, and calories burned.
- AI-Guided Training: Access various training programs and events.
- 소셜 기능: Connect with other users and participate in global competitions.
- 원격 제어: The app can also be used to control the treadmill's speed and start/stop functions.
유지
정기적인 유지 관리는 런닝머신의 수명 연장과 안전한 작동을 보장합니다.
- 청소: 러닝머신 표면을 광고로 닦아주세요amp 사용 후 천으로 닦아주세요. 연마성 세제는 사용하지 마세요.
- 벨트 윤활: The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the specific instructions provided with your lubrication kit or contact customer support for guidance.
- 벨트 장력 및 정렬: Check the running belt tension and alignment regularly. If the belt slips or moves off-center, adjust it according to the instructions in the tool kit or contact customer support.
- 저장: When not in use, fold the treadmill and store it in a dry, safe place away from direct sunlight and extreme temperatures.
문제 해결
If you encounter any issues with your DeerRun treadmill, refer to the common problems and solutions below. If the problem persists, contact customer support.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 러닝머신의 전원이 켜지지 않습니다. | Power cord not properly connected; power outlet issue; safety key not in place. | Ensure power cord is securely plugged in. Check the power outlet. Ensure the safety key is correctly inserted. |
| Treadmill does not start after powering on. | Safety key not attached; PitPat app not activated. | Attach the safety key clip to your clothing. Download and activate the treadmill via the PitPat app. |
| 작동 중 비정상적인 소음이 발생합니다. | Running belt needs lubrication; loose components. | Lubricate the running belt as per maintenance instructions. Check for and tighten any loose screws or bolts. |
| 벨트가 미끄러지거나 중심에서 벗어났습니다. | Belt tension or alignment issue. | Adjust belt tension and alignment using the provided tool kit. Refer to the maintenance section or contact support. |
| 리모컨이 작동하지 않습니다. | Batteries are dead; remote control not paired. | Replace batteries in the remote control. Refer to the pairing instructions in the full manual (if applicable) or contact support. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 디어런 |
| 모델 | B0D8VRMDMH |
| 색상 | 자정 |
| 재료 유형 | 합금강, 플라스틱 |
| 프레임 소재 | 합금강 |
| 제품 치수(펼친 상태) | 137.6cm(깊이) x 64.8cm(너비) x 12.7cm(높이) |
| 제품 치수(접었을 때) | 54.17 x 25.51 x 5인치(약 137.6 x 64.8 x 12.7cm) |
| 품목 무게 | 61.51파운드(약 27.9kg) |
| 최대 마력 | 3마력 |
| 속도 범위 | 0.6~7.5mph |
| 최대 속도 | 7.5마일 |
| 디스플레이 유형 | 주도의 |
| 표시 지표 | Time, Calories Burned, Distance, Speed |
| 프로그램 수 | 1 (referring to basic operation, app provides more) |
| 전원 | 코드식 전기 |
| 특별 기능 | App Connectivity, Lightweight, Foldable, Shock Absorbing, Portable |
| 추천 용도 | Under-desk treadmill for running, walking, and jogging |
| 대상 청중 | 남녀공용 |
| 배터리 포함 | 네 (원격 제어용) |
보증 및 지원
DeerRun is committed to providing innovative fitness equipment and excellent customer service.
- 보증: We offer a one-year after-sales service to ensure 100% customer satisfaction.
- 고객 지원: If you have any questions, concerns, or require assistance with your treadmill, please do not hesitate to contact us. We are dedicated to providing prompt support.
For specific contact details, please refer to the packaging or the official DeerRun web대지.
