소개
The Keychron M7 is a versatile wireless gaming optical mouse designed for optimal performance and comfort. It features tri-mode connectivity (2.4 GHz wireless, Bluetooth 5.1, and wired USB), a high-precision PixArt 3395 sensor, and a lightweight ergonomic design. This manual provides instructions for setting up, operating, maintaining, and troubleshooting your Keychron M7 mouse.
Figure 1: Keychron M7 Wireless Gaming Optical Mouse (White)
패키지 내용
Please ensure all the following items are included in your Keychron M7 package:
- Keychron M7 무선 마우스
- Type-C 2.4 GHz Receiver
- Type-A 2.4GHz 수신기
- 충전식 배터리(사전 설치됨)
- USB-C-USB-A 케이블 (충전 및 유선 연결용)
제품 특징
- 3중 모드 연결: Seamlessly switch between 2.4 GHz wireless, Bluetooth 5.1, and wired USB connections.
- 고정밀 센서: Equipped with the PixArt 3395 sensor, offering up to 26,000 DPI and 650 IPS for accurate tracking.
- 가벼운 인체공학적 디자인: Weighing only 63 grams with an ergonomic curved design and grip patterns for comfortable extended use.
- 사용자 정의 가능한 버튼: Programmable macro buttons and settings via the Keychron Engine software.
- 긴 배터리 수명: Up to 70 hours of continuous use on a single charge with an 800mAh battery.
Figure 2: Keychron M7 features: 70-hour battery life and 26,000 DPI sensor.
시작하기
1. 마우스 충전
Before first use, it is recommended to fully charge the mouse. Connect the provided USB-C to USB-A cable to the mouse's USB-C port and the other end to a powered USB port on your computer or a USB charger. The LED indicator will show charging status.
2. 마우스 연결
The Keychron M7 offers three connection modes:
- 유선 모드 : Connect the mouse directly to your computer using the USB-C to USB-A cable. The mouse will function immediately and charge simultaneously.
- 2.4GHz 무선 모드:
- Locate the 2.4 GHz receiver (either Type-C or Type-A).
- 수신기를 컴퓨터의 사용 가능한 USB 포트에 연결하십시오.
- On the bottom of the mouse, slide the switch to the 'G' (2.4 GHz) position. The mouse will automatically connect.
- Bluetooth 5.1 모드:
- 마우스 바닥의 스위치를 'B'(블루투스) 위치로 밉니다.
- Press and hold the Bluetooth pairing button (usually located near the mode switch) until the LED indicator starts blinking, indicating pairing mode.
- On your computer, open Bluetooth settings and search for new devices. Select "Keychron M7" from the list to pair.
Figure 3: Keychron M7 2.4 GHz receivers and polling rate indicator table.
Figure 4: Mouse bottom with G/OFF/B mode switch and pairing button.
마우스 작동
DPI 조정
The Keychron M7 allows for on-the-fly DPI adjustment. Use the dedicated DPI button on the bottom of the mouse to cycle through preset DPI levels. The LED indicator will change color to indicate the current DPI setting.
폴링률 조정
In 2.4 GHz or Wired mode, you can adjust the polling rate using the 'RPT' button on the bottom of the mouse. Press this button to switch between 125 Hz (White LED), 500 Hz (Blue LED), and 1000 Hz (Red LED).
Programmable Buttons and Macros
The Keychron M7 features programmable buttons. To customize button functions, set shortcuts, or create dedicated macros, download and install the Keychron Engine software from the official Keychron website. The software also allows for professional settings like Lift-Off Distance (LOD) and further DPI customization.

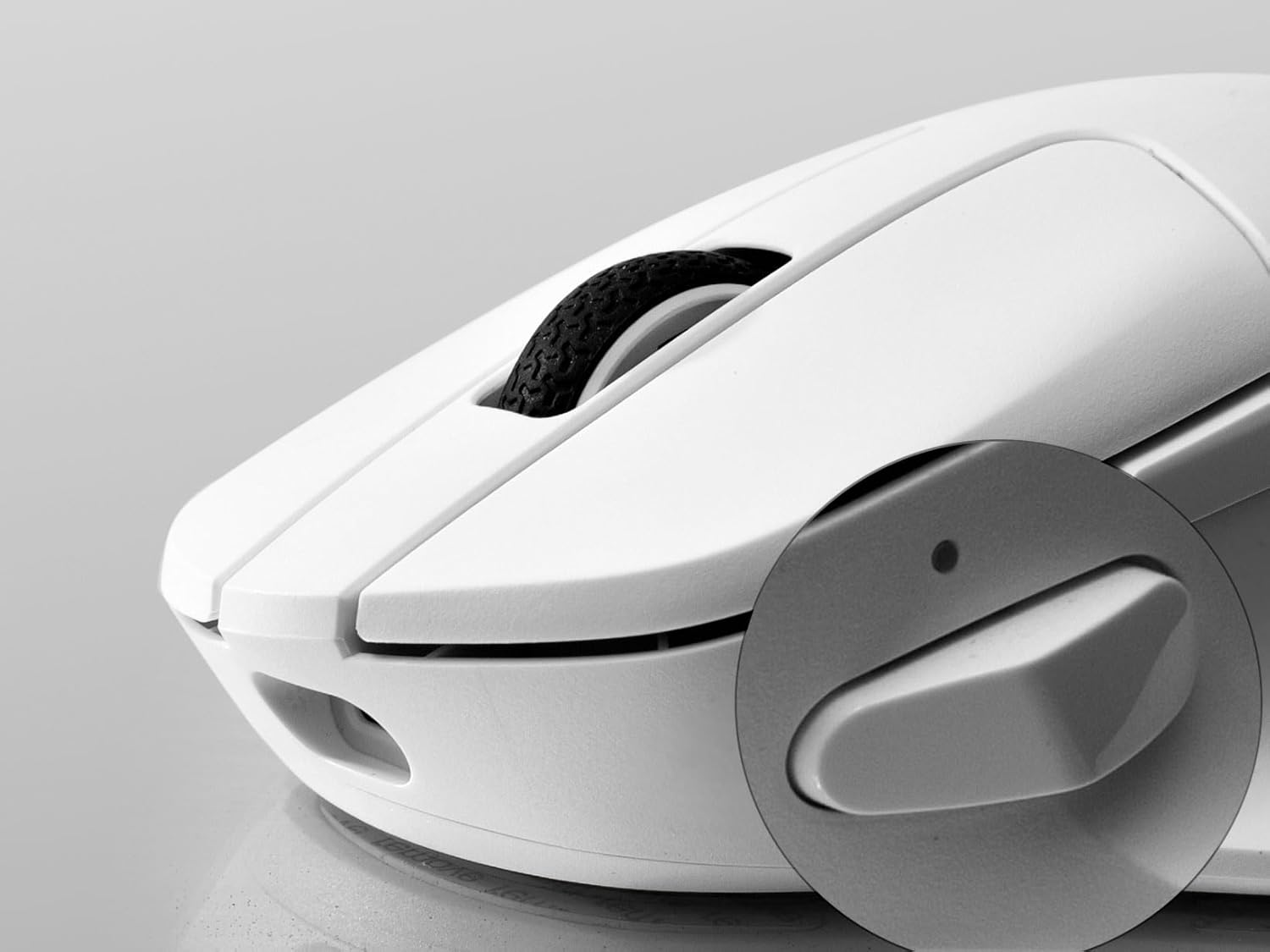

Figure 5: DPI switch and macro button location.
Figure 6: Keychron Engine software interface for customization.
유지
청소
To maintain optimal performance and appearance, regularly clean your Keychron M7 mouse. Use a soft, dry, lint-free cloth to wipe the surface. For stubborn dirt, slightly damp물이나 순한 전자제품 세척제를 묻힌 천으로 닦으십시오. 강한 화학 물질이나 연마재는 사용하지 마십시오.
배터리 관리
The Keychron M7 uses a rechargeable Lithium Polymer battery. To prolong battery life:
- 배터리를 자주 완전히 방전시키지 마세요.
- 장기간 사용하지 않을 때는 마우스를 시원하고 건조한 곳에 보관하세요.
- Charge the mouse using the provided cable or a certified USB charger.
문제 해결
- 마우스가 응답하지 않습니다. Ensure the mouse is charged. Check the mode switch on the bottom of the mouse is set correctly (G for 2.4 GHz, B for Bluetooth, or connected via cable). For wireless modes, ensure the receiver is properly plugged in or Bluetooth is paired.
- 무선 모드에서 지연 또는 연결 끊김 현상 발생: Try moving the receiver closer to the mouse. Ensure there are no strong interfering signals (e.g., other 2.4 GHz devices, Wi-Fi routers) nearby. Switch to a different USB port for the receiver.
- DPI or button issues: Ensure the Keychron Engine software is installed and updated. Check your settings within the software. Reset the mouse to factory defaults if necessary (refer to software instructions).
- 마우스 커서가 불규칙합니다. 마우스 바닥의 광학 센서를 청소하십시오. 마우스를 적절한 표면(마우스 패드 사용 권장)에서 사용하십시오.
기술 사양
| 특징 | 사양 |
|---|---|
| 모델 | Keychron M7 무선 마우스 |
| 연결성 | 2.4GHz 무선, 블루투스 5.1, USB 유선 |
| 감지기 | PixArt 3395 광학 센서 |
| DPI 범위 | 최대 26,000 DPI |
| IPS | 650 IPS |
| 가속 | 50G |
| 폴링 속도 | 125 Hz, 500 Hz, 1000 Hz (adjustable) |
| 무게 | 63그램(약 2.22온스) |
| 치수(길이 x 너비 x 높이) | 127.7 x 77.1 x 40.5mm(4.8 x 2.95 x 1.97인치) |
| 배터리 | 800mAh 리튬 폴리머(충전식) |
| 배터리 수명 | 최대 70시간(1회 충전) |
| 호환성 | 윈도우 PC, 맥 |
Figure 7: Keychron M7 mouse dimensions.
보증 및 지원
Keychron products are covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty information provided with your purchase or visit the official Keychron website. For technical support, troubleshooting assistance, or to download the Keychron Engine software, please visit the Keychron support page:
