VIVOSUN 3-Step Outdoor Handrail Instruction Manual

제품 끝view

The VIVOSUN 3-Step Outdoor Handrail is designed to provide stable and durable support for 1 to 3 steps. Constructed from high-quality iron with a black powder coating, it is built to withstand various outdoor conditions, including rain and snow, while resisting rust, scratches, and discoloration. Its adjustable design allows for flexible installation on different step heights and surfaces, making it suitable for terraces, balconies, porches, gardens, and residential buildings.

Figure 1: VIVOSUN 3-Step Outdoor Handrail, front view.

Figure 2: VIVOSUN Outdoor Handrail installed on outdoor steps, providing support.

명세서

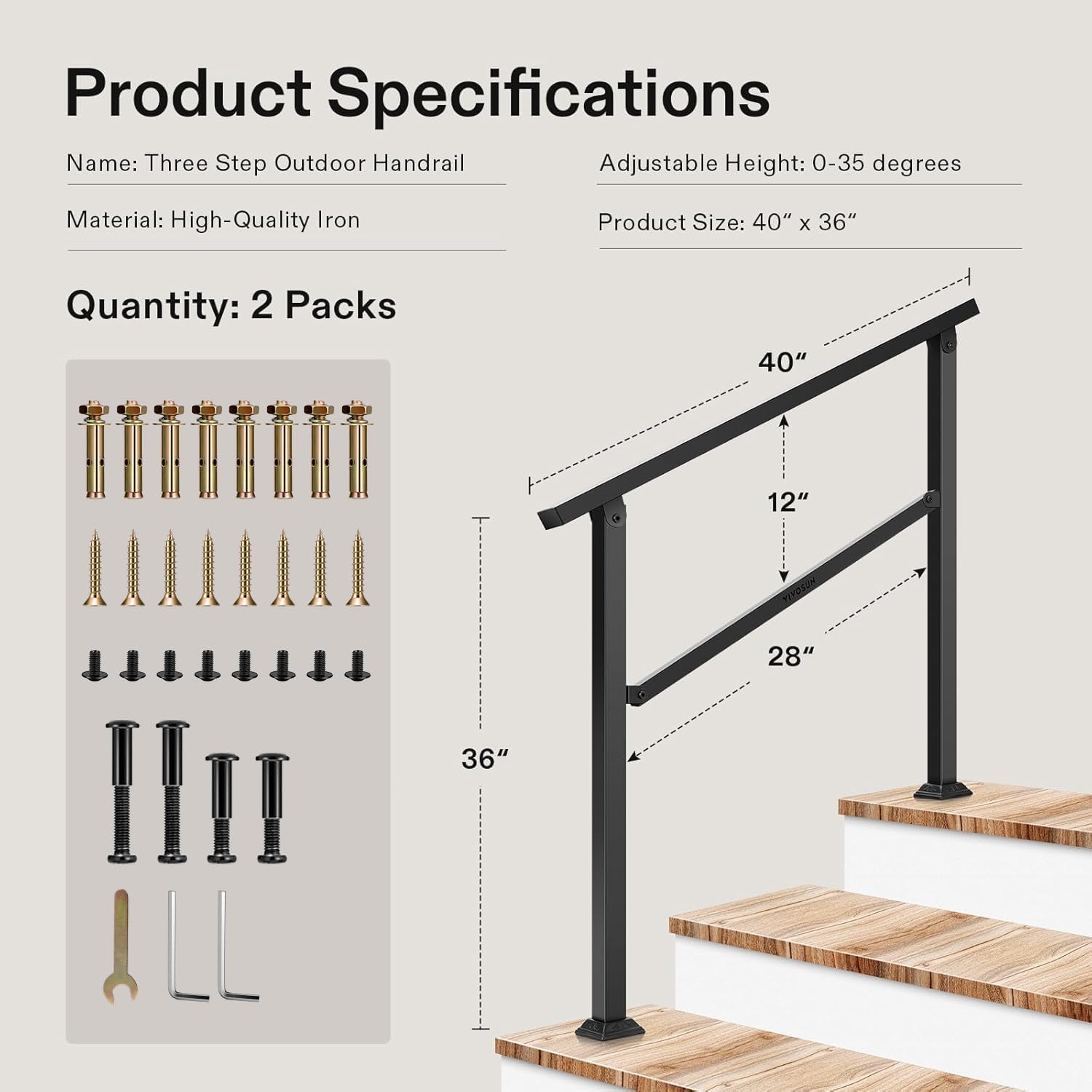

그림 3: 제품 사양 및 치수

안전 정보

This handrail is designed to enhance safety by providing essential support when ascending or descending stairs. It is particularly beneficial in rainy or freezing conditions to prevent slips on wet or icy surfaces. Always ensure the handrail is securely installed before use.

• Regularly inspect all fasteners and connections to ensure they remain tight.
• Do not use the handrail if any part appears damaged or loose.
• Keep the handrail clean and free of debris to maintain optimal grip.

설치 지침

시작하기 전에

다음 도구와 재료를 준비하십시오.

• Drill with a 3/8" masonry drill bit (included)
• 렌치(포함)
• 연필이나 마커
• 망치
• 보안경 및 장갑

조립 단계

1. Assemble the Railing: Connect the handrail sections using the provided screws and tools. Ensure all connections are snug but do not overtighten until the final installation.
2. Choose Position and Mark: Place the assembled handrail in the desired position on your steps or flat surface. Use a pencil or marker to accurately mark the drilling points for the base plates.
3. 드릴 구멍: Using a drill with a 3/8" masonry drill bit, carefully drill pilot holes at the marked locations. Ensure the holes are deep enough to accommodate the expansion screws.
4. 확장 나사 설치: Insert the expansion screws into the drilled holes. Place the handrail's base plates over the screws.
5. 나사를 조이세요: Use the provided wrench to tighten the nuts on the expansion screws. As you tighten, the expansion screws will secure the handrail firmly to the surface.
6. Attach Base Covers: Once the handrail is securely fastened, place the decorative base covers over the base plates and press firmly to conceal the fasteners.

그림 4: 간편한 설치 단계.

Figure 5: Two Installation Methods: Vertical Stairs and Flat Ground.

사용 및 조정

The VIVOSUN handrail features an adjustable angle from 0 to 35 degrees, allowing it to accommodate various step heights and inclinations without requiring modifications to the rail itself. This flexibility ensures a custom fit for different staircase configurations, from 1 to 3 vertical steps, and can also be used on horizontal surfaces.

Figure 6: Adjustable Height (0-35 Degrees).

유지

To ensure the longevity and optimal performance of your VIVOSUN Outdoor Handrail, follow these maintenance guidelines:

• 청소: Wipe the handrail regularly with a damp cloth to remove dirt and debris. For stubborn stains, use a mild soap solution and rinse thoroughly. Avoid abrasive cleaners that could damage the powder coating.
• 점검: Periodically check all bolts, screws, and connections for tightness. Re-tighten any loose fasteners to maintain stability.
• 녹 방지: The black powder coating is designed to resist rust. However, if any scratches or chips occur, touch up the affected areas with rust-inhibiting paint to prevent corrosion.

Figure 7: Durable Material (High-Quality Iron and Black Powder Coating).

문제 해결

If you encounter any issues with your VIVOSUN Outdoor Handrail, refer to the following common troubleshooting tips:

• 난간이 헐거운 것 같아요: Check all mounting bolts and screws. If they are loose, tighten them securely using the appropriate wrench. Ensure the expansion screws are properly engaged in the concrete.
• 각도 조절이 어렵습니다. Ensure the adjustment bolts are sufficiently loosened before attempting to change the angle. If the mechanism is stiff, apply a small amount of lubricant to the pivot points.
• Scratches or Paint Chipping: For minor cosmetic damage, clean the area and apply a rust-inhibiting touch-up paint that matches the original black powder coating.
• 불안정한 설치: Re-evaluate the drilling locations and ensure they are appropriate for the surface material. If installing on concrete, verify that the expansion screws are correctly installed and fully expanded. Consider consulting a professional for complex installations.

보증 및 지원

VIVOSUN products are manufactured to high-quality standards and are backed by our commitment to customer satisfaction. For specific warranty details, product support, or to inquire about replacement parts, please visit the official VIVOSUN website or contact our customer service team. Keep your purchase receipt for warranty claims.

연락처 정보:

• Web대지: VIVOSUN Official Store
• Refer to your product packaging for additional contact methods.
