Thereye 탁상용 역삼투압 정수 시스템 (즉시 가열 기능 포함), 모델 ER-WP02

1. 안전 정보

Please read all safety instructions carefully before operating the Thereye Countertop RO Water Filter System.

• 뜨거운 물 사용 시 주의 사항: The system features an instant heating function. Dispensed hot water can reach up to 208°F (98°C). Exercise extreme caution to avoid burns. Always use the child lock function when children are present.
• 재료 안전: All water-contacting components are made from food-grade, BPA-free plastics to ensure water purity and safety.
• 전기 안전: Ensure the unit is plugged into a grounded outlet. Do not immerse the unit in water or other liquids. Unplug the unit before cleaning or maintenance.
• 용도: This appliance is designed for filtering tap water for drinking and cooking purposes. Do not use it for any other liquids.
• 놓기: Place the unit on a stable, flat, and dry surface. Keep away from direct sunlight and heat sources.

2. 제품 오버view

The Thereye Countertop RO Water Filter System provides purified, great-tasting water with the convenience of instant heating. It features a 7-stage filtration process and requires no complex installation.

주요 특징:

• 고급 7-Stage RO Filtration: Combines PAC pre-filter, RO membrane, and CF post-filter with built-in PP sediment filter, activated carbon blocks, and a 0.0001-micron RO membrane to remove over 99% of impurities.
• On-Demand Instant Heating: Dispenses water at temperatures from 113°F to 208°F (45°C to 98°C) instantly.
• Zero Installation: Ready to use out of the box with no plumbing required.
• 스마트 LED 디스플레이: Provides real-time water quality (TDS), filter life, and purified water volume. Features an auto-dimming screen.
• Eco-Smart Design: 2:1 pure to drain ratio, allowing wastewater to be recycled for non-potable uses.
• 인증된 안전: FCC and ETL certified, ensuring compliance with strict U.S. safety standards.

구성 요소:

• Main Water Filter Unit (Model ER-WP02)
• Raw Water Tank (159 oz capacity)
• Purified Water Pitcher (40 oz capacity)
• PAC Pre-Filter
• RO Membrane Filter
• CF Post-Filter
• 물받이판
• 전원 코드

3. 설정

The Thereye Countertop RO Water Filter System is designed for quick and easy setup without the need for plumbing installation.

1. 단위 풀기: 포장에서 모든 구성 요소를 조심스럽게 제거합니다.
2. 단위 배치: Position the water filter unit on a stable, flat, and dry countertop.
3. 필터 설치:
   • 필터 칸 덮개를 엽니다.
   • Insert the PAC, RO, and CF filters into their designated slots. Ensure they are securely twisted into place according to the labels.
4. 원수 탱크를 채우십시오: Remove the raw water tank from the back of the unit. Fill it with tap water up to the MAX line. Reinsert the tank securely.
5. 플러그인: 전원 코드를 본체에 연결한 다음 접지된 콘센트에 연결하십시오.
6. 초기 플러시: Before first use, it is recommended to run 2-3 full cycles of water through the system to flush out any manufacturing residue and ensure optimal filter performance. Discard the water from these initial cycles.

4. 사용 설명서

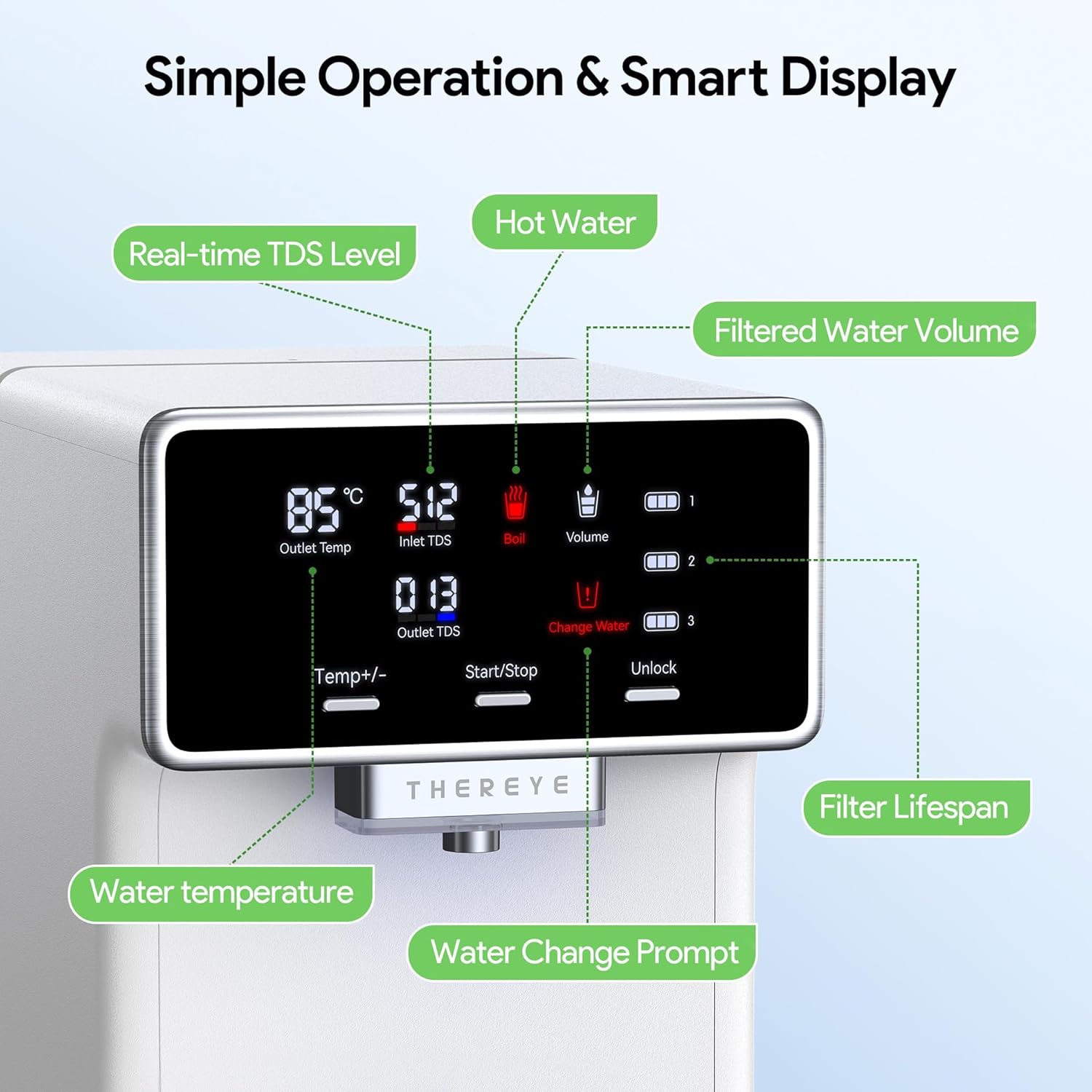

The system features an intuitive LED display and touch controls for easy operation.

1. 전원 켜기: Press the power button to turn on the unit. The Smart LED Display will illuminate.
2. 모니터 디스플레이: The LED screen shows real-time information including:
   • Input and Output Water TDS (Total Dissolved Solids)
   • 현재 수온
   • Filtered Water Volume
   • Filter Lifespan Indicators
   • Water Change Prompt (when the raw water tank needs refilling or wastewater needs emptying)
3. 물 온도 선택: Use the "Temp+/-" buttons to select your desired water temperature (from 113°F to 208°F / 45°C to 98°C).
4. 물을 내어주세요: Place a cup or the purified water pitcher under the dispenser nozzle. Press the "Start/Stop" button to begin dispensing. Press again to stop.
5. 아동 잠금: To activate or deactivate the child lock for hot water dispensing, refer to the specific instructions on the unit's display or in the full user manual.

5. 유지관리

정기적인 유지 관리는 정수 시스템의 최적 성능과 수명 연장을 보장합니다.

필터 교체:

The system uses three easy-swap filters: PAC (Pre-Activated Carbon), RO (Reverse Osmosis), and CF (Carbon Fiber). The Smart LED Display will indicate when each filter needs replacement.

1. Identify Filter: Check the LED display for which filter needs replacement.
2. 전원 끄기 : 장치의 플러그를 콘센트에서 뽑으세요.
3. 오래된 필터 제거: Open the filter compartment cover. Gently twist the old filter counter-clockwise and pull it out.
4. 새 필터 설치: Insert the new filter into the corresponding slot. Twist clockwise until it clicks into place.
5. 필터 수명 재설정: After replacing, plug the unit back in and follow the on-screen instructions to reset the filter life indicator for the replaced filter.

청소:

• 드립 트레이: Regularly empty and clean the magnetic drip tray to prevent water overflow and maintain hygiene.
• 물탱크: Periodically clean the raw water tank and the purified water pitcher with mild soap and water. Rinse thoroughly.
• 외부: 부드러운 천으로 기기 외부를 닦아주세요.amp 천. 연마성 세척제는 사용하지 마십시오.

6. 문제 해결

If you encounter any issues with your Thereye water filter system, please refer to the following general advice:

• 전원 없음: 전원 코드가 본체와 작동하는 콘센트에 제대로 꽂혀 있는지 확인하십시오.
• 물 공급 없음: Check if the raw water tank is properly seated and filled. Ensure filters are correctly installed.
• Slow Dispensing: This can be normal for RO systems. If excessively slow, check filter life indicators for potential clogs or expired filters.
• 특이한 맛/냄새: Perform an initial flush cycle if not already done. Check filter life indicators and replace any expired filters.
• 오류 코드: If an error code appears on the LED display, consult the full user manual for specific meanings and solutions.

For persistent issues or further assistance, please contact Thereye customer support.

7. 사양

8. 보증 및 지원

The Thereye Countertop RO Water Filter System comes with a 1년 보증 그리고 30일 만족 보장.

For any product inquiries, technical support, or warranty claims, please contact Thereye customer service through their official channels or refer to the contact information provided in the original packaging.
