ACEZUK M01 6000A 12V Car Jump Starter User Manual

소개

Thank you for choosing the ACEZUK M01 Car Jump Starter. This device is designed to provide a reliable emergency start for your vehicle, act as a portable power bank, and offer a multi-mode LED flashlight. Please read this manual carefully before use to ensure proper operation and safety.

제품 구성 요소

The ACEZUK M01 package includes the following items:

• ACEZUK M01 자동차 점프 스타터
• 스마트 배터리 Clamps (빨간색과 검은색)
• USB-C 충전 케이블
• 사용자 설명서
• Storage Pouch (Note: A storage case is not included with this model.)

Image: Contents of the ACEZUK M01 package. This image displays the jump starter unit, smart battery clamps, a USB-C charging cable, the user manual, and a soft storage pouch.

명세서

Image: The 2.5-inch LCD screen on the ACEZUK M01 jump starter. The screen clearly shows the battery charge level, input/output indicators, and alerts for extreme temperatures, ensuring the device is ready for use.

설정 및 충전

초기 요금

Before first use, fully charge the ACEZUK M01 jump starter. Connect the provided USB-C charging cable to the device's Type-C input port and a suitable USB power adapter (not included). The LCD screen will indicate the charging status. A full charge is recommended for optimal performance.

배터리 수준 확인

The 2.5-inch LCD screen displays the current battery percentage. It is recommended to maintain the battery level above 25% for successful jump starts. Recharge the device when the battery level is low.

차량 점프 스타트 방법 (사용 설명서)

차량 시동을 걸려면 다음 단계를 주의 깊게 따르십시오.

1. Connect Smart Cable: 스마트 배터리 삽입amp cable into the jump starter's output port. Ensure a secure connection.
2. Cl을 첨부하세요amp배터리에 대한 s: 빨간색 양극(+) cl을 연결합니다.amp to the positive (+) terminal of your vehicle's battery. Connect the black negative (-) clamp 차량 배터리의 음극(-) 단자에 연결합니다.
3. 차량 시작: 일단 clamps are securely connected and the smart cable indicator shows a ready state (refer to the smart cable's indicator lights for specific signals), start your vehicle's engine.
4. Cl 제거amps: 엔진 시동 후 즉시 스마트 클립을 제거하십시오.amp차량 배터리 단자에서 전원을 차단한 다음, 점프 스타터에서 스마트 케이블을 분리하십시오.

중요한: 항상 cl을 제거하세요amps from the car battery immediately after the engine starts to prevent damage to the jump starter or vehicle.

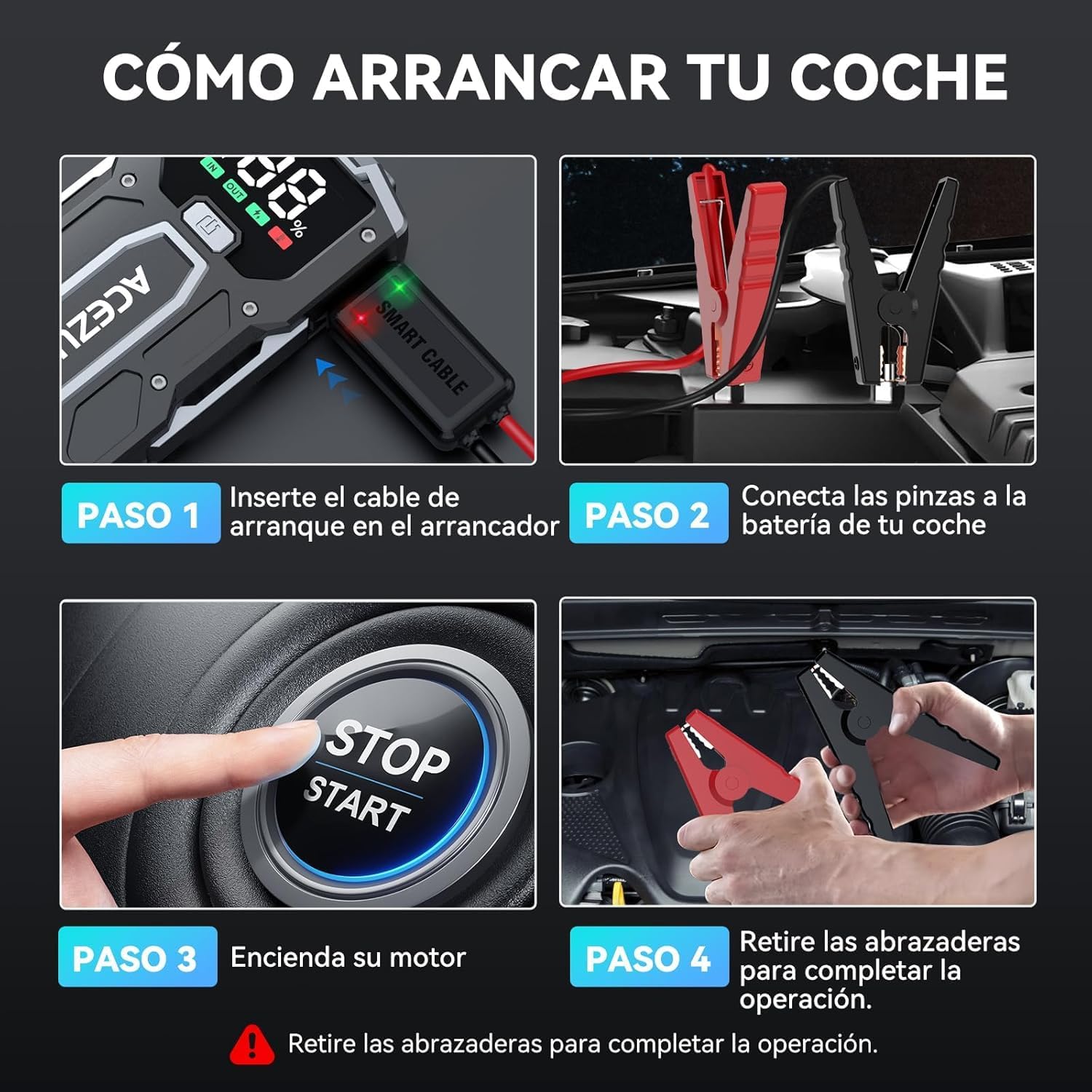

Image: A visual guide demonstrating the four steps to jump start a car. Step 1 shows inserting the smart cable into the jump starter. Step 2 shows connecting the clamps to the car battery. Step 3 shows starting the car engine. Step 4 shows removing the clamps after the car starts.

Image: The ACEZUK M01 jump starter connected to a vehicle battery. The image highlights its 6000A peak current capability and compatibility with 7.0L gasoline and 5.5L diesel engines, operating at 12V.

파워뱅크 기능

The ACEZUK M01 can also function as a 12800mAh portable power bank to charge your electronic devices.

• 출력 포트: It features a USB output port (5V/2.4A) for charging smartphones, tablets, e-readers, and other USB-powered devices.
• 입력 포트: The Type-C port (5V/2A, 9V/2A) is used for recharging the jump starter itself.

Simply connect your device's charging cable to the USB output port on the jump starter to begin charging.

Image: The ACEZUK M01 jump starter acting as a power bank, simultaneously charging a smartphone and a tablet. This illustrates its 12800mAh capacity and compatibility with various USB-chargeable devices like game consoles, phones, iPads, drones, earphones, smartwatches, and cameras.

LED 손전등 기능

The M01 includes a built-in LED flashlight with three modes for various situations:

• 조명: Standard steady light for general visibility.
• 빠른 스트로보: Rapid flashing light for signaling or attracting attention.
• Slow Flash (SOS): Slow, rhythmic flashing for emergency signaling.

To activate and cycle through the flashlight modes, press the dedicated flashlight button on the device.

Image: The ACEZUK M01 jump starter highlighting its multifunctional LED flashlight. The image shows the three available modes: Illumination, Slow Flash (SOS), and Rapid Flashing, useful for various outdoor and emergency scenarios.

안전 기능

The ACEZUK M01 is equipped with 8 types of intelligent safety protections to ensure safe operation and prevent damage:

• 스파크 방지 보호
• 역 극성 보호
• 과전류 보호
• 고온 보호
• 과충전 보호
• 과방 전 보호
• 오버볼tage 보호
• 간섭 방지 보호

스마트 배터리 clamps feature an indicator that provides audible warnings and flashing lights in case of incorrect connection or other issues.

Image: A diagram detailing the 8 intelligent safety protections integrated into the smart clamps. These protections include safeguards against overheating, overcharging, over-discharging, overvoltage, short circuits, reverse polarity, and anti-interference, ensuring a secure jump start.

유지

• 정기적으로 충전하세요: To prolong battery life, recharge the jump starter at least once every three months, even if not in use.
• 저장: 기기를 서늘하고 건조한 곳에 보관하고, 직사광선과 극한의 온도를 피하세요.
• 청소: 부드럽고 마른 천으로 기기를 닦으십시오. 강한 화학 약품이나 연마제를 사용하지 마십시오.
• 케이블 확인: Periodically inspect the smart clamps and cables for any signs of damage or wear. Replace if necessary.

문제 해결

장치가 켜지지 않음

• Ensure the device is charged. Check the LCD screen for battery level.
• If the battery is low, recharge the unit.

차량 시동이 걸리지 않습니다

• 스마트클을 확인하세요amps are correctly connected to the vehicle battery terminals (red to positive, black to negative).
• Ensure the smart cable is fully inserted into the jump starter.
• Verify that the jump starter's battery level is above 25%.
• 스마트클이라면amp indicator shows an error, refer to the indicator's specific meaning (e.g., reverse polarity, short circuit) and correct the issue.
• The vehicle's battery might be severely discharged or damaged. In such cases, the jump starter may not be able to start the vehicle.

파워뱅크가 기기를 충전하지 않음

• 점프 스타터에 충분한 전력이 충전되어 있는지 확인하십시오.
• Verify that the charging cable is properly connected to both the jump starter's USB output and your device.
• 케이블이나 장치 문제를 배제하려면 다른 충전 케이블이나 장치를 사용해 보세요.

보증 및 지원

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ACEZUK web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
