1. 중요한 안전 정보
Please read this manual carefully before installing or using your SCHNEIDER Domino Induction Hob SCDI30M. Keep this manual for future reference.
- 전기 안전: Ensure the hob is correctly installed by a qualified electrician and connected to a suitable power supply. Do not operate with wet hands.
- 열과 화상: The hob surface will become hot during and after use. Do not touch hot surfaces. Use oven mitts.
- 통풍: 과열을 방지하기 위해 설치 지침에 따라 가스레인지 주변에 적절한 환기가 이루어지도록 하십시오.
- 조리기구 : 인덕션 사용에 적합한 조리 기구만 사용하십시오. 인덕션에 적합하지 않은 조리 기구는 가열되지 않습니다.
- 어린이와 애완동물: Keep children and pets away from the hob during operation and while it is cooling down.
- 청소: Always disconnect the power supply before cleaning. Allow the hob to cool completely.
2. 제품 오버view
The SCHNEIDER Domino Induction Hob SCDI30M is a compact and efficient cooking solution featuring two induction zones with precise knob controls. Its total power output of 3500 watts ensures rapid heating and uniform cooking.

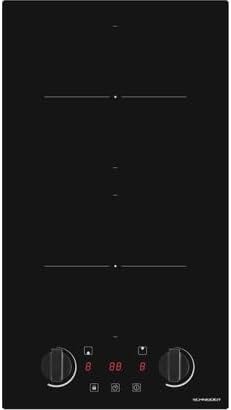

이미지 1: 앞면 view of the SCHNEIDER Domino Induction Hob SCDI30M, showing its sleek black glass surface and two control knobs at the bottom.
주요 특징:
- Domino induction hob design
- Two cooking zones with individual boosters
- Total power output of 3500 Watts
- Compact dimensions: 28.8 cm (width) x 52 cm (depth)
- Intuitive knob controls for precise temperature adjustment
- 9 cooking levels per zone
- Integrated timer function
3. 설치 및 설정
Installation of the SCHNEIDER Domino Induction Hob SCDI30M should only be performed by a qualified professional to ensure electrical safety and proper ventilation.
Image 2: Technical drawing showing the dimensions for the hob and the required cutout in the countertop, with measurements in millimeters.
Cutout Dimensions (in mm):
| 차원 | 값(mm) |
|---|---|
| Hob Length (L) | 288 |
| Hob Width (W) | 520 |
| Hob Height (H) | 60 |
| Cutout Depth (D) | 56 |
| Cutout Length (A) | 268 |
| Cutout Width (B) | 500 |
| Minimum Clearance (X) | 50 |
Ensure a minimum clearance of 250mm below the hob for proper ventilation, as indicated in the diagram. The hob is designed for flush mounting with a seal to prevent liquid ingress.
4. 사용 설명서
The SCHNEIDER Domino Induction Hob SCDI30M is controlled via two intuitive rotary knobs, one for each cooking zone.
4.1 Turning On/Off and Adjusting Power
- 원하는 조리 구역에 유도 가열이 가능한 팬을 올려놓으세요.
- Turn the corresponding control knob clockwise to activate the zone and select a power level from 1 to 9. The display will show the selected level.
- To turn off a zone, turn its knob counter-clockwise until the display turns off.
4.2 부스터 기능
Each cooking zone is equipped with a booster function for rapid heating. This provides direct access to maximum power.
- To activate the booster, turn the knob past level 9 to the 'B' (Booster) setting.
- The booster will operate for a set period or until manually deactivated, providing intense heat for boiling water quickly or searing.
- To deactivate, simply turn the knob back to a numbered power level.
4.3 타이머 기능
The integrated timer allows you to set a cooking duration for precise results.
- While a cooking zone is active, press the timer button (usually indicated by a clock icon).
- Use the +/- buttons or turn the knob (depending on model specifics) to set the desired cooking time.
- Once the time expires, the cooking zone will automatically switch off, and an audible signal may sound.
4.4 적합한 조리 도구
Induction hobs require cookware with a magnetic base. Test your cookware by placing a magnet on the bottom; if it sticks, it's compatible.
- Compatible materials include cast iron, enameled steel, and stainless steel with a magnetic base.
- Avoid glass, ceramic, aluminum, copper, or non-magnetic stainless steel cookware.
5. 유지관리 및 청소
Regular cleaning will keep your SCHNEIDER Domino Induction Hob in optimal condition.
- 청소 전: Always ensure the hob is switched off and has completely cooled down. Disconnect from the power supply if possible.
- 매일 청소: For light spills and general cleaning, wipe the glass surface with a soft cloth dampened with warm soapy water. Dry thoroughly with a clean, soft cloth.
- 완고한 얼룩: For burnt-on food or stubborn stains, use a specialized ceramic hob scraper (held at a shallow angle) to gently remove residue, followed by a ceramic hob cleaner.
- 피하다: Do not use abrasive sponges, scouring pads, harsh chemical cleaners, or steam cleaners, as these can damage the glass surface.
- 컨트롤 노브: The control knobs can usually be pulled off for cleaning. Wash them in warm soapy water, dry, and reattach.
6. 문제 해결
인덕션 사용 중 문제가 발생하면 고객 서비스 센터에 문의하기 전에 다음의 일반적인 문제 및 해결 방법을 참조하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 가스레인지가 켜지지 않습니다 | No power supply; Child lock activated; Overheating protection | Check power connection; Deactivate child lock (if applicable); Allow hob to cool down. |
| 조리 구역이 가열되지 않음 | Non-compatible cookware; Pan not centered; Pan too small/large | Use induction-compatible cookware; Center pan on zone; Use appropriate pan size. |
| Display shows an error code (e.g., 'E' followed by numbers) | Specific internal fault or condition | Refer to the specific error code in a more detailed manual (if available) or contact customer service. Try resetting power. |
| 작동 중 이상한 소음 | Normal fan noise; Cookware vibration | A low hum or fan noise is normal. Some cookware may vibrate slightly. This is not a fault. |
If the problem persists after attempting these solutions, please contact SCHNEIDER customer support.
7. 사양
| 특징 | 사양 |
|---|---|
| 상표 | 슈나이더 |
| 모델 | SCDI30M |
| 호브의 종류 | 유도 |
| 쿠킹존 수 | 2 |
| 총 전력 출력 | 3500 와트 |
| 제어 유형 | 노브 컨트롤 |
| 요리 레벨 | 구역당 9개 |
| 부스터 기능 | Yes, on both zones |
| 타이머 기능 | 통합 |
| 재료 | 유리 |
| 치수(W x D) | 28.8cm x 52cm |
| 전원 | 전기 케이블 |
8. 보증 및 지원
Your SCHNEIDER Domino Induction Hob SCDI30M comes with a manufacturer's commercial warranty of 2 years.
For warranty claims, technical support, or spare parts inquiries, please contact SCHNEIDER customer service. Keep your proof of purchase for warranty validation.
메모: Information regarding the availability of spare parts is not provided in the product details. Please contact SCHNEIDER directly for such inquiries.
