1. 서론
Welcome to the Freego F4 Electric Bike user manual. This document provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new Freego F4 electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
Figure 1.1: Freego F4 Electric Bike with rear cargo rack.
2. 안전 정보
안전이 최우선입니다. 주행 시에는 항상 헬멧과 적절한 안전 장비를 착용하십시오. 모든 지역 교통 법규를 준수하십시오. 정기적인 점검 및 유지 보수는 안전한 운행에 매우 중요합니다.
- Always check tire pressure, brake function, and battery level before each ride.
- 알코올이나 약물의 영향을 받은 상태에서 전기자전거를 작동하지 마십시오.
- 주변 환경을 주의하고 방어적으로 주행하세요.
- 라이딩하기 전에 모든 구성품이 단단히 고정되어 있는지 확인하세요.
3. 설치 및 조립
The Freego F4 electric bike requires some assembly upon arrival. Please follow these steps carefully. Refer to the included installation tools for assistance.
- 짐 풀기: Carefully remove all components from the packaging. Check against the included components list: Fenders, 24'' x 2.4'' MTB Tires, charger, Front light and tail light, Bell, Tool kits, Battery charger, Phone holder, RainProof Bag, Mini seat, Foot stand, Freego Electric Mountain Ebike Bike x 1.
- 핸들바 설치: 핸들바를 스템에 부착하고, 중앙에 위치하여 단단히 조여졌는지 확인하세요.
- 전륜 설치: Install the front wheel, ensuring the brake rotor aligns correctly with the caliper. Tighten the quick-release or axle nuts firmly.
- 페달 설치: Identify left (L) and right (R) pedals. Thread the pedals into the crank arms (left pedal is reverse threaded). Tighten securely with a wrench.
- 시트포스트와 안장: Insert the seat post into the frame and adjust the saddle height for comfortable riding. Secure the quick-release lever or bolt.
- 배터리 설치: Ensure the battery is fully charged before first use. Insert the 48V/20Ah removable lithium-ion battery into its compartment and lock it securely.
- 펜더 및 랙 설치: Attach the fenders and the rear cargo rack using the provided hardware.
- 주행 전 점검: Before your first ride, perform a thorough check of all bolts, brakes, tires, and lights.

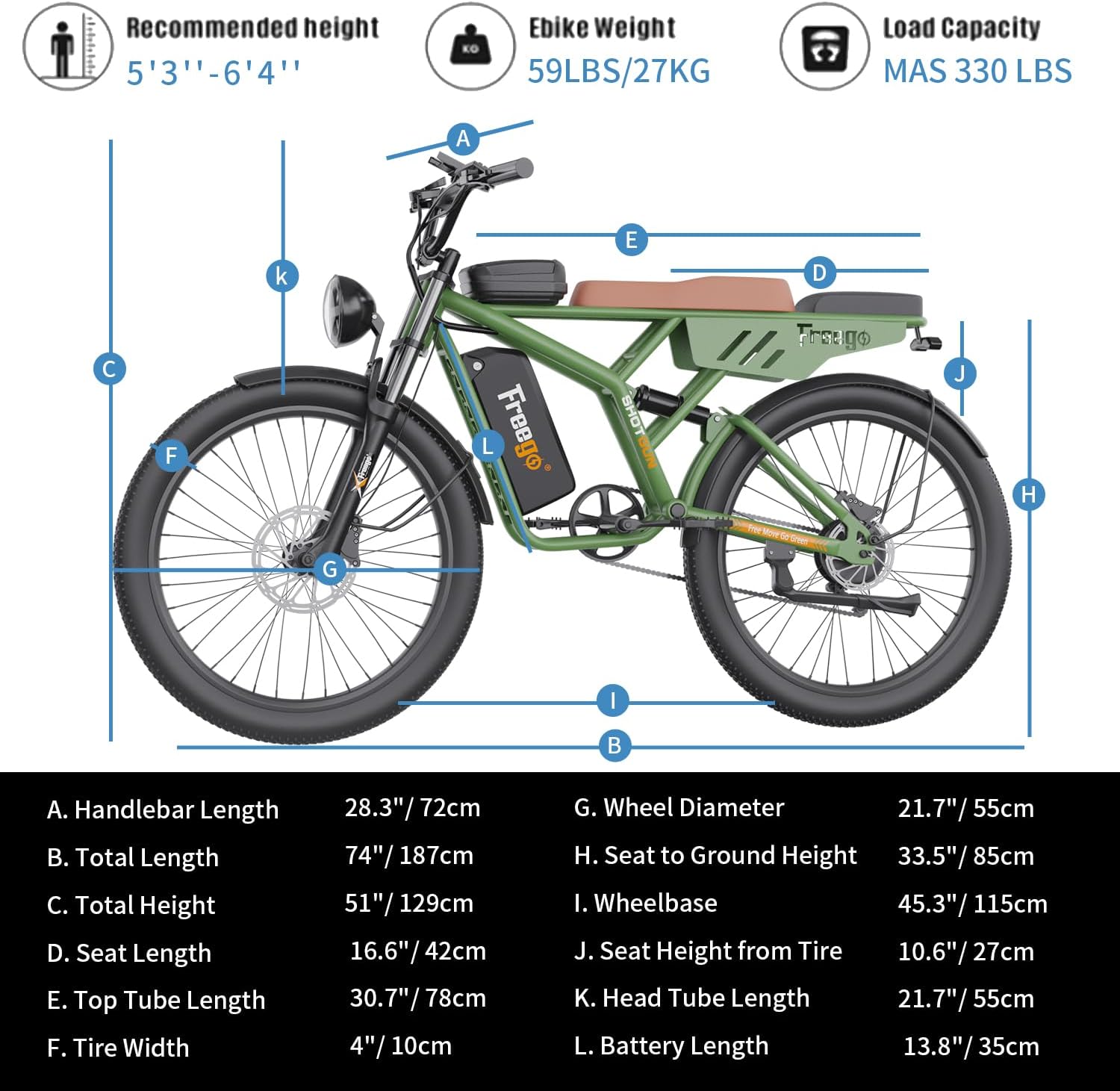

Figure 3.1: Recommended rider height (5'3''-6'4'') and bike dimensions.
4. 사용 설명서
The Freego F4 offers multiple riding modes for versatile use.
4.1 전원 켜기/끄기
To power on the e-bike, press and hold the power button on the LCD control panel. To power off, press and hold the same button.
4.2 라이딩 모드
- 페달 어시스트 모드: The motor provides assistance as you pedal. This mode offers a range of 31-40 miles depending on terrain and rider input. Adjust the assist level using the controls on the LCD panel.
- 순수 전기 모드: Engage the throttle for full electric power without pedaling. This mode provides a range of 25-31 miles.
4.3 기어 변속
The Freego F4 is equipped with a 7-speed gear system. Use the twist grip shifter on the handlebar to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the drivetrain.
4.4 브레이크 시스템
The e-bike features front and rear hydraulic disc brakes for effective and reliable stopping power. Apply both brakes simultaneously for optimal control and shorter stopping distances.
Figure 4.1: Illustration of the 1000W brushless rear motor.
Figure 4.2: Details of the 48V 20Ah 960Wh removable lithium-ion battery.
5. 유지관리
Regular maintenance ensures the longevity and safe operation of your Freego F4 electric bike.
- 청소: 광고를 통해 정기적으로 자전거를 청소하세요amp 천으로 닦으세요. 전기 부품에 고압 세척을 직접 하지 마세요.
- 타이어: Maintain proper tire pressure (refer to tire sidewall for recommended PSI). Inspect tires for wear and punctures. The 24'' x 2.4'' fat tires provide excellent traction.
- 브레이크: Check brake pads for wear and ensure hydraulic brakes are responsive. Adjust or replace as needed.
- 체인: 체인을 깨끗하게 유지하고 윤활유를 발라주면 기어 변속이 원활해지고 녹이 스는 것을 방지할 수 있습니다.
- 배터리 관리 : Store the battery in a cool, dry place. Charge regularly, even if not in use, to maintain battery health. Avoid fully discharging the battery.
- 패스너: Periodically check and tighten all bolts and fasteners, especially on critical components like handlebars, wheels, and seat post.
6. 문제 해결
This section addresses common issues you might encounter with your Freego F4 electric bike.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 자전거 전원이 켜지지 않습니다 | Battery not charged or not properly seated; Power button issue. | Ensure battery is fully charged and securely inserted. Press power button firmly. |
| 모터가 작동하지 않음 | Pedal assist level too low; Brake levers engaged; Motor connection issue. | Increase pedal assist level on LCD. Release brake levers. Check motor cable connections. |
| 짧은 배터리 사용 거리 | Battery not fully charged; Riding in high assist/throttle mode; Uphill riding. | Fully charge battery. Use lower assist levels or pedal more. |
| 브레이크가 약해요 | Worn brake pads; Air in hydraulic line; Misaligned caliper. | 브레이크 패드를 점검하고 교체하십시오. 유압 라인의 공기를 빼내십시오(전문 업체에 의뢰하는 것을 권장합니다). 캘리퍼 정렬을 조정하십시오. |
7. 사양
Detailed technical specifications for the Freego F4 Electric Bike.
| 특징 | 사양 |
|---|---|
| 모델 | Freego F4 |
| 자전거 종류 | Electric Mountain EBike & Commuting Bike / MTB Tires |
| 모터 | 1000W Brushless Rear Motor |
| 배터리 | 48V 20Ah (960Wh) 탈착식 리튬 이온 배터리 |
| 최대 속도 | 28마일 |
| 주행 가능 거리(페달 보조 기능 포함) | 31-40 마일 |
| 레인지 (순수 전기) | 25-31 마일 |
| 휠 크기 | 24 인치 |
| 타이어 | 24'' x 2.4'' Fat MTB Tires |
| 프레임 소재 | High-strength Steel Pipe |
| 보류 | 듀얼(전면 및 후면 충격 흡수 장치) |
| 브레이크 스타일 | Front and Rear Hydraulic Disc Brake |
| 속도의 수 | 7단 |
| 최대 하중 용량 | 330 파운드 |
| 품목 무게 | 59 파운드 |
| 조립이 필요합니다 | 예 |
| 최소 사용자 높이 | 62 인치 |
8. 보증 및 지원
Freego stands behind the quality of its products.
8.1 보증 정보
The Freego F4 Electric Bike comes with an 18개월 한정 보증. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to misuse, accidents, or normal wear and tear.
8.2 고객 지원
For any questions, technical assistance, or warranty claims, please contact Freego Customer Support. You can find contact information on the official Freego web사이트나 구매 플랫폼을 통해서도 구매하실 수 있습니다.
