소개
This manual provides essential information for the safe and efficient operation of your Frigidaire 12,000 BTU Window Air Conditioner. Designed to cool areas up to 550 sq. ft., this unit offers customizable cooling with multi-directional airflow, adjustable fan speeds, and a programmable 24-hour timer. Key features include Eco Mode for energy efficiency, Sleep Mode for gradual temperature adjustment, and a convenient remote control for ease of use. Regular maintenance, such as cleaning the washable dust filter, ensures optimal performance.
Image: Frigidaire 12,000 BTU Window Air Conditioner installed in a window, showcasing its sleek design and integration into a home environment.
중요한 안전 정보
Read all instructions before using this appliance. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
- 코드나 플러그가 손상된 제품은 작동하지 마세요.
- Do not use in a ventilated room without continuously operating flames or other potential ignition sources.
- Risk of fire. Flammable refrigerant used. To be repaired only by trained service personnel.
- 연방 및 지방 규정에 따라 적절히 폐기하세요.
패키지 내용
패키지에 모든 품목이 포함되어 있는지 확인하세요.
- Frigidaire 12,000 BTU Window Air Conditioner Unit
- 리모컨(AAA 배터리 2개 포함)
- 창 설치 키트
- 세척 가능한 먼지 필터(사전 설치됨)
설정 및 설치
Proper installation is crucial for the performance and safety of your air conditioner. This unit is designed for window installation.
- 창문을 준비하세요: Ensure your window is clean and structurally sound to support the unit's weight.
- 장착 브래킷 설치: Follow the instructions in the included window kit to securely install the mounting brackets in your window frame.
- 단위 위치: Carefully lift the air conditioner and place it onto the installed mounting brackets. Ensure it is level or slightly tilted outwards to allow for proper drainage.
- 장치 보안: Extend the accordion panels on both sides of the unit to fill the window opening and secure them with the provided screws.
- 틈새를 봉쇄하세요: Use the provided foam insulation strips to seal any gaps around the unit to prevent air leakage.
Video: A real-time demonstration of installing the Frigidaire window air conditioner, highlighting the ease of setup and securing the unit in the window frame.
Video: A detailed guide on installing the window unit, showing how to position and secure the air conditioner in a window.
작동 지침
Your Frigidaire air conditioner offers various modes and settings for personalized comfort. The unit can be controlled via the electronic panel or the included remote control.
제어판 및 리모컨
The electronic control panel features a digital display and touch buttons for power, mode, fan speed, filter alert, and timer. The remote control provides convenient access to all functions from anywhere in the room.

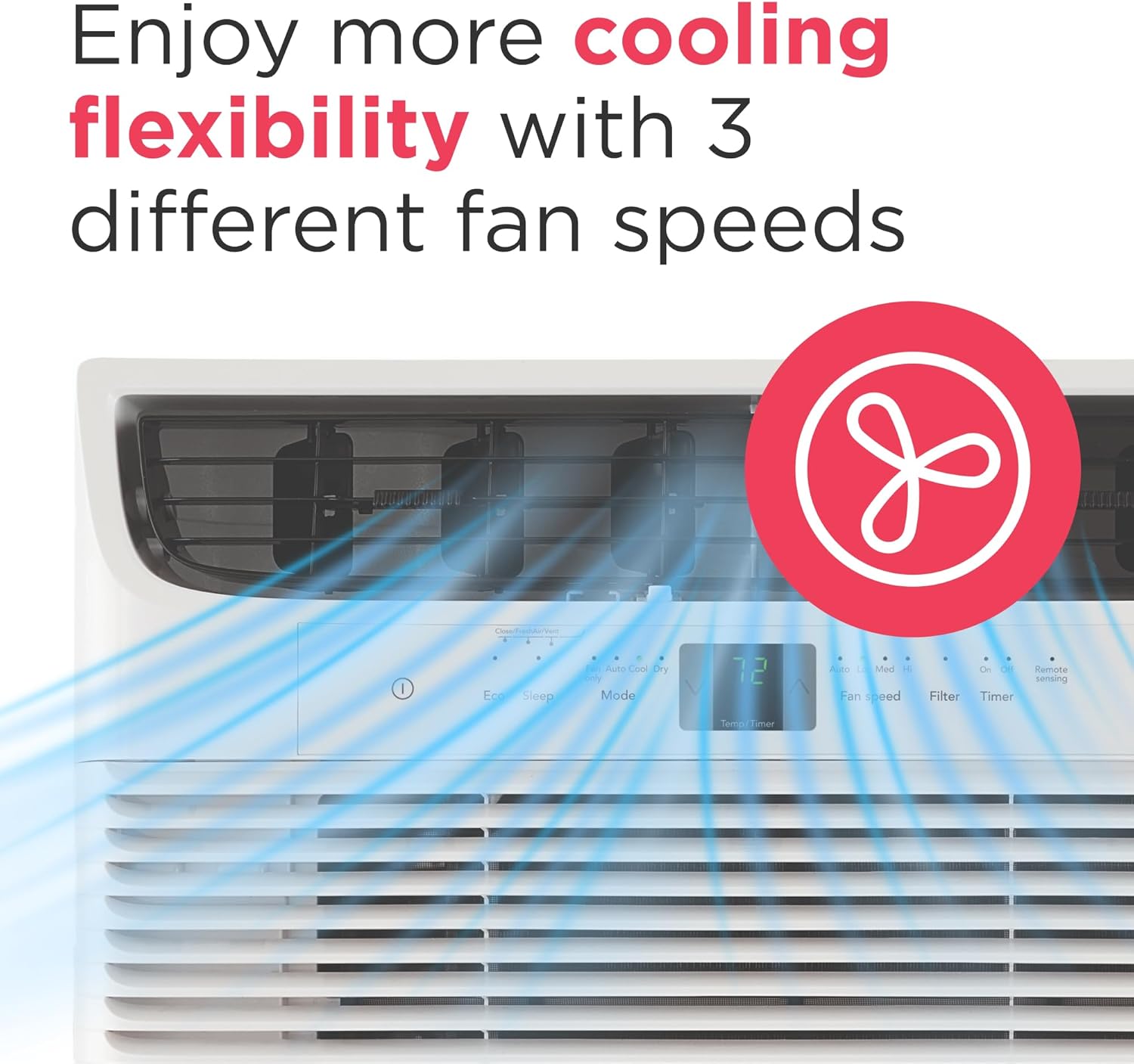

이미지: 클로즈업 view of the Frigidaire air conditioner's control panel, illustrating the digital display and buttons for various settings, including fan speed.
작동 모드
- 쿨 모드 : Provides maximum cooling. Adjust temperature using the +/- buttons.
- 에코 모드: Saves energy by turning the compressor on and off at intervals to maintain the desired temperature.
- 팬 모드: 냉방 기능 없이 공기를 순환시킵니다. 팬 속도는 3단계(저속, 중속, 고속)로 조절할 수 있습니다.
- 건조 모드 : Removes excess moisture from the air, creating a more comfortable environment.
- 수면 모드 : Gradually increases the temperature overnight to conserve energy and provide comfortable sleeping conditions.
팬 속도
Select from Low, Medium, or High fan speeds to control airflow and noise levels. The unit operates quietly at 55 dBA on its lowest setting.
Image: Frigidaire air conditioner installed in a window, with visual cues highlighting its Dehumidifying Dry Mode, Eco Mode, and Sleep Mode features.
Video: A demonstration of how to use the Frigidaire window air conditioner, covering various settings and functions for effective cooling.
비디오: A review discussing the benefits of the window unit's remote control functionality, allowing users to adjust settings conveniently.
유지
정기적인 유지보수는 에어컨의 효율적인 작동을 보장하고 수명을 연장시켜 줍니다.
에어 필터 청소
The unit features an easy-to-clean washable dust filter. A 'Clean Filter' alert will notify you when it's time for cleaning.
- 에어컨을 끄고 전원 콘센트에서 플러그를 뽑으세요.
- 장치의 전면 패널을 엽니다.
- 세척 가능한 먼지 필터를 조심스럽게 제거하세요.
- 필터를 따뜻한 비눗물로 씻으세요. 깨끗이 헹구세요.
- 필터를 장치에 다시 삽입하기 전에 완전히 자연 건조시키세요.
- Close the front panel and plug the unit back in.
Image: A hand pointing to the easy-to-clean washable filter on the Frigidaire air conditioner, emphasizing simple maintenance.
문제 해결
에어컨이 제대로 작동하지 않을 경우, 서비스 센터에 연락하기 전에 다음의 일반적인 문제들을 먼저 확인해 보세요.
- 장치가 켜지지 않습니다: Check if the unit is plugged in securely. Verify the circuit breaker has not tripped. Ensure batteries in the remote control are functional.
- 장치가 효과적으로 냉각되지 않습니다. Check if the air filter is clean. Ensure windows and doors are closed. Verify the temperature setting is appropriate.
- 이상한 소음: 약간의 작동 소음은 정상입니다. 소음이 과도하거나 비정상적인 경우, 제품이 단단히 고정되어 창틀에 부딪혀 진동하지 않는지 확인하십시오.
명세서
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | FHWC123TC1 |
| 냉각 용량 | 12,000비티유 |
| 냉각 영역 | 최대 550제곱피트 |
| 권tage | 115볼트(AC) |
| 왓tage | 1100 와트 |
| 사운드 레벨 | 55 dBA (조용한 작동) |
| 팬 속도 | 3(낮음, 중간, 높음) |
| 특별 기능 | Dust Filter, Filter Light Reminder, Remote Controlled, Eco Mode, Sleep Mode, Dry Mode, 24-hour On/Off Timer, Auto Restart |
| 제품 치수 | 21.4인치 깊이 x 18.9인치 너비 x 14.6인치 높이 |
| 품목 무게 | 63.5파운드 |
Image: Frigidaire 12,000 BTU Window Air Conditioner with key dimensions (14.5"H, 19"W, 21.5"D) and feature icons for 3 Fan Speeds, 55 dBA Noise Level, 550 sq. ft. Cooling Area, and Auto Restart.
보증 및 지원
이 Frigidaire 에어컨에는 다음이 포함됩니다. 1년 제조사 보증. For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided in your product's packaging or visit the official Frigidaire web대지.
