1. 서론
Thank you for choosing the MARS HYDRO iFresh 6-Inch Smart Inline Fan Set. This product is designed to provide efficient and intelligent ventilation for indoor growing environments. It features a variable speed controller and can be managed remotely via the MarsPRO app, offering precise control over your climate.
Please read this manual thoroughly before installation and operation to ensure proper use and to maximize the performance and lifespan of your device.
2. 안전 정보
- 설치, 유지관리 또는 청소를 하기 전에는 항상 전원 공급장치를 분리하세요.
- Ensure the fan is installed in a dry environment, away from water or excessive humidity.
- 전원 코드나 플러그가 손상된 상태로 선풍기를 작동하지 마십시오.
- 작동 중에는 팬 날개에 손이나 이물질이 닿지 않도록 주의하세요.
- 본 제품은 실내에서만 사용하도록 설계되었습니다.
- 장치의 전원을 켜기 전에 모든 연결이 안전한지 확인하십시오.
3. 패키지 내용
포장을 풀 때 모든 구성 요소가 들어 있고 손상되지 않았는지 확인하세요.
- 1 x MARS HYDRO iFresh 6-Inch Inline Duct Fan
- 1 x Variable Speed Controller
- 1 x 활성탄 필터
- 1 x Machine Washable Pre-filter Cloth
- 1 x Flexible Ducting (double-layer Aluminum film)
- 3 x Duct Clamps
- 1 x 스트랩
- 1 x Vent Cover
- 1 x 전원 어댑터

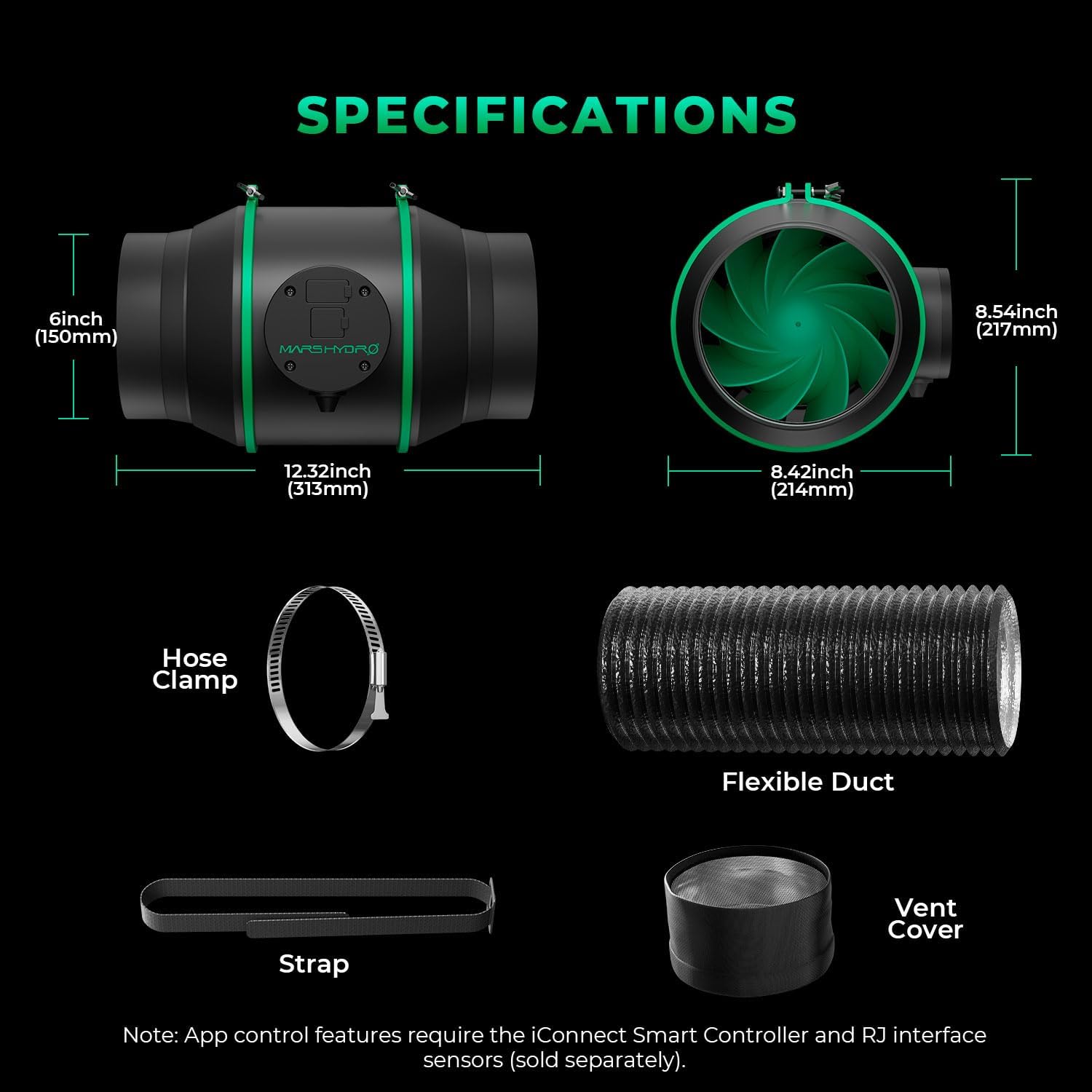

A diagram illustrating the dimensions of the MARS HYDRO iFresh 6-inch inline fan and its accompanying accessories, including hose clamps, flexible duct, strap, and vent cover.
4. 설정 및 설치
4.1 Fan and Filter Assembly
- Unpack the inline fan and carbon filter.
- Slide the pre-filter cloth over the carbon filter.
- Connect one end of the flexible ducting to the exhaust port of the inline fan using a duct clamp. 단단히 조입니다.
- Connect the other end of the flexible ducting to the carbon filter using another duct clamp. 공기 누출을 방지하기 위해 밀봉을 단단히 하세요.
This image displays the MARS HYDRO iFresh 6-inch inline duct fan connected to a carbon filter, illustrating the complete ventilation unit.
A cross-section diagram of the MARS HYDRO iFresh carbon filter, detailing its components: pre-filter, outer mesh, activated carbon, and inner mesh.
4.2 팬 장착
- The fan can be hung using the included strap or placed on a flat surface.
- Ensure the fan is positioned to draw air from the grow space through the carbon filter and exhaust it effectively.
- Maintain proper airflow direction as indicated by arrows on the fan housing.
An illustration of the MARS HYDRO iFresh inline fan's high-efficiency EC motor system, demonstrating the mixed-flow design and airflow direction.
4.3 컨트롤러 연결
- Connect the variable speed controller to the fan's USB or RJ interface port.
- Plug the power adapter into the fan and then into a suitable power outlet.
This image highlights the USB and RJ interface ports on the MARS HYDRO iFresh inline fan, indicating connection points for the iConnect Smart Controller and other sensors.
5. 사용 설명서
5.1 수동 제어
- Use the physical knob on the variable speed controller to adjust the fan speed.
- Turn the knob clockwise to increase speed and counter-clockwise to decrease speed.
- The controller also features an on/off switch.
5.2 App Control (MarsPRO APP)
- Download the MarsPRO APP from your smartphone's app store.
- Follow the in-app instructions to connect your iFresh inline fan to the app.
- Once connected, you can remotely control fan speed, turn the fan on/off, and set advanced features.
- The app allows for setting alarms, climate triggers, and loop timers for automated operation.
- Monitor real-time environment data such as fan speed (RPM) and airflow (CFM) directly on the app screen.
This image shows the MARS HYDRO iFresh inline fan with its manual control knob and a smartphone displaying the MarsPRO app interface, illustrating both control methods.
This image shows a smartphone running the MarsPRO app, demonstrating remote control and monitoring capabilities for the MARS HYDRO iFresh inline fan within a grow tent setup.
6. 유지관리
6.1 팬 청소
- 청소하기 전에 전원을 분리하세요.
- Use a soft, dry cloth to wipe down the exterior of the fan.
- For internal cleaning, carefully remove the fan housing (if applicable and safe to do so) and gently clean the blades with a soft brush or compressed air. Do not use water or liquid cleaners directly on electrical components.
6.2 Carbon Filter Maintenance
- The pre-filter cloth is machine washable. Remove it from the carbon filter and wash as needed to maintain optimal airflow and filtration.
- The activated carbon inside the filter is refillable/replaceable. Replace the carbon when odor absorption efficiency decreases.
7. 문제 해결
- 팬이 켜지지 않음: Check power connections, ensure the power adapter is securely plugged in, and verify the on/off switch on the controller is in the 'on' position.
- 낮은 기류: Check for obstructions in the ducting or filter. Ensure the pre-filter cloth is clean. Verify fan speed settings.
- 과도한 소음 : Ensure the fan is securely mounted and not vibrating against surfaces. Check for loose components or debris in the fan blades.
- 앱 연결 문제: Ensure your smartphone's Bluetooth/Wi-Fi is enabled and the fan is within range. Restart the app and the fan if necessary. Refer to the MarsPRO app's help section for specific connectivity troubleshooting.
- Odor not being removed: The carbon filter may be saturated. Clean the pre-filter or replace the activated carbon.
8. 사양
| 특징 | 사양 |
|---|---|
| 상표 | 화성 하이드로 |
| 모델명 | MH-6iFreshkit |
| 제품 치수 | 12.32 x 8.42 x 8.54 인치 |
| 품목 무게 | 7.42킬로그램(16.32파운드) |
| 전원 | 교류/직류 |
| 왓tage | 75 와트 |
| 권tage | 220볼트(AC) |
| 소음 수준 | 32데시벨 |
| 공기 흐름(최대) | 최대 402CFM |
| 모터 유형 | PWM-controlled EC-powered motor |
| Carbon Filter Material | 1050+ Virgin Australian Activated Charcoal |
| Ducting Material | Double-layer Aluminum film |
9. 보증 및 지원
MARS HYDRO products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official MARS HYDRO web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
For technical support, troubleshooting assistance, or replacement parts, please contact MARS HYDRO customer service through their official web사이트 또는 제품 설명서와 함께 제공된 연락처 정보를 참조하세요.
