소개
The KomeStone K2 Elite Rock Tumbler is designed to transform rough, raw rocks into beautifully polished gemstones. This kit provides an engaging and educational experience, revealing the geological process of rock transformation. Featuring a cutting-edge brushless motor and advanced noise-reduction technology, it offers an ultra-quiet operation, making it suitable for indoor use.
This manual provides comprehensive instructions for setting up, operating, and maintaining your rock tumbler to achieve optimal results.
무엇이 포함됩니까?
Your KomeStone K2 Elite Rock Tumbler Kit comes with all necessary components to begin your rock tumbling journey:
- KomeStone K2 Elite Tumbler Machine
- 3 lbs Capacity Rubber Barrel
- 1 lb Rough Rocks (assorted)
- 2 Drive Belts (spare included)
- 4 Polishing Grits (Coarse, Medium, Pre-Polish, Polish)
- Ceramic Tumbling Media
- Jewelry Fasteners (keychains, rings)
- 드라이버
- 숟가락
- Full-Color Instruction Book
Image: All components included in the KomeStone K2 Elite Rock Tumbler Kit, including the tumbler, barrel, rough rocks, grits, and accessories.
설정
Before operating your KomeStone K2 Elite Rock Tumbler, ensure it is placed on a stable, flat surface. Follow these steps to prepare the tumbler for its first use:
- 구성 요소 풀기: Carefully remove all items from the packaging and verify that all parts listed in the "What's Included" section are present.
- Inspect the Tumbler: Check the tumbler unit for any visible damage. Ensure the drive belt is properly seated around the motor shaft and the barrel rollers.
- 배럴을 준비하세요: The 3 lbs capacity rubber barrel is designed for durability and noise reduction. Ensure the inner and outer lids are clean and free of debris before use. The barrel features a three-layer leakproof design with double stainless steel lids and an extra-large knob for secure sealing.
이미지: 상세 view of the premium 3lb tumbler barrel, highlighting its three-layer leakproof design with inner lid, outer lid, and extra-large knob.
작동 지침
The rock tumbling process involves several stages, each using a different grit to progressively smooth and polish the rocks. The KomeStone K2 Elite is designed for ease of use with its intuitive controls and brushless motor for quiet operation.
Image: A visual representation of the four main steps in rock tumbling: adding rocks, adding grits and water, powering on, and the resulting polished gemstones.
Tumbling Process Steps:
- Step 1: Coarse Grinding (60 Grit)
이 초기 stage is for shaping and smoothing rough rocks. Fill the barrel approximately 2/3 to 3/4 full with rough rocks. Add enough Coarse Grit (Step 1) to cover the rocks, typically 2-4 tablespoons depending on the rock volume. Add water until it just covers the rocks. Securely seal the barrel with both lids and the knob.
Place the barrel onto the tumbler base. Set the desired tumbling duration using the "DAYS" controls and adjust speed if necessary. Run for 7-10 days. After this period, empty the barrel, thoroughly clean the rocks and barrel to remove all grit residue. Inspect rocks and repeat if further shaping is needed.
- Step 2: Medium Smoothing (150 Grit)
이것은tage refines the shaping from Step 1. Return the cleaned rocks to the barrel. Add Medium Grit (Step 2) and water as in Step 1. Securely seal the barrel. Run for 7-10 days. Clean rocks and barrel thoroughly after this stage.
- Step 3: Pre-Polishing (600 Grit)
이것은tage prepares the rocks for final polishing. Return the cleaned rocks to the barrel. Add Pre-Polish Grit (Step 3) and water. For best results in this stage, consider adding ceramic tumbling media to cushion the rocks and improve tumbling action, especially for smaller pieces. Securely seal the barrel. Run for 5-7 days. Clean rocks and barrel meticulously; any remaining grit from previous stages can contaminate the final polish.
- Step 4: Final Polishing (1200 Grit)
이것이 최종 Stage to achieve a brilliant shine. Return the cleaned rocks to the barrel. Add Polish Grit (Step 4) and water. Ensure the barrel and rocks are absolutely free of any coarser grit. Run for 5-7 days. Once complete, remove the polished gemstones and rinse them under clean water. They are now ready for display or crafting into jewelry.
Image: The four stages of rock tumbling grits (Coarse, Medium, Pre-Polish, Polish) and ceramic tumbling media, essential for achieving smooth, shiny gemstones.
Image: An illustration showing the transformation of rough, unpolished rocks into smooth, vibrant gemstones through the tumbling process.
유지
Proper maintenance ensures the longevity and optimal performance of your KomeStone K2 Elite Rock Tumbler.
- 배럴 청소: After each tumbling stage, thoroughly rinse the rubber barrel and its lids with clean water to remove all grit residue. Ensure no grit from a previous stage remains, as it can contaminate the next stage and prevent proper polishing.
- Cleaning the Tumbler Base: Wipe down the tumbler base with a damp cloth to remove any dust or spills. Do not submerge the base in water.
- 벨트 검사: Periodically check the drive belt for wear and tear. If the belt appears stretched, cracked, or damaged, replace it with one of the included spare belts.
- 모터 케어: The K2 Elite features a brushless motor designed for durability and quiet operation. No specific user maintenance is required for the motor itself.
문제 해결
If you encounter any issues with your KomeStone K2 Elite Rock Tumbler, please refer to the following common troubleshooting tips. KomeStone provides lifetime troubleshooting and technical support for its products.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Tumbler not turning on | 플러그가 꽂혀 있지 않음; 전원 스위치 꺼짐; 전원 꺼짐tage. | Ensure power cord is securely plugged into a working outlet. Check the On/Off switch. Verify power supply. |
| 배럴이 회전하지 않음 | Drive belt dislodged or broken; barrel overloaded; motor issue. | Check and re-seat the drive belt. Replace belt if broken. Reduce the amount of rocks in the barrel. Contact support if motor issue is suspected. |
| 작동 중 과도한 소음 | Barrel not properly seated; foreign object in barrel; rocks too large/unevenly distributed. | Ensure barrel is correctly placed on rollers. Check inside barrel for obstructions. Adjust rock size and distribution. The K2 Elite features double noise reduction for quiet operation. |
| Rocks not polishing properly | Insufficient tumbling time; incorrect grit usage; contamination between stages; barrel not sealed. | Increase tumbling duration. Ensure correct grit is used for each stage. Thoroughly clean rocks and barrel between stages. Verify barrel is securely sealed. |
For any issues not covered here, or for further assistance, please contact KomeStone customer support directly.
명세서
- 모델: K2 Elite
- 상표: 코메스톤
- 모터 유형: 무브러시 모터
- 배럴 용량: 3파운드
- 소음 감소: Yes (Double Noise-Reduction: Noise-Reducing Door + Tire Level Rubber Barrel)
- 전원: Standard electrical outlet (details not specified in input, assuming standard household)
- ASIN: B0CCPCSP58
- 제조업체: 코메스톤

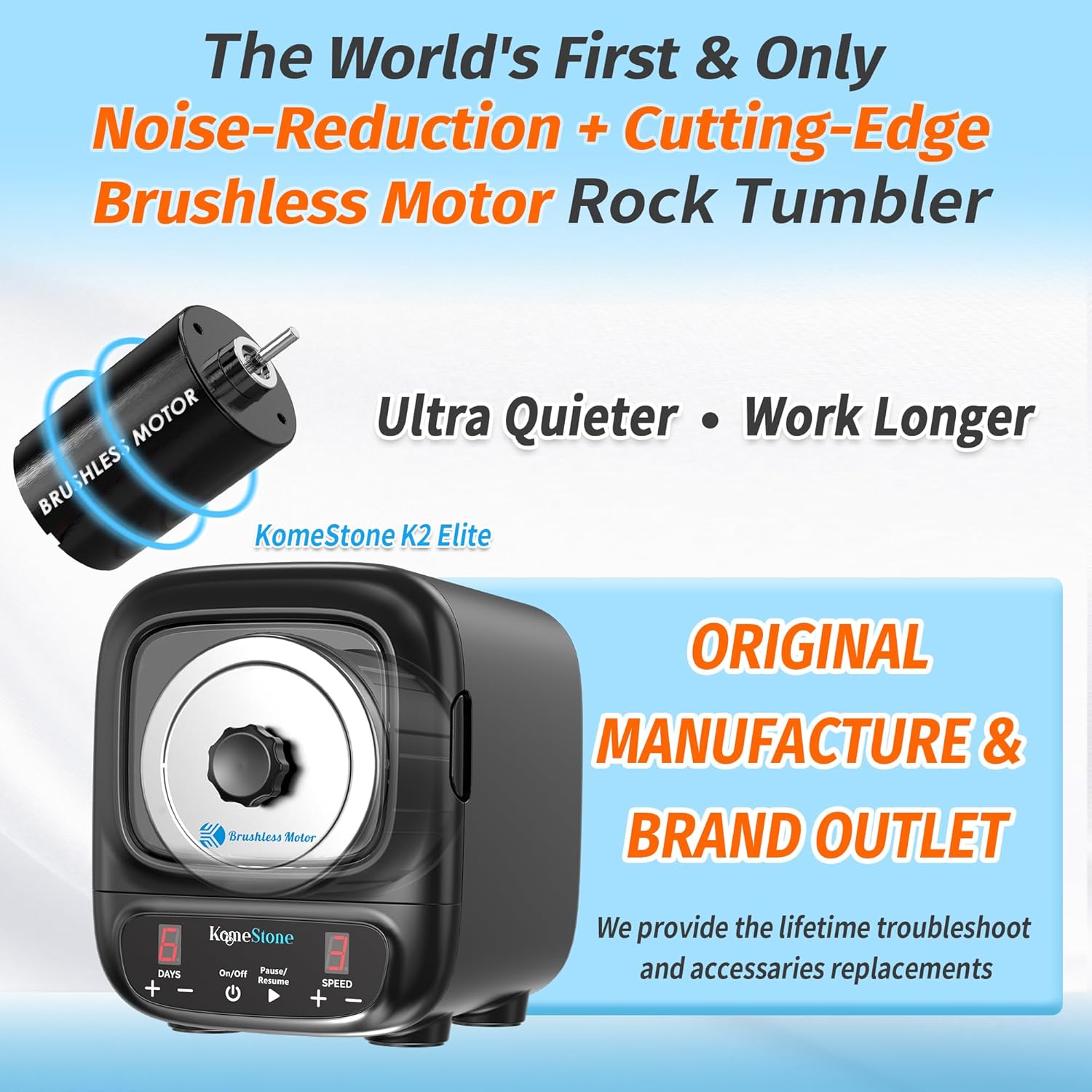

Image: The KomeStone K2 Elite rock tumbler, emphasizing its brushless motor for quiet operation and extended lifespan.

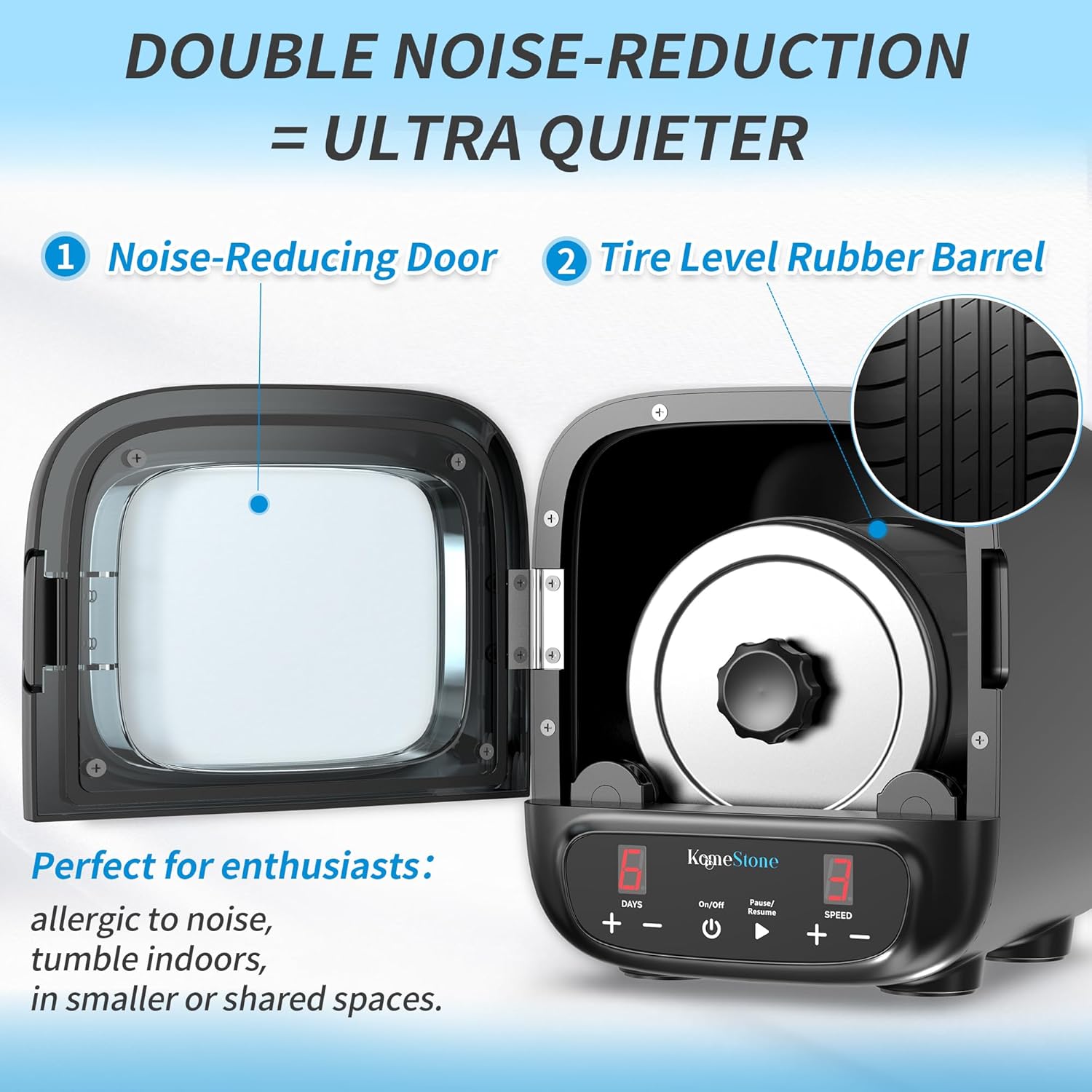

이미지: 컷어웨이 view of the KomeStone K2 Elite rock tumbler, illustrating its double noise-reduction features: the noise-reducing door and the tire-level rubber barrel.
보증 및 지원
KomeStone is committed to providing excellent customer service and stands behind the quality of the K2 Elite Rock Tumbler.
- Lifetime Troubleshooting Support: KomeStone offers lifetime troubleshooting and technical support for your product.
- Lifetime Accessory Replacement Service: Enjoy peace of mind with lifetime accessory replacement service for your K2 Elite Rock Tumbler.
- 연락처 정보: For any product issues, technical assistance, or accessory replacements, please contact KomeStone customer service directly. Refer to the contact details provided in your product packaging or on the official KomeStone web대지.
Image: KomeStone's commitment to customer support, highlighting lifetime troubleshooting, technical support, and accessory replacements.
