소개
The Briidea precise monitoring system is specifically designed to monitor the water level in the fresh water tank of a mobile home. This system allows you to refill the tank in a timely manner, preventing situations where the tank runs empty. The kit includes all necessary components, eliminating the need to purchase additional sensing electrodes and saving both time and money.
안전 정보
- 설치 또는 유지 관리 전에 항상 전원을 차단하십시오.
- Ensure proper wiring connections to avoid electrical hazards. Refer to the wiring diagram.
- 본 제품을 극한의 온도나 물에 직접 담그지 마십시오.
- This device is intended for fresh water tanks only. Do not use with other liquids.
- 어린이의 손이 닿지 않는 곳에 보관하세요.
패키지 내용
The Briidea RV Fresh Water Tank Level Sensor Panel package typically includes:
- RV Water Tank Level Display Panel with LED Indicator
- Non-contact Water Level Sensor
- 전선 연결
- 장착 나사
명세서
| 상표 | Briidea |
| 모델 | HRWL-01US |
| 전원 입력 | DC 7-32V |
| 검출 방법 | 비접촉 |
| Max Detection Depth | 13피트(약 3.96미터) |
| 디스플레이 유형 | LED 표시등 |
| 제품 치수 | 7.62 x 2.54 x 2.54cm (대략) |
| 품목 무게 | 159그램 |
설정 및 설치
1. Sensor Placement (Contactless Detection)
The Briidea system utilizes a non-contact detection method, ensuring the cleanliness and hygiene of your fresh water by avoiding direct contact between the sensor and the water. For optimal performance, the sensor must be installed in the middle of the water tank.
영상: Contactless detection method. The sensor should be installed in the middle of the tank. The detection diameter is approximately 0.5 times the tank height.
2. Tank Compatibility Reminder
구매 전asing and installing, please ensure your water tank meets the following requirements for accurate readings:
- The sensor should be installed in the middle of the water tank.
- The length of the water tank should be approximately twice its height.
3. Simple Wiring
Connect the sensor panel to your DC 7-32V power source (e.g., RV battery) and the water tank sensor as shown in the diagram. Ensure all connections are secure and correctly polarized.
영상: Simple wiring diagram for the sensor panel, battery, and water tank sensor.
4. Mounting the Display Panel
Choose a convenient and visible location inside your RV or boat for the display panel. Use the provided mounting screws to secure the panel. Ensure there is enough space behind the panel for wiring connections.
작동 지침
1. LED 표시등
The display panel features multi-colored LED indicator lights that provide an instant, at-a-glance overview of the current water level in your tank. This eliminates the need for manual daily checks by opening the tank.
영상: LED indicator lights on the Briidea sensor panel, providing a visual representation of water levels.
2. Power-Off Memory Function
The device includes a power-off memory function. In the event of a power interruption or malfunction, there is no need to reconfigure the settings, making it more convenient for continuous use.
유지
- 청소: Wipe the display panel with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- 센서 검사: Periodically check the external sensor for any physical damage or loose connections.
- 배선 점검: Ensure all wiring remains secure and free from corrosion.
- Tank Condition: Maintain the cleanliness of your fresh water tank to prevent buildup that might affect sensor performance over time.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Incorrect water level reading (e.g., flashing red when tank is half full) |
|
|
| 화면/전원 안 켜짐 |
|
|
| 일관되지 않은 판독값 |
|
|
광범위한 응용 프로그램
The RV water level gauge is powered by a DC 7-32V power source, making it suitable for various off-grid applications. It is specifically designed for detecting water levels in fresh water tanks across a range of recreational vehicles and marine craft.
- 레크리에이션 차량(RV)
- Campers
- 보트
- Large Caravans

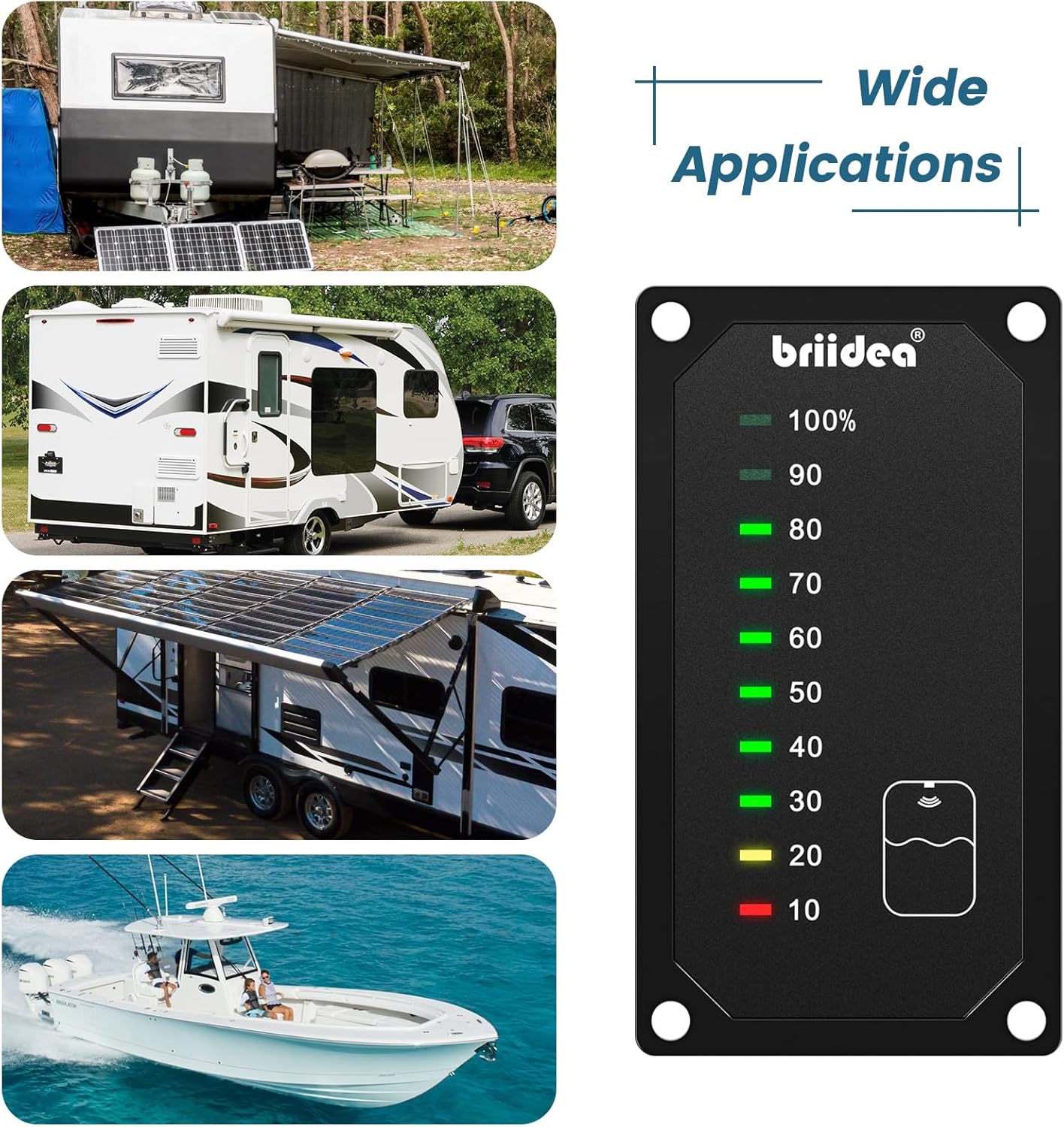

영상: Examples of wide applications for the Briidea water level sensor panel, including RVs, camp어, 그리고 보트.
보증 정보
This product comes with a standard manufacturer's warranty. Please refer to the product packaging or contact the retailer for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
지원하다
For technical assistance, troubleshooting, or any questions regarding your Briidea RV Fresh Water Tank Level Sensor Panel, please contact Briidea customer support through their official website or the retailer where the product was purchased. Have your model number (HRWL-01US) and purchase details ready when contacting support.
