Retevis RB39P Bluetooth Walkie Talkies Instruction Manual

소개

This manual provides comprehensive instructions for the safe and effective use of your Retevis RB39P Bluetooth Walkie Talkies. These portable FRS two-way radios offer license-free communication, hands-free operation with wireless earpieces, and a compact design suitable for various professional and personal environments.

패키지 내용

아래 나열된 모든 품목이 패키지에 포함되어 있는지 확인하세요.

• 4 x RB39P Bluetooth Walkie Talkies
• 4 x Bluetooth Earpiece and Ear Hook
• 4 x 벨트 클립
• 2 x USB 충전 케이블
• 사용 설명서 (본 문서)

제품 특징

• Pre-Paired Wireless Earpieces: RB39P walkie-talkies and earpieces are pre-paired for immediate use.
• Auto-Reconnect Function: Earpieces automatically reconnect after being turned on, with a communication range of up to 10 meters in open areas.
• 컴팩트하고 내구성 있는 디자인: Featuring a 0.7-inch thin profile, stubby antenna, and rugged frame, the RB39P is designed for portability and durability.
• 핸즈프리 작동: Wireless earpieces with PTT touch buttons allow for convenient, hands-free communication.
• C형 충전: Convenient USB-C charging for both walkie-talkies and earpieces.
• 긴 배터리 수명: 1000mAh rechargeable battery provides approximately 8 hours of working time.
• 라이선스 없이 사용 가능한 FRS: FRS 주파수 대역에서 작동하므로 사용 허가가 필요하지 않습니다.

설정

배터리 설치

The RB39P walkie talkies come with pre-installed rechargeable Lithium Ion batteries. No initial installation is required. If replacing batteries, ensure correct polarity and secure the battery cover.

Charging the Walkie Talkie and Earpiece

Use the provided USB-C charging cables to charge the walkie talkies. The earpieces are also charged via USB-C. A red indicator light typically signifies charging, and it turns green when fully charged.

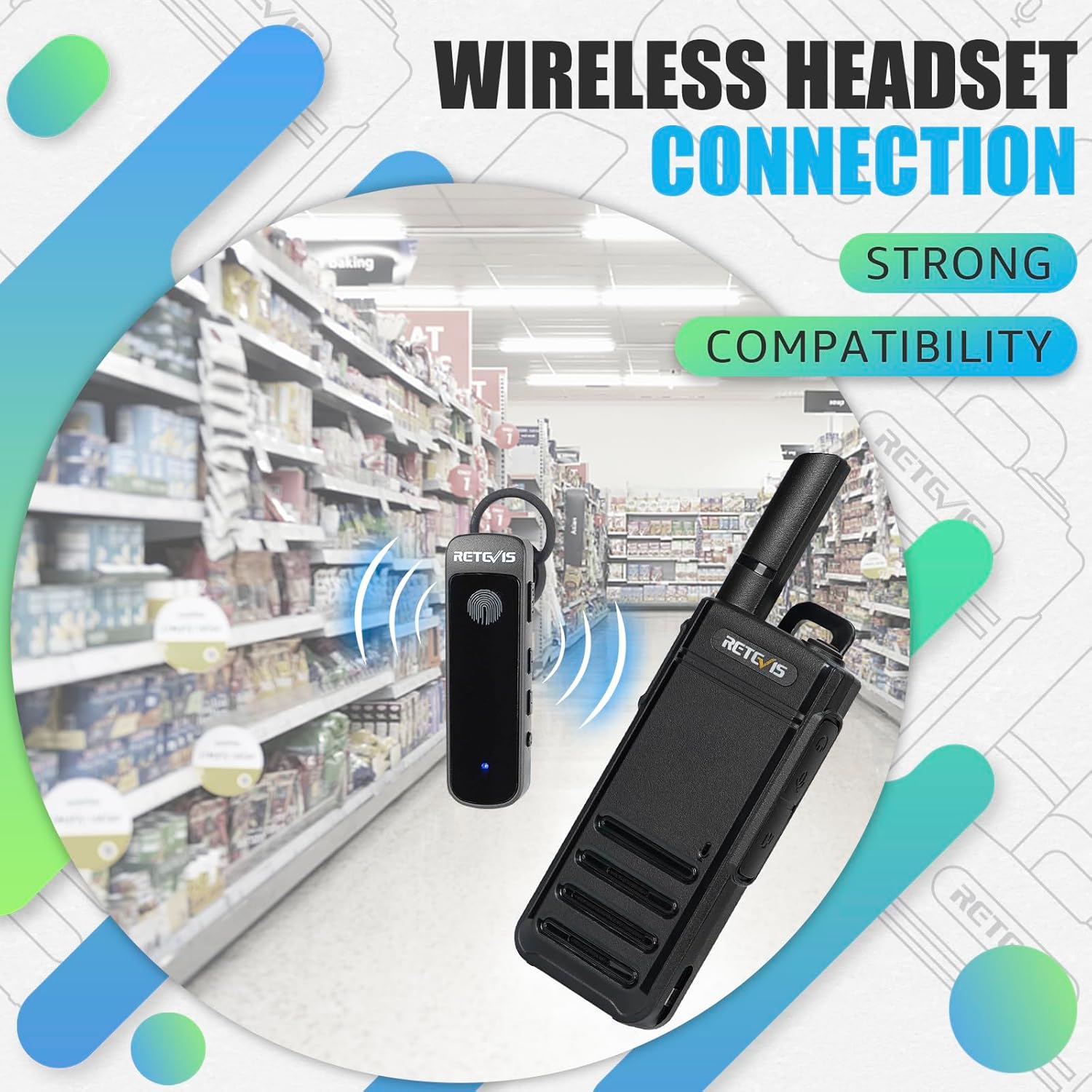

Earpiece Pairing

The RB39P walkie talkies and their wireless earpieces are pre-paired from the factory. To confirm connection, short press the menu button on the walkie talkie and then turn on the wireless earpiece. The headset will prompt 'connected' (in English) upon successful connection. Note that RB39P earpieces cannot be paired with other wireless headsets.

작동 지침

전원 켜기/끄기

To power on the walkie talkie, rotate the top knob clockwise until you hear a click and a voice prompt. To power off, rotate the knob counter-clockwise until you hear a click.

채널 선택

Use the channel up/down buttons on the side of the walkie talkie to select one of the 22 available FRS channels. A voice prompt will announce the selected channel number.

푸쉬투톡(PTT)

Press and hold the large orange PTT button on the side of the walkie talkie to transmit your voice. Release the button to listen for incoming transmissions. For hands-free operation, use the PTT button on the paired Bluetooth earpiece.

VOX 기능(음성 교환)

The VOX function allows for hands-free transmission without pressing the PTT button. When activated, the radio will transmit automatically when it detects your voice. Refer to the detailed user manual for activation and sensitivity level adjustment.

비상 경보

The RB39P features an emergency alarm function. This can be activated by a long press of a designated side key (refer to the full user manual for specific button assignment). When activated, the radio will transmit an alarm tone to all radios on the same channel.

잠금 키패드

To prevent accidental channel changes or function activation, the keypad lock feature can be engaged. This is typically done by pressing and holding a combination of buttons. Refer to the full user manual for specific instructions on locking and unlocking the keypad.

유지

To ensure the longevity and optimal performance of your Retevis RB39P walkie talkies:

• Clean the radio and earpiece with a soft, damp 옷감. 가혹한 화학 물질을 피하십시오.
• Do not expose the devices to extreme temperatures, direct sunlight, or moisture. The device is not water resistant.
• 배터리 수명을 유지하려면 자주 사용하지 않더라도 정기적으로 배터리를 충전하십시오.
• If storing for extended periods, remove batteries to prevent potential leakage and damage.

문제 해결

If you encounter issues with your RB39P walkie talkies, try the following:

• 전원 없음: 배터리가 완전히 충전되었고 올바르게 설치되었는지 확인하세요.
• 통신 없음: Verify that all walkie talkies are on the same channel. Check that the earpieces are properly paired.
• 낮은 오디오 품질: Ensure the earpiece is securely in place. Check for obstructions between radios. Adjust volume levels.
• Earpiece Not Pairing: Ensure the earpiece is charged. Follow the pairing instructions in the Setup section.
• 제한된 범위: Range can be affected by terrain, buildings, and other obstructions. Move to an open area if possible.

명세서

보증 및 지원

Retevis provides a 2-year warranty for the radio body and a 1-year warranty for accessories. A 30-day no-reason return policy is also offered. For support or warranty claims, please contact Retevis Direct on Amazon. They aim to reply within 12 hours.
