1. 서론
The GAMDIAS HELIOS P2-1000G is a fully modular power supply unit designed for high-performance computing systems. It features 80 Plus Gold certification for energy efficiency, supports ATX 3.1 and PCIe Gen 5.1 standards, and incorporates 100% Japanese capacitors for enhanced reliability. This manual provides essential information for the safe installation, operation, and maintenance of your power supply.

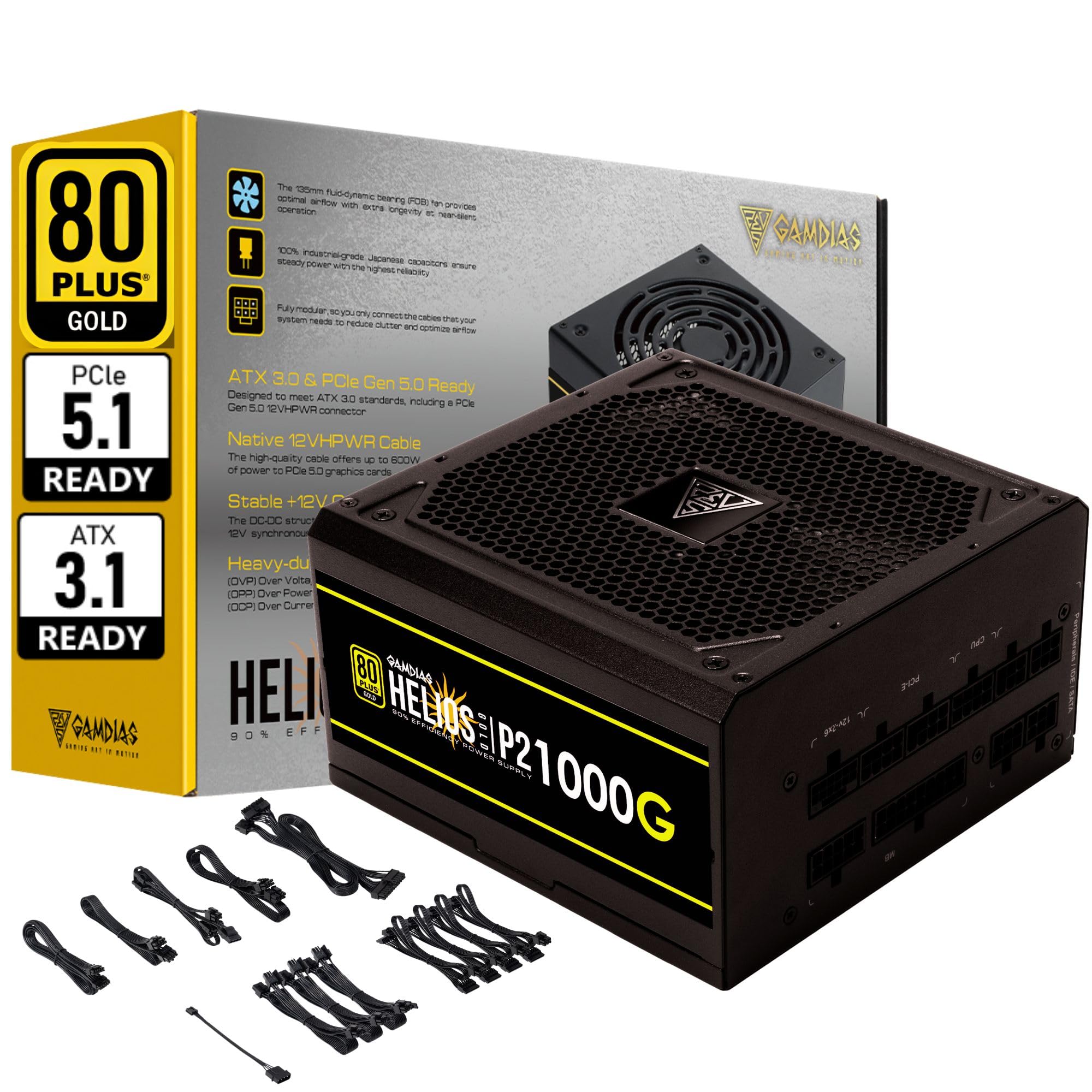

이미지 1.1: 이상view of the GAMDIAS HELIOS P2-1000G Power Supply.
2. 안전 정보
- 높은 Voltage: 전원 공급 장치에는 고전압이 포함되어 있습니다.tage 구성 요소. 전원 공급 장치를 열지 마십시오.asing. 내부에는 사용자가 수리할 수 있는 부품이 없습니다. 제품을 열면 보증이 무효화되고 감전 위험이 있습니다.
- 적절한 접지: Ensure the power supply is properly grounded using the provided power cord.
- 통풍: Do not block the ventilation openings of the power supply. Ensure adequate airflow around the unit to prevent overheating.
- 환경: 습도가 높거나, 온도가 극한으로 높거나, 먼지가 과도하게 많은 환경에는 전원 공급 장치를 설치하지 마십시오.
- 전원 끄기 : Always disconnect the AC power cord from the wall outlet before installing, removing, or cleaning the power supply or any connected components.
- 정확한 와트tage: 전원 공급 장치의 와트 수를 확인하십시오.tage is sufficient for your system's components.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- GAMDIAS HELIOS P2-1000G Power Supply Unit
- Modular Cable Set (including 24-pin ATX, CPU, PCIe, SATA, Molex, and 12VHPWR cables)
- AC 전원 코드
- 장착 나사
- 사용 설명서 (본 문서)
4. 제품 특징
The HELIOS P2-1000G power supply incorporates several features designed for performance and reliability:
- 80 PLUS Gold 인증 효율: Achieves up to 92% efficiency at 50% load, reducing power consumption and heat generation.
- ATX 3.1 and PCIe Gen 5.1 Ready: Designed to meet the latest power standards, supporting next-generation graphics cards with up to 200% total power excursion.
- Native 12VHPWR Cable: Includes a native 16-pin (12VHPWR) PCIe connector capable of delivering up to 600W for PCIe 5.1 graphics cards.
- Quiet Operation with 135mm Dual-Ball Bearing Smart Fan: Features a high-quality 135mm fan with a dual-ball bearing design for durability and quiet operation. The smart fan control adjusts speed based on load to minimize noise.
- 완전 모듈식 설계: Allows for connecting only the necessary cables, improving cable management and airflow within the PC case.
- 프리미엄 일본산 콘덴서: Built with 100% high-quality Japanese 105°C/221°F electrolytic capacitors for superior durability and power stability.
- 포괄적인 보호 메커니즘: Includes Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Over Power Protection (OPP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP) to ensure system safety.
Image 4.1: Key features of the HELIOS P2-1000G, including PCIe 5.1 and ATX 3.1 readiness.
Image 4.2: The 80 Plus Gold certification ensures high energy efficiency.
Image 4.3: The power supply is ready for ATX 3.1 and PCIe Gen 5.1, offering improved power excursion.
Image 4.4: Icons representing the various protection features integrated into the power supply.
5. 설정 및 설치
5.1 물리적 설치
- 시스템 준비: 컴퓨터의 전원이 완전히 꺼져 있고 벽면 콘센트에서 플러그가 뽑혀 있는지 확인하세요.
- PSU를 장착하세요: Carefully slide the HELIOS P2-1000G into the power supply bay of your PC case. Ensure the fan is oriented correctly (typically facing downwards for bottom-mounted PSUs, or upwards if your case design requires it for optimal airflow).
- 전원 공급 장치를 고정하십시오: 제공된 장착 나사를 사용하여 전원 공급 장치를 PC 케이스 후면에 고정하십시오.
5.2 케이블 연결
The HELIOS P2-1000G is fully modular. Connect only the cables required for your system components.
- 24핀 ATX 마더보드 케이블: Connect the large 24-pin cable to the corresponding port on your motherboard. Ensure it clicks into place.
- CPU (EPS) Cable: Connect the 4+4-pin or 8-pin CPU cable to the CPU power connector(s) on your motherboard. High-end motherboards may require two 8-pin connectors.
- PCIe Graphics Card Cables:
- 12VHPWR Cable: For compatible PCIe 5.1 graphics cards, connect the native 16-pin 12VHPWR cable directly to the GPU. Ensure a firm connection.
- 6+2-pin PCIe Cables: For other graphics cards, connect the 6+2-pin PCIe cables to the GPU power connectors.
- SATA 전원 케이블: SATA 전원 케이블을 SSD, HDD 및 기타 SATA 전원 공급 장치에 연결하십시오.
- 주변 장치(Molex) 케이블: Connect Molex cables for any legacy peripherals that require them.
- AC 전원 코드: Once all internal connections are made, connect the AC power cord to the power supply and then to a grounded wall outlet.
Image 5.1: The native 16-pin 12VHPWR cable for direct connection to PCIe 5.1 graphics cards.
Image 5.2: Illustration of the fully modular design, showing various cable connections.
6. 사용 설명서
6.1 시스템 전원 켜기
After ensuring all cables are securely connected, flip the power switch on the back of the power supply to the 'ON' (I) position. You can then power on your computer using the case's power button.
6.2 Smart Fan Control
The HELIOS P2-1000G features a smart fan control system. The 135mm fan will adjust its speed automatically based on the power supply's load and internal temperature. This ensures optimal cooling while minimizing noise during lighter loads.
Image 6.1: Graph illustrating the smart fan's speed adjustment relative to power output.
7. 유지관리
7.1 청소
To maintain optimal performance and longevity, periodically clean the power supply:
- 전원 분리: Always unplug the AC power cord from the wall outlet and the power supply before cleaning.
- 먼지 제거: Use compressed air to gently blow dust out of the fan grille and ventilation openings. Hold the fan blades to prevent them from spinning rapidly during cleaning, which can damage the bearings.
- 외부 청소: Wipe the exterior of the power supply with a soft, dry cloth. Do not use liquid cleaners or solvents.
7.2 보관
If storing the power supply, keep it in a cool, dry environment, away from direct sunlight and extreme temperatures. Use its original packaging if available to protect it from dust and physical damage.
8. 문제 해결
전원 공급 장치에 문제가 발생하면 다음의 일반적인 문제 해결 단계를 참조하십시오.
- 전원 없음:
- AC 전원 코드가 전원 공급 장치와 벽면 콘센트에 모두 단단히 연결되어 있는지 확인하세요.
- 파워서플라이 뒷면의 전원 스위치가 '켜짐'(I) 위치에 있는지 확인하십시오.
- Verify all modular cables are firmly seated in both the power supply and the components.
- 다른 장치로 벽면 콘센트를 테스트하여 전원이 들어오는지 확인하세요.
- 시스템 불안정/충돌:
- 시스템의 전원 요구 사항이 PSU의 1000W 용량을 초과하지 않는지 확인하세요.
- 케이블 연결 상태를 확인하고, 특히 마더보드와 그래픽 카드에 연결된 케이블이 헐거워지지 않았는지 점검하십시오.
- Ensure adequate ventilation within your PC case to prevent overheating of components, including the PSU.
- 큰 팬 소음:
- The fan speed adjusts based on load. High system load will naturally increase fan speed.
- Check for dust accumulation in the fan or vents and clean as described in the Maintenance section.
If issues persist after performing these steps, contact GAMDIAS customer support.
9. 사양
| 특징 | 사양 |
|---|---|
| 모델명 | 헬리오스 P2-1000G |
| 상표 | 감디아스 |
| 출력 와트tage | 1000 와트 |
| 폼 팩터 | 에이티엑스 |
| 효율성 인증 | 80 PLUS 골드 |
| 냉각 방식 | Air (135mm Dual-Ball Bearing Smart Fan) |
| 커넥터 유형 | ATX, PCI Express (Native 12VHPWR) |
| 호환 장치 | 개인용 컴퓨터 |
| 제품 크기(L x W x H) | 12.8 x 8.27 x 4.13 인치 |
| 품목 무게 | 7.28파운드(3300그램) |
| 첫 번째 이용 가능 날짜 | 19년 2023월 XNUMX일 |
10. 보증 정보
GAMDIAS products are manufactured to the highest quality standards. For detailed warranty terms and conditions, please refer to the official GAMDIAS web사이트 또는 제품에 포함된 보증서를 확인하세요. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
11. 고객 지원
If you require technical assistance or have questions regarding your GAMDIAS HELIOS P2-1000G power supply, please visit the official GAMDIAS support website or contact their customer service department. Contact information can typically be found on the GAMDIAS web사이트 또는 제품 포장.
