Menabò Steel Black Roof Bars - User Manual

1. 서론

This user manual provides comprehensive instructions for the safe and effective installation, operation, and maintenance of your Menabò Steel Black Roof Bars. These roof bars are specifically designed for the SEAT Ibiza IV 5-door model from the year 2016, featuring a smooth roof. Please read this manual thoroughly before attempting installation or use to ensure proper functionality and safety.

Figure 1: Complete Menabò Steel Black Roof Bars kit, including bars, locks, and accessories.

2. 안전 정보

Your safety and the safety of others are paramount. Adhere to all safety guidelines provided in this manual.

• 최대 부하 용량 : Do not exceed the maximum load capacity of 50 kg (110.2 lb) for these roof bars. Always refer to your vehicle's owner's manual for its specific roof load limit, and never exceed the lower of the two limits.
• 안전한 설치: Ensure all components are securely fastened according to the installation instructions. Loose components can detach during transit, causing damage or injury.
• 무게 분포 : Distribute the load evenly across the roof bars. Place heavier items at the bottom and center.
• 정기 점검: Before each trip and periodically during long journeys, check that all fasteners are tight and the load is secure.
• 주행 속도: Adjust your driving speed to suit road conditions, especially when carrying a load. High speeds, sudden braking, or sharp turns can affect vehicle stability.
• 차량 높이: Be aware of the increased height of your vehicle when roof bars and cargo are installed, especially when entering garages, car washes, or low-clearance areas.
• 날카로운 모서리: Avoid contact with sharp edges of cargo that could damage the roof bars or vehicle paintwork.

3. 패키지 내용

Upon unpacking, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

Figure 2: Visual representation of the main package contents.

• 2 x Black Steel Roof Bars
• 1 x Foot Kit (specific to vehicle model)
• 1 x Specific Mounting Kit (for SEAT Ibiza IV 5-door 2016 smooth roof)
• 1 x Set of Secure Anti-Theft Locks with Keys
• 조립 설명서 1부
• Bonus Accessory: 1 x Elastic Bungee Cord (approx. 200cm / 2 meters)
• Bonus Accessory: 1 x Pair of Nitrile-Coated Work Gloves

Figure 3: Included bonus accessories: elastic bungee cord and work gloves.

4. 설정 및 설치

Follow these steps carefully for proper installation. It is recommended to have a second person assist during the installation process.

4.1 Identify Your Vehicle's Roof Type

The installation method depends on whether your SEAT Ibiza IV has pre-existing "FIX POINT" attachments on the roof or a smooth roof without them.

• For Vehicles with FIX POINT Attachments: If your car is equipped with designated FIX POINT attachments, the specific kit for this type will be provided.

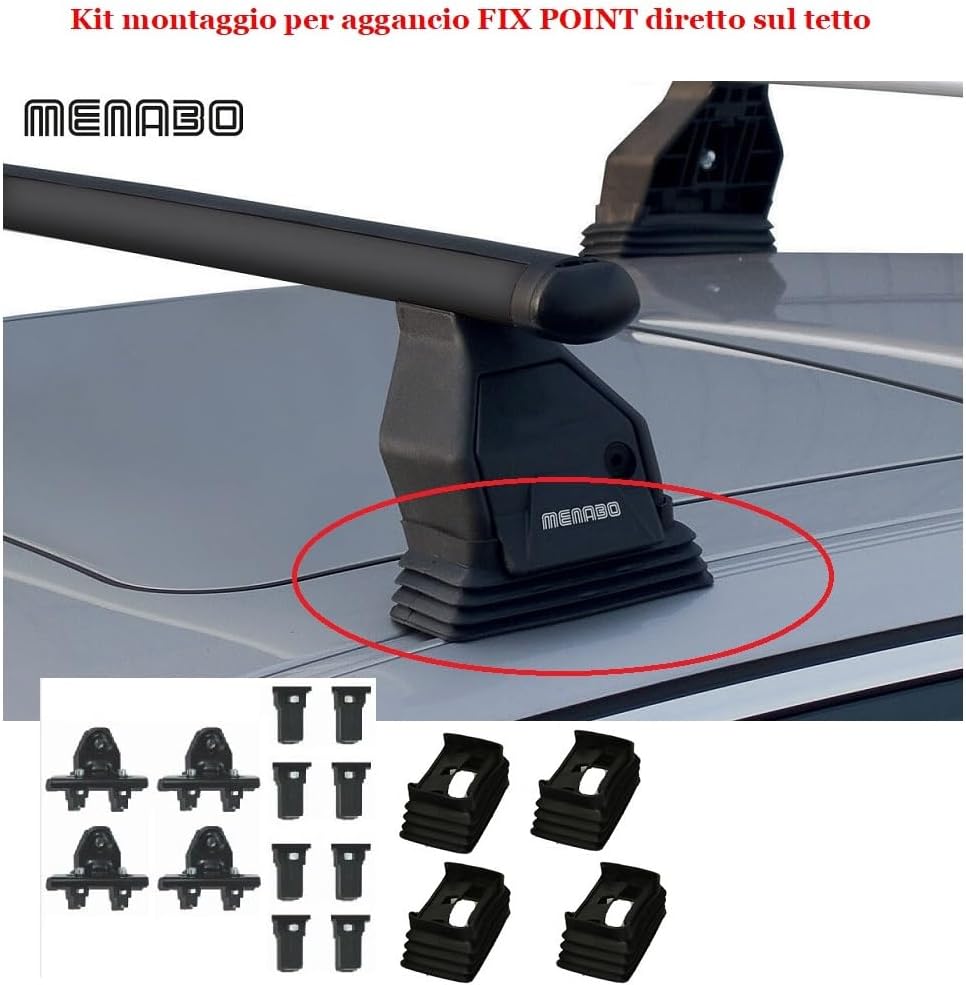

그림 4: 예ample of a roof bar foot mounted on a vehicle with a direct FIX POINT attachment.

• For Vehicles with Smooth Roof (No FIX POINT): If your car has a smooth roof without pre-existing FIX POINTs, a different mounting kit will be used, typically clamping onto the door frame.

Figure 5: Mounting kit components and typical installation for vehicles without FIX POINT attachments.

4.2 General Installation Steps (Refer to specific kit instructions for details)

1. 구성 요소 풀기: 긁힘을 방지하려면 모든 부품을 깨끗하고 부드러운 표면에 놓으세요.
2. Assemble Foot Kits: Attach the foot assemblies to the steel bars. Ensure they are oriented correctly (ovalized side up for noise reduction).
3. Attach Specific Mounting Hardware: Depending on your roof type (FIX POINT or smooth roof), attach the appropriate clamps, pads, or brackets to the foot assemblies. Ensure rubber pads are correctly positioned to protect your vehicle's paintwork.
4. Position Bars on Roof: Carefully place the assembled roof bars onto your vehicle's roof. Ensure they are correctly spaced and aligned according to your vehicle's specifications (refer to your car's manual or the specific kit instructions for exact measurements).
5. 안전한 고정: 모든 볼트를 조이고 clamps evenly. For smooth roof installations, ensure the clamps are firmly gripping the door frame without damaging the seals. Do not overtighten, but ensure there is no movement.
6. Install Anti-Theft Locks: Insert the anti-theft lock cylinders into the designated slots on the foot assemblies and secure them with the provided keys. This prevents unauthorized removal of the roof bars.


Figure 6: Anti-theft lock cylinders and keys for securing the roof bars.

7. 최종 확인: Gently push and pull on the installed roof bars to ensure they are firmly attached and do not wobble. Re-tighten any loose components.

Important: Always refer to the detailed assembly instructions included with your specific mounting kit for precise, step-by-step guidance tailored to your vehicle model.

5. 사용 설명서

Once installed, your Menabò roof bars are ready for use. Follow these guidelines for safe operation:

• 화물 적재:
  • Ensure the total weight of your cargo does not exceed the 50 kg (110.2 lb) maximum load capacity of the roof bars or your vehicle's roof load limit, whichever is lower.
  • Distribute the weight as evenly as possible across both bars.
  • Place heavier items at the bottom and center of the load.
  • Use appropriate tie-downs (like the included bungee cord or other straps) to secure all cargo firmly. Ensure there is no movement of the load during transit.
• 적재물을 싣고 운전하기:
  • Be mindful of the altered driving dynamics, especially in crosswinds, during braking, and when cornering.
  • Reduce your speed, particularly on uneven roads, during strong winds, or when making sharp turns.
  • The ovalized bar design helps reduce noise, but some wind noise may still be present, especially at higher speeds.
• Regular Checks During Travel: For long journeys, stop periodically to check the tightness of the roof bar fasteners and the security of your cargo.

6. 유지관리

Proper maintenance will extend the lifespan of your roof bars and ensure continued safe operation.

• 청소: 루프 바는 순한 비누와 물로 정기적으로 청소하십시오. 마감재를 손상시킬 수 있는 연마성 세척제나 용제 사용은 피하십시오.
• 점검: Periodically inspect all components for signs of wear, corrosion, or damage. Pay close attention to the rubber pads, clamps, and locking mechanisms. Replace any worn or damaged parts immediately.
• 매끄럽게 하기: Apply a small amount of silicone spray or light lubricant to the lock cylinders and moving parts of the clamping mechanism annually to ensure smooth operation.
• 저장: If you remove the roof bars for extended periods, store them in a dry, clean place away from direct sunlight and extreme temperatures.

7. 문제 해결

다음은 몇 가지 일반적인 문제와 이에 대한 잠재적 해결책입니다.

• 주행 중 과도한 소음:
  • Ensure the bars are installed with the ovalized side facing up, as designed to reduce wind noise.
  • Check that all components are tightly secured. Loose parts can vibrate and cause noise.
  • Verify that no cargo is vibrating or creating additional noise.
• Roof Bars Feel Loose After Installation:
  • Re-check all fastening points and ensure they are tightened according to the specific kit instructions.
  • Ensure the correct mounting kit for your vehicle's roof type (FIX POINT or smooth roof) has been used.
  • Verify that the rubber pads are correctly seated and not allowing slippage.
• Difficulty with Locks:
  • Apply a small amount of graphite powder or silicone spray to the lock cylinder and key.
  • Ensure no dirt or debris is obstructing the lock mechanism.

여기에 언급되지 않은 문제가 발생할 경우 고객 지원팀에 문의하세요.

8. 사양

9. 보증 및 지원

For warranty information, please refer to the documentation provided with your purchase or contact the retailer where you purchased the Menabò Steel Black Roof Bars. For technical support or inquiries regarding specific parts, please contact MOTO SPORT MONDO, the distributor, or your local authorized dealer.

보증 청구를 위해 구매 증빙 서류를 보관하세요.
