Efapel 45011 SBM Unipolar Switch Q45 Matte White User Manual

1. 서론

The Efapel 45011 SBM is a high-quality unipolar electrical switch designed for flush mounting installations. This mechanism is compatible with Efapel's Siza, Quadra, and Latina series decorative frames and cover plates. It is rated for 10AX at 250 V~, making it suitable for standard electrical circuits. This manual provides essential information for the safe and correct installation, operation, and maintenance of your Efapel 45011 SBM switch.

2. 안전 정보

• Always disconnect the main power supply at the circuit breaker or fuse box before attempting any installation, maintenance, or repair work on the switch or associated wiring. Failure to do so can result in serious injury or death.
• Installation should only be performed by a 자격을 갖춘 전기 기술자 or competent person in accordance with local electrical codes and regulations.
• 젖은 손으로 또는 젖은 상태에서 스위치를 조작하지 마십시오.amp 정황.
• 단락을 방지하기 위해 모든 전선 연결부가 단단히 고정되어 있고 적절하게 절연되어 있는지 확인하십시오.
• Do not exceed the specified electrical ratings (10AX, 250 V~).

3. 설정 및 설치

Follow these steps for the correct installation of your Efapel 45011 SBM unipolar switch:

1. 전원 분리: Turn off the electricity to the circuit at the main circuit breaker. Verify that the power is off using a voltag전자 테스터.
2. 배선 준비: Gently strip approximately 10-12mm of insulation from the ends of the electrical wires (typically one phase wire and one switched phase wire for a unipolar switch).
3. 전선 연결: Connect the wires to the appropriate terminals on the back of the Efapel 45011 SBM switch mechanism. Ensure the connections are tight and secure. For a unipolar switch, one terminal connects to the incoming phase (live) wire, and the other connects to the load (switched phase) wire.
4. 마운트 메커니즘: Carefully place the switch mechanism into the flush-mounting box in the wall. Secure it using the mounting screws provided with the box or mechanism.
5. Install Frame and Cover Plate: Attach the compatible Efapel Siza, Quadra, or Latina series decorative frame and cover plate over the switch mechanism. Ensure it snaps securely into place.
6. 복원력 : 설치가 완료되고 모든 구성 요소가 제자리에 단단히 고정되면 주 회로 차단기에서 전원을 다시 켜십시오.
7. 테스트 기능: Test the switch to ensure it operates correctly, turning the connected light or appliance ON and OFF.

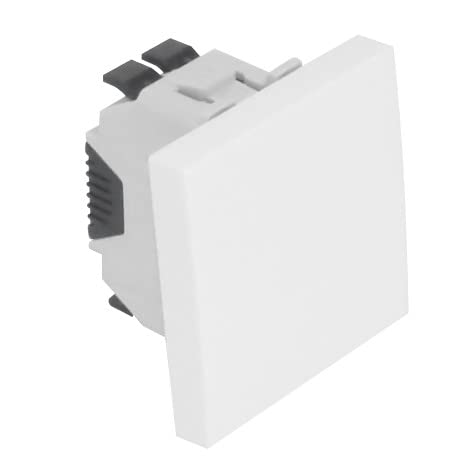

Image showing the Efapel 45011 SBM unipolar switch mechanism and its matte white finish, ready for installation.

4. 사용 설명서

The Efapel 45011 SBM unipolar switch is designed for simple operation:

• To turn the connected electrical circuit ON, press the switch rocker to the 'ON' position (typically the upper part).
• To turn the connected electrical circuit 끄다, press the switch rocker to the 'OFF' position (typically the lower part).

5. 유지관리

The Efapel 45011 SBM switch requires minimal maintenance:

• 청소: 스위치 표면을 청소하려면 부드럽고 마른 천이나 약간 거친 천을 사용하십시오.amp 천으로 닦아주세요. 연마성 세제, 용제 또는 강한 화학 물질은 마감재를 손상시킬 수 있으므로 사용하지 마세요.
• 점검: 스위치에 손상, 연결 불량 또는 변색 흔적이 있는지 정기적으로 점검하십시오. 문제가 발견되면 전원을 차단하고 자격을 갖춘 전기 기술자에게 문의하십시오.

6. 문제 해결

If you encounter issues with your Efapel 45011 SBM switch, consider the following:

• Switch Not Working (No Power):
  • Check if the main circuit breaker for the circuit is tripped. Reset if necessary.
  • Ensure power is restored to the circuit.
  • (With power disconnected) Verify that all wire connections to the switch terminals are secure.
• Switch Feels Loose in Wall:
  • (With power disconnected) Ensure the mounting screws securing the switch mechanism to the wall box are tightened.
• Light/Appliance Flickers or Does Not Turn On Reliably:
  • (With power disconnected) Check for loose or corroded wire connections at the switch and at the light fixture/appliance.
  • Ensure the light bulb or appliance is functioning correctly.

문제 해결 단계를 시도해도 문제가 해결되지 않으면 자격을 갖춘 전기 기술자에게 문의하십시오.

7. 사양

8. 보증 및 지원

Warranty information for the Efapel 45011 SBM unipolar switch is typically provided by the retailer at the time of purchase or by the manufacturer, EFAPEL. Please retain your proof of purchase for any warranty claims.

For technical support, further inquiries, or assistance with installation, please contact your authorized Efapel retailer or visit the official EFAPEL web연락처 정보 사이트.
