vidaXL Interior Door - Tempered Glass & Aluminum, 29.9" x 79.3" Instruction Manual

1. 서론

This manual provides comprehensive instructions for the assembly, installation, operation, and maintenance of your vidaXL Interior Door. This modern door features a slim aluminum frame and tempered glass panels, designed to enhance light flow and provide a contemporary aesthetic to your home or office space. Please read all instructions carefully before beginning assembly or installation.

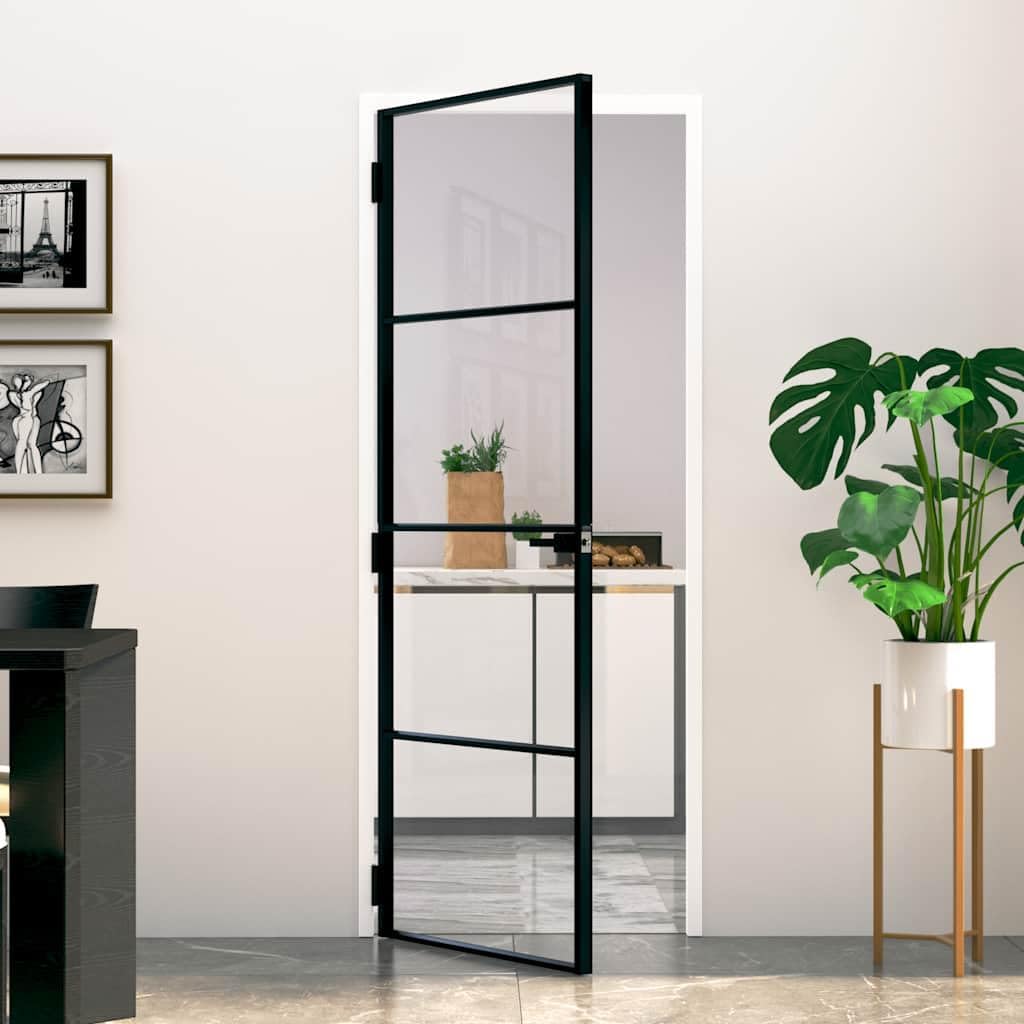

Image 1.1: The vidaXL Interior Door installed, showcasing its design and light-enhancing properties.

2. 안전 정보

• Always wear appropriate safety gear, including gloves and eye protection, during assembly and installation.
• Tempered glass, while strong, can break under extreme impact. Handle glass panels with care to prevent damage or injury.
• Ensure the door frame is securely mounted and level before hanging the door to prevent misalignment or instability.
• 작은 부품과 공구는 어린이의 손이 닿지 않는 곳에 보관하십시오.
• Assembly requires at least two people due to the weight and size of the door components.

3. 패키지 내용

조립을 시작하기 전에 모든 구성품이 있고 손상되지 않았는지 확인하세요. 부품이 누락되었거나 손상된 경우 고객 지원 센터에 문의하세요.

• Door panels (tempered glass)
• 알루미늄 프레임 부품
• Mounting materials (screws, hinges, etc.)
• Door handle and latch assembly
• 사용 설명서

4. 설치 및 조립 지침

The vidaXL Interior Door requires assembly. Follow these general steps. Refer to the detailed diagrams for specific component placement.

4.1. 오프닝을 준비하세요

Ensure your door frame opening is within the recommended dimensions. The door is designed for a 1.4"-2" door frame.

Image 4.1: Installation dimensions. A: 76 cm (29.9 inches), B: 201.5 cm (79.3 inches), C: 76.5 cm (30.1 inches), D: 202.4 cm (79.6 inches).

4.2. 프레임 조립

1. Carefully unpack all aluminum frame components.
2. Connect the vertical and horizontal frame pieces using the provided connectors and screws. Ensure all connections are tight and secure.
3. Verify the frame is square and level before proceeding.

Image 4.2: Detail of the slim aluminum frame profile.

4.3. 유리 패널 설치

1. With assistance, carefully insert the tempered glass panels into the assembled frame.
2. Secure the glass panels using the provided gaskets or retaining strips. Ensure a snug fit to prevent rattling. Applying a thin bead of silicone sealant around the glass edges can further secure the panels and prevent rattling, as suggested by some users.

4.4. Attach Hinges and Handle

1. Attach the hinges to the door frame and the door panel according to the diagrams.
2. Install the door handle and latch assembly. Ensure the latch mechanism operates smoothly.

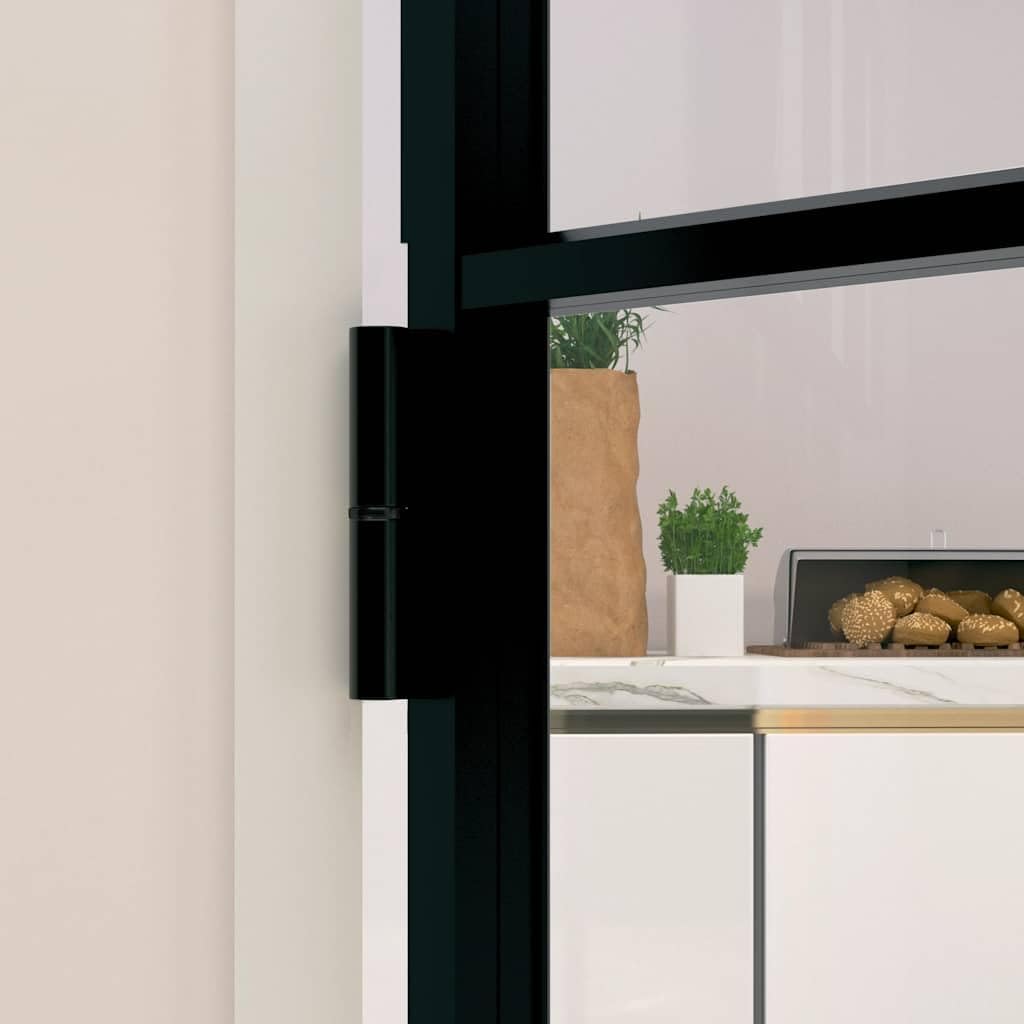

Image 4.3: Detail of the door hinge.

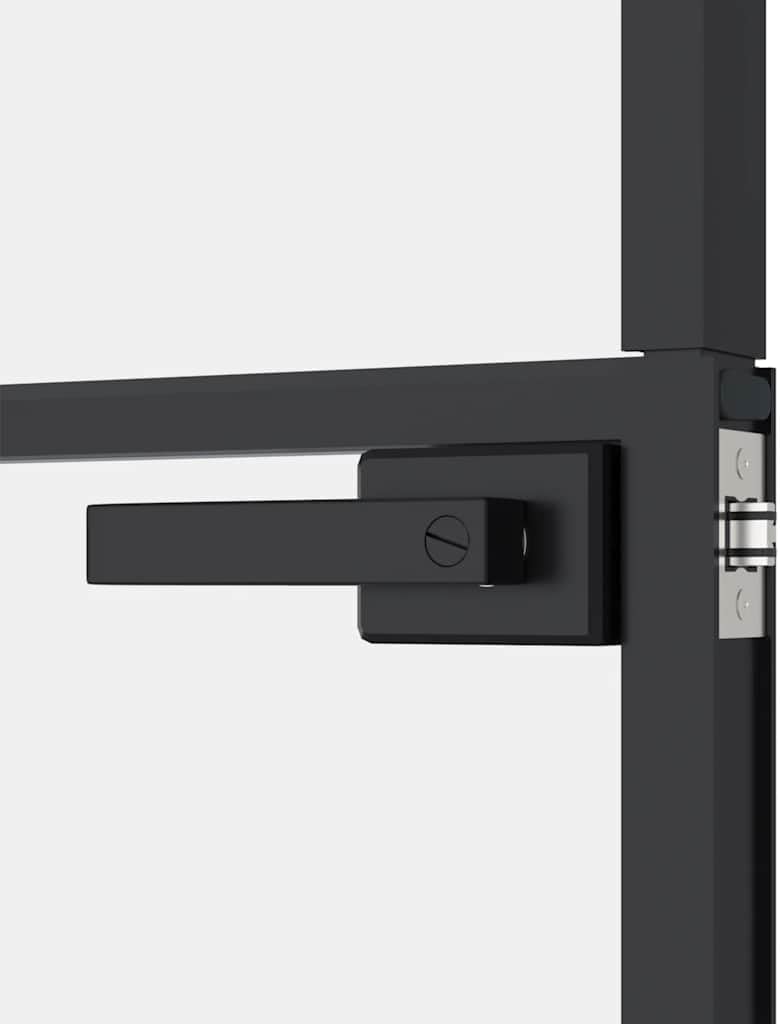

Image 4.4: Detail of the door handle.

4.5. Install the Door

1. With assistance, carefully lift the assembled door and align the hinges with the pre-drilled holes in your door frame.
2. Secure the door to the frame using the provided screws.
3. Test the door's swing and ensure it opens and closes smoothly without binding. Adjust hinges if necessary.

5. 사용 설명서

To open the door, depress the handle and pull or push the door. To close, gently push the door until the latch engages. Ensure the door closes fully to maintain privacy and light separation.

6. 유지관리

6.1. 청소

• 유리 패널: Clean with a standard glass cleaner and a soft, lint-free cloth. Avoid abrasive cleaners or tools that could scratch the glass.
• 알루미늄 프레임: 광고로 지우기amp cloth and mild detergent. Dry thoroughly. Avoid harsh chemicals.

6.2. 정기 점검

• Periodically check all screws and fasteners for tightness, especially on hinges and the handle. Tighten if necessary.
• Inspect glass panels for any cracks or damage. Replace damaged panels immediately for safety.
• Lubricate hinges annually with a silicone-based lubricant to ensure smooth operation.

7. 문제 해결

• Door rattles: Ensure glass panels are securely seated within the frame. Consider applying a thin bead of clear silicone sealant around the edges of the glass where it meets the frame. Check all frame connections for tightness.
• 문이 부드럽게 닫히지 않습니다. Check hinges for proper alignment and tightness. Ensure the door frame is plumb and square. Adjust hinges as needed.
• 손잡이가 헐거워요: Tighten the screws securing the handle assembly.
• Door is stiff to open/close: Lubricate hinges with a suitable lubricant. Check for any obstructions in the door's path.

8. 사양

Image 8.1: Overall dimensions of the door: 76 cm (29.9 inches) width, 201.5 cm (79.3 inches) height, and 3.5 cm (1.4 inches) thickness.

9. 보증 정보

For detailed warranty information regarding your vidaXL Interior Door, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms and conditions may vary.

10. 고객 지원

If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact vidaXL customer service through their official website or the retailer from whom you purchased the product. Have your model number (153658) and purchase details ready for faster service.
