microSHIFT Centos 10-Speed Rear Derailleur User Manual

1. 서론

Thank you for choosing the microSHIFT Centos 10-Speed Rear Derailleur. This high-performance component is engineered for precision shifting and durability, designed to enhance your road and gravel cycling experience. Crafted with full aluminum construction, the Centos offers lightweight performance without compromising strength. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your derailleur.

2. 중요한 안전 정보

• 전문 설치 권장: For optimal safety and performance, it is highly recommended that this component be installed by a qualified bicycle mechanic.
• 지침을 주의 깊게 읽으십시오: Before installation or use, thoroughly read and understand all instructions in this manual.
• 안전 장비 착용: 설치 또는 유지 보수 작업을 수행할 때는 항상 눈 보호구를 포함한 적절한 안전 장비를 착용하십시오.
• 정기 검사: Periodically inspect the derailleur and associated components for wear, damage, or loose fasteners. Replace worn or damaged parts immediately.
• 적절한 도구: Use only appropriate bicycle-specific tools for installation and adjustments.

3. 패키지 내용

패키지에 모든 구성 요소가 들어 있는지 확인하세요.

• 1 x microSHIFT Centos 10-Speed Rear Derailleur

4. 제품 오버view

The microSHIFT Centos Rear Derailleur is a high-performance component designed for 10-speed road and gravel drivetrains. It features a short cage design, optimized for a largest cog capacity of 30 teeth and a chain wrap capacity of 35 teeth. Its full aluminum construction ensures a lightweight yet durable design, finished in a sleek black color for corrosion resistance and aesthetic appeal.

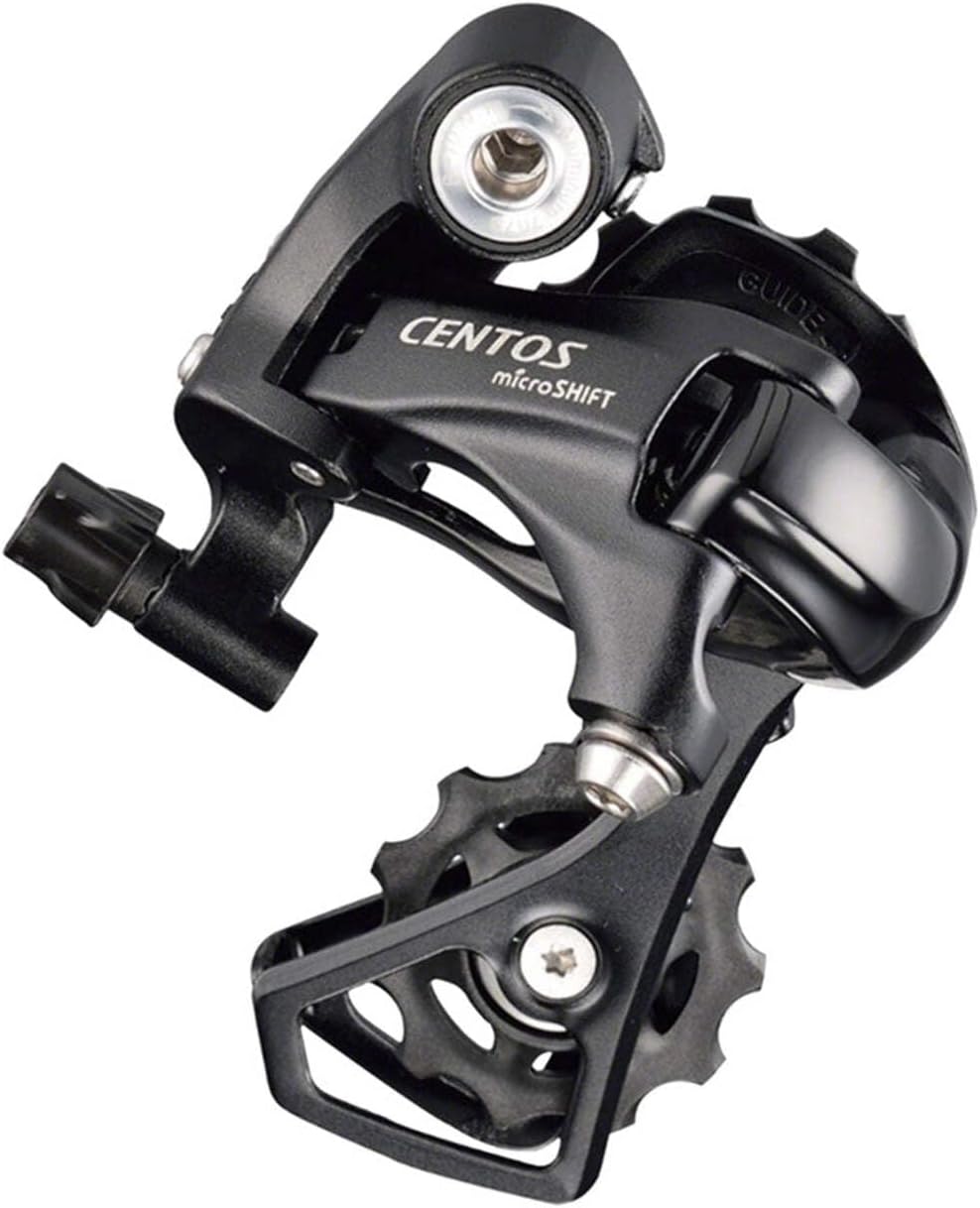

Image: The microSHIFT Centos 10-Speed Short Cage Rear Derailleur, showcasing its black aluminum construction and pulley system. The 'CENTOS microSHIFT' logo is visible on the main body.

5. 설정 및 설치

This derailleur is compatible with Tiagra 4700 10-speed road shifters and GRX R400 shifters. Ensure your drivetrain components are compatible before installation.

5.1 변속기 장착

1. Ensure the derailleur hanger on your frame is straight and undamaged.
2. Apply a small amount of grease to the derailleur hanger bolt threads.
3. Thread the derailleur onto the hanger. Tighten the mounting bolt to the manufacturer's specified torque (typically 8-10 Nm).

5.2 케이블 설치 및 배선

1. Route the shift cable from your shifter through the frame and into the derailleur's cable stop.
2. Ensure the cable housing is cut to the correct length and that the ends are properly prepared with ferrules.
3. With the shifter in the highest gear (smallest cog position), pull the cable taut and secure it to the derailleur's cable fixing bolt. Tighten the bolt to the specified torque.

5.3 Limit Screw Adjustment

Adjust the High (H) and Low (L) limit screws to prevent the chain from shifting beyond the smallest and largest cogs, respectively.

• High Limit (H): With the chain on the smallest cog, turn the H-screw until the guide pulley aligns directly under the smallest cog.
• Low Limit (L): With the chain on the largest cog, turn the L-screw until the guide pulley aligns directly under the largest cog.

5.4 B-Tension Adjustment

Adjust the B-tension screw to set the gap between the guide pulley and the largest cog. This gap should be approximately 5-6mm for optimal shifting performance.

6. 사용 설명서

The microSHIFT Centos Rear Derailleur provides smooth and accurate 10-speed gear changes. To operate, use your compatible shifter to move the chain between different cogs on your cassette.

• Shifting Up (to smaller cogs): Press the appropriate lever on your shifter to move the chain to a smaller, higher-speed cog.
• Shifting Down (to larger cogs): Press the appropriate lever on your shifter to move the chain to a larger, lower-speed cog.
• 부드러운 변속: Always pedal forward with moderate pressure when shifting. Avoid shifting under heavy load or while standing on the pedals.

7. 유지관리

Regular maintenance will prolong the life and performance of your derailleur.

• 청소: Regularly clean the derailleur, especially the pulleys, with a degreaser and brush. Rinse thoroughly and dry.
• 매끄럽게 하기: Apply a small amount of bicycle-specific lubricant to the pivot points of the derailleur and the pulley bearings after cleaning or if they appear dry. Avoid over-lubrication.
• 케이블 및 하우징: Inspect shift cables and housing for fraying, kinks, or corrosion. Replace them annually or as needed to maintain crisp shifting.
• 풀리 점검: Check the guide and tension pulleys for wear. Worn pulleys can lead to poor shifting and chain noise. Replace if teeth are visibly worn or damaged.

8. 문제 해결

If you experience issues with your derailleur, refer to the following common problems and solutions:

• 변속 성능 저하:
  • Check cable tension using the barrel adjuster on the derailleur or shifter.
  • Verify limit screw adjustments (H and L).
  • Inspect cable and housing for friction or damage.
  • 변속기 행어가 휘어지지 않았는지 확인하십시오.
• Chain Rubbing or Noise:
  • Adjust B-tension screw to ensure proper clearance between the guide pulley and the largest cog.
  • Check for worn chain or cassette cogs.
• Derailleur Not Moving:
  • Ensure the shift cable is properly attached and not broken.
  • Check for obstructions or damage to the derailleur body.

For persistent issues, consult a professional bicycle mechanic.

9. 기술 사양

10. 보증 및 지원

10.1 제한 보증

This microSHIFT Centos Rear Derailleur is covered by a Limited Warranty. Please refer to the warranty documentation provided with your purchase or visit the official microSHIFT web보장 범위, 기간, 청구 절차 등에 대한 자세한 약관은 해당 사이트에서 확인하세요.

10.2 고객 지원

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact microSHIFT customer support through their official website or your authorized dealer. When contacting support, please have your product model name (Centos Rear Derailleur) and part number (microSHIFT-RRDR0379) available.
