KOSUMOSU 15" 3D LED Digital Wall Clock Instruction Manual

소개

Thank you for choosing the KOSUMOSU 15" 3D LED Digital Wall Clock. This manual provides detailed instructions for setting up, operating, and maintaining your new clock. Please read this manual thoroughly before use to ensure proper functionality and longevity of the product.

안전 정보

• 전원 공급 장치: This LED clock requires a 5V/1A plug-in USB-A adapter (not included) to operate. It is not a wireless clock. Ensure you use a regular, compliant 5V/1A adapter from a professional manufacturer to prevent freezing, flickering, or humming.
• Button Battery Warning (Remote Control): The remote control contains a CR2025 button battery.
  • 섭취 위험: 이 제품에는 단추형 또는 동전형 배터리가 들어 있습니다.
  • 섭취하면 사망이나 심각한 부상이 발생할 수 있습니다.
  • 버튼형 전지나 코인 배터리를 삼키면 다음과 같은 원인이 될 수 있습니다. 내부 화학 화상 단 2시간 만에.
  • 새 배터리와 사용한 배터리는 어린이의 손이 닿지 않는 곳에 보관하세요.
  • 배터리를 삼켰거나 신체 내부에 삽입된 것으로 의심되는 경우 즉시 의사의 진료를 받으십시오.
• 놓기: Avoid placing the clock in direct sunlight or near heat sources to prevent damage.
• 청소: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or immerse the clock in water.

패키지 내용

패키지에 모든 품목이 들어 있는지 확인하세요.

• 1 x KOSUMOSU 15" 3D LED Digital Wall Clock
• 1 x Remote Control (with CR2025 button battery installed)
• 1 x 3-meter USB Power Cable
• 1 x Bracket Base (for desk placement)
• Wall-mounted accessories (screws and anchors)
• 사용 설명서 (본 문서)

Image: Contents of the KOSUMOSU 15" 3D LED Digital Wall Clock package, including the clock, remote control, USB cable, bracket base, and wall mounting hardware.

제품 끝view

The KOSUMOSU 15" 3D LED Digital Wall Clock features a modern design with clear digital display. It offers multiple functions including time, date, temperature, and alarm with snooze. The clock can be placed on a desk using the included stand or mounted on a wall. Brightness is adjustable manually via remote control or automatically via a built-in light sensor.

Image: The KOSUMOSU 15" 3D LED Digital Wall Clock displaying time, with its sleek white design.

설정

1. 전원 연결

1. Connect the provided 3-meter USB power cable to the clock's power input port.
2. Plug the other end of the USB cable into a 5V/1A USB-A power adapter (not included).
3. Plug the power adapter into a wall outlet. The clock display will illuminate.

2. 배치 옵션

• 책상 배치: Attach the included bracket base to the bottom of the clock for stable placement on any flat surface.
• 벽면 장착: Use the wall-mounted accessories (screws and anchors) to securely hang the clock on a wall. The clock has designated holes on the back for this purpose.

Image: The KOSUMOSU 15" 3D LED Digital Wall Clock displayed in a modern living room, showcasing its versatility for wall or desk placement.

작동 지침

The clock can be operated using the included remote control or the buttons located on the top of the clock (SET, UP, DOWN, Reset).

1. Setting Time (12/24 Hour Format)

• Press the "CLOCK" button on the remote control to enter time setting mode.
• Use the "UP" or "DOWN" arrows to adjust the hours and minutes.
• Briefly press the "UP" arrow button (Δ) on the remote control to toggle between 12-hour and 24-hour formats.
• Press "CLOCK" again to confirm and exit.

2. Setting Date

• Press the "CLOCK" button multiple times until the date display appears.
• Use the "UP" or "DOWN" arrows to adjust the year, month, and day.
• Press "CLOCK" again to confirm and exit.

3. Setting Temperature (Celsius/Fahrenheit)

• Briefly press the "LEFT" arrow button (◁) on the remote control to loop display among Date, Time, or Temperature.
• Once temperature is displayed, press the "TEMP" button to switch between Celsius (℃) and Fahrenheit (℉).

4. 알람 설정

• Press the "ALARM" button on the remote control to enter alarm setting mode.
• Use the "UP" or "DOWN" arrows to set the desired alarm time.
• The alarm includes a snooze function. When the alarm rings, you can get an extra 5 minutes of snooze time (up to 3 times) before it rings again.
• Press "ALARM" again to confirm and exit.

5. 밝기 조정

• 수동 디밍: Use the "BRIGHT" button on the remote control to cycle through High, Medium, Low, or Light Off settings.
• 자동 디밍: The clock features a built-in light sensor that provides 8 levels of automatic dimming based on ambient light conditions. This ensures clear readability in both strong light and dark environments.

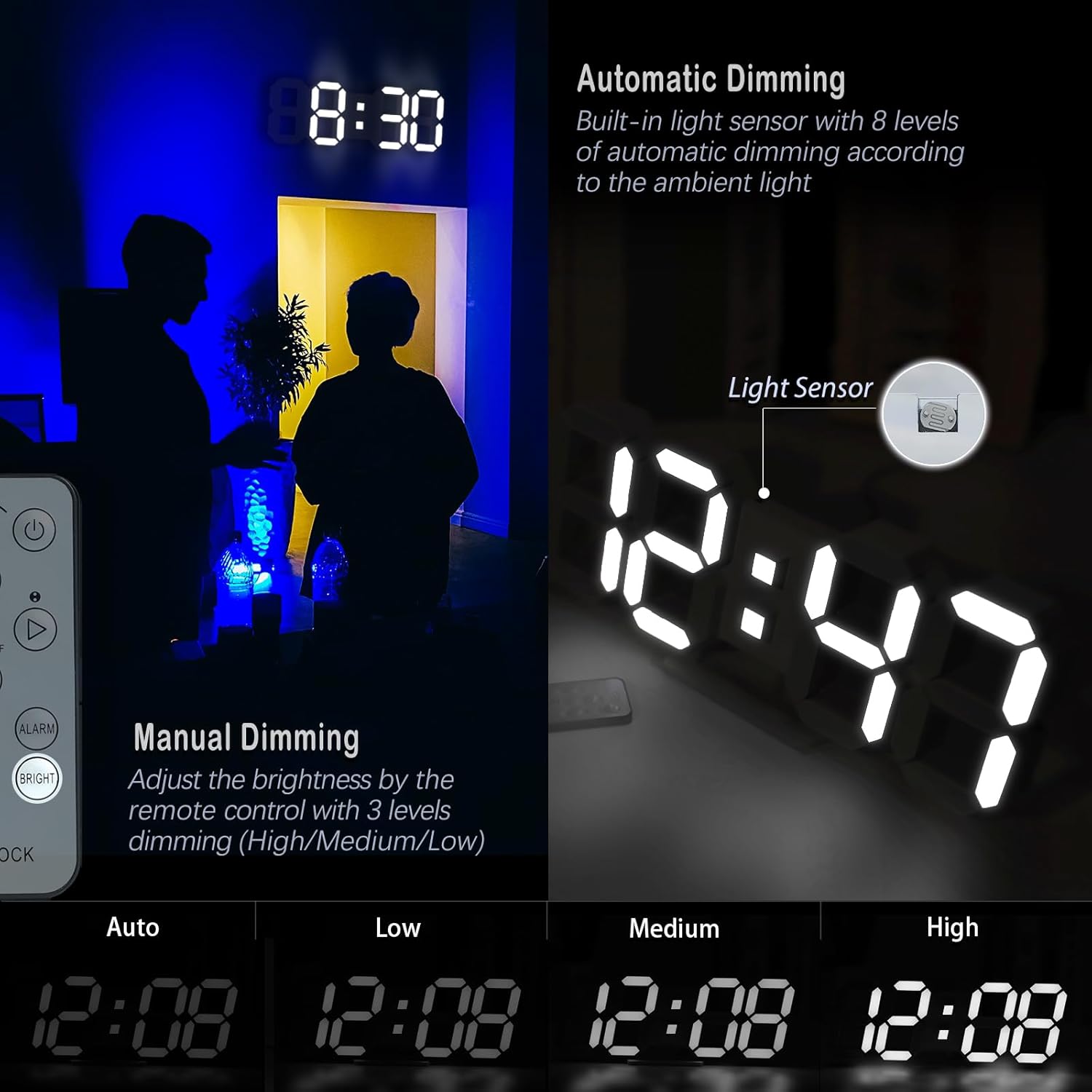

Image: Illustration of the clock's manual dimming (High, Medium, Low) and automatic dimming features, controlled by the remote and a light sensor.

6. Loop Display Mode

• Briefly press the "LEFT" arrow button (◁) on the remote control to cycle the display between time, date, and temperature.

Image: The clock displaying time, date (September 5), and temperature (64°F) in a looping sequence.

유지

• 청소: Wipe the clock surface with a soft, dry cloth. Do not use liquid cleaners or sprays directly on the clock.
• 리모컨 배터리: The remote control uses a CR2025 button battery. Replace it when the remote's functionality diminishes. Refer to the safety information regarding button batteries.
• 전원 케이블 : Ensure the USB power cable is not bent, twisted, or damaged. A damaged cable can affect performance.

Image: The remote control for the KOSUMOSU clock, highlighting the CR2025 button battery and a warning about ingestion hazards.

문제 해결

• Clock Freezes, Flickers, or Hums: This often indicates an unstable or incompatible power adapter that cannot provide sufficient current. Replace with a regular, compliant 5V/1A USB-A adapter from a professional manufacturer.
• 원격 제어가 작동하지 않음:
  1. Ensure the transparent battery insulation sheet is removed from the bottom of the remote control.
  2. Aim the remote control directly at the infrared sensor located on the bottom of the clock. Avoid any obstructions. The effective distance is approximately 3.5 meters.
  3. Replace the CR2025 button battery if necessary.
• Time Separator (colon) Blinking: To stop or flash the time separator, press the "RIGHT" arrow button (▷) on the remote control.
• Alarm Not Ringing: Check the alarm time setting and ensure the 12h/24h format is correctly configured (e.g., AM/PM for 12h format).

명세서

Image: A visual comparison between the 15-inch and 9.7-inch KOSUMOSU LED Digital Clocks, highlighting their respective sizes and specifications.

보증 및 지원

The KOSUMOSU 15" 3D LED Digital Wall Clock comes with a 2년 보증.

If you encounter any quality or usage issues with your product, please contact KOSUMOSU TECHNOLOGY customer service immediately via Amazon mail (chat box). We are committed to providing solutions, including replacement or guidance for product use and settings.
