1. 소개 및 이상view
The Philips HR7303/91 Multiprocessor Food Kitchen System is designed to provide versatile food preparation capabilities with its powerful 1000W motor and a range of 8 accessories. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance.
주요 특징:
- 1000W 모터: Delivers powerful performance for various tasks.
- PowerChop Technology: Ensures optimal chopping results for both hard and soft ingredients.
- 1.5L Container Capacity: Suitable for preparing meals for the entire family.
- 2 속도 설정: Color-coded for precise control over different functions.
- 8가지 다재다능한 액세서리: Includes S-Blade, 2L Blender Jug, Slicing and Grating Disc, Julienne Disc, Potato Chips Disc, Citrus Juicer, Kneading Tool, and Grinder.
2. 안전 정보
제품을 사용하기 전에 모든 안전 지침을 주의 깊게 읽으십시오. 이 지침을 따르지 않으면 감전, 화재 또는 심각한 부상이 발생할 수 있습니다.
- 부품을 청소하거나 조립/분해하기 전에 항상 제품의 플러그를 뽑아주세요.
- Keep hands and utensils away from moving blades or discs while operating.
- 제품을 작동하기 전에 모든 부품이 올바르게 조립되었는지 확인하십시오.
- 모터 장치를 물이나 다른 액체에 담그지 마십시오.
- 이 제품은 가정용으로만 사용하세요.
- Do not operate the appliance if the cord, plug, or any other part is damaged.
- 어린이의 손이 닿지 않는 곳에 보관하세요.
3. 제품 구성품

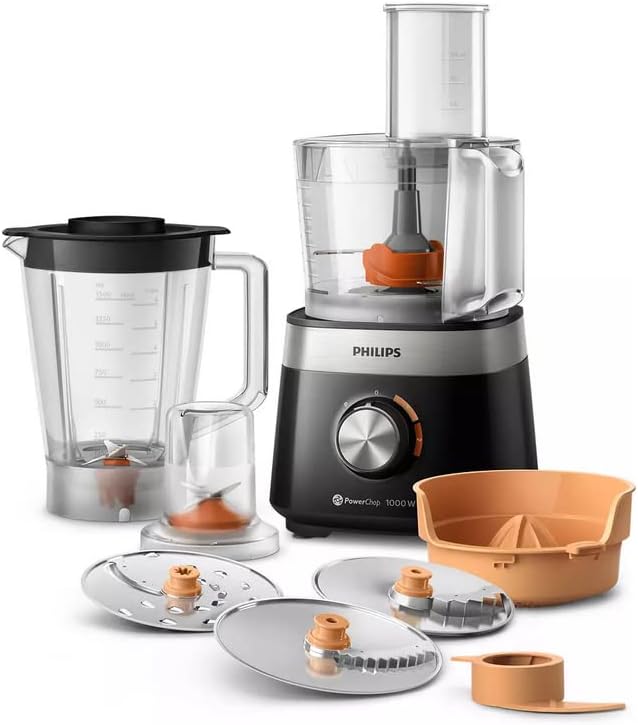

The Philips HR7303/91 comes with a range of accessories to enhance its functionality:
- 메인 모터 유닛: The base unit housing the 1000W motor and speed control dial.
- 푸드 프로세서 용기: The primary processing bowl for chopping, slicing, and grating.
- S-Blade: Used for chopping, mixing, and pureeing ingredients in the food processor bowl.

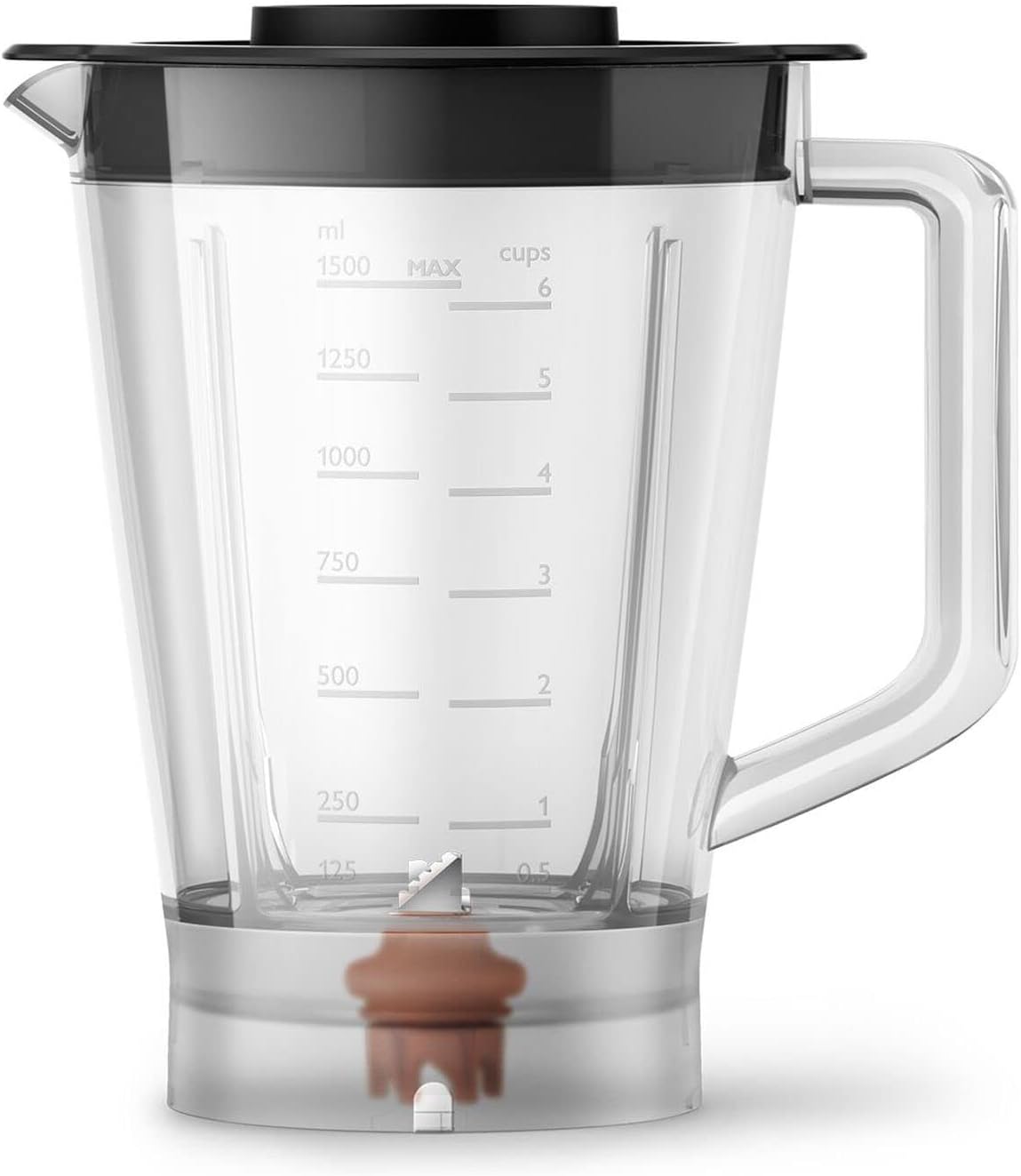

- 2L Blender Jug: For blending liquids, smoothies, and soups. It has clear measurement markings.
- Full Metal 2-in-1 Slice and Grate Disc: A reversible disc for both slicing and grating various foods.

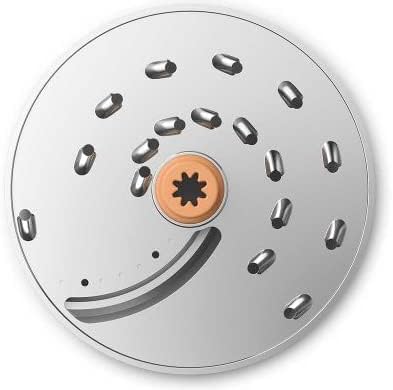

- Full Metal Disc for Julienne Cutting: Creates thin, matchstick-like strips of vegetables.
- Full Metal Disc for Making Potato Chips: Specifically designed for cutting potatoes into chip shapes.
- 감귤류 착즙기: Extracts juice from citrus fruits directly into the food processor bowl.
- 반죽 도구: For mixing and kneading dough for bread, pastries, and more.
- 분쇄기: A compact attachment for grinding small quantities of dry ingredients like coffee beans or spices.
4. 설정
Before first use, wash all detachable parts thoroughly. Ensure the motor unit is placed on a stable, flat, and dry surface.
- Assemble the Food Processor: Place the food processor bowl onto the motor unit. Rotate clockwise until it locks into place. Insert the desired accessory (e.g., S-blade, disc holder with disc) onto the central shaft. Secure the lid onto the bowl, ensuring it locks correctly.
- Assemble the Blender: Place the blender jug onto the motor unit. Rotate clockwise until it locks into place. Ensure the lid is securely fastened.
- 전원 연결: 기기를 접지된 전기 콘센트에 꽂습니다.
5. 사용 설명서
The appliance features two speed settings for optimal control.
- 준비: Ensure the appliance is correctly assembled with the desired accessory and ingredients are prepared (e.g., cut into appropriate sizes for discs).
- 재료 추가: Place ingredients into the food processor bowl or blender jug. Do not overfill beyond the maximum level indicated.
- 속도 선택: Turn the speed control dial to the desired setting (Speed 1 or Speed 2). Use lower speeds for softer ingredients or light mixing, and higher speeds for harder ingredients or more intensive processing.
- 처리 중: Allow the appliance to process until the desired consistency is achieved. For discs, feed ingredients through the feeder tube.
- 끄다: Turn the speed control dial back to the '0' (off) position after use.
- 분해: Unplug the appliance. Carefully remove the lid, then the accessory, and finally the bowl/jug.
Specific Accessory Usage:
- Slicing/Grating/Julienne/Potato Chips Discs: Always use the pusher to guide ingredients through the feeder tube. Never use your fingers.
- 감귤류 착즙기: Place the juicer attachment on the motor unit. Press half a citrus fruit onto the reamer and apply gentle pressure.
- 분쇄기: Attach the grinder cup with ingredients to the motor unit. Operate in short bursts for best results.
6. 유지관리 및 청소
Regular cleaning ensures the longevity and hygienic operation of your Philips Multiprocessor.
- 플러그를 뽑다: 세척하기 전에는 항상 기기의 플러그를 뽑으세요.
- 분해: 탈착 가능한 부품을 모두 분해합니다.

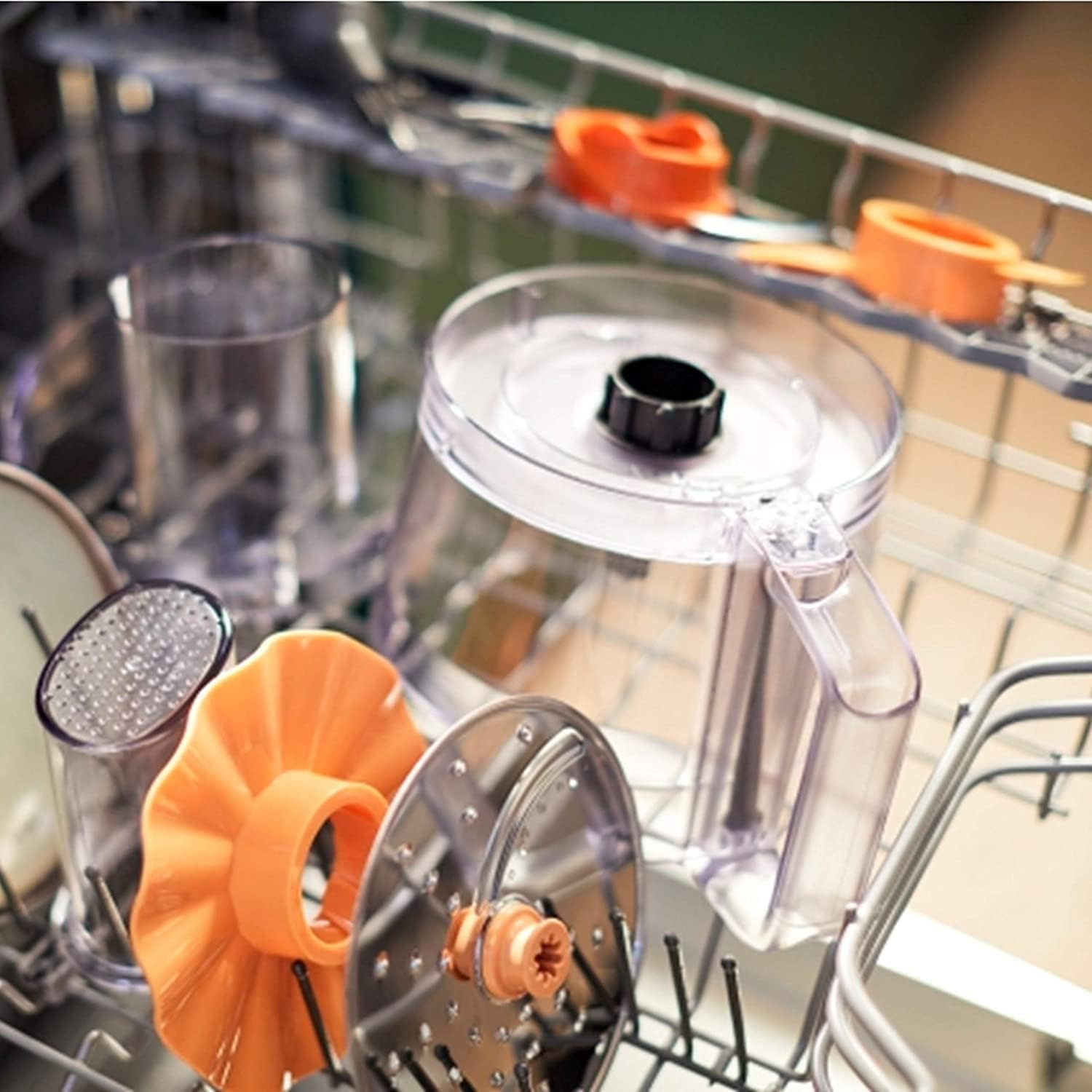

- 세탁: All detachable parts (bowls, jugs, lids, blades, discs, juicer, kneading tool, grinder cup) are 식기 세척기 사용 가능. Alternatively, wash them in warm soapy water using a soft brush for blades and discs, then rinse thoroughly and dry.
- 모터 유닛: 모터 유닛을 광고로 닦으세요.amp 옷감. 절대로 물에 담그지 마세요.
- 저장: 제품과 부속품은 건조한 곳에 보관하십시오.
7. 문제 해결
기기에 문제가 발생하면 다음의 일반적인 문제와 해결 방법을 참조하세요.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 기기가 켜지지 않습니다. | Not plugged in, parts not assembled correctly, or safety lock not engaged. | Ensure the power cord is securely plugged in. Check that the bowl/jug and lid are correctly locked into position. |
| 작동 중에 모터가 멈춥니다. | 과부하 보호가 활성화되었습니다. | Switch off and unplug the appliance. Remove some ingredients. Let the motor cool down for 15-30 minutes before restarting. |
| 재료들이 고르게 가공되지 않았습니다. | Too many ingredients, ingredients too large, or incorrect speed setting. | Reduce the quantity of ingredients. Cut larger ingredients into smaller pieces. Use a higher speed setting if appropriate. |
| Leakage from the bowl/jug. | Lid not properly sealed or overfilled. | Ensure the lid is securely closed and locked. Do not exceed the maximum fill level. |
이러한 해결 방법을 시도한 후에도 문제가 지속되면 Philips 고객 지원팀에 문의하세요.
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 필립스 |
| 모델명 | HR7303/91 |
| 왓tage | 1000 와트 |
| 속도의 수 | 2 |
| 컨테이너 용량 | 1.5 Litres (Food Processor Bowl), 2 Litres (Blender Jug) |
| 블레이드 소재 | 금속 |
| 본체 소재 | 플라스틱 |
| 특징 | 충격 저항 |
| 제품 관리 지침 | Dishwasher Safe (detachable parts) |
| 품목 무게 | 8.58파운드 |
| 패키지 크기 | 14.57 x 12.99 x 10.24 인치 |
9. 보증 및 지원
This Philips HR7303/91 Multiprocessor Food Kitchen System comes with a 2년 보증 구매일로부터. 보증 청구를 위해 구매 증빙을 보관하세요.
For technical support, service, or to register your product, please visit the official Philips web사이트 또는 고객 서비스 부서에 문의하십시오.
온라인 지원: www.philips.com/support
